Siemens Revision Flashcards

1
Q

How do we turn on the park Brake?

A

Turret switch
Neutral & B6
Place key in off position and / remove key

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

When does the park brake automatically apply?

A

Key is off or out
Main res pressure is below 350 kPa

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

What items give you critical defect fault lights?

A

Brakes - major failure of friction brake system

Both SIVS have failed

Sanders - loss of sanders due to wheel slip

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

What do HSCB protect

A

Traction system

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What does battery system do?

A

Provides battery back up if overhead is lost
Powers step light panto motor and cab fluro
Keep EP brakes running (110v system)
Keep 110v system going

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

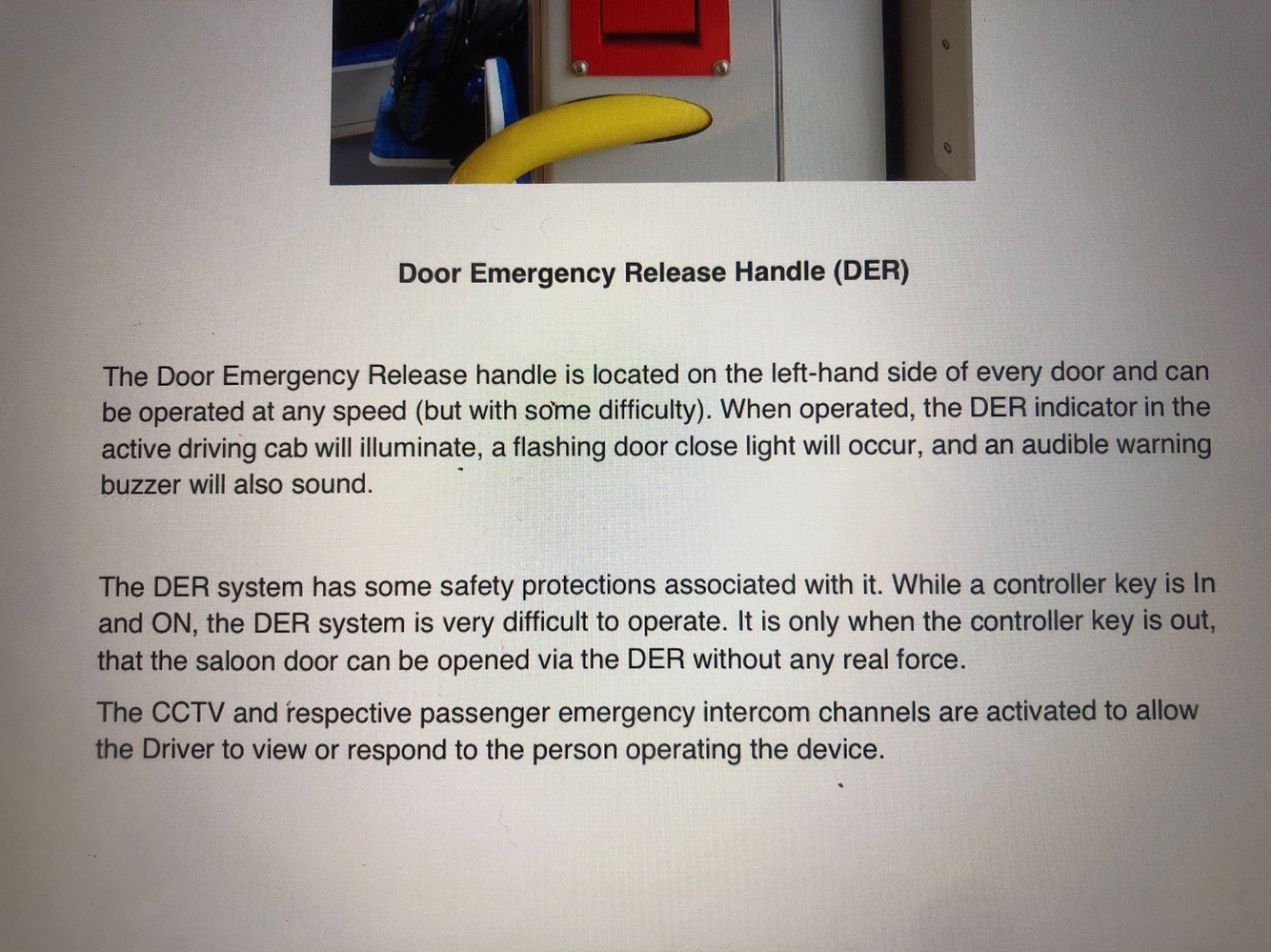

If DER is pulled in cab what indicators do you get?

A

FDCL
Audible buzzer
DER indicator light flashes in active cab

  • CCTV & EI channels are activated
  • when key is in & on, door is very hard to open
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What will engage the safety loop automatically?

A

DM CTV

V Letting VIVERS time out
T. Trip activated
C. Couplers auto fail
D. Derailment
M. Mr pressure below 600

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What is part of the air supply system?

A

Compressor
Air dryers
Compressor pressure switch

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

What fault lights on the fault panel are train lined?

A

SAFETY LOOP
Maintenance
CRITICAL FAULT
Reduced Performance
DOOR SYSTEMS
Compressor

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

If a train was prepped by another driver and has been relieved, what must a driver do for pre departure checks?

A
  • Activate the cab
  • Ensure EMY brakes release to Holding pressure

. Ensure safety loop light extinguishes

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

equipment requiring compressed air

A

Aux res
Air suspension res
Whistle
Park brake

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

What function does HSCB perform?

A

Protects the traction equipment

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

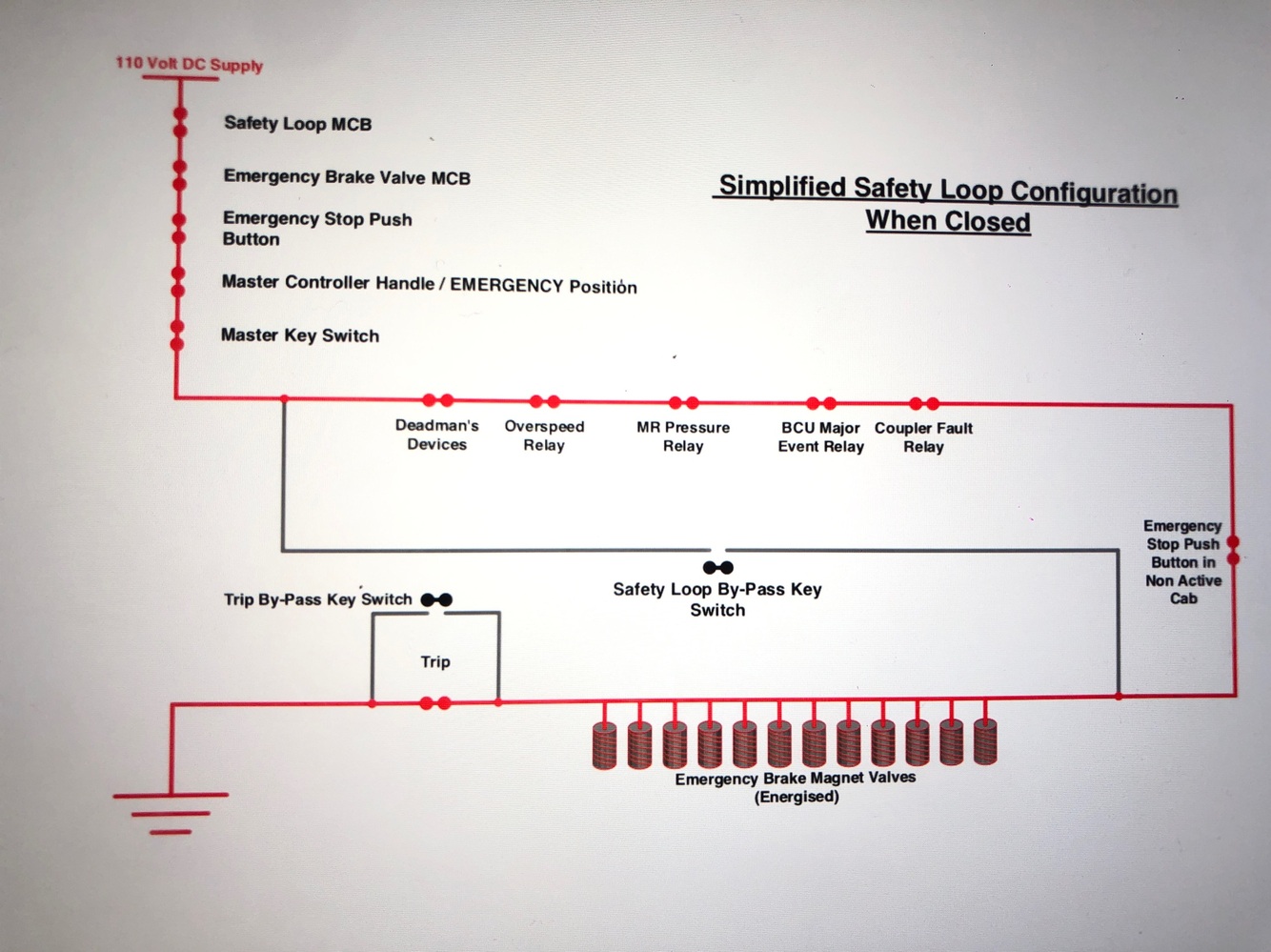

Safety LoopConfiguration Diagram

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What will apply EMY brake manually?

A
  • ESB pressed in any cab
  • MC into EMY
  • Operating DEADMANS DEVICES to become Active
  • MC in OFF
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

At what speed Will Emergency Brakes apply automatically?

A

125 km/h

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

What pressure the safety valve between compressor and air dryers set at.

A

1100 kPa

17
Q

What pressure is safety valves set at between the air dryers & main Res ?

A

1050

18
Q

What is the maximum speed with deflated or isolated airbags ?

A

80km/h

Travel as per isolated bogies isolated procedure to a max of 80.

(Siemens airbags have an internal spring)
