HCMT Saloon Equipment

Question 1

What does the doors system consist of?

Answer 1

• saloon doors

• Cab doors

• Internal Fire Door(IFD)

• Cab bulkhead door

• Emergency ladder and ladder box

Question 2

What colour will the door leaf be if it is isolated or locked?

Answer 2

RED

Question 3

What are the 3 functions of the Door Isolation Lamp?

Answer 3

1. It flashes for 1 second after a door close command being issued, then continues to flash while the door closes
2. It illuminates, if the door is isolated or faulty
3. It illuminates when the automatic selective door control (ASDC), detects that the door is not aligned with the platform correctly

Question 4

Can a door that is isolated and locked in the close position, be opened via an internal or external DER

Answer 4

NO

Question 5

What is the external DER known as?

Answer 5

EAD (emergency access device)

Question 6

What is the internal DER known as? *

Answer 6

The EED (emergency egress device)

Question 7

Where are the Internal fire doors located?

Answer 7

DMp (no. 2 end)
DT (No. 1 end)

(3 doors in total)

Question 8

How many internal destination indicators (IDIs) are in each carriage?

Answer 8

6

Question 9

What is the headboard on the front of the train referred to as?

Answer 9

Front destination indicator, (FDI)

Question 10

What are the information displays on the side of the train referred to as And where are they located?

Answer 10

Side destination indicator (SDI)on all cars,
excluding the TC, they have it on the front

Question 11

How many dynamic route map displays are on The wall of each Carriage?

Answer 11

4

Question 12

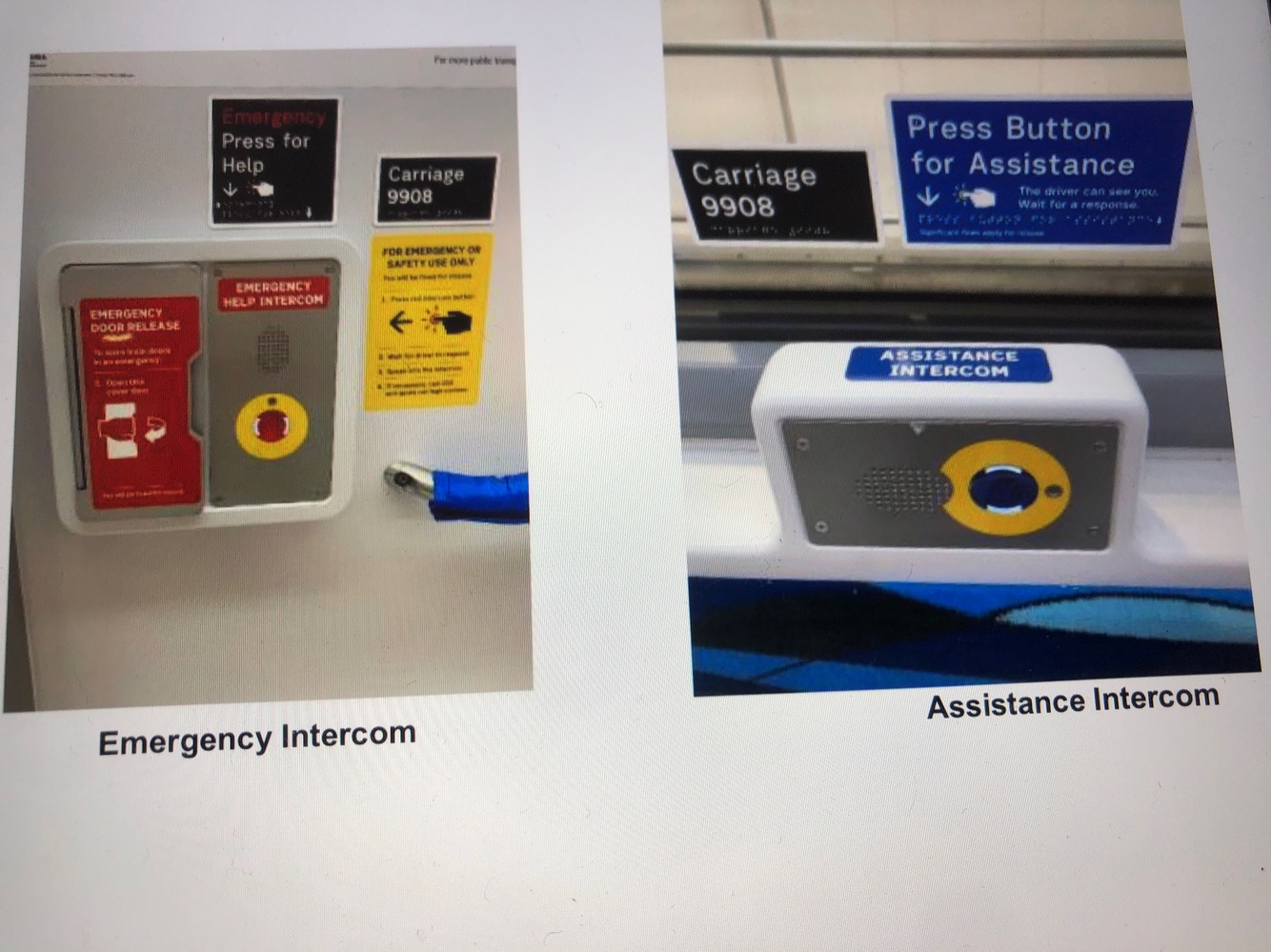

What are the two types of Passenger intercoms within the HCMT?

Answer 12

Assistance intercom.

Emergency intercom

• There are up to 11 intercoms per carriage, totaling to about 77 buttons on the train

Question 13

How many allocated spaces are there for a person to use mobility aids?

Answer 13

28

Question 14

How many fixed wheelchair ramps per each HCMT train?

Answer 14

4

Located inside a cabinet, adjacent to saloon doors 1 & 2 in the TC cars

Question 15

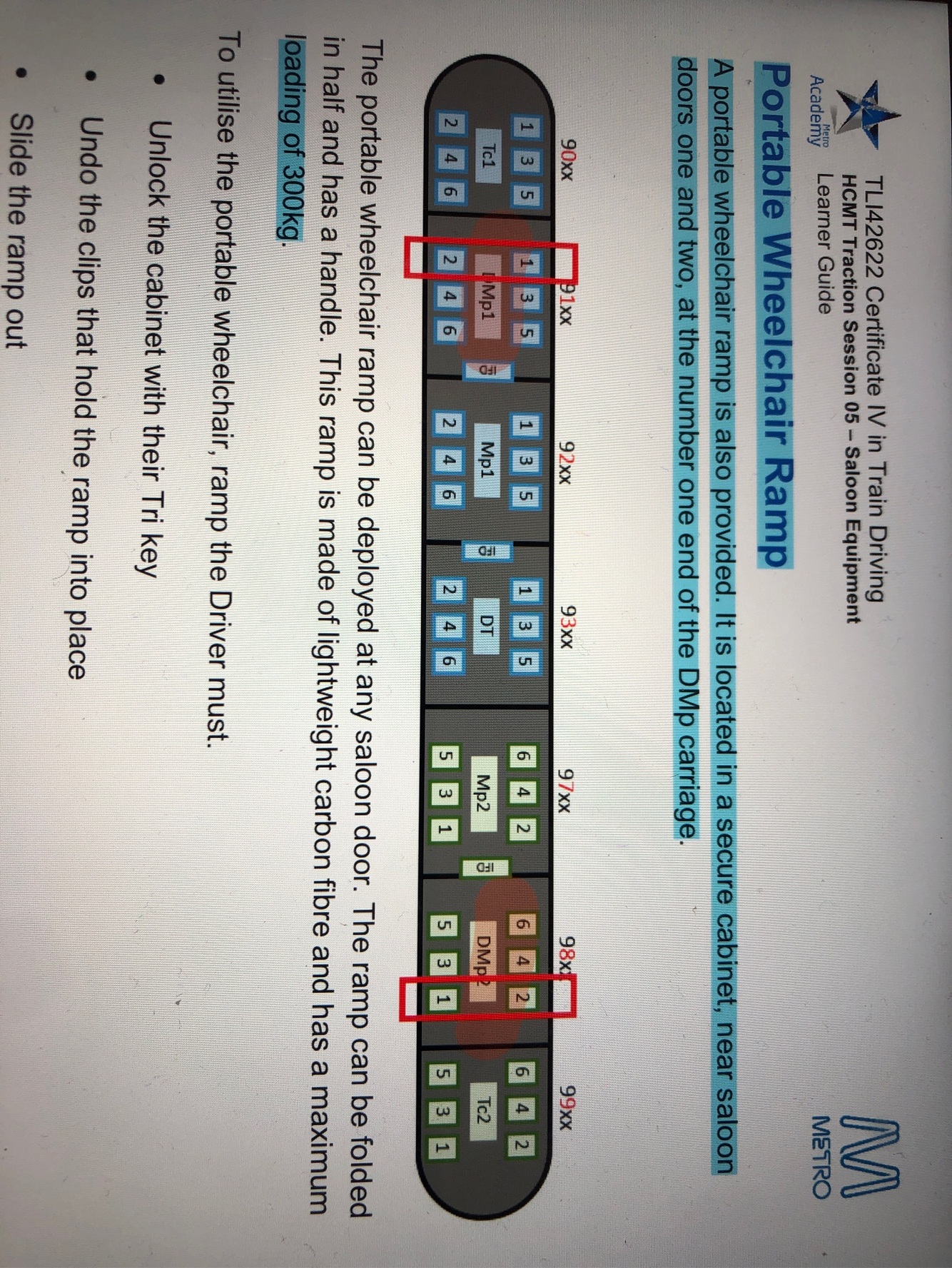

Where is the portable wheelchair ramp located?

Answer 15

near doors, 1 & 2 at the number one end of the DMP car

Question 16

At which platforms have shortened boarding ramps been installed? *

Answer 16

• Flinders Street platform, 6 East end

• Cranbourne platform, 1 East end

Question 17

What are the modes of the saloon lighting ?

Answer 17

Normal.

Emergency.

Question 18

Can Saloon, lighting to be altered by the driver?

Answer 18

No

It is controlled by the TMS

Question 19

What happens To the lighting when power from the overhead is lost?

Answer 19

The TMS automatically switches it to emergency mode lighting

Question 20

Where is emergency, lighting power drawn from?

Answer 20

The batteries

Question 21

How long do the batteries provide full lighting for when overhead power is lost?

Answer 21

10 minutes Full lighting

then reduced lighting at sufficient illumination for approximately 2 hours

Question 22

Where is the fire extinguisher located for the saloon?

Answer 22

In a cabinet to the RHS of door 3 of the Mp2 car (97). It has a red dot on the cabinet and it’s locked with a try Key.

Question 23

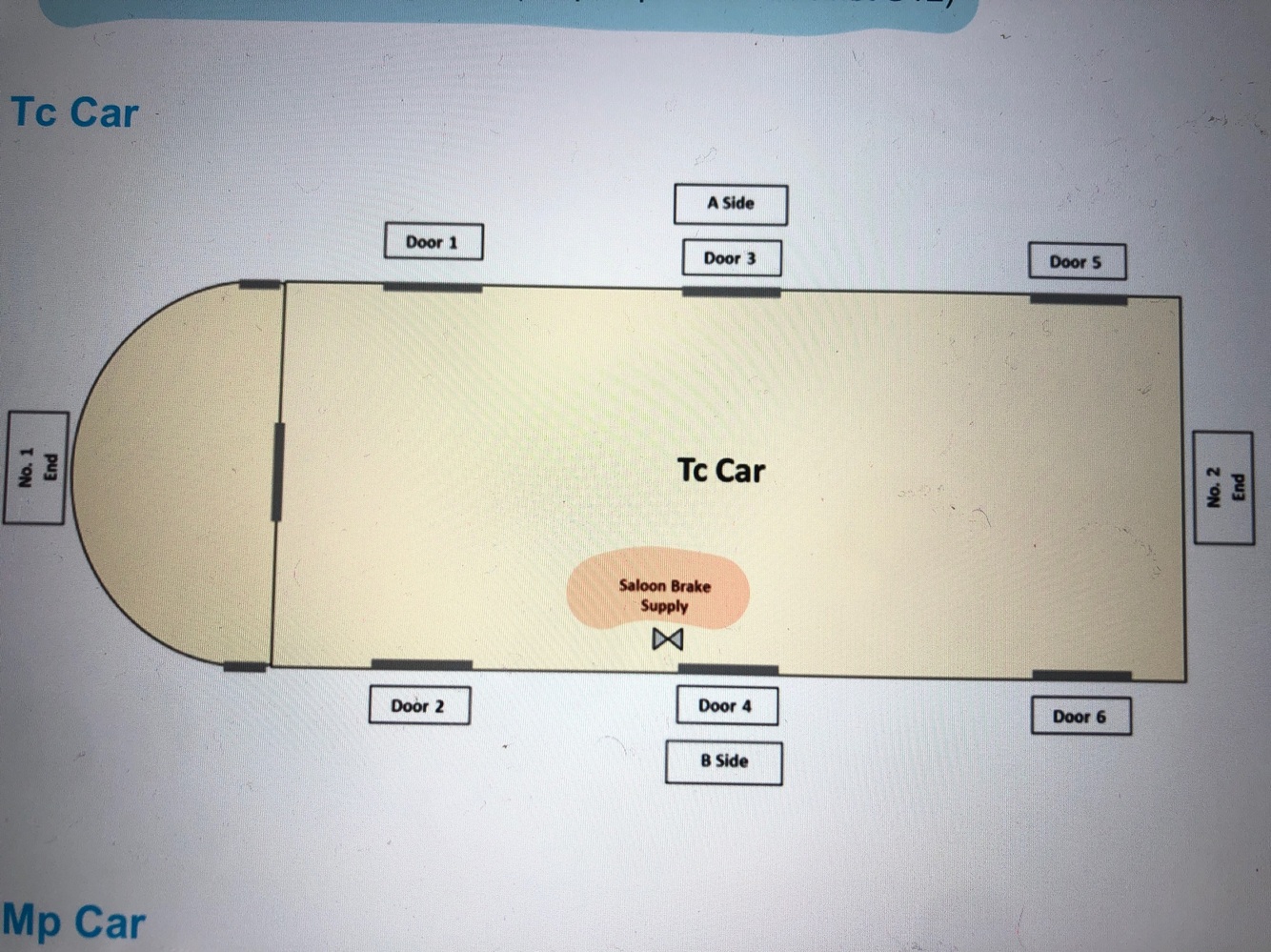

Which isolating Cox I located inside of a TC car?

Answer 23

Saloon brake supply

• on ALL CARS in a cabinet B06
  next to door 4

Question 24

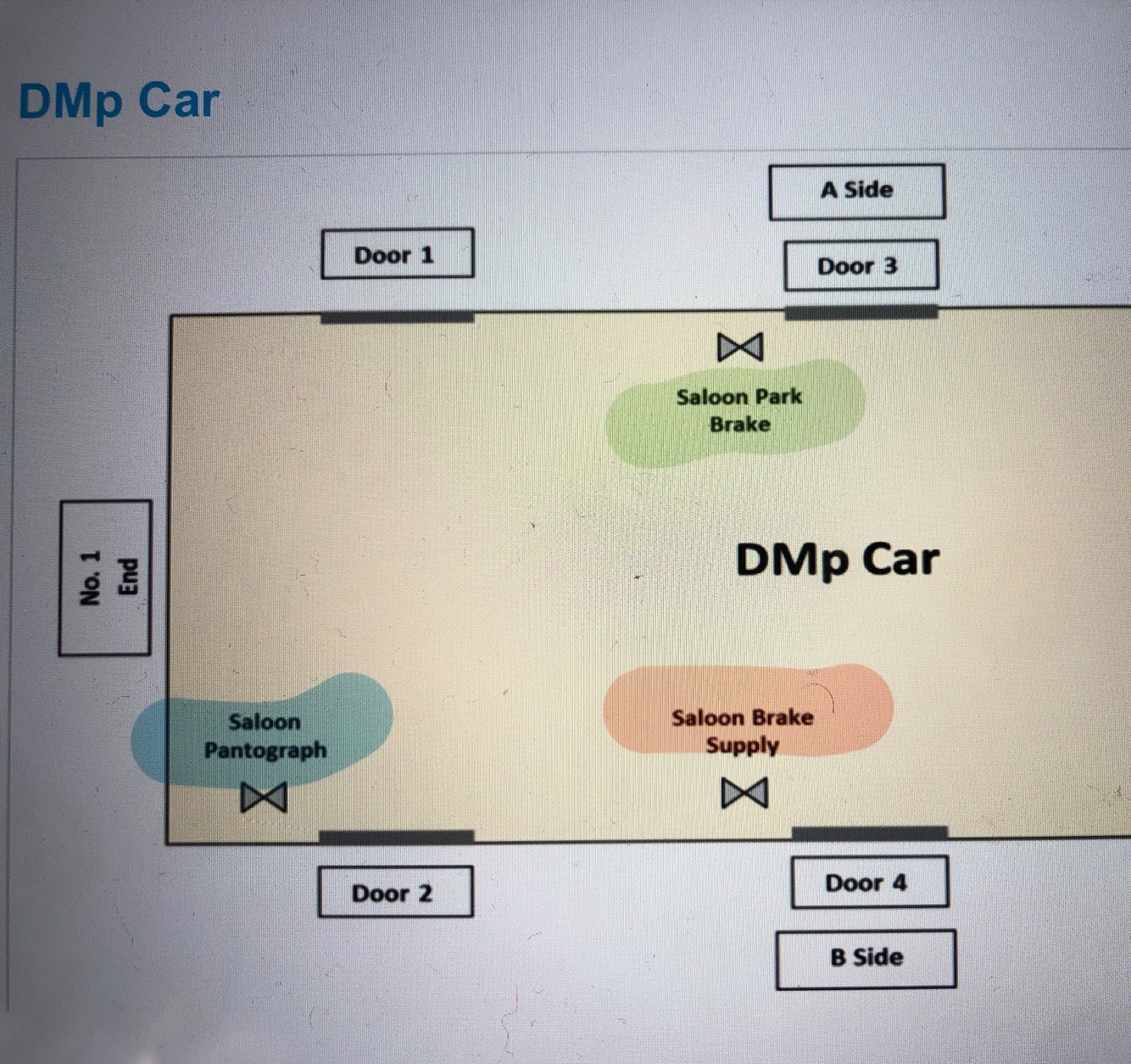

Where are the Park Brake isolating Cocks located in the saloon area, ( & which cars) ?

Answer 24

In cabinet B07 door 3

DMp, Mp & Dt cars

Question 25

Where are the saloon area pantograph isolating, Cocks located and in which cars?

Answer 25

In cabinet U12

In all motorcars at no.1 end (underneath the Pantos basically)
