Cardiovascular - Physiology Flashcards
1
Q
Cardiac output & mean arterial pressure
- Cardiac output (CO)
- Equations
- Early vs. late stages of exercise
- Diastole
- Mean arterial pressure (MAP) equations
A
- Cardiac output (CO)
- Equations
- CO = stroke volume (SV) × heart rate (HR).
- CO = rate of O2 consumption / ( arterial O2 content - venous O2 content)
- Early vs. late stages of exercise
- During the early stages of exercise, CO is maintained by increased HR and increased SV.
- During the late stages of exercise, CO is maintained by increased HR only (SV plateaus).
- Diastole is preferentially shortened with increased HR
- Less filling time –> decreased CO (e.g., ventricular tachycardia).
- Equations
- Mean arterial pressure (MAP)
- MAP = CO × TPR.
- MAP = 2/3 diastolic pressure + 1/3 systolic pressure.
2
Q
Pulse pressure & stroke volume
- Pulse pressure
- Equations
- Increased in…
- Decreased in…
- Stroke volume
- Equation
- Increased with…
A
- Pulse pressure
- Pulse pressure = systolic pressure – diastolic pressure.
- Pulse pressure is proportional to SV, inversely proportional to arterial compliance.
- Increased in hyperthyroidism, aortic regurgitation, arteriosclerosis, obstructive sleep apnea (increased sympathetic tone), exercise (transient).
- Decreased in aortic stenosis, cardiogenic shock, cardiac tamponade, and advanced heart failure.
- Pulse pressure = systolic pressure – diastolic pressure.
- Stroke volume
- SV = EDV - ESV
- Increased with increased contractility, increased preload, or decreased afterload
- Stroke Volume affected by Contractility, Afterload, and Preload
- SV** **CAP
3
Q
Contractility
- Contractility (and SV) increase with:
- Contractility (and SV) decrease with:
- SV increases with:
- SV decreases with:
- Myocardial O2 demand is increased with:
A
- Contractility (and SV) increase with:
- Catecholamines (increased activity of Ca2+ pump in sarcoplasmic reticulum).
- Increased intracellular Ca2+.
- Decreased extracellular Na+ (decreased activity of Na+/Ca2+ exchanger).
- Digitalis (blocks Na+/K+ pump –> increased intracellular Na+ –> decreased Na+/Ca2+ exchanger activity –> increased intracellular Ca2+).
- Contractility (and SV) decrease with:
- β1-blockade (decreased cAMP).
- Heart failure with systolic dysfunction.
- Acidosis.
- Hypoxia/hypercapnea (decreased Po2/ increased Pco2).
- Non-dihydropyridine Ca2+ channel blockers.
- SV increases with:
- Anxiety
- Exercise
- Pregnancy.
- SV decreases with:
- A failing heart (both decreased systolic and diastolic dysfunction).
- Myocardial O2 demand is increased with:
- Increased afterload (∝ arterial pressure).
- Increased contractility.
- Increased HR.
- Increased ventricular diameter (increased wall tension).
4
Q
Preload
A
- Preload approximated by ventricular EDV
- Depends on venous tone and circulating blood volume.
- VEnodilators (e.g., nitroglycerin) decrease prEload.
- ACE inhibitors and ARBs decrease both preload and afterload.
5
Q
Afterload
A
- Afterload approximated by MAP.
- Chronic hypertension (increased MAP) –> LV hypertrophy.
- Relation of LV size and afterload –> Laplace’s law:
- Wall tension = ( pressure × radius ) / ( 2 × wall thickness )
- LV compensates for increased afterload by thickening (hypertrophy) to decrease wall tension.
- VAsodilators (e.g., hydrAl_a_zine) decrease Afterload (Arterial).
- ACE inhibitors and ARBs decrease both preload and afterload.
6
Q
Ejection fraction
A
- EF = SV / EDV = ( EDV - ESV ) / EDV
- Left ventricular EF is an index of ventricular contractility
- Normal EF is ≥ 55%.
- EF decreases in systolic heart failure
- EF is normal in diastolic heart failure.
7
Q

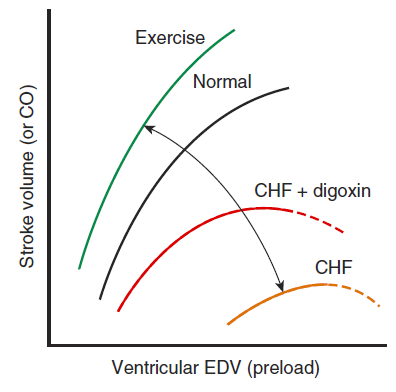

Starling curve
A
- Force of contraction is proportional to end-diastolic length of cardiac muscle fiber (preload).
- Increased contractility with catecholamines, digoxin.
- Decreased contractility with loss of myocardium (e.g., MI), β-blockers, calcium channel blockers, dilated cardiomyopathy.
8
Q
Resistance, pressure, flow
- Relationship
- Resistance
- Total resistance
- Viscosity
- Pressure
A
- ΔP = Q × R
- Similar to Ohm’s law: ΔV = IR
- Resistance = driving pressure (ΔP) / flow (Q) = [8η (viscosity) × length] / πr4
- Resistance is directly proportional to viscosity and vessel length and inversely proportional to the radius to the 4th power.
- Arterioles account for most of TPR –> regulate capillary flow
- Total resistance of vessels in series: TR = R1 + R2 + R3 . . .
- Total resistance of vessels in parallel: 1/TR = (1/R1) + (1/R2) + (1/R3) . . .
- Viscosity depends mostly on hematocrit
- Viscosity increases in:
- Polycythemia
- Hyperproteinemic states (e.g., multiple myeloma)
- Hereditary spherocytosis
- Viscosity decreases in anemia
- Viscosity increases in:
- Pressure gradient drives flow from high pressure to low pressure.
9
Q

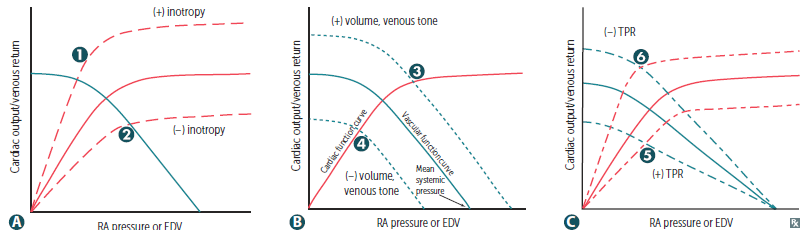

Cardiac and vascular function curves (269)
- Intersection of curves
- Changes
- For each
- Effect
- Examples
- Inotropy
- Venous return
- Total peripheral resistance
A
- Intersection of curves
- Operating point of heart (i.e., venous return and CO are equal).
- Changes often occur in tandem, and may be either…
- Reinforcing (exercise increases inotropy and decreases TPR to maximize CO)
- Compensatory (heart failure decreases inotropy –> fluid retention to increase preload to maintain CO)
- Inotropy
- Effect: Changes in contractility –> altered CO for a given RA pressure (preload).
-
Examples:
- Catecholamines, digoxin (+)
- Uncompensated heart failure, narcotic overdose (-)
- Venous return
-
Effect: Changes in circulating volume or venous tone –> altered RA pressure for a given CO.
- Mean systemic pressure (x-intercept) changes with volume/venous tone.
-
Examples:
- Fluid infusion, sympathetic activity (+)
- Acute hemorrhage, spinal anesthesia (-)
-
Effect: Changes in circulating volume or venous tone –> altered RA pressure for a given CO.
- Total peripheral resistance
-
Effect: Changes in TPR –> altered CO at a given RA pressure
- However, mean systemic pressure (x-intercept) is unchanged.
-
Examples:
- Vasopressors (+)
- Exercise, AV shunt (-)
-
Effect: Changes in TPR –> altered CO at a given RA pressure
10
Q

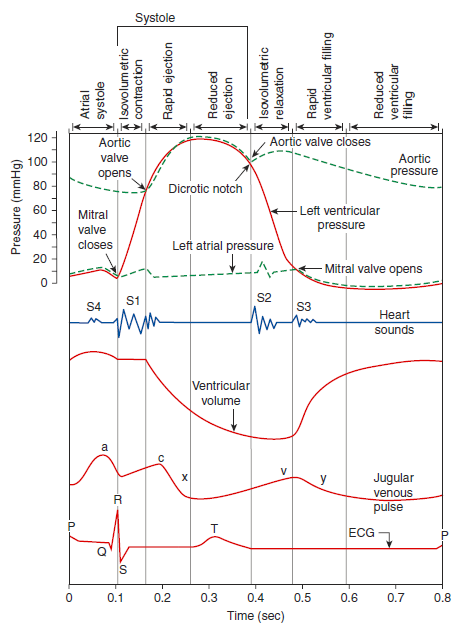

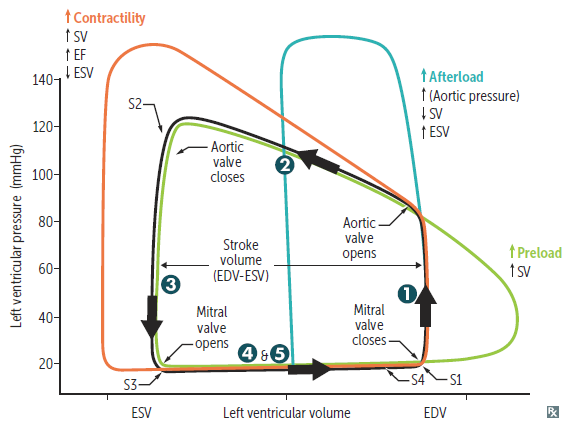

Pressure-volume loops and cardiac cycle:
Phases—left ventricle
- Isovolumetric contraction
- Systolic ejection
- Isovolumetric relaxation
- Rapid filling
- Reduced filling
A
- Isovolumetric contraction
- Period between mitral valve closing and aortic valve opening
- Period of highest O2 consumption
- Systolic ejection
- Period between aortic valve opening and closing
- Isovolumetric relaxation
- Period between aortic valve closing and mitral valve opening
- Rapid filling
- Period just after mitral valve opening
- Reduced filling
- Period just before mitral valve closing
11
Q
Pressure-volume loops and cardiac cycle:
Sounds
- S1
- S2
- S3
- S4
- Systolic heart sounds
- Diastolic heart sounds
A
- S1
- Mitral and tricuspid valve closure.
- Loudest at mitral area.
- S2
- Aortic and pulmonary valve closure.
- Loudest at left sternal border.
- S3
- In early diastole during rapid ventricular filling phase.
- Associated with increased filling pressures (e.g., mitral regurgitation, CHF)
- More common in dilated ventricles (but normal in children and pregnant women).
- S4 (“atrial kick”)
- In late diastole.
- High atrial pressure.
- Associated with ventricular hypertrophy.
- Left atrium must push against stiff LV wall.
- Systolic heart sounds
- Aortic/pulmonic stenosis, mitral/tricuspid regurgitation, ventricular septal defect.
- Diastolic heart sounds
- Aortic/pulmonic regurgitation, mitral/tricuspid stenosis.
12
Q
Pressure-volume loops and cardiac cycle:
Jugular venous pulse (JVP)
- a wave
- c wave
- x descent
- v wave
- y descent
A
-
a wave
- Atrial contraction.
-
c wave
- RV contraction (closed tricuspid valve bulging into atrium).
-
x descent
- Atrial relaxation and downward displacement of closed tricuspid valve during ventricular contraction.
- Absent in tricuspid regurgitation.
-
v wave
- Increased right atrial pressure due to filling against closed tricuspid valve.
- y descent
- Blood flow from RA to RV.
13
Q
Normal splitting
A
- Inspiration
- –> drop in intrathoracic pressure
- –> increased venous return to the RV
- –> increased RV stroke volume
- –> increased RV ejection time
- –> delayed closure of pulmonic valve.
- Decreased pulmonary impedance (increased capacity of the pulmonary circulation)
- Also occurs during inspiration
- Contributes to delayed closure of pulmonic valve.
14
Q
Wide splitting
A
- Seen in conditions that delay RV emptying (pulmonic stenosis, right bundle branch block).
- Delay in RV emptying causes delayed pulmonic sound (regardless of breath).
- An exaggeration of normal splitting.
15
Q
Fixed splitting
A
- Seen in ASD.
- ASD
- –> left-to-right shunt
- –> increased RA and RV volumes
- –> increased flow through pulmonic valve such that, regardless of breath, pulmonic closure is greatly delayed.
16
Q
Paradoxical splitting
A
- Seen in conditions that delay LV emptying (aortic stenosis, left bundle branch block).
- Normal order of valve closure is reversed so that P2 sound occurs before delayed A2 sound.
- Therefore on inspiration, P2 closes later and moves closer to A2, thereby “paradoxically” eliminating the split.
17
Q

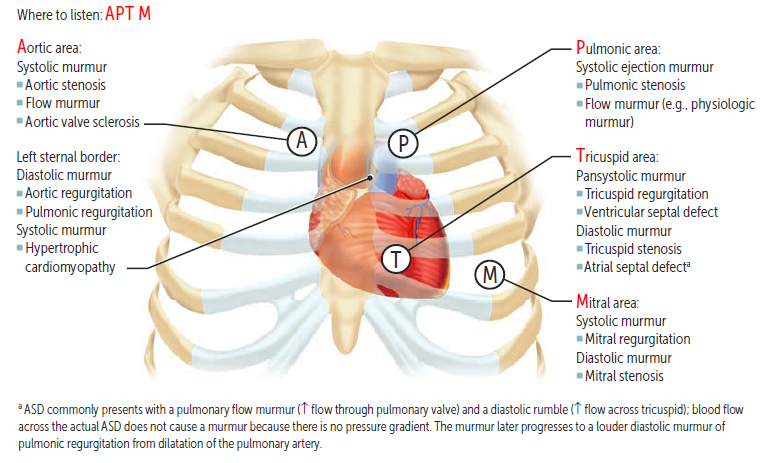

Auscultation of the heart:
Where to listen
- Aortic area
- Left sternal border
- Pulmonic area
- Tricuspid area
- Mitral area
A
- APT M
-
Aortic area
- Systolic murmur
- Aortic stenosis
- Flow murmur
- Aortic valve sclerosis
- Systolic murmur
- Left sternal border:
- Diastolic murmur
- Aortic regurgitation
- Pulmonic regurgitation
- Systolic murmur
- Hypertrophic cardiomyopathy
- Diastolic murmur
-
Pulmonic area:
- Systolic ejection murmur
- Pulmonic stenosis
- Flow murmur (e.g., physiologic murmur)
- Systolic ejection murmur
-
Tricuspid area:
- Pansystolic murmur
- Tricuspid regurgitation
- Ventricular septal defect
- Diastolic murmur
- Tricuspid stenosis
- Atrial septal defect
- ASD commonly presents with a pulmonary flow murmur (increased flow through pulmonary valve) and a diastolic rumble (increased flow across tricuspid)
- Blood flow across the actual ASD does not cause a murmur because there is no pressure gradient.
- The murmur later progresses to a louder diastolic murmur of pulmonic regurgitation from dilatation of the pulmonary artery.
- Pansystolic murmur
-
Mitral area:
- Systolic murmur
- Mitral regurgitation
- Diastolic murmur
- Mitral stenosis
- Systolic murmur
18
Q
Auscultation of the heart:
Effects of these bedside maneuvers
- Inspiration
- Hand grip
- Valsalva (phase II, forcing exhalation against a closed airway), standing
- Rapid squatting
A
- Inspiration
- Increases intensity of right heart sounds
- Hand grip
- Increases systemic vascular resistance
- Increases intensity of MR, AR, VSD murmurs
- Decreases intensity of AS, hypertrophic cardiomyopathy murmurs
- MVP: increases murmur intensity, later onset of click/murmur
- Valsalva (phase II, forcing exhalation against a closed airway), standing
- Decreases venous return
- Decreases intensity of most murmurs (including AS)
- Increases intensity of hypertrophic cardiomyopathy murmur
- MVP: decreases murmur intensity, earlier onset of click/murmur
- Rapid squatting
- Increases venous return
- Increases preload
- Increases afterload with prolonged squatting
- Decreases intensity of hypertrophic cardiomyopathy murmur
- Increases intensity of AS murmur
- MVP: increases murmur intensity, later onset of click/murmur
19
Q
Mitral/tricuspid regurgitation (MR/TR)
- Type of heart murmur
- Mitral characteristics
- Tricuspid characteristics
A

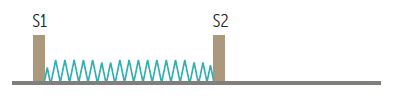

- Systolic heart murmur
- Holosystolic, high-pitched “blowing murmur.”
- Mitral characteristics
- Loudest at apex and radiates toward axilla.
- Enhanced by maneuvers that increase TPR (e.g., squatting, hand grip).
- MR is often due to ischemic heart disease, MVP, or LV dilation.
- Tricuspid characteristics
- Loudest at tricuspid area and radiates to right sternal border.
- Enhanced by maneuvers that increase RA return (e.g., inspiration).
- TR commonly caused by RV dilation.
- Rheumatic fever and infective endocarditis can cause either MR or TR.
