Medical > Echo > Flashcards

Echo Flashcards

You may prefer our related Brainscape-certified flashcards:
USMLE® Step 1 flashcards
1
Q

What are typical echo findings of mitral stenosis on 2D Echo?

A
  • Diastolic “doming” of the anterior mitral valve leaflet - “hockey stick” appearance (best seen on parasternal long axis view)
  • Commisural fusion - “fish mouth appearance” (best seen on parasternal short axis view)
  • Left atrial dilatation
  • Left atrial spontaneous echo contrast - “smoke”
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

Define Aliasing

A
  • imaging error which occurs due to under-sampling
  • Occurs in PW doppler where there is an upper limit of doppler shift which can be displayed - Nyquist limit
  • US system is trying to image an event that is occuring faster than the rate we are sampling it
  • As a result the system is uncertain about the direction of the signal and displays this as heading in the opposite direction
  • Occurs in both color and spectral Doppler, where the velocity exceeds the Nyquist limit
  • “Wagon-wheel” effect (wheels turning in the opposite direction as it turns at a faster rate)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

Define Nyquist Limit

A
  • Half of the sampling rate of a discrete signal processing system
  • Sometimes known as “folding frequency”
    *
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

What is the PISA method for determining MVA?

A

MVA cm2 =

  • 6.28 x r2 x Aliasing velocity
  • Mitral ValveE Wave Velocity (Vmax)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What is the equation for MVA by P 1/2 time?

A

MVA cm2 = 220 / PHT

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

What are the Level 1 ASE recommendations for Mitral stenosis?

A
  • MVA planimetry
    • using the parasternal short axis of the mitral level in mid-diastole
  • MVA using PHT method
  • Mean pressure gradient
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What are teh Level 2 ASE recommendations for evaluation of mitral stenosis?

A
  • MVA by continuity equation
  • MVA by PISA method
  • MVA and SPAP with stress echocardiography
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What situations can PHT method overestimate MVA?

A
  • Decreased PHT
    • Significant AR
    • ASD
    • Decreased LV compliance
    • Sudden change in LA compliance (fever, anemia, tachycardia, acute MR, exercise)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

What situations can PHT method underestimate MVA?

A
  • Increased PHT
    • Decreased rate of LV relaxation
    • Immediately following PMBV
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

What situations will result in a discrepancy between the MVA by PHT and planimetry?

A
  • MR
  • High-cardiac output
  • Tachycardia

***increased transmitral flow can raise the gradient out of proportion to the calculated and planimetered MVA

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

What are the branches of the aortic arch (in order)?

A
  • brachiocephalic
    • Right subclavian
    • Right common carotid
  • Left common carotid
  • Left Subclavian
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

What are the key elements of standard echocardiographic systems?

A
  • transducer with piezoelectric crystals
    • transmits ultrasound waves and receives ultrasound echoes produced when the ultrasound waves reflect back off of human tissue
  • computerized system tha programs the generation of ultrasound waves, processes the received signals, and stores the data
  • display for visualization and interpretation of data, either in real-time or offline.
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

What is the equation for describing the behavior of ultrasound waves?

A

λ = c/f

  • λ = wavelength or peak-to-peak
  • c = velocity of the us wave
  • f = frequency of the us wave
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What is the velocity of US waves in human tissues?

A

1540 m/sec (1.54 mm/μsec)

  • localization of objects is based fundamentally on the speed of propagation of sound waves
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

What determines the fundamental limit of resolution in ultrasound?

A

Wavelength

  • approximately 2x wavelength
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

Explain advantages / disadvantages of higher frequency?

A
  • better image resolution
  • decreased penetrance (only penetrate a short distance in the body)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

Define acoustic impedance

A
  • physical property of tissue
  • describes how much resistance an ultrasound beam encounters as it passes through a tissue
  • dependent on the density of the tissue
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

Sound waves cannot travel through this?

A

vacuum

  • pressure waves can be transmitted only trhough physical media consisting of molecules that interact with each other
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

Ultrasound is a pressure wave with a frequency that is above the limit of human hearing, which is?

A

20, 000 Hz or 20 kHz

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

The frequency of a sound wave is measured in Hz and is defined as?

A

number of times particles vibrate each second in the direction of wave propagation

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

Ultrasound imaging is usually performed using frequencies in this range?

A

1-30 MHz

  • lower frequencies in this range are used to image large organs or deeper structures that require significant penetration depth
  • higher frequencies in this range are used for smaller and more superficial structures that require less depth but better spatial resolution
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

Define Pressure Half-Time

A

the time interval in milliseconds between the maximum mitral gradient in early diastole and the time point where the gradient is half the maximum initial value.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

Define Bruce Protocol

A
  • Developed in 1963 by Robert A. Bruce
  • standardized multistage treadmill test for assessing cardiovascular health
  • patient walks on an uphill treadmill in a graded exercise test with electrodes on the chest to monitor the EKG.
  • Every 3 minutes, the speed and incline of the treadmill are increased (3 Mets increase)
  • 7 stages, only very fit athletes can complete all 7 stages
  • Modified Bruce Protocol –> treadmill initially horizontal, instead of sloped
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

What are two of the most serios contraindications to ETT that can sometimes be overlooked?

A
  • Aortic dissection
  • Pulmonary Embolus
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
Q

What are the absolute contraindications to ETT?

A
  • CHF, uncontrolled
  • High-risk UA
  • Arrhythmia, uncontrolled
  • Aortic Dissection
  • Acute MI
  • Myocarditis / Pericarditis
  • Pulmonary Embolus
  • Severe symptomatic AS
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
26
Q

What are the relative contraindications to ETT?

A
  • Stenotic heart disease (moderate)
  • Tachy/bradyarrythmia
  • Electrolyte abnormalities
  • AV block (high-degree)
  • LMCA disease
  • Hypertension (BP > 200/110 mmHg)
  • HOCM
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
27
Q

What are indications to stop ETT?

A
  • Patien’ts desire to stop
  • CNS symptoms
  • Moderate angina
  • Arrhythmias (serious)
  • ST-elevation > 1.0mm
  • Hypotension (SBP drop > 10 mmHg below baseline)
  • Hypertension (SBP > 220 mmHg)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
28
Q

What is the hallmark of an abnormal ETT?

How is this abnormal response defined?

A
  • ST-segment depression
  • ≥ 1.0mm horizaontal or downsloping ST-segment depression measured 0.08 seconds after the J point
29
Q

What are additional features of an ETT that increase the likelihood of a true-positive test result?

A
  • Occurrence at a low exercise workload
  • Involvement of several EKG leads
  • Greater magnitude of depression
  • Longer persistence in the recovery period.
30
Q

What is the significance of ST-depression that occurs only in the recovery period?

A

same diagnostic accuracy as ST-segment depression during exercise

31
Q

What are the most frequently identified lead abnormalities on ETT?

A
  • Positive responses in V4-V6 ( > 90%) regardless of site of anatomical CAD
  • ST-depression confined to inferior leads –> usually represents false positive findings
32
Q

When does ST-elevation usually show up on ETT?

What does this mean?

A
  • Can be arrythmogenic if exercise continues.
  • Can localize site of myocardial ischemia (unlike ST-depression) and usually indicates high-grade stenosis
33
Q

What EKG findings preclude interpretation of exercise EKG?

A
  • Paced ventricular rhythm
  • Pre-excitation (WPW)
  • LBBB
  • Reduce specicity –> ST-T abnormalities, Digoxin use, LVH
34
Q

Can ETT/EKG interpretation be performed in the setting of RBBB?

A
  • Yes
  • Right precordial leads (V1-V3) must be ignored and interpretation is confined to left precordial leads (V4-V6)
35
Q

What are the three clinical CAD risk categories defined by the ACC/AHA?

A
  • Low ( < 1% mortality rate)
  • Intermediate ( 1-3% mortality rate)
  • High ( > 3% mortality rate)
36
Q

What is the most important/strognest prognostic ETT variable?

A
  • Exercise capacity / duration
    • patient’s at high risk for left main/three-vessel CAD
    • high clinical event rate
37
Q

What are clinical variables in ETT that identify higher-risk patients?

A
  • Poor exercise capacity
  • Hypotension, exercise induced
  • Chronotropic incompetence
    • during exercise or or post-exercise
  • Ventricular ectopy
  • ST-depression (weaker than other variables)
38
Q

Define Duke Treadmill Score (DTS)

A
  • weighted index combining:
    • treadmill exercise time using standard Bruce protocol
    • maximum net ST segment deviation (depression or elevation)
    • exercise-induced angina.
  • Developed to provide accurate diagnostic and prognostic information for the evaluation of patients with suspected coronary heart disease.
  • Typical observed range of DTS is from -25 (highest risk) to +15 (lowest risk).
39
Q

What is the equation for the DTS?

A
41
Q

What are the recommendations for pre-operative stress testing?

A
  • Elevated risk and poor functional capacity –> pharmacologic stress testing, if it will change management (Class IIa)
  • Elevated risk and unknown functional capacity –> exercise testing to assess functional capacity if it will change management (Class IIb)
  • Elevated risk and poor ( < 4 METS) or unknown functional capacity –> exercise testing with cardiac imaging to assess for myocardial ischemia if it will change management (Class IIb)
  • Testing not recommended for low-risk surgery (Class III)
  • Reasonable to forgo exercise testing and proceed to surgery in patients with elevated risk and excellent functional capacity, defined as > 10 METS (Class IIa)
  • Reasonable to forgo exercise testing and proceed to surgery in patients with elevated risk and moderate to good functional capacity, defined as 4-10 METS (Class IIb)
42
Q

In what groups of patients should stress imaging be the initial testing modality?

A
  • inability to exercise with requirement for pharmacologic stress
  • significant abnormalities on resting EKG that preclude interpretation of the stress EKG
  • high pretest probability of CAD
43
Q

What are the Class I indications for stress testing?

A
  • Standard ETT in patients at intermediate pretest probability of CAD who can exercise and have interpretable EKG
  • Exercise imaging in patients at intermediate or high pretest probability of CAD who can exercise and have an uniterpretable EKG
  • Pharmacologic imaging in patients with intermediate or high pretest probability of CAD who are unable to exercise.
44
Q

How to obtain the parasternal long axis view?

A
  • Position the TTE transducer:
    • 3rd-4th intercostal space
    • at left parasternal border
    • index marker pointing toward the right shoulder (11 o’clock)
  • Adjust sector depth to:
    • 10-16 cm to see the descending aorta in SAX
    • increase to 20cm to assess for a left pleural effusion
45
Q

What are the assessment goals in parasternal long axis?

A
  • LV size and function
  • RV size
  • Mitral valve
  • Aortic valve
  • Left pleural effusion
  • Pericardial effusion
  • Aortic dissection
46
Q

What structures can be identified in parasternal long axis view?

A
  • Aortic Valve
  • Descending aorta (Ao)
  • Inter-ventricular septum (IVS)
  • Left atrium (LA)
  • LV
  • Mitral valve
  • RVOT
47
Q

What structures can be identified in parasternal short axis view?

A
  • Anterolateral papillary muscle (AL)
  • Inter-ventricular septum (IVS)
  • LV
  • Posteromedial Papillary Muscle (PM)
  • RV
48
Q

What should parasternal short axis be used to assess?

A
  • LV size and function
  • RV size and function
  • Pericardial effusion
49
Q

How to obtain parasternal short axis view?

A
  • Position the TTE transducer
    • 3rd-4th intercostal space
    • left parasternal border
    • index marker poiting towards the left shoulder (2 oclock)
    • view can easily be obtained by rotating the probe 90 degrees clockwise from the parasternal LAX view and tilting the probe downards
  • Adjust the sector deptht to:
    • 10-16 cm to see the entire LV
50
Q

What structures should be identified in the apical four chamber view?

A
  • Descending Aorta (Ao)
  • Inter-atrial septum (IAS)
  • LA
  • Left lower pulmonary vein (LLPV)
  • LV
  • MV
  • RA
  • Right upper pulmonary vein (RUPV)
  • RV
  • TV
51
Q

How to obtain apical four chamber view?

A
  • Position the TTE transducer
    • 4th or 5th intercostal space
    • midclavicular line or at the point of apical pulsation
    • index marker pointing towards the left (3 oclock)
  • Adjust the sector depth to:
    • 14-18cm to image the atria
    • 6-10 cm to assess the LV apex
52
Q

What should the apical four chamber view be used to assess?

A
  • LV, RV size and function
  • RA and LA size and function
  • MV and TV’s
  • Pericardial effusion
53
Q

What should the subcostal four chamber view be used to assess?

A
  • LV, RV size and function
  • MV and TV’s
  • RA, LA size and function
  • Pericardial effusion
  • Cardiac motion during code blue
54
Q

What structures should be identified on subcostal four chamber view?

A
  • Inter-atrial septum (IAS)
  • Inter-ventricular septum (IVS)
  • LA
  • RA
  • MV
  • TV
  • RV
  • LV
  • Liver
55
Q

How to obtain subcostal four chamber view?

A
  • Position the TTE transducer:
    • subxiphoid region of the abdomen
    • flat and push down with a slight tile to the patients right
    • index marker pointing towards the left (3 oclock)
  • Adjust the sector depth to:
    • 16-24cm to image the entire LA and LV
56
Q

How to obtain the subcostal IVC view?

A
  • Position the TTE transducer:
    • in the subxiphoid region of the abdomen
    • tilt to the patient’s left
    • index marker pointing towards the head (12 oclock)
    • view can easily be obtained by rotating the probe 90 degrees counterclockwise from the subcostal 4C view
  • Adjust the sector depth to:
    • 16-24cm to image the entire IVC
57
Q

What should the subcostal IVC view be used to assess?

A
  • IVC size (measure in mm or cm)
  • change in IVC size with respiration (use m-mode)
58
Q

What structures should be identified on the subcostal IVC view?

A
  • IVC
  • Liver
  • RA
59
Q

What are the most common indications for TEE?

A
  • left atrial thrombus evaluation
  • endocarditis
  • prosthetic valve function
  • perioperative cardiac surgery complications
  • providing guidance in transcatheter procedures
60
Q

What are the major complications associated with TEE?

A
  • Cervical spine immobility
  • Recent Upper GI surgeries
  • Esophageal strictures
  • Prior perforated upper GI structures
  • Upper GI bleed (active)
61
Q

TEE terms:

  • Advance
  • Withdraw
  • Turn
  • Flexion
  • Extension
  • Rotation
A
  • Advance: vertical forward motion of probe
  • Withdraw: vertical backward motion of probe
  • Turn: rotation of entire probe
  • Flexion/Extension: motion of tipe of the probe in a plane parallel to the long-axis of the probe, controlled by a large dial at the base of the probe
  • Rotation: electronic movement of the image plane in a circular fasion, controlled by a button on the probe and displayed as an angle on the image
62
Q

Describe the difference (incidence, location, degree of injury) in CHB in anterior vs. inferior MI?

A

Inferior

  • 4% of patients, may be transient
  • associated with higher location of AV block (typically the AV node)
  • lesser degree of myocardial injury

Anterior

  • 1% of patients, serious complication of anterior MI, poorer short term outcomes (including survival)
  • associated with lower location of block is usually below the AV node –> higher long-term block
  • greater degree of myocardial injury
63
Q

What is the starting view for TEE?

How to obtain this view?

A
  • Mid-esophageal 4-chamber view
  • Mid-esophageal positioning, 0 degree rotation, maximum depth to show the entire LV, probe extended to include as much of the apex as possible
64
Q

What are the second and third images obtained on a TEE?

A

After obtaining ME apical 4-chamber view:

  • 2nd –> ME, apical, 2 chamber view –> rotating to 60 degrees
  • 3rd –> ME, apical, Long axis (LAX) view –> rotating to 120 degrees
65
Q

TEE views utilized to assess regional LV function / EF?

A
  • lateral wall and inferior septum –> ME, A4C
  • anterior and inferior walls –> ME, A2C
  • anterior septum and inferior lateral wall –> ME, ALAX
66
Q

Quantitative EF measurements in TEE can be made utilizing what methods?

A
  • 3D full volume acquisition with automated border detection
  • Biplane approach with tracing of endocardial borders at end-diastole and end-systole in A4C ad A2C views
67

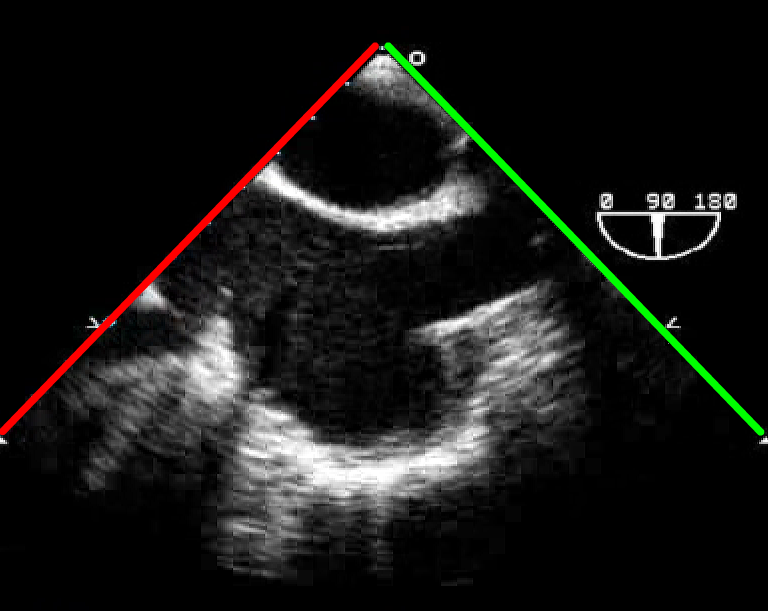

Q

What TEE view is this?

How to obtain the view?

What is this view used for?

A
  • ME, Bicaval view
  • Obtain ME, A4C –> rotate to 90-100 degrees and turn probe right
  • ASD (secundum, sinus venosus), Atrial pathology, Lines/wires, Venous cannula (SVC, IVC)
68
Q

What is the best TEE view for evluating the LAA?

A
  • ME, A2C
  • imaged in two orthogonal planes (0 and 90 degrees)
70
Q

What are the branches of the celiac trunk?

A
  • Splenic artery
  • Left gastric
  • Common Hepatic

Medical (69 decks)

Brainscape helps you reach your goals faster, through stronger study habits.
© 2024 Bold Learning Solutions. Terms and Conditions
