Membrane potentials Flashcards
membrane potential
- the difference in electric potential between the outside and inside of the cell
- usually -50 to -70
Nerst potential
- the cell membrane potential when the ion of reference no longer wants to move
- chemical gradient equals electrical gradient
Nerst equation
E = 61 * log [Ko]/[KI]
answer in mV

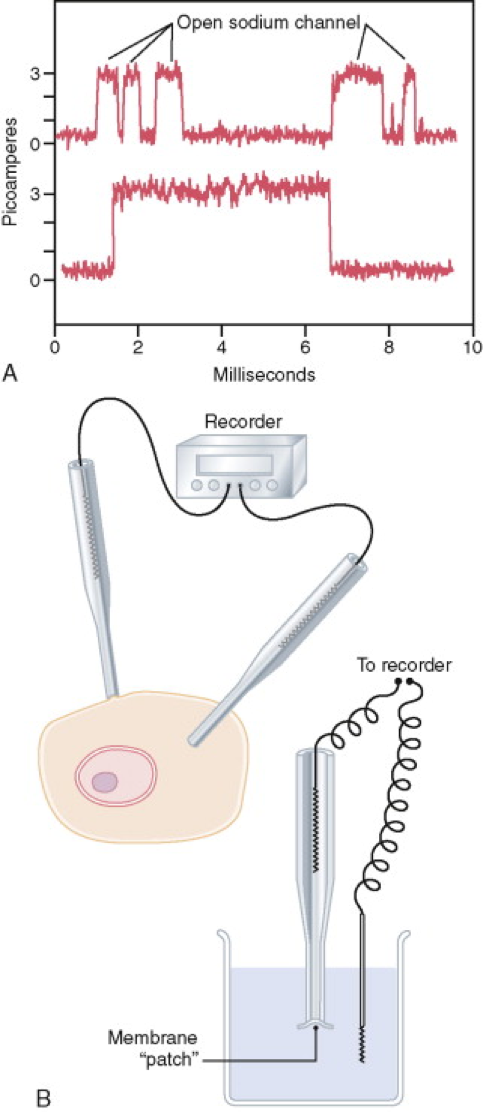

measuring the electrical flow of sodium through a channel. rises in the graph are when the channel is open
voltage gated channel
opens when the cell potential reaches a certain voltage
ligand-gated channel
opens when a ligand adheres to channel
ex. G protein coupled receptor
**can be intracellular or extracellular
mechanically gated channel
opens when physically opened
Ex: by touch or vibrations for hearing
Goldman-Hodgkin-Katz equations
E = -61 * log (CNai*PNa+Cki*PK+CClo*Pcl) / CNao*PNa+CKo*PK+CCli*PCl
conductance
permeability

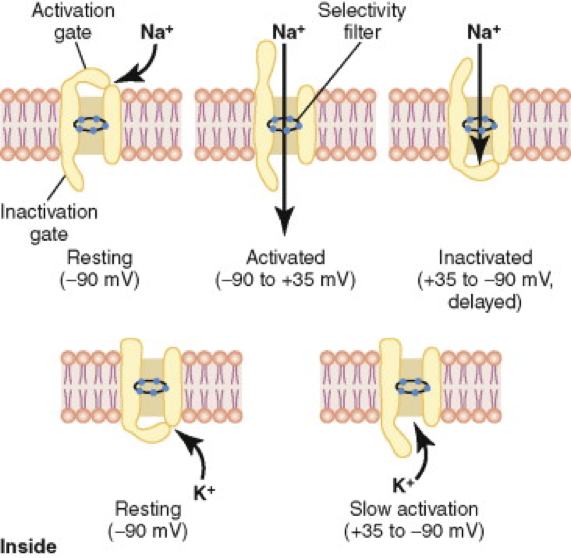

- Na
- Activation gate is voltage sensitive
- Inactivation “gate” is time sensitive
- K
- Activation gate is voltage sensitive
- same gate closes based on voltage change
- Na gate being inactive is what forces the potential to go in one direction

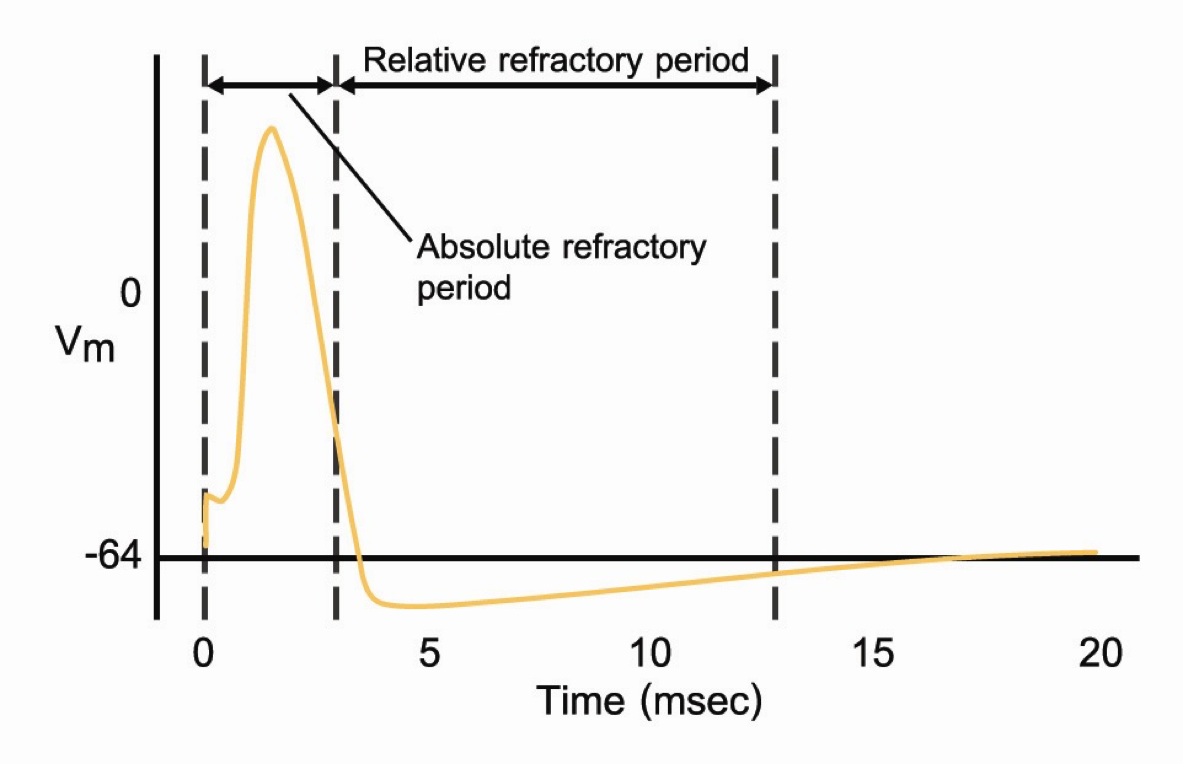

Absolute refractory period
- no action potential can be generated
- Na gate is inactivated
Relative refractory period
- action potential can be stimulated, but will require stronger stimulus

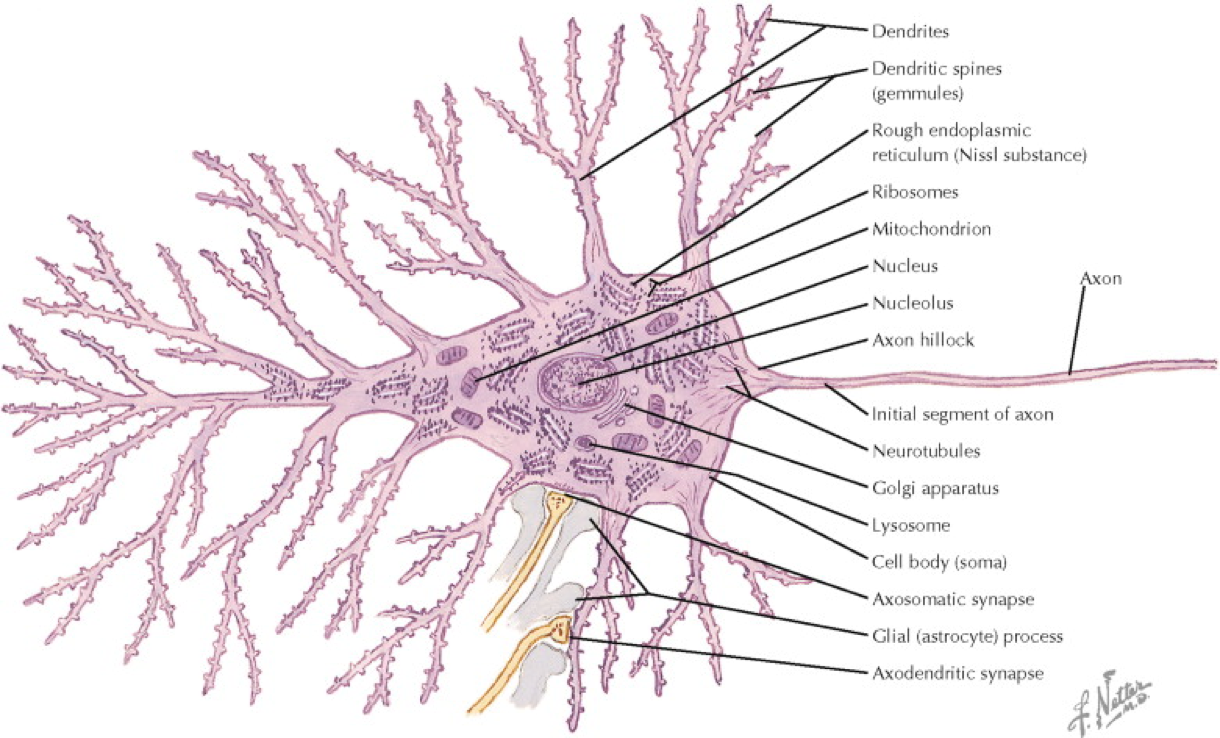

dendrites
Extension of the nerve cell that receives messages from other cells
- signals received result in changes in local membrane potential
- All the dendrites receive signals that hyperpolarize or depolarize, eventually the entire neuron will get enough depolarization to initiate an action potential at the axon hillock and is send down the axon to synapses with other neurons and muscle cells.
axon hillock
- last spot where the membrane potentials are summed up before being translated to the axon
acetylcoline
neurotransmitter
