NCATT AET Practice Questions > Worksheet 51-Logic Truth Tables > Flashcards

Worksheet 51-Logic Truth Tables Flashcards

1
Q

Write the symbol and truth table for a buffer/inverter

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

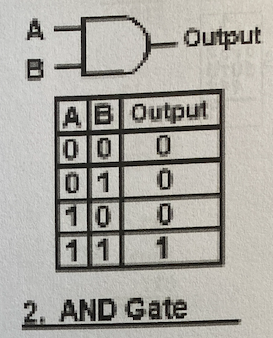

Write the symbol and truth table for an AND gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

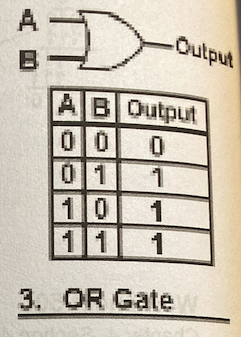

Write the symbol and truth table for an OR gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

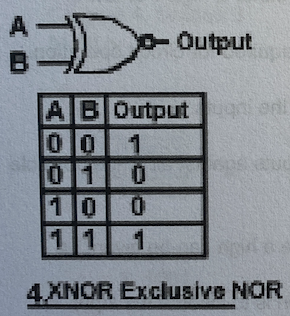

Write the symbol and truth table for a XNOR gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

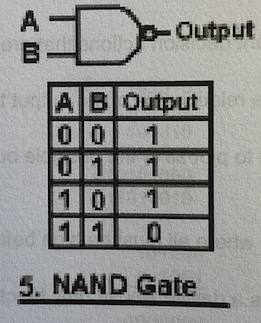

Write the symbol and truth table for a NAND gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

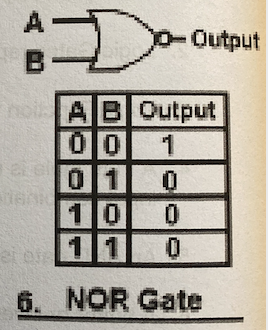

Write the symbol and truth table for a NOR gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

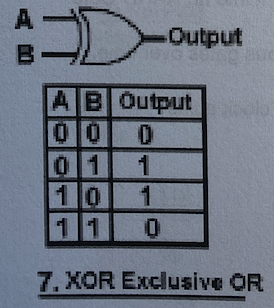

Write the symbol and truth table for a XOR gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

Write the symbol and truth table for a NEG-AND gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

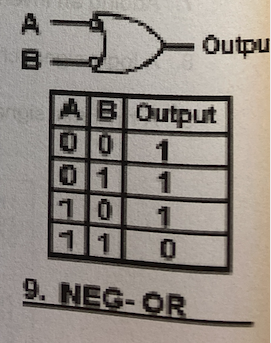

Write the symbol and truth table for a NEG-OR gate

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10

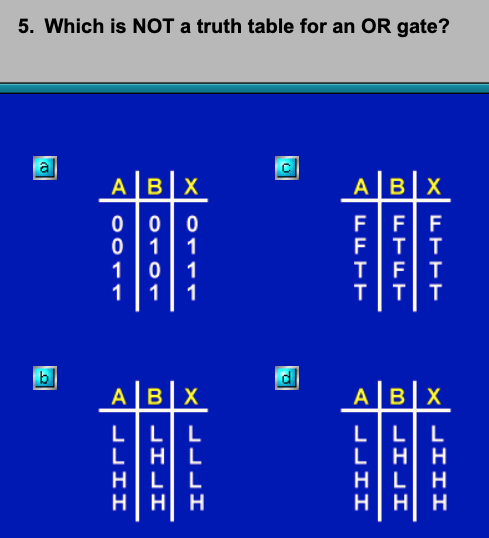

Q
A

B

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11

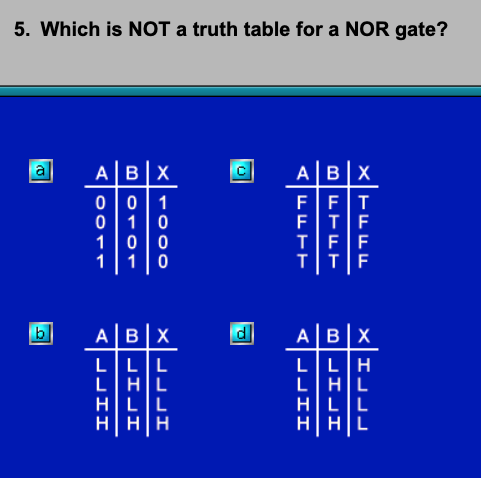

Q
A

B

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12

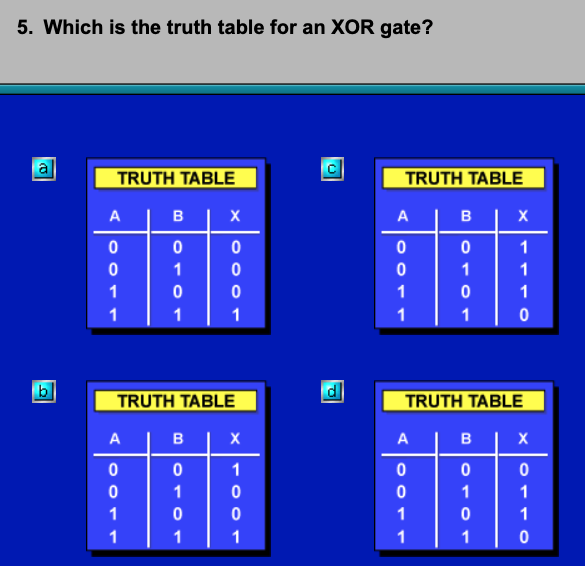

Q
A

D

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13

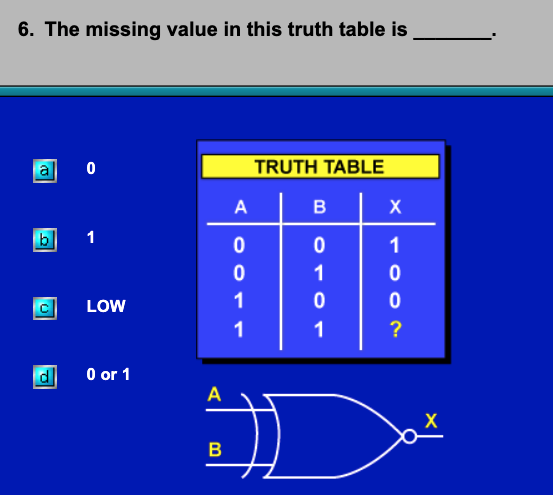

Q
A

1

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14

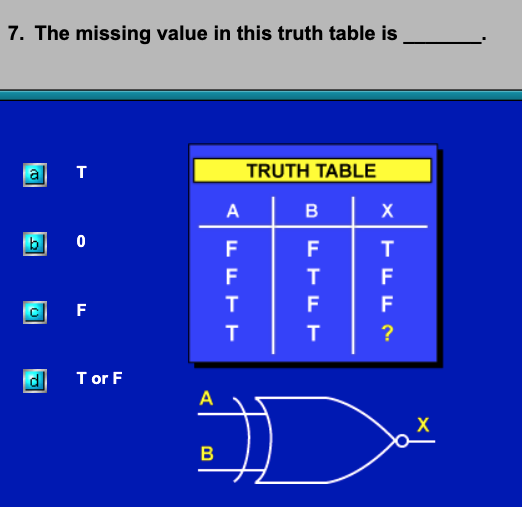

Q
A

T

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
