Worksheet 45-Relays Flashcards

1
Q

What are relays used for in an aircraft?

A

A relay is a device that uses a small amount of electrical energy to control a large source of electrical energy.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

What is the only moving part of a relay?

A

The armature is the only moving part of a relay.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

What pulls the armature onto the core of a relay?

A

An electromagnet pulls the armature onto the core.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

What are the devices in a relay that make electrical connections?

A

A set of normally open or normally closed contacts make electrical connections.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What might cause a relay to not actuate (or move inside) when a current is applied?

A

A broken spring might cause the relay not to retract or disconnect.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

What type of relay is build very strongly, has a core that is pulled into the electromagnet, and is deigned to handle high current loads?

A

A solenoid is a rugged relay that can handle high current loads.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What is the use of an overload relay?

A

An overload relay is used in circuit breaker applications.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What are the three basic mechanical parts of a relay that could potentially malfunction?

A

Relays have three basic sections that could cause malfunctions: coil, contacts and mechanical section.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

When performing a check of a coil with a multimeter, what would an ‘infinity’ reading indicate?

A

If a coil is reading infinity, it is open and will not operate.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

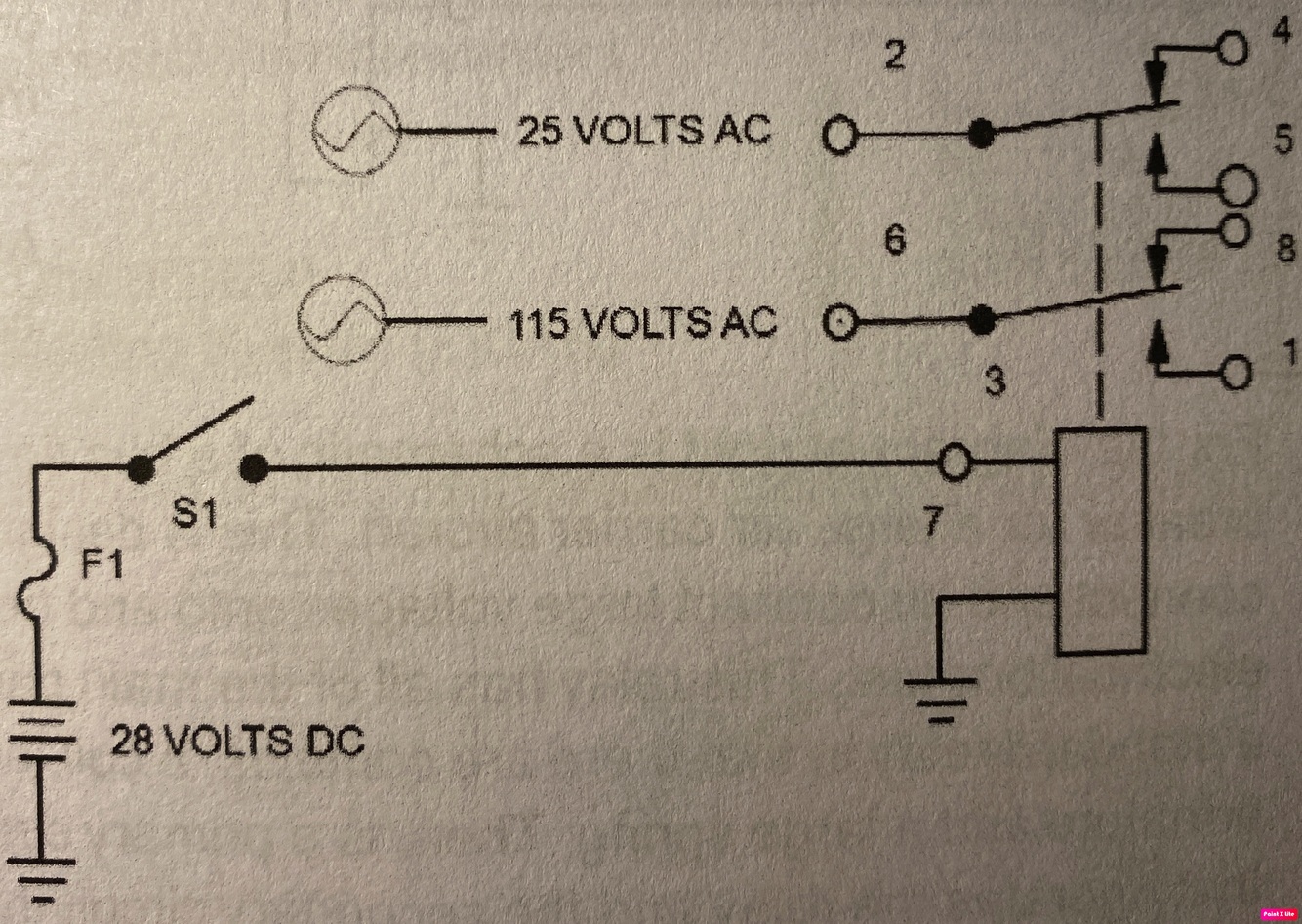

Referring to the diagram, given the multimeter voltage reading between the indicated test point and ground.

A

A) 0V

B) 0V

C) 115V

D) 25V

E) 115V

F) 0V
