Respiratory Anatomy Flashcards
What is the opening at the top of the thoracic cavity called
Superior thoracic aperture
What is the opening at the bottom of the thoracic cavity called
Inferior thoracic aperture
What vertebral level is the sternal angle at
Lower border of T4
What level does the trachea bifurcate
Lower T4

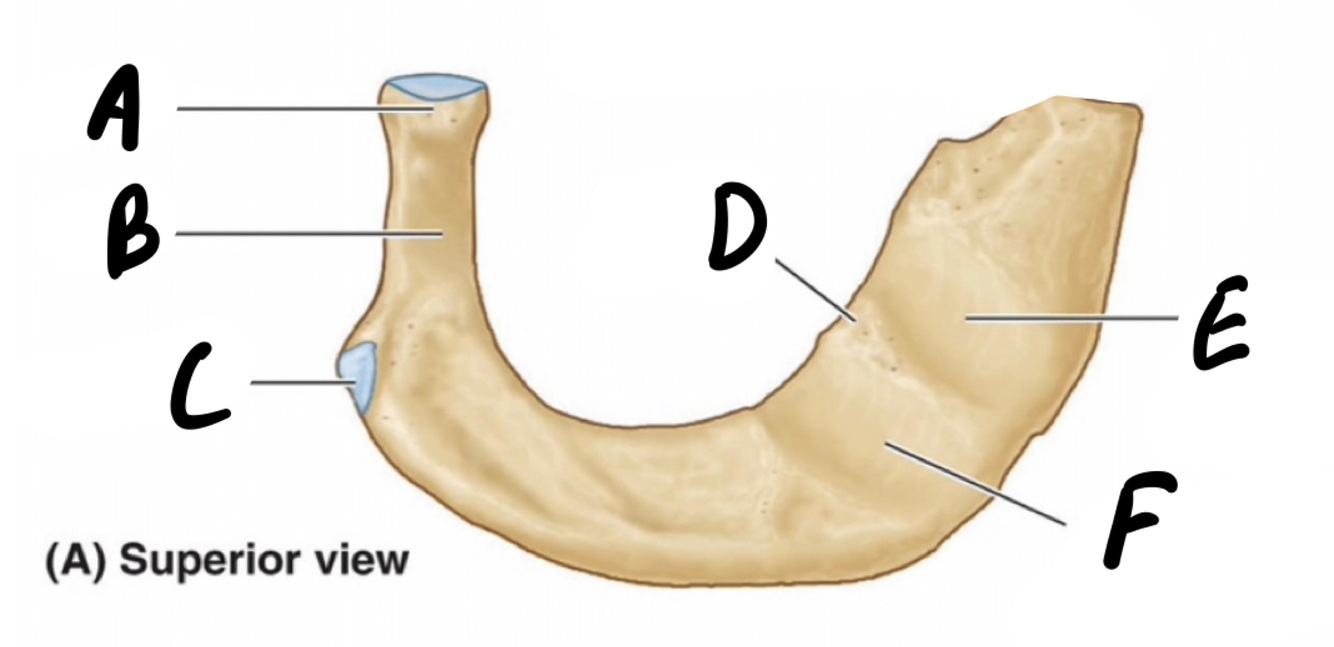

Name A, B, C, D, E, F
A - Head
B - Neck
C - tubercle
D - Scalene tubercle
E - Groove for subclavian vein
F - Groove for subclavian artery
Which ribs are true ribs
1-7
Which ribs are false ribs
8-10
Which ribs are floating
11-12

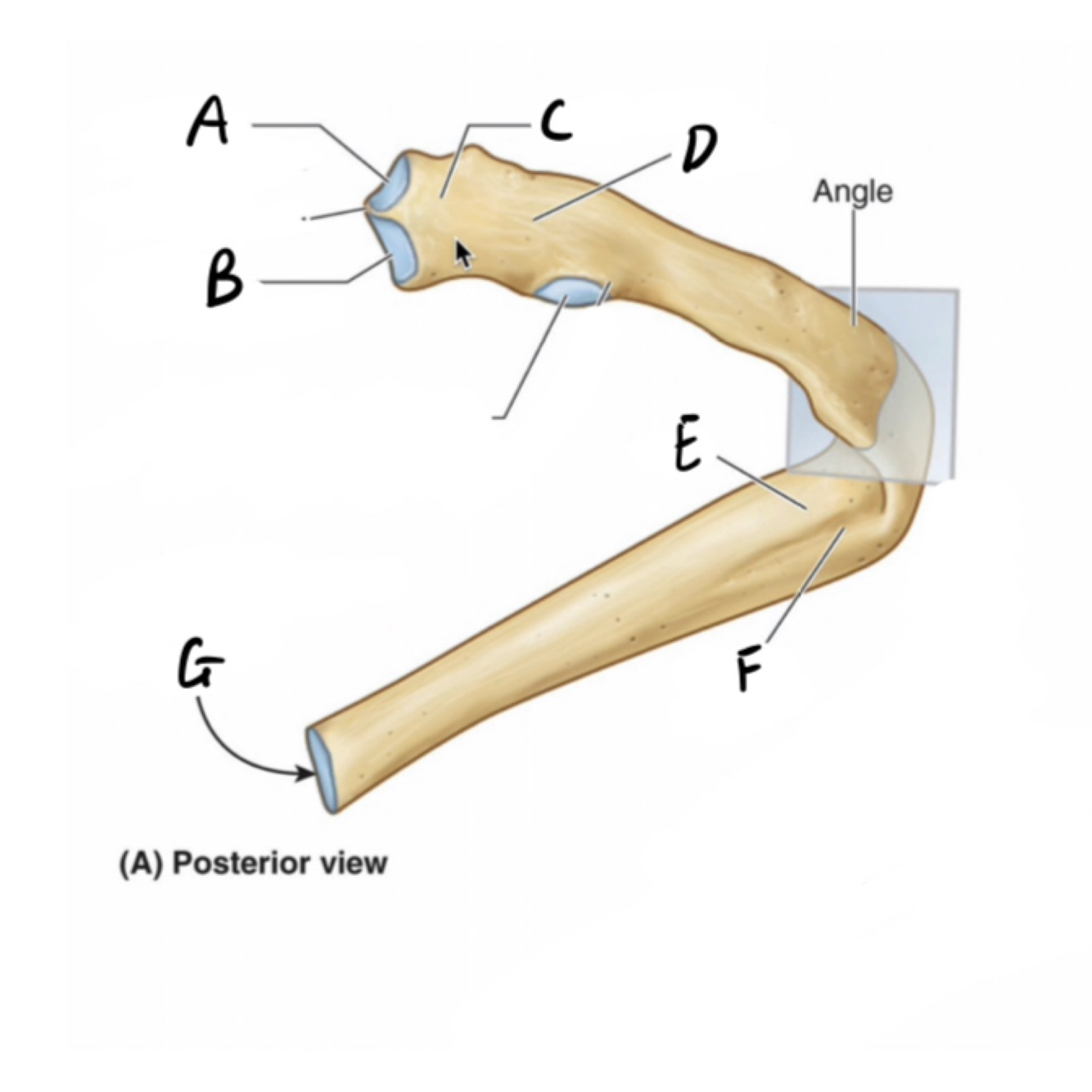

Name A - G
A - Superior articular facet
B - Inferior articular facet
C - Head
D - Neck
E - Body
F - Costal Groove
G - Costal cartilage articulation

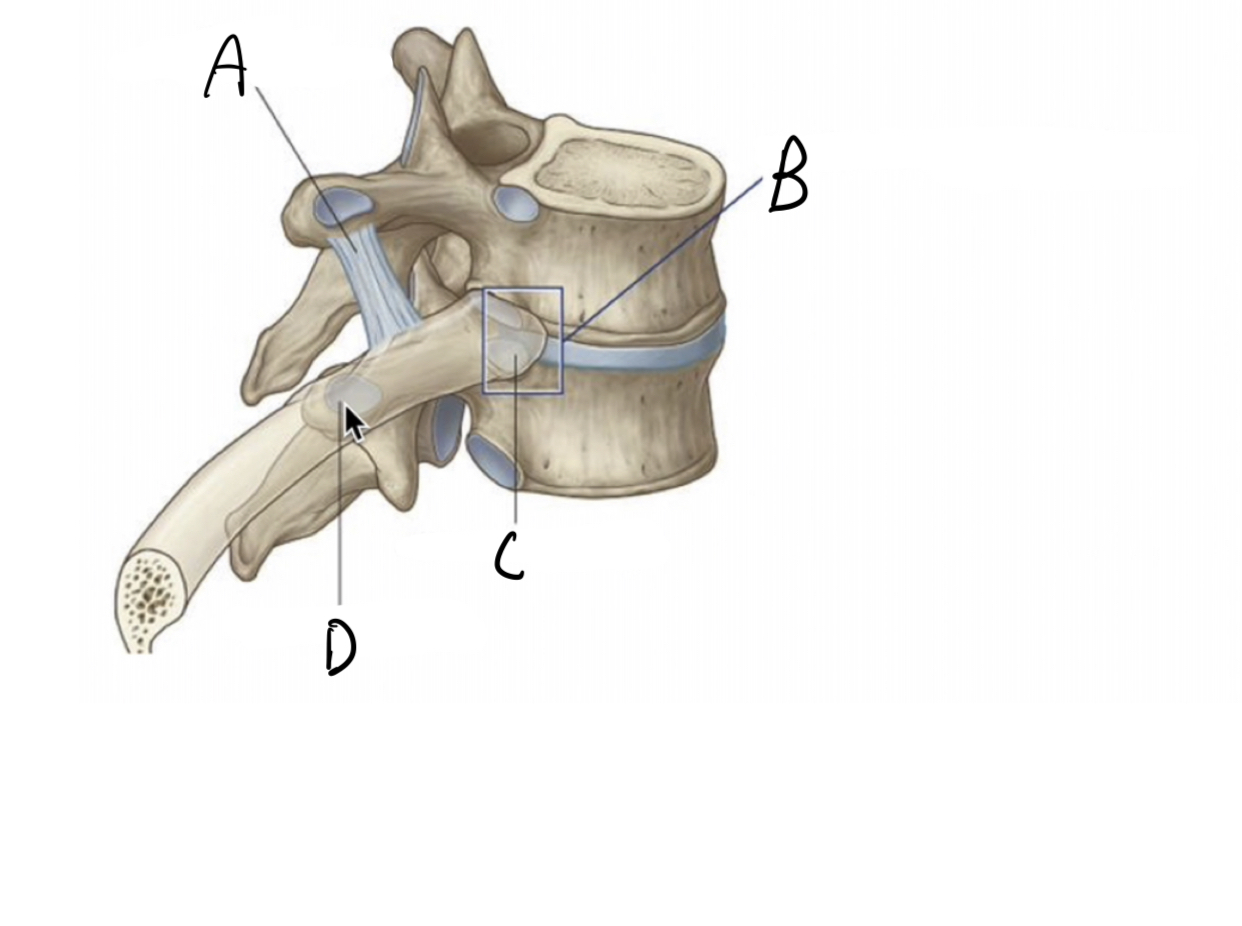

Name A - D
A - Superior costotransverse ligament
B - Costovertebral joints
C - Joint with vertebral body
D - Costotransverse joint
What does the tubercule of the rib articulate with
Tranverse process of vertebrae

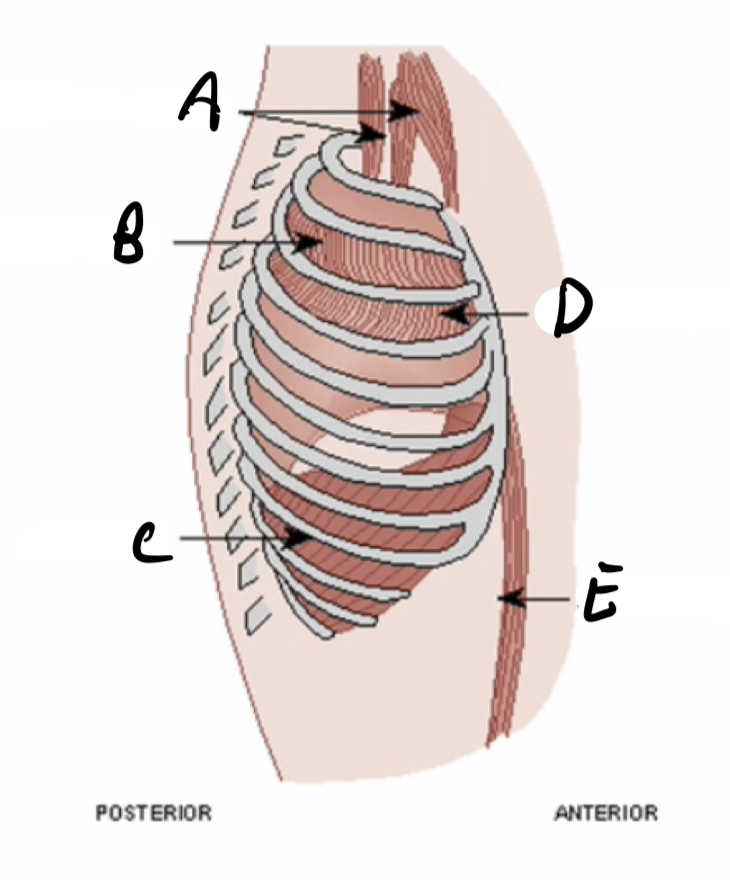

Name A - E
A - Accessory muscles
B - External intercostals
C - Diaphragm
D - Internal intercostals
E - Abdominal muscles
What lies within the costal groove, superior to inferior
VAN
Intercostal:
-Vein
-Artery
-Nerve
What do the collateral branches just above ribs contain, superior to inferior
NAV
-Nerve
-Artery
-Vein
Describe the venous drainage of the thoracic wall
Internal thoracic veins > accessory hemiazygous vein > azygous vein > SVC
Describe the artery supply of thoracic wall
Desc. Aorta > posterior intercostal arteries
Subclavian arteries > Internal thoracic arteries > anterior intercostal arteries
Branches from axillary arteries
Describe lymphatic drainage of the breasts
Majority - Axillary LN
Medial breast - Parasternal LN
Lower breast - Abdominal LN
How is the mediastinum split
Superior
Inferior:
-Anterior
-Middle
-Posterior
What level is the inferior and superior mediastinum split
Sternal angle/lower T4
What are the 3 peripheral attachments of the diaphragm
Lumbar vertebrae and arcuate ligament
Costal cartilage of ribs 7-12
Xiphoid process
What is the central attachment of the diaphragm
Central tendon
What are crura
Tendon like structures that attach the diaphragm to the vertebral column
Right crus insertion
L1-3
Left crus insertion
L1-2
Other function of right crus
Surrounds oesophageal opening and helps prevent reflux of gastric contents
What are the sides of the diaphragm called
Right and left domes
Where does the central tendon of the diaphragm attach
Fibrous pericardium
What are the 3 openings in the diaphragm
Caval opening
Oesophageal hiatus
Aortic hiatus
What level is the caval opening
T8
What level is the Oesophageal hiatus
T10
What level is the aortic hiatus
T12
What goes through the caval opening
IVC
Right phrenic nerve
What goes through the oesophageal hiatus
Oesophagus
Both vagus nerves
What goes through the aortic hiatus
Aorta
Azygos vein
Hemiazygos vein
Thoracic duct
Where is the caval opening located
Passes through the central tendon of the diaphragm
Where is the oesophageal hiatus located
Through the muscular sling of the right crus
Where is the aortic hiatus located
Between the left and right crus
What are the nerve roots of the phrenic nerve
Mainly anterior C3-C5
What function does the phrenic nerve provide
Motor AND sensory
