Chapter 12 - Direct Reading Magnetic Compass Flashcards

1
Q

Purpose of Direct Reading Magnetic Compass in an airline?

A

Standby instrument

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

What is the task of a Direct Reading Compass?

A

indicate direction on the surface of the Earth, relative to Magnetic North.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

What is the fluid in a direct reading magnetic compass?

A

Damping fluid

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

How do we balance a Direct reading mag compass?

A

compensating magnet

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What is the serviceability check of a Direct Reading mag compass?

A
  • Glass clean
  • No discoloration of the fluid
  • No bubbles visible
  • Indications within 5° of known heading, e.g. runway heading
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

The compass sensing magnets must lie as nearly as possible in the …… plane during normal straight and level flight.

A

horizontal

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

Where does the NORTH SEEKING end of a direct reading magnetic compass point?

A

Magnetic North Pole

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What are the three major limitations of a direct reading magnetic compass?

A
  • Turning and acceleration errors due to dip.
  • Closeness to sources of deviation (electric lights, electric motors and ferrous metal).
  • The instrument is self-contained. It is not possible to take a magnetic heading and input it into other equipment.
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

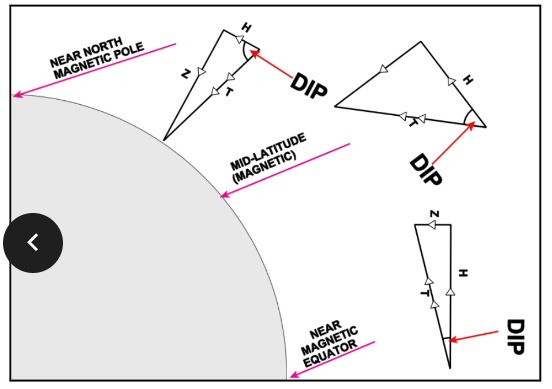

What is magnetic dip?

A

Acceleration and turning errors only occur where the vertical component (Z) in the earth’s field is large.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

What are the turning principles?

Heading increase?
Heading decrease?

Compared to the compass card

A

Heading increase – compass card anticlockwise

Heading decrease – compass card clockwise

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

What are acceleration errors with a direct reading mag compass?

A

acceleration on a heading of west in the northern hemisphere causes the compass card to rotate anticlockwise indicating an apparent turn to the north, or nearer pole.

NH: Acceleration North Deceleration South (ANDS)
SH: North Deceleration South Acceleration (NDSA)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

What causes acceleration errors on a direct reading magnetic compass?

A

Caused by inertia acting on a magnet with residual dip.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

What does the size of the acceleration error depend on in a direct reading magnetic compass?

A

aircraft heading, acceleration, latitude and design of the magnet system.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What are the size of acceleration errors on a direct reading magnetic compass on a east/west or north/south heading?

A

Acceleration / deceleration errors are MAX on East and West Headings (M) and ZERO on North and South Headings (M).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

What is the apparent turn due to acceleration errors in the northern and southern hemisphere on a direct reading magnetic compass?

A

Apparant turn North in the Northern hemisphere.

Apparent turn south in the southern hemisphere.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

What is DEAP (Dip) of a direct reading magnetic compass?

A

DEAP (dip): Deceleration toward Equator / Acceleration toward Poles

17
Q

In the northern hemisphere, during a take-off run in a westerly direction, a direct reading magnetic compass indicates:

A

An apparent turn to the north.

18
Q

In the southern hemisphere, during deceleration following a landing in a northerly direction, a direct reading magnetic compass indicates:

A

No apparent turn.

19
Q

When are turning errors of a direct reading magnetic compass max and min?

A

MAX when turning through North and South and ZERO when turning through East and West.

20
Q

The Plane Pushes the Pivot near the Pole

A

Southern Hemisphere

21
Q

What is lag through the turn?

A

moment set up by the turn causes an anti-clockwise rotation of the compass card causing its reading to lag in the turn.

22
Q

How is turning error of a direct reading magnetic compass further magnified?

A

The error will be further magnified by liquid swirl – think viscosity.

23
Q

Because of a turning errors of a direct reading magnetic compass is it over or under reading?

A

because the reading is lagging behind the aircraft, we call this under-reading.

Therefore, if we wish to roll out of our turn on a magnetic heading of 315 ̊, we will need to roll out when our compass reads, say, 335 ̊ or apparently early.

24
Q

When turning away from the nearer pole the your direct reading magnetic compass will…? Due to turning error

A

Your compass will lead in the turn

25
Q

Turning error

Turning away from the pole in the SH, the damping fluid will, increase or decrease the error of your direct reading magnetic compass?

A

Decrease, as compass is trying to lead in the turn.

26
Q

Is the heading indicated on the compass leading the aircraft, over or under reading?

A

over-reading if leading the aircraft heading

27
Q

What is compass sluggish and lively?

A

sluggish - under reading in the turn
lively - leading, over reading in the turn

28
Q

What is UNOS and ONUS

A

Northern Hemisphere - U N O S - Under-reads turning through North, Over reads turning through South

Southern Hemisphere - O N U S – Over-reads turning through North, Under-reads turning through South

29
Q

Timed turns are a solution for?

A

Turning errors on the direct reading magnetic compass

30
Q

what causes turning errors?

A

Dip of the compass

31
Q

The effect of the turning error of a direct reading magnetic compass increases when?

A

The magnetic latitude increases
