Biology: Compound Light Microscope (Diagram) Flashcards by Hunter Murdoch

Q

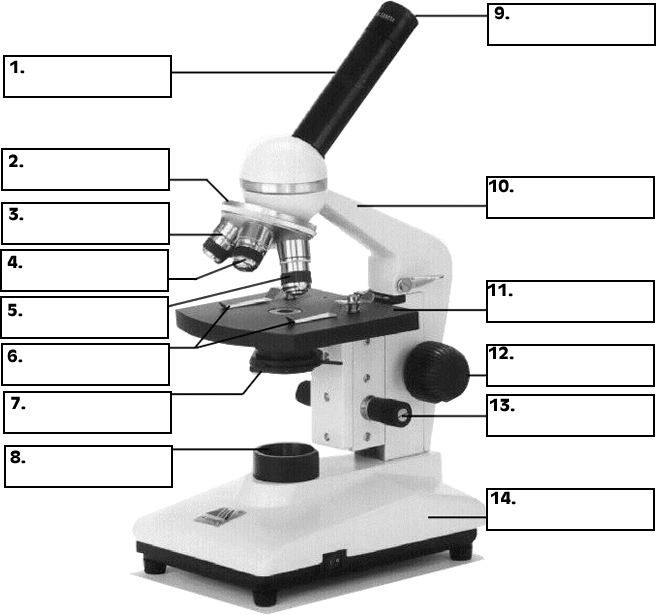

What does #1 refer to on the attached diagram of a compound light microscope?

A

Body Tube

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #2 refer to on the attached diagram of a compound light microscope?

A

Revolving Nosepiece

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #3, #4 and #5 refer to on the attached diagram of a compound light microscope?

A

Objective Lenses

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #6 refer to on the attached diagram of a compound light microscope?

A

Stage Clips

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #7 refer to on the attached diagram of a compound light microscope?

A

Condensor Lens or Diaphragm, I could only find this good diagram so they’re combined, but the Condensore Lens would be above the Diaphragm.

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #8 refer to on the attached diagram of a compound light microscope?

A

Light Source

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #9 refer to on the attached diagram of a compound light microscope?

A

Ocular Lens

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #10 refer to on the attached diagram of a compound light microscope?

A

Arm

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #11 refer to on the attached diagram of a compound light microscope?

A

Stage

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #12 refer to on the attached diagram of a compound light microscope?

A

Coarse Adjustment Knob

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #13 refer to on the attached diagram of a compound light microscope?

A

Fine Adjustment Knob

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What does #14 refer to on the attached diagram of a compound light microscope?

A

Base

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What number represents the body tube?

A

1

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What number represents the revolving nosepiece?

A

2

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What numbers represents the objective lenses?

A

3-5

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

What number represents the stage clips?

A

6

Q

What number represents the condenser lens/diaphragm?

A

7

Q

What number represents the light source?

A

8

Q

What number represents the ocular lens?

A

9

Q

What number represents the arm?

A

10

Q

What number represents the stage?

A

11

Q

What number represents the coarse adjustment knob?

A

12

Q

What number represents the fine adjustment knob?

A

13

Q

What number represents the base?

A

14
