Automatic Flight and Comms Flashcards
On takeoff, what speed does SRS command
with both engines operating?
(105)
SRS gives pitch guidance to maintain airspeed at V2 + 10
On takeoff, what speed does SRS command
if an engine failure is detected?
(107)
SRS gives pitch guidance to maintain the greater of V2 or current speed, limited to V2+15
When does the airplane exit SRS mode?
(109)
Automatically at the Acceleration Altitude or when another Vertical Mode is engaged

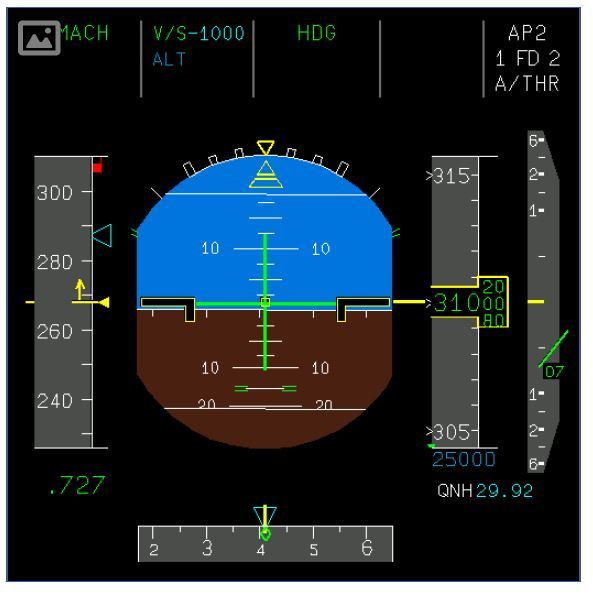

With V/S active, what would happen if you select a higher speed?
(111)
Thrust will increase (up to CLB, if needed) until the selected speed is attained. Then the thrust will reduce to maintain selected speed

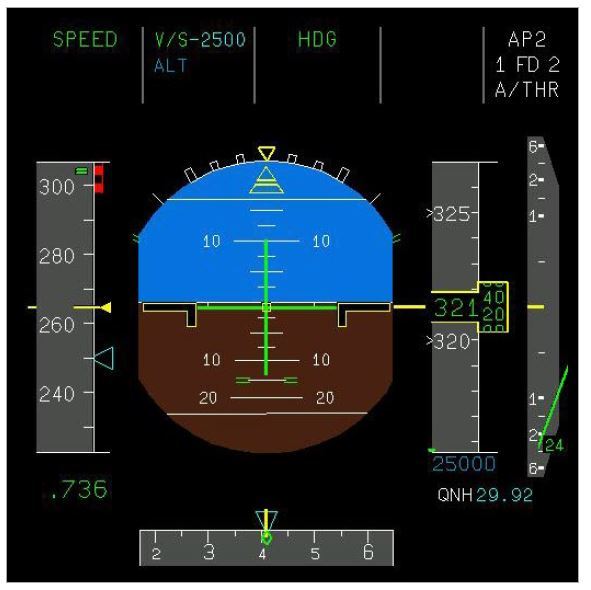

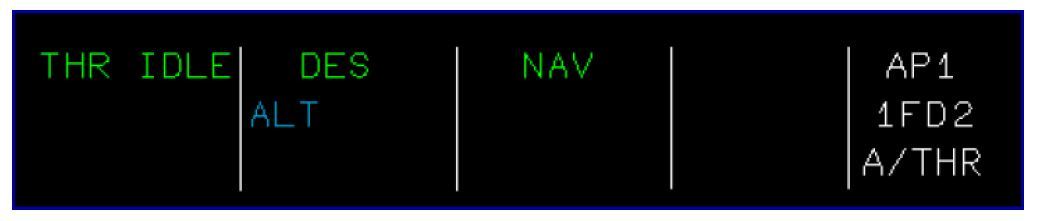

Based on the PFD shown, what thrust is being commanded?
(113)
Thrust at idle since speed selected is below indicated in a descent

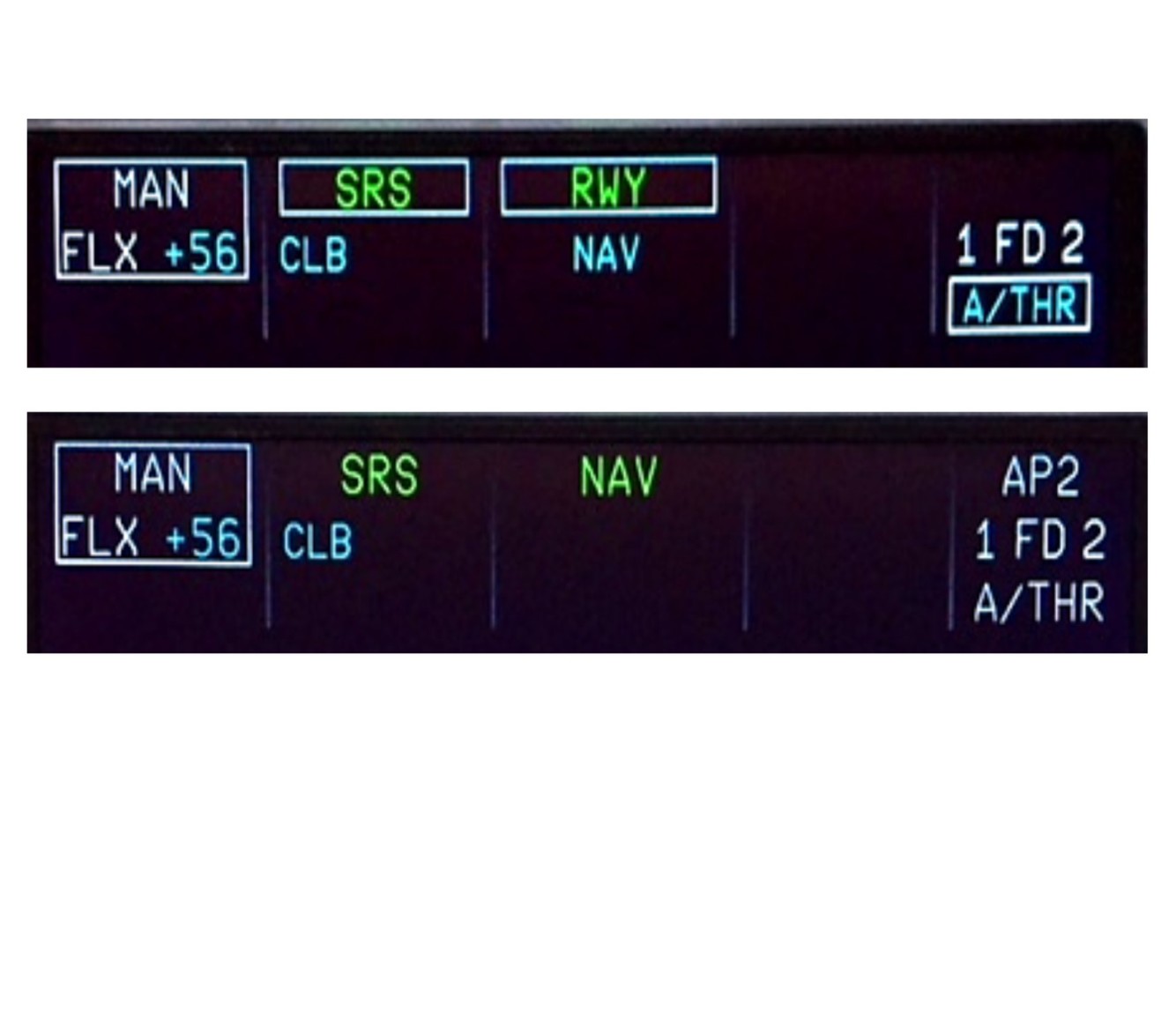

During a normal takeoff, when will the A/THR
become engaged?
A/THR becomes active when thrust
levels are in the CLB detent.

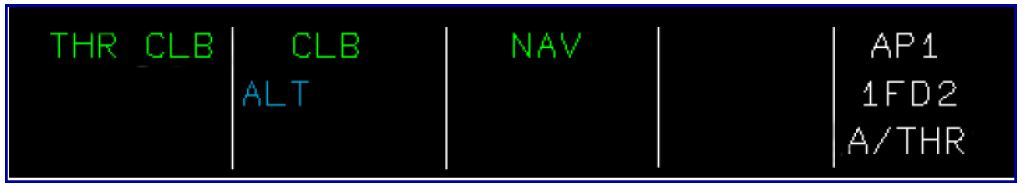

In a Managed Climb, what FMA changes
will occur if you pull HDG?
(117)
NAV mode will change to HDG; CLB mode will change to OP CLB
In a Managed Descent, what FMA change(s)
will occur if you pull HDG?
(119)
NAV mode will change to HDG; DES mode will change to V/S, THR mode will change to SPEED

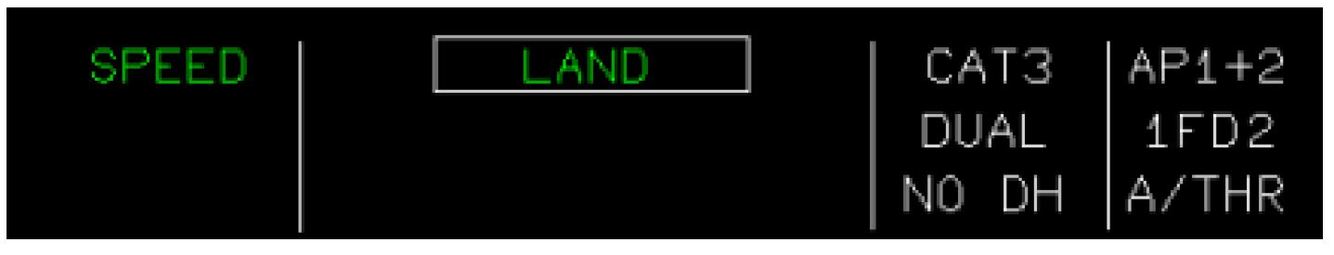

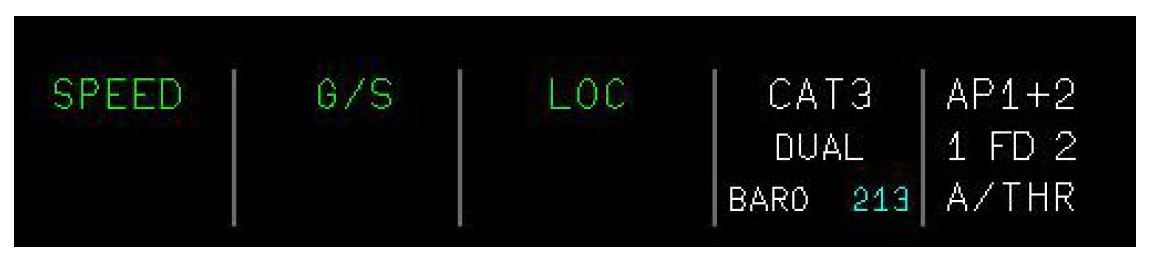

During an ILS Approach, at approximately what altitude will the LOC/GS indication change to LAND on the FMA and what does it mean?
Below 400’ RA
LAND indicates that the LOC and GS Modes are locked. No action on the FCU will disengage the LAND Mode FLARE and ROLLOUT Modes will successively engage
During an autoland, when do you expect the
FMA FLARE indication to appear?
(123)
40’ RA

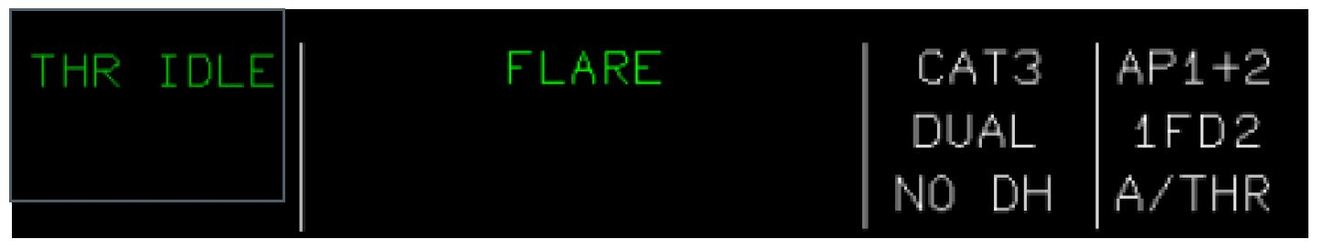

During an autoland, with the FMA FLARE indication
displayed, what actions are occurring within the
autopilot and autothrust?
Autopilot aligns yaw axis with runway centerline and flares in pitch
Autothrust reduces thrust to Idle if engaged

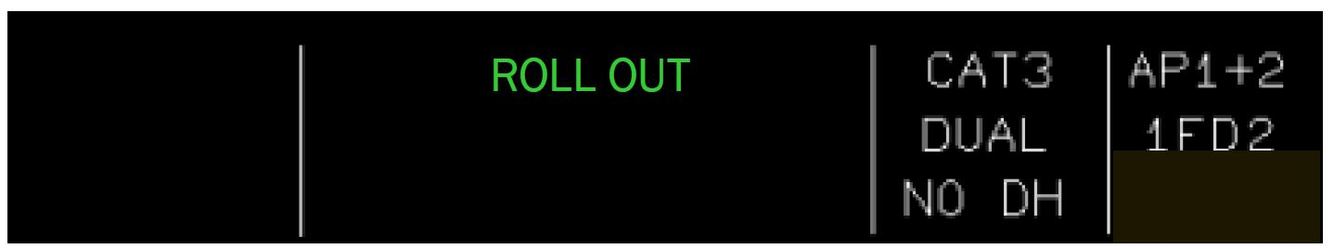

During an autoland, what does ROLL OUT indicate?
(127)
The autopilot is guiding the aircraft along the runway centerline and the yaw bar is displayed on the PFD

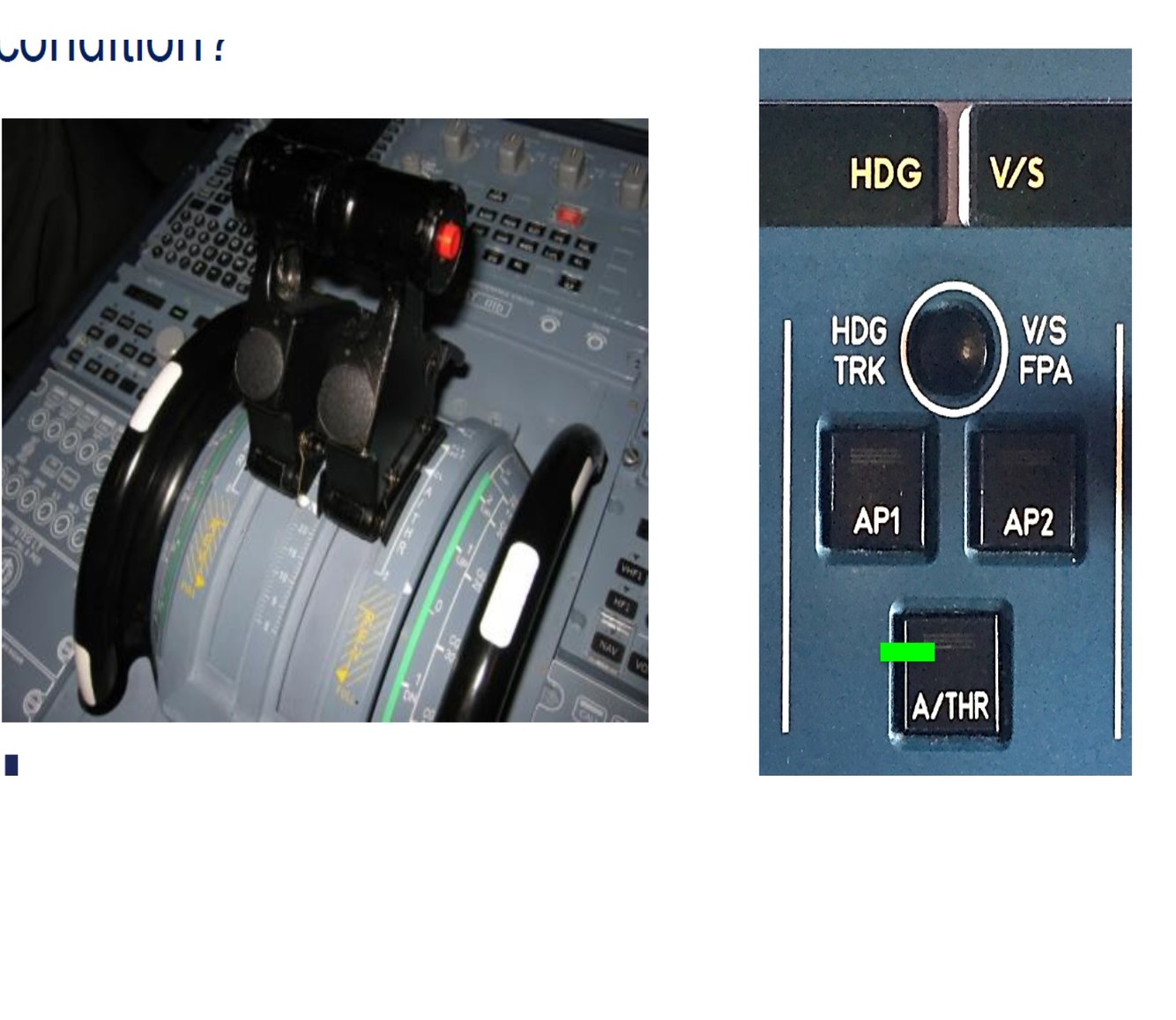

▪ What are the three ways to
disconnect the Autothrust?
▪ Which of these will cause a “Thrust Lock”
condition?
- Press either A/T instinctive
disconnect push button - Push A/T pb on FCU
- Move BOTH thrust levers to Idle
*Pushing the A/T pb on the FCU will cause “Thrust Lock” *

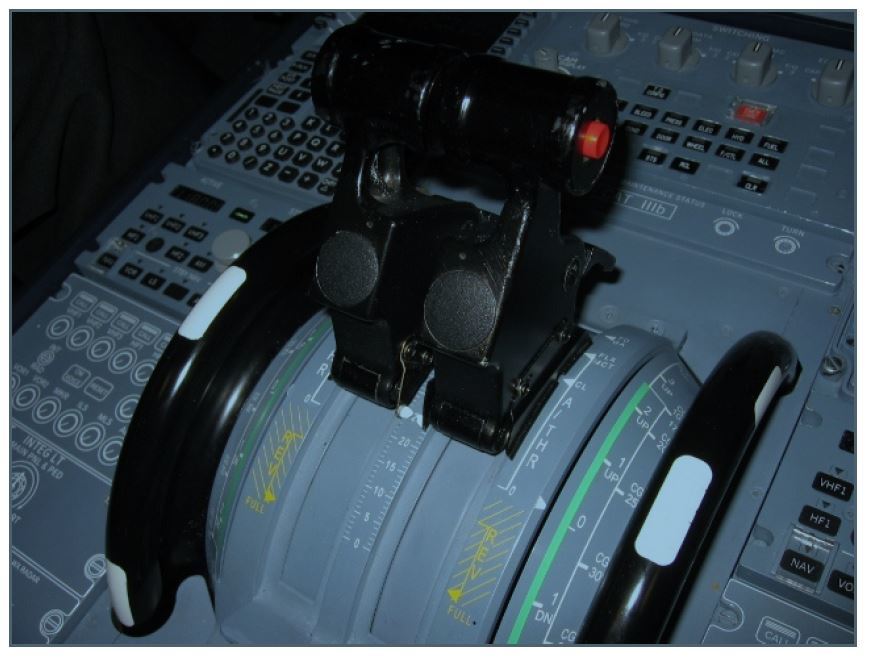

In level flight with the thrust levers in the CL detent,
what will happen to the thrust if you press
the instinctive disconnect p/b?
(131)
Thrust will go to CL (matching actual current TL position)
Note: This is why we normally match the T/L position to current thrust before pressing the disconnect pb

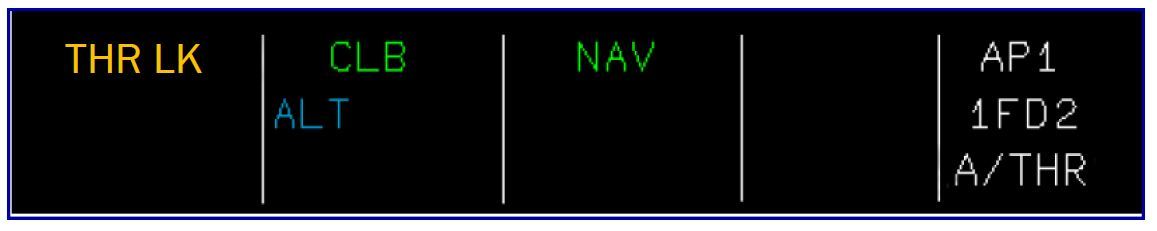

What does THR LK mean?
(133)
Means: Thrust is fixed at the current setting. (Could result from a fault OR pressing the FCU A/THR button.)
To fix: Move the Thrust Levers
How would you get out of THR LK ?
(135)
Move the thrust levers
What triggers ALPHA FLOOR protection to engage?
(137)
A.FLOOR is triggered by a predetermined AOA.
A.FLOOR means A/THR will command TOGA thrust regardless of T/L position.
When the ALPHA FLOOR mode triggers,
what does A/THR command?
(139)
A/THR will command TOGA

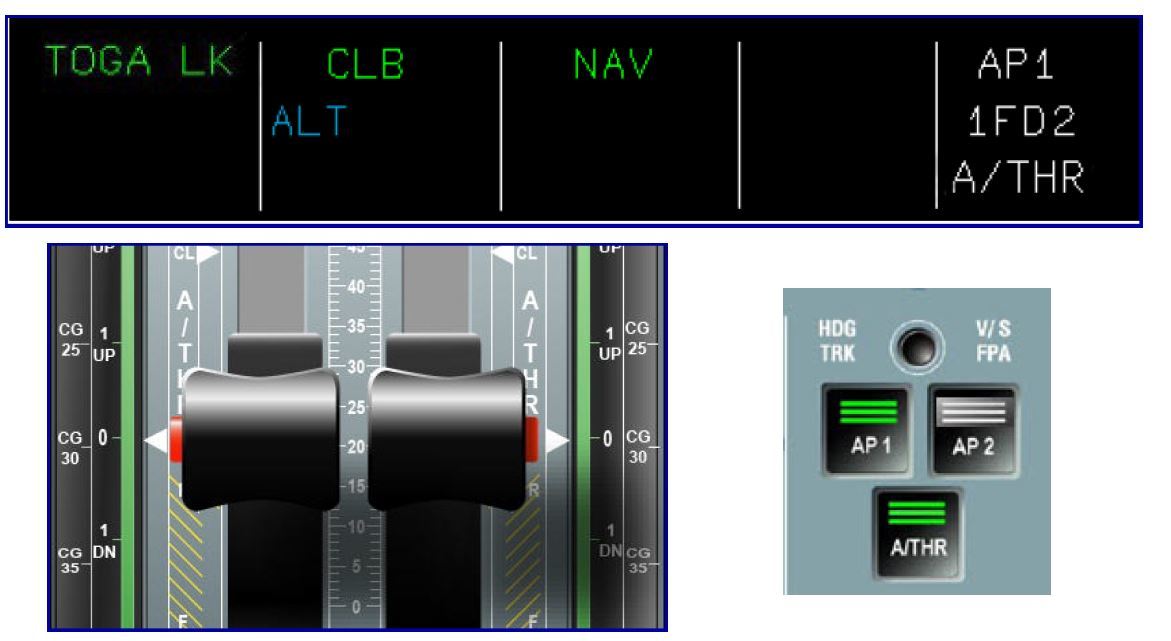

What does TOGA LK indicate?
(141)
TOGA LK means TOGA Thrust is still being commanded (Alpha floor triggering conditions are no longer met)
How do you get out of TOGA LK ?
(143)
To disengage TOGA LK, the A/THR must be disconnected
During a Go-Around, what FMA indications will confirm that the Aircraft has entered the GA phase?
(145)
MAN TOGA, SRS confirm the aircraft has entered the GA phase
The aircraft is in Normal Law and Autothrust is selected OFF.
Is ALPHA FLOOR available?
YES

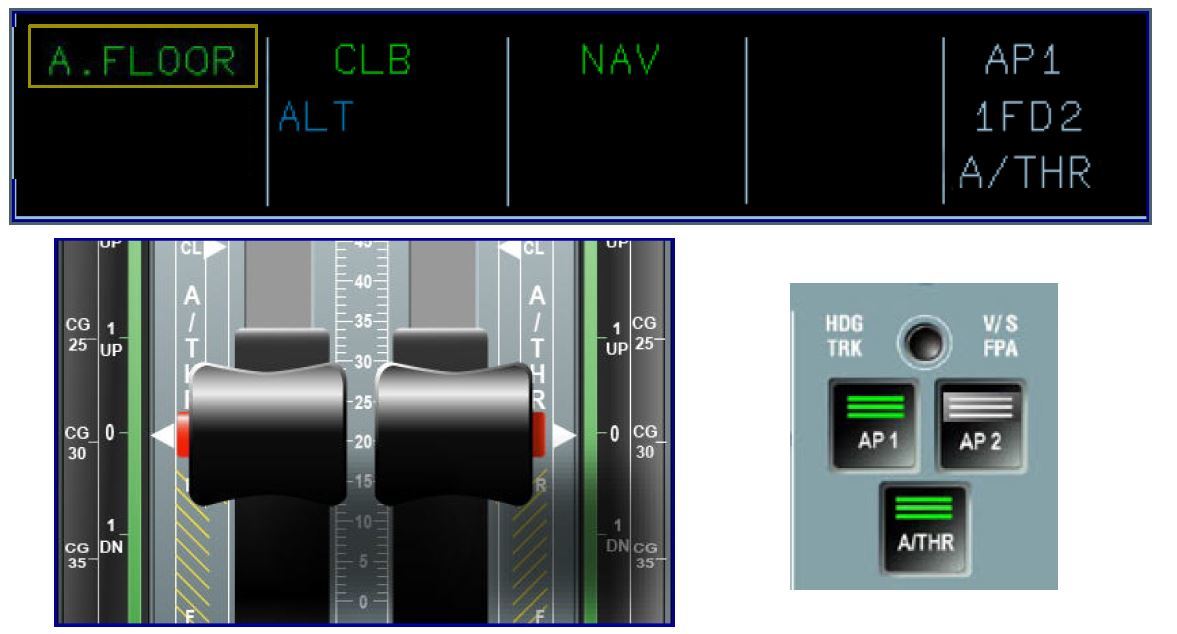

When the aircraft leaves alpha floor
what FMA change will occur?
A.FLOOR will change to TOGA LK

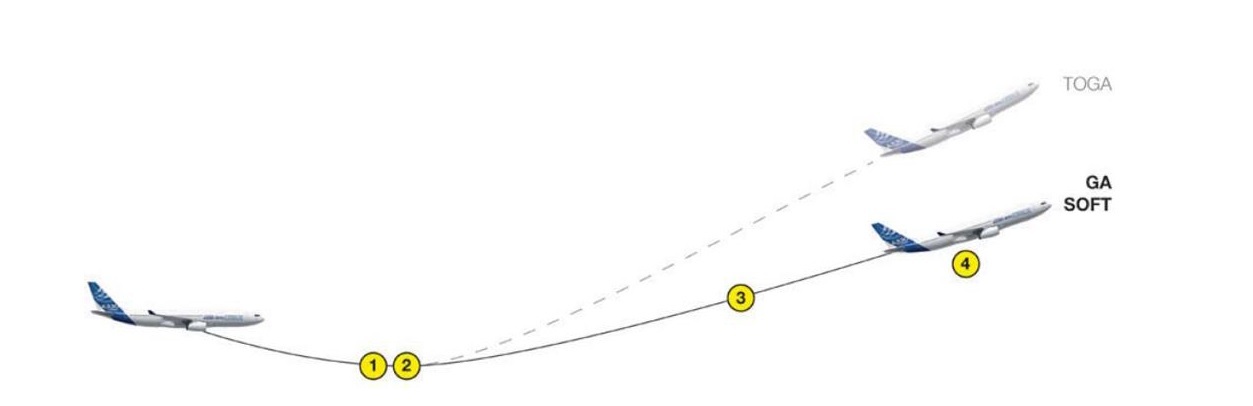

NEO:
The soft-go-around function automatically adapts the thurst to maintain approximately what rate of climb?
2000 FPM
NEO:
To initiate the soft go around function, the pilot should move the Thrust Levers to:
TOGA and then immediately back to FLX/MCT
What does the lateral mode RWY represent?
Runway Mode Engaged.
Provides steering guidance during
take off roll and climb using
available localizer.

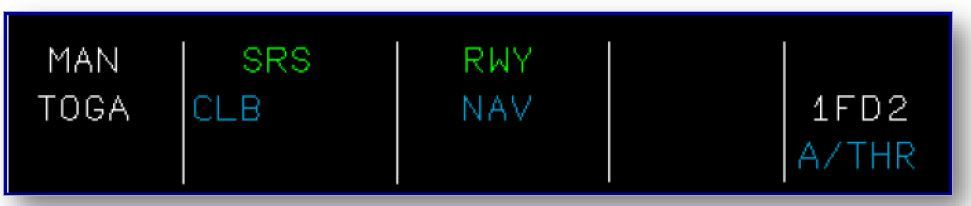

Based on the FMA, what is the status of the
Autothrust?
Armed
(Blue A/THR in right hand column)
What is the difference between the vertical modes
CLB and OP CLB?
CLB: Aircraft will climb to the
selected altitude but will respect all
altitude constraints. (VNAV)
OP CLB: Aircraft will climb to the
selected altitude but will not
respect any programmed altitude
constraints (unrestricted climb)
*BOTH MODES PROVIDE PITCH GUIDANCE TO MAINTAIN TARGET
AIRSPEED*
Describe
ALT CRZ?
ALT CRZ
When FCU selected altitude = CRZ
Altitude and there is a target Mach,
Soft altitude mode engages which
allows the aircraft to vary +/- 50 feet
from the cruise altitude to maintain
MACH. This minimizes thrust
variations, reduced fuel consumption
and increases customer comfort.
What is the difference between the vertical
modes DES and OP DES?
DES: Aircraft will descend to the
selected altitude but will respect all
altitude constraints. (VNAV)
OP DES: Aircraft will descend to the
selected altitude but will not
respect any programmed altitude
constraints (unrestricted descent)
*DES MODE HONORS VERTICAL TRACK ;OP DES HONORS
TARGET AIRSPEED*
Identify the Takeoff V
speeds presented on
the speed tape
What does the S
Speed represent
during a takeoff or
go-around?
During
Acceleration:
Slat retraction
speed.
OR
Lowest speed to
select Flaps to “0”
What does this Green Dot
represent?
The best lift over drag speed (L/D)
Also the Minimum Maneuvering
Speed in the CLEAN configuration
*Appears when aircraft is in a clean configuration*
Based on the speed tape as
shown, which symbol
represents the maximum
speed to extend flaps from
position 2 to 3?
The Amber “=“
represents Vfe next
or the maximum
speed to extend to
the next flap position
What does the F Speed
represent during deceleration
on approach?
F Speed is the minimum
maneuvering speed with the
Flaps in either Config 2 or 3
During Deceleration:
Green Dot= Min Maneuvering Speed Clean
S- Speed= Min Maneuvering Speed Flap Config 1
F- Speed= Min Maneuvering Speed Flap Config 2/3
With “managed speed” and Auto Thrust engaged, the
above speeds are the lowest speeds (Vls) the A/Thr will
slow the aircraft.
▪ What do each of these 3 speed
indications mean?
▪ Top of amber line
▪ Top of black and amber strip
▪ Top of solid red strip
▪ Based on this display, what
flight control law is the aircraft
in?
▪ What do each of these 2 speed
indications mean?
▪ Top of amber line
▪ Top of red and black strip
▪ Based on this display, what
flight control law is the aircraft
in?
If an evacuation is initiated from the Cabin, what
indications would we have on the Flight Deck?
The signal will only be apparent in the Flight
Deck and the alert will only sound in the Flight
Deck for 3 seconds, the EVAC light flashes.
