Gas processing (midstream processes) Flashcards

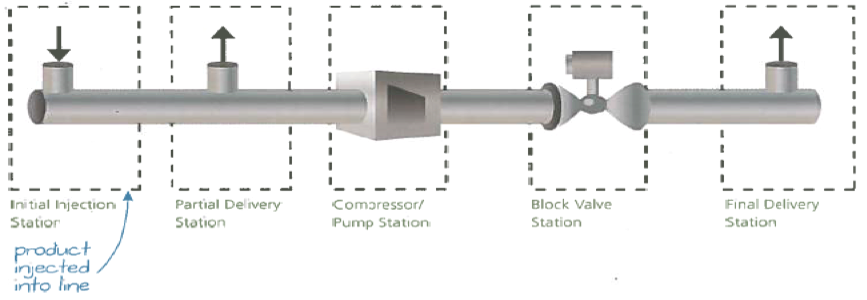

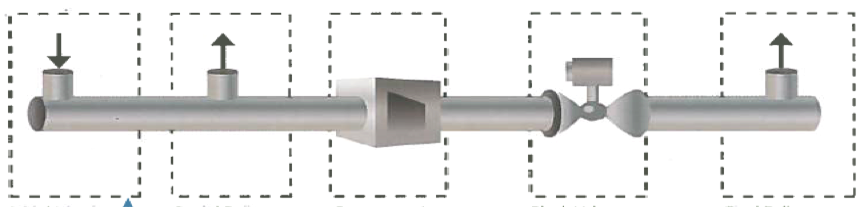

pipeline stations
- initial injection station
- partial delivery station
- compressor/pump station
- block valve stations
- final delivery station
intial injection station
Known as Supply or Inlet Station; where product injected from storage, pumps or compressors
Partial Delivery Station
:Known as Intermediate Stations; they allow pipeline operator to deliver part of product
Compressor/Pump Station:
Compressors for gas; Pumps for oil. They move product along the pipeline
Block Valve Stations
First line of protection for pipeline. The operator can isolate any segment of pipeline (like BOPs)
Final Delivery Station:
Known as Outlet Stations/Terminals. Where product is distributed to customers
gas gathering
this is when gas is captures and piped from well head to gathering center and prepared for distribution
gas gathering steps
- Dehydration: removal of H20
- Removal ofSulfur (H2S & other corrosives)
- Pressure increased w/compressors (for pipeline transport)
- Friction reduced by intermediate compressors every 10-40 km
- Pressure& flow data transmitted to control stations for safety & quality
LNG
Liquefied Natural Gas
Makes transporting gas quicker and easierthan with pipelines.
LNG steps
- Naturalgas pipeline to liquefaction plant
- Water, CO2,Sulfur removed → pure CH4
- Gas cooled to -162◦C to change it to liquid
- LNG is transported in insulated, double-hulled ship and kept at -162◦C & low pressure
- Some of the LNG changed back to gas to fuel ship
- When the ship arrives at the regasification terminal, LNGpumped into double-walled tanks
- It’s reheated,pipeline to customers

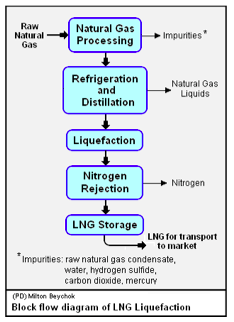

LNG flow diagram
FPSO stands for
floating production, storage, and off take facilities
what is an FPSO?
FPSOs are used for preliminary processing and storage of oil.
They receive oil from nearby platforms, process them, and store them.
Later,the oil and gas are offloaded onto a tanker or transported through pipelines, but this is very costly
Do you know what processing is done? Water, oil, and gas are separated.
