Anatomy - CVR COPY Flashcards
What allows optimal positioning of the head?
-Cervical spine is flexible
-Neck is slender
Why is the neck prone to injury?
The flexibility of the cervical spine
Why is the neck an extremely vulnerable area for injury?
Many vital structures packed into the small region with little protection
What 6 things does the neck contain?
-Respiratory tract structures
-GI tract structures
-Glands
-Arteries and veins
-Nerves
-Several groups of muscles
What structures of the respiratory tract are in the neck?
-Pharynx
-Larynx
-Trachea
What structures of the GI tract are in the neck?
-Pharynx
-Oesophagus
What glands are in the neck?
-Thyroid
-Parathyroid
What do nerves in the neck innervate?
-Serve head and neck
-Upper limbs
-Thoraco-abdominal viscera (via vagus)
-Diaphragm (phrenic)
What muscle groups are in the neck?
-Move head and neck
-Move larynx in speech
-Swallowing that form floor of mouth
-Platysma - very thin subcutaneous muscle deep to the skin of the neck

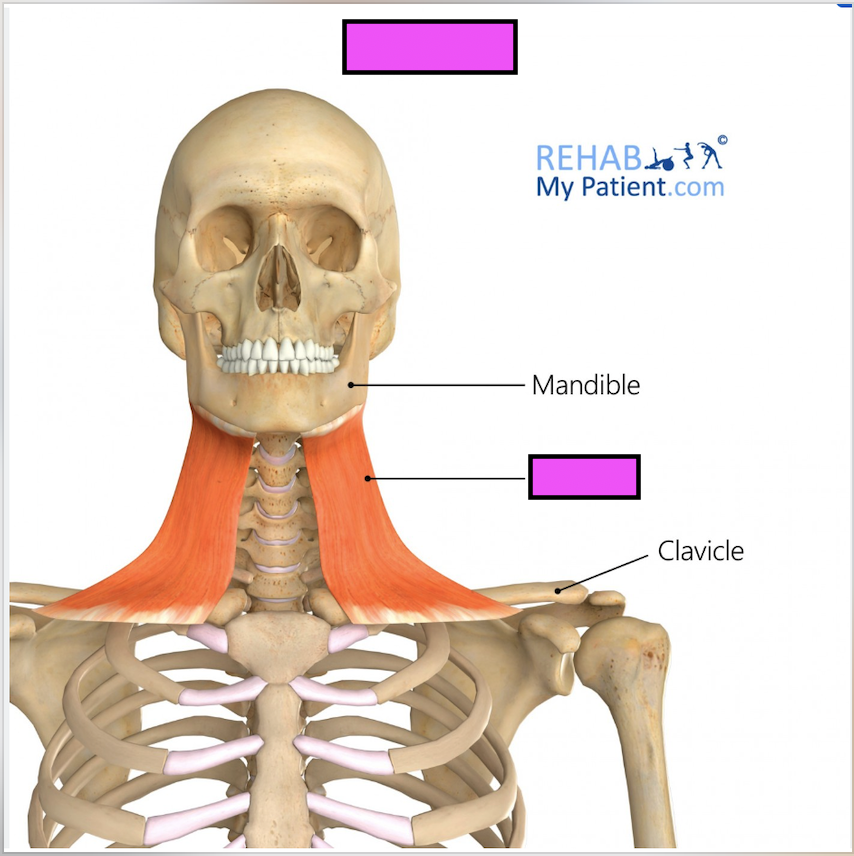

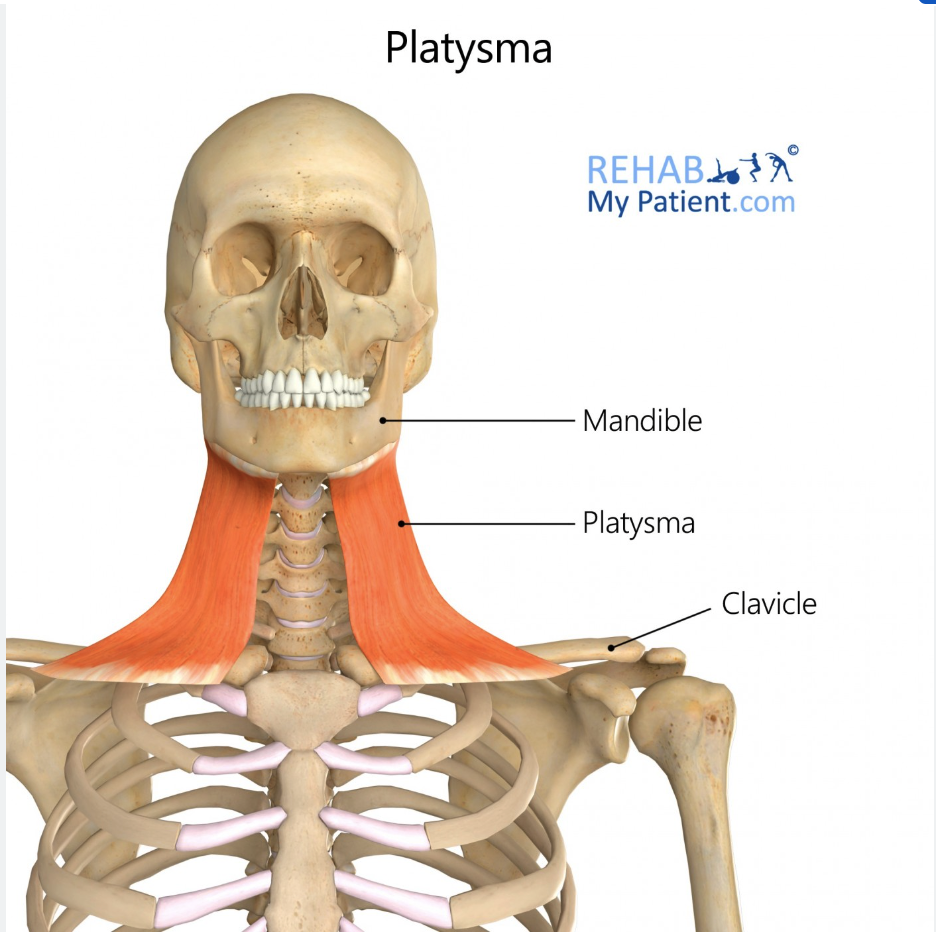

What muscle does this show?
-Platysma
-Very thin subcutaneous muscle deep to skin of the neck

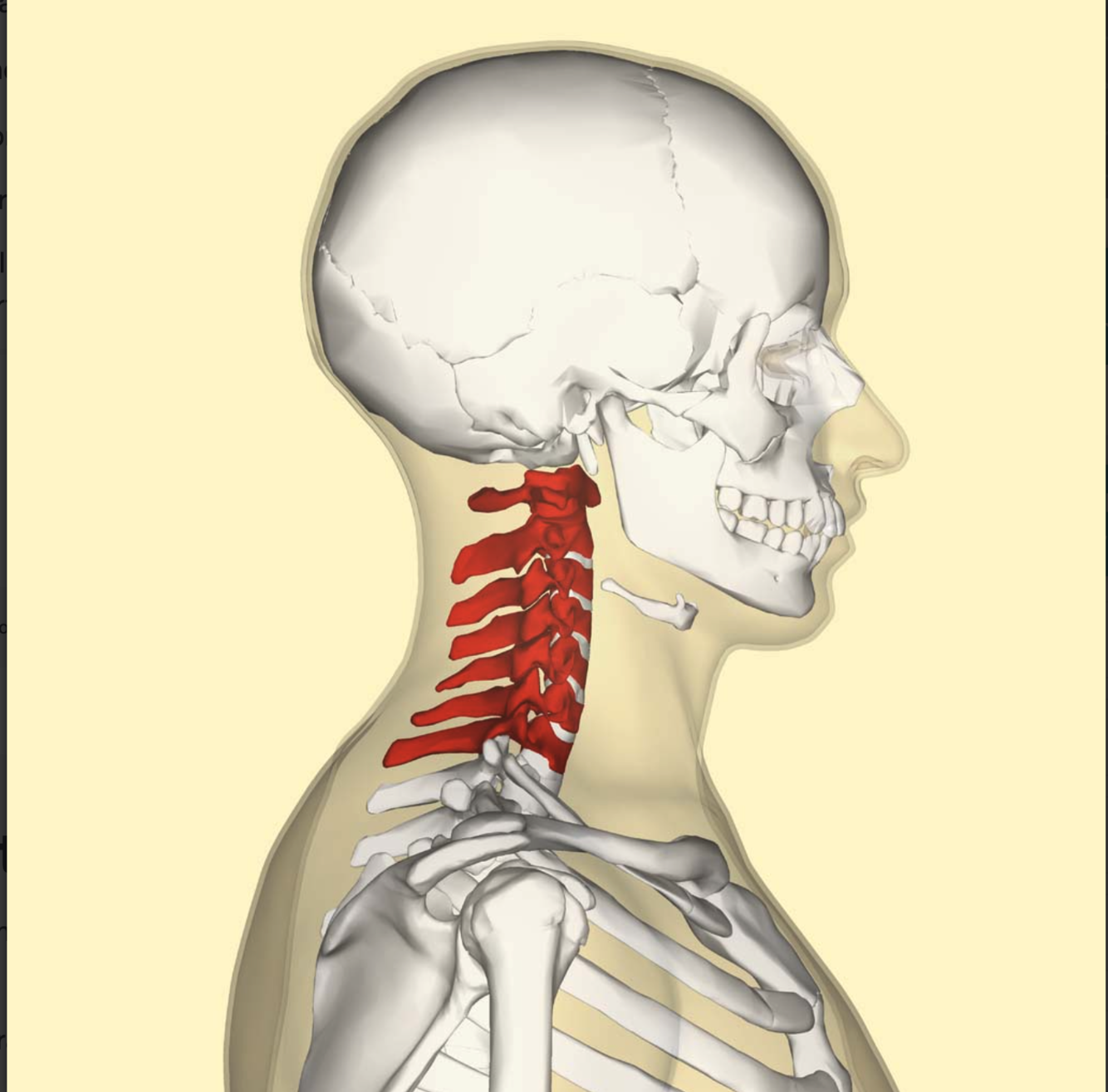

How many cervical vertebrae are there?
Describe them:
-7 cervical vertebrae
-Small
-Articulate with each other at facet joints that are oriented obliquely

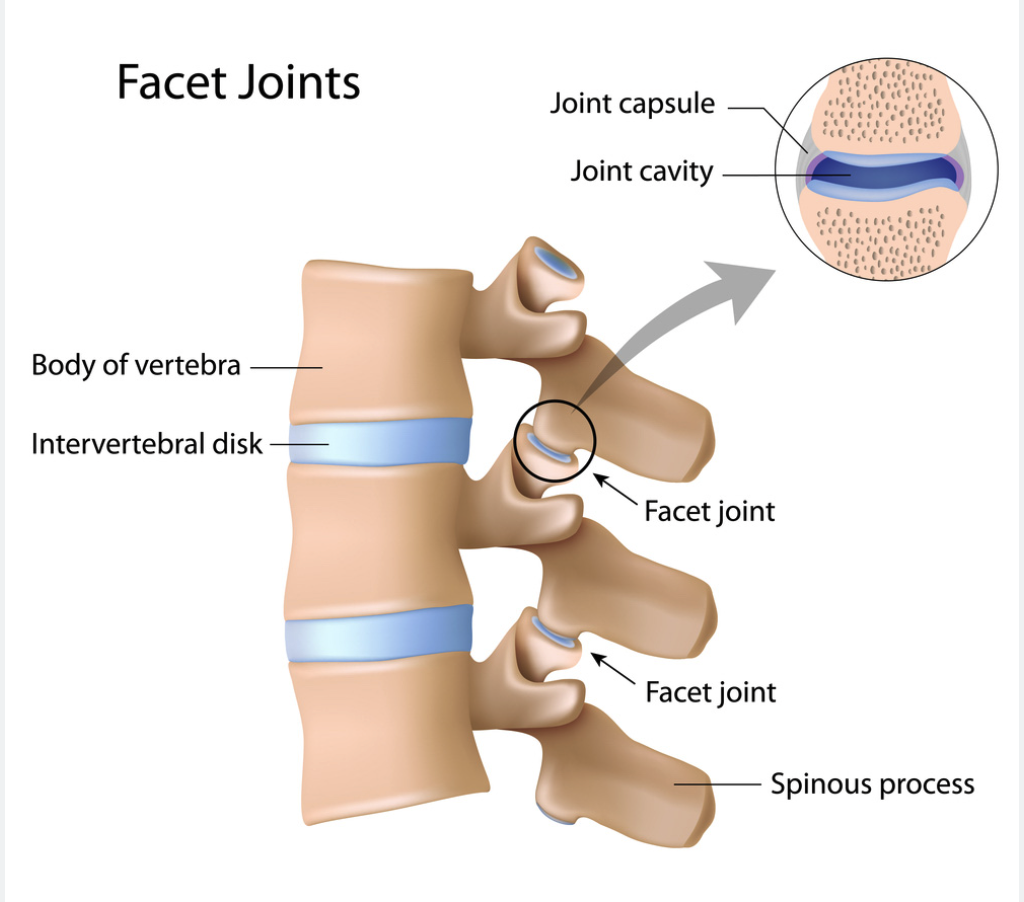

Describe the types of joints between cervical vertebrae:
-Facet joints
-Oblique (at an angle)
-Good range of flexion and extension of the cervical spine - in comparison to thoracic
What bone is situated anteriorly in the upper neck, inferior to mandible?
-Hyoid bone
-Helps to keep pharynx open
-Provides attachment point for several muscles in neck and tongue

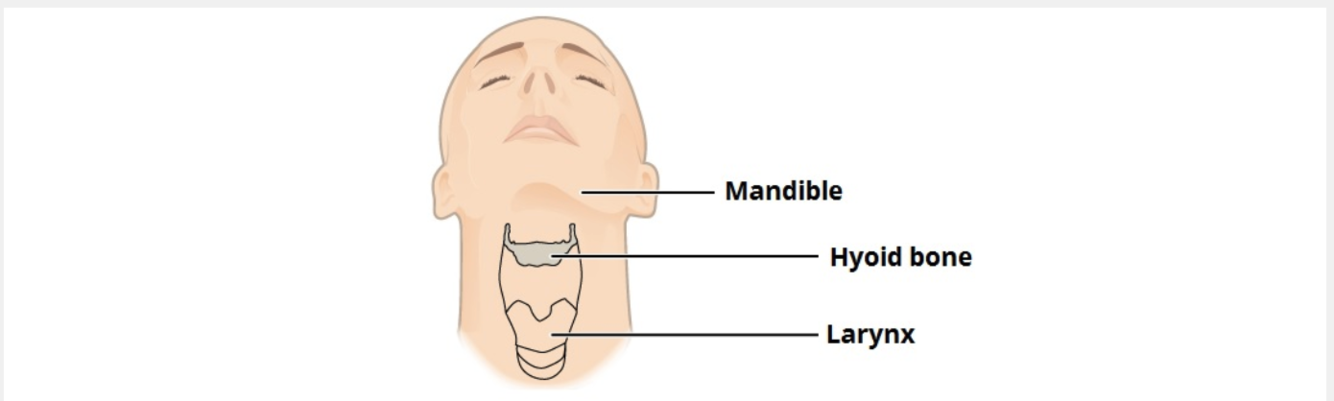

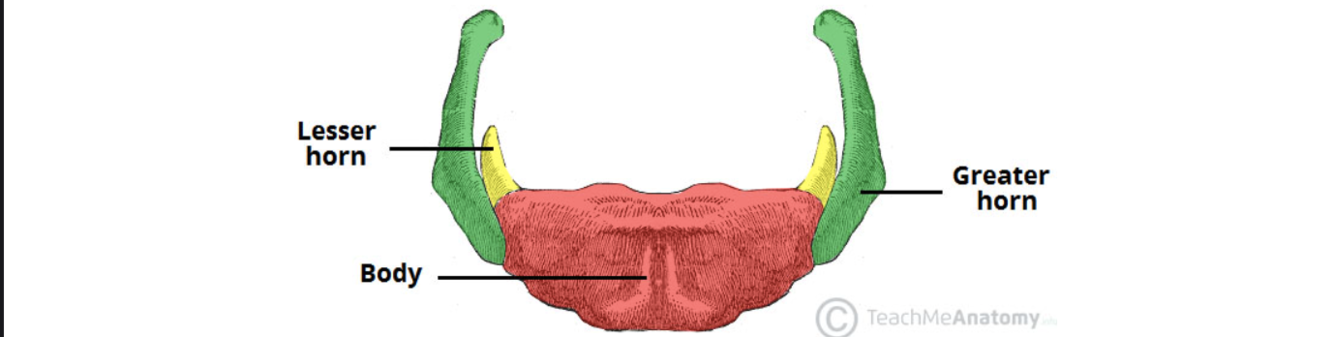

Label this diagram:
What is it?
Hyoid bone
What bones and cartilage are in the neck?
-7 cervical vertebrae
-Hyoid bone
-Larynx
What composes the larynx and what is its function?
-Skeleton of small cartilages connected by membranes and small joints
-Protects airway
-Muscles attach to laryngeal cartilages to move them and move vocal chords (phonation)

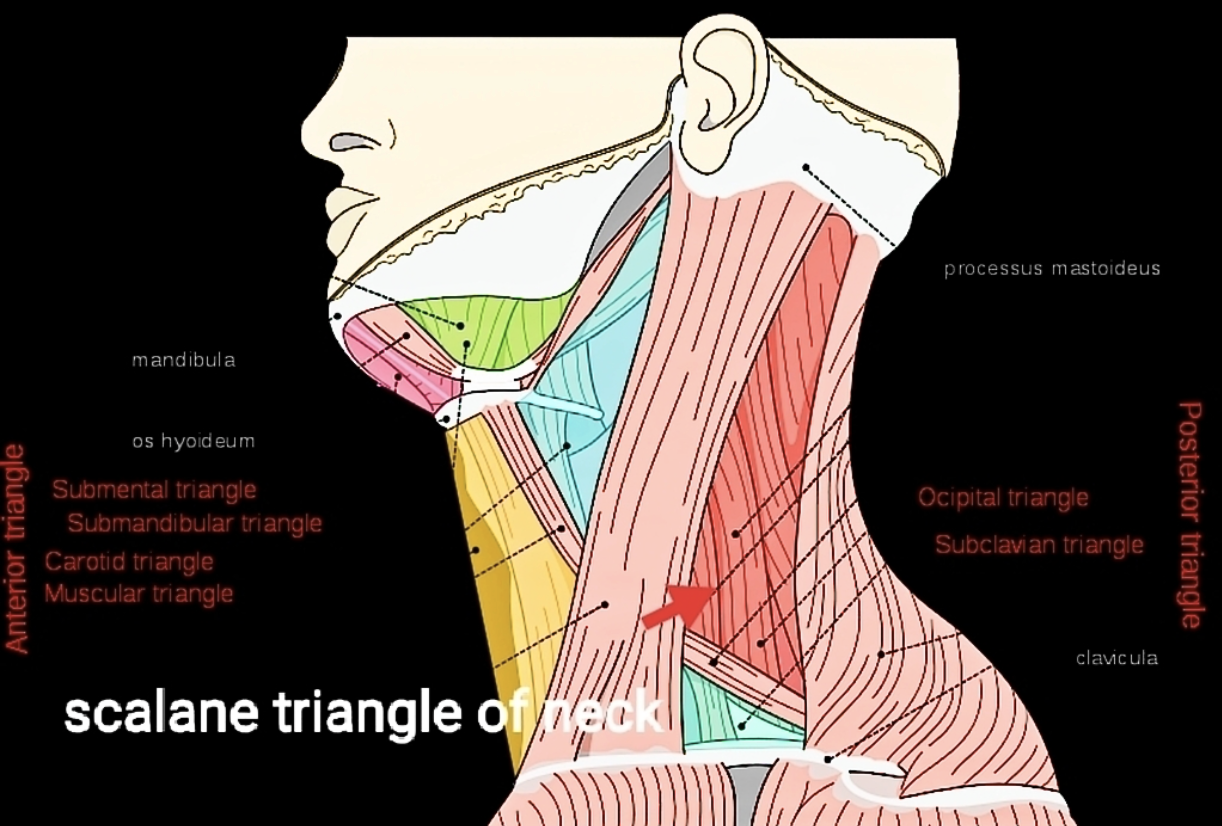

In what terms is the neck described?
Anterior and posterior triangles

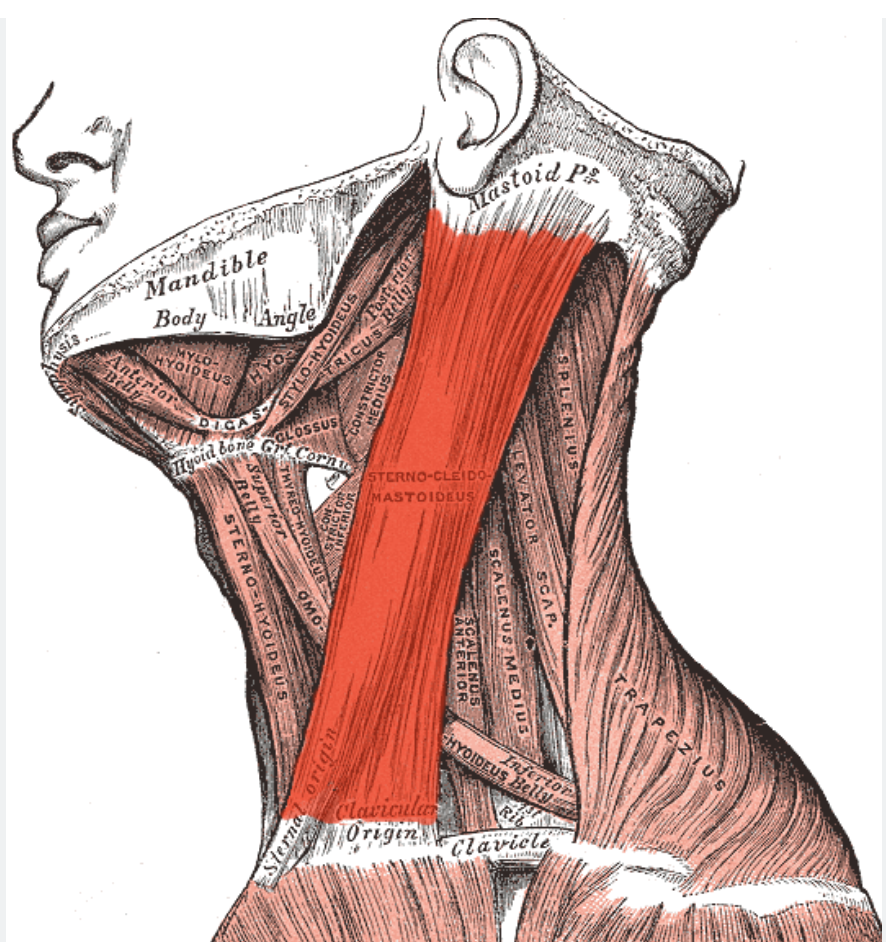

What separates the anterior and posterior triangles of the neck?
Sternocleidomastoid muscles
What does the sternocleidomastoid connect?
How does it act?
-Attached to:
-Sternum
-Clavicle
-Mastoid process (part of temporal bone)
-Can act:
-Bilaterally
-Unilaterally
What nerve innervates the sternocleidomastoid muscle?
The accessory nerve (CN XI)

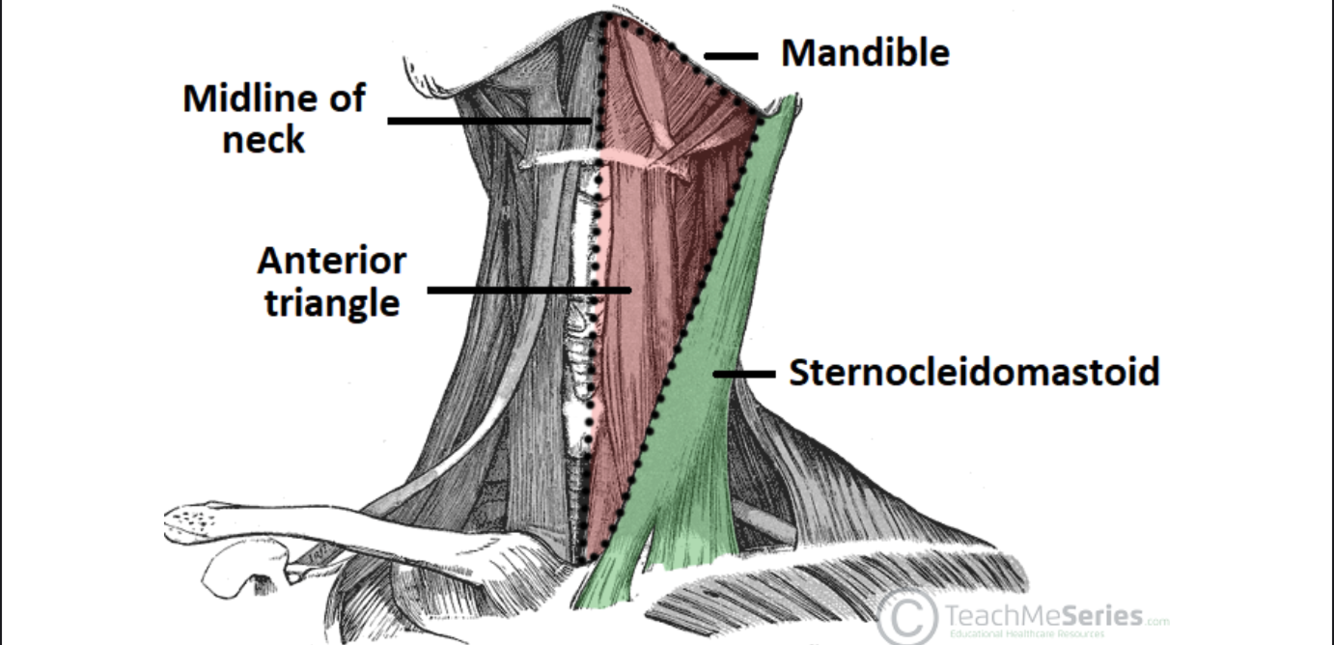

What are the 3 boundaries of the anterior triangle of the neck?
-Anteriorly: Midline of neck
-Posteriorly: Anterior border of sternocleidomastoid
-Superiorly: Lower border of mandible
What bones and cartilaginous structures are in the anterior triangle of the neck?
-Trachea
-Larynx
What glands are in the anterior triangle of the neck?
-Thyroid
-Parathyroid
-Submandibular thyroid gland

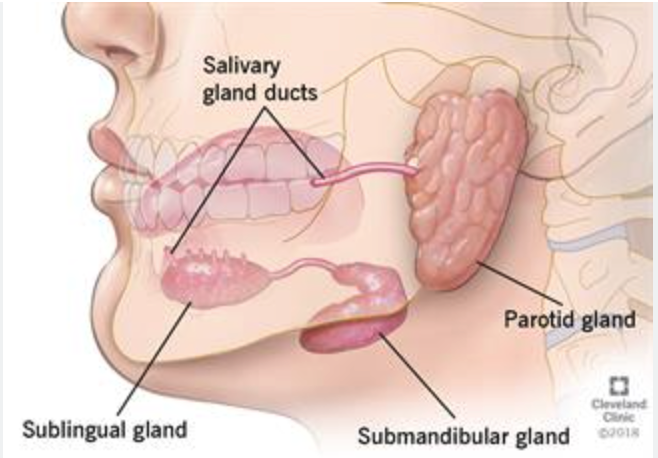

What is this?
Where is it?
-Submandibular salivary gland
-Anterior triangle of the neck
What muscles are in the anterior triangle of the neck?
-Suprahyoid muscles:
-Connect hyoid to skull
-Form floor of mouth
-Move hyoid and larynx in speech and swallowing
-Infrahyoid muscles:
-Strap muscles
-Connect hyoid to sternum and scapula
-Move hyoid and larynx in speech and swallowing
What blood vessels are in the anterior triangle of the neck?
-Common carotid artery and its terminal branches - external and internal carotid arteries
-External carotid artery to the head and neck
-Internal jugular vein
What nerves are in the anterior triangle of the neck?
-Branches of facial nerve (CN VII)
-Glossopharyngeal nerve (CN IX)
-Vagus nerve (CN X)
-Accessory nerve (CN XI)
-Hypoglossal nerve (CN XII)
-Ansa cervicalis - fibres from C1-C3 which innervate infrahyoid muscles
What are the boundaries of the posterior triangle of the neck?
-Anteriorly: Posterior border sternocleidomastoid
-Posteriorly: Anterior border of trapezius
-Inferiorly: Clavicle
-Superiorly, apex is formed by sternocleidomastoid and trapezius
What muscles and vessels are in the posterior neck of the triangle?
-Muscles that move the head
-Part of subclavian artery and subclavian vein
-External jugular vein which drains scalp and face
What nerves are in the posterior triangle of the neck?
-Accessory nerve (CN XI)
-Roots of brachial plexus (spinal nerves supplying upper limb)
-Cervical plexus (fibres from C1-4)
-Phrenic nerve
Describe the suprahyoid muscles:
-4 paired muscles:
-Mylohyoid
-Geniohyoid
-Stylohyoid
-Digastric
-Superior to hyoid bone and form floor of the mouth
-When they contract, raise hyoid bone and larynx during speech and swallowing
Describe the infrahyoid muscles:
-4 paired ‘strap’ muscles:
-Sternohyoid
-Omohyoid
-Sternothyroid
-Thryohoid
-Inferior to hyoid bone and just lateral to the anterior midline of the neck
-Draw hyoid bone and larynx inferiorly during speech and swallowing
What do the sternohyoid and omohyoid connect and where do they lie?
-Lie superficially
-Attach hyoid to sternum
-Attach hyoid to scapula
What do the sternothyroid and thyrohyoid connect and where do they lie?
-Lie deep
-Attach sternum to thyroid cartilage
-Attach thyroid cartilage to hyoid

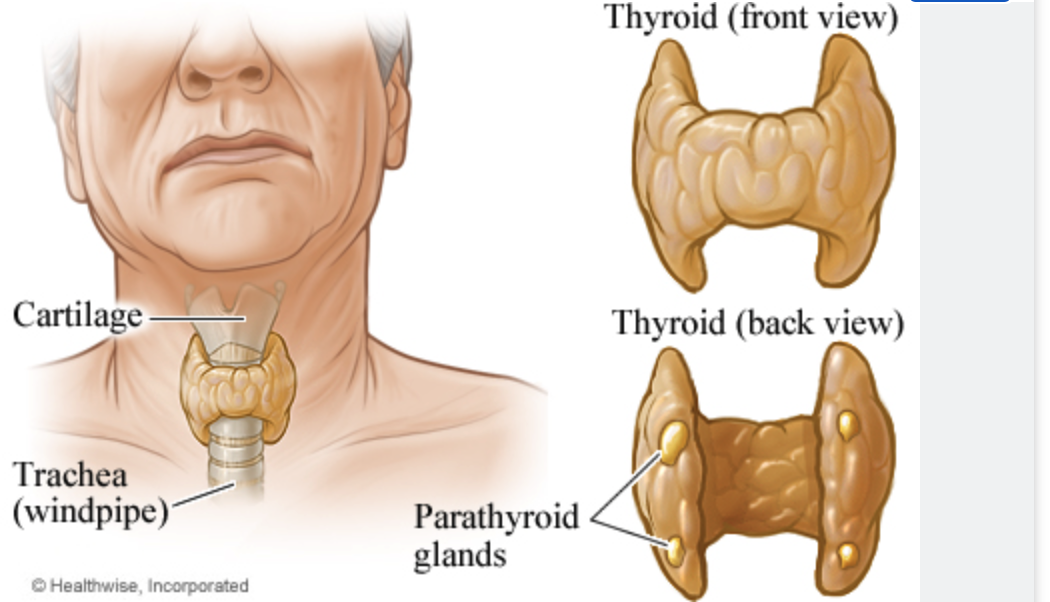

Where does the thyroid gland lie and what is it composed of?
-Right and left lobes
-Lie just lateral to the lower larynx and upper trachea
-Each lobe deep to sternothyroid muscle
What joins the right and left lobes of the thyroid gland?
-The isthmus
-Lies anterior to the trachea
What is the function of the thyroid gland and what regulates its function?
-Produces hormones which play important role in regulation of metabolic processes
-Pituitary gland regulates hormone secretion from the thyroid gland
What supplies blood to the thyroid gland?
Thyroid ima artery is an additional artery present in some people
What veins drain the thyroid gland?
What are the parathyroid glands?
-Four glands
-Right and left superior and inferior
-Located in posterior of thyroid gland
-Produce parathyroid hormone which plays a role in calcium regulation
-Supplied by inferior thyroid arteries
Where does the internal carotid artery branch in the neck?
-It doesn’t give off any branches in the neck
-Enters cranium and supplies brain
Where do the common carotid arteries run?
-Ascend in the right and left sides of the neck
-Bifurcate into external and internal carotid arteries
Where does the external carotid artery branch?
-Several branches in that supply head and neck
-Including:
-Pharynx
-Scalp
-Thyroid gland
-Tongue
-Face
Label this diagram:
What is at the bifurcation of the common carotid artery?
What is its significance?
-Carotid sinus - small swelling
-Baroreceptors constantly monitor arterial blood pressure
-Visceral sensory info relayed to CNS via glossopharyngeal nerve
-Results in reflex response that regulate blood pressure
What does the subclavian artery give rise to and what does it supply?
-Supplies upper limb
-Large branch, thyrocervical trunk
-This gives rise to inferior thyroid artery
What major vessels form the superior vena cava?
-Internal jugular vein is major vein in neck which drains blood from brain and part of face
-This unites with subclavian vein which returns blood from upper limb
-This forms braciocephalic vein
-Right and left brachiocephalic unite to form SVC
What smaller vessel runs in the neck and joins the subclavian vein?
External jugular vein
What nerve supplies the platysma in the neck?
Facial nerve (CN VII)
What does the glossopharyngeal nerve (CN IX) supply?
-Pharynx (sensory info)
-Carotid sinus (visceral sensory fibres that return to the CNS via CN IX)
What does the vagus nerve innervate in the neck?
-Vital for normal speech and swallowing
-Muscles of the pharynx (motor innervation)
-Larynx (motor and sensory info)
Where does the vagus nerve run in the neck?
-Between internal jugular vein and internal carotid artery (above bifurcation)
-Between internal jugular vein and common carotid artery (below its bifurcation)
-Three structures run together in fascial sleeve called carotid sheath
What does this show?
-Carotid sheath containing:
-Common carotid artery
-Internal jugular vein
-CN X - vagus
-Fascial sleeve

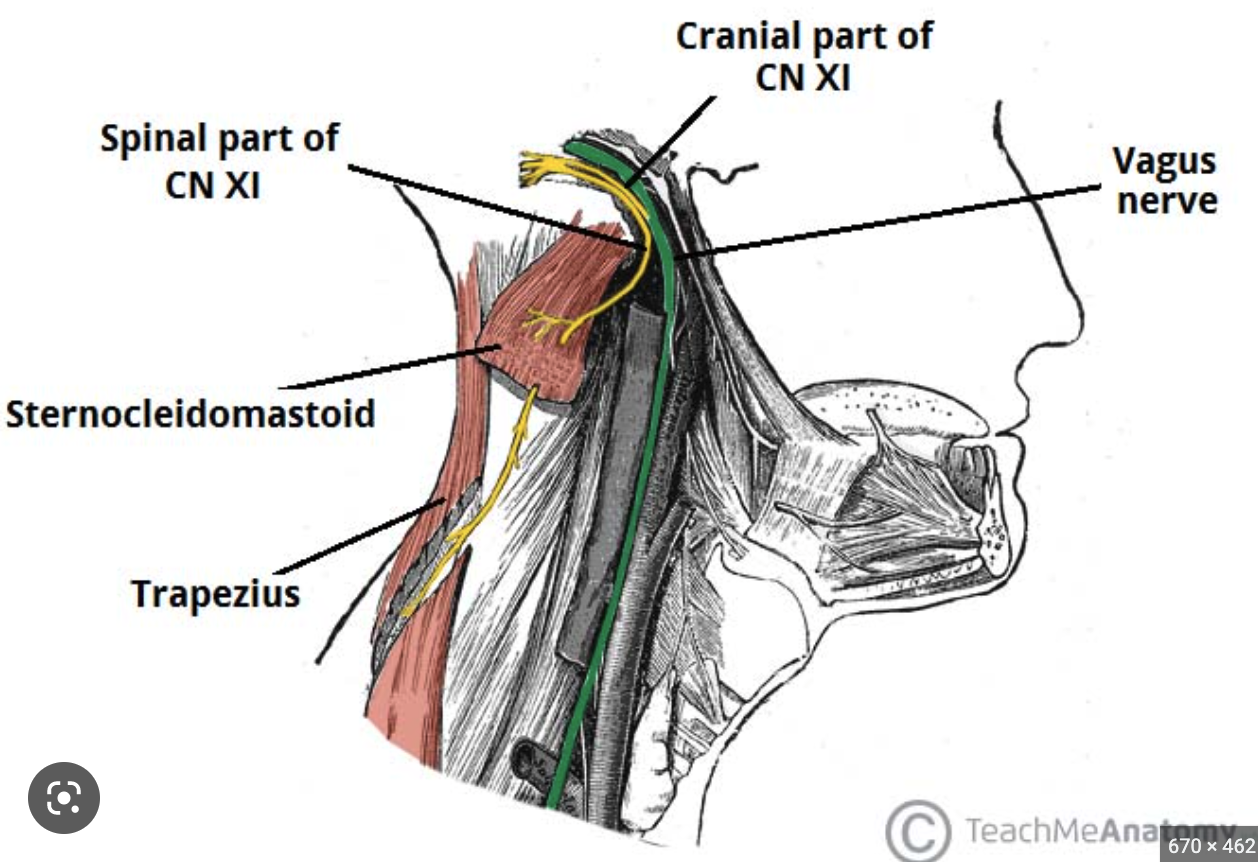

What does the accessory nerve (CN XI) innervate?
-Sternocleidomastoid
-Trapezius
What does the hypoglossal (CN XII) innervate?
-Motor to muscles of tongue
-Not supply any neck structures but travels through it
-Lateral to internal carotid artery and deep to external jugular vein
Where does the phrenic nerve form and what does it innervate?
-C3, 4, 5 nerve fibres
-Descends through neck to enter the thorax
-Innervates diaphragm
What is the head and neck richly innervated with?
-Sympathetic fibres nerves
-Sympathetic trunk extends as far as the base of the skull
What are the names of the associated sympathetic ganglia in the neck and what do they innervate?
-Superior cervical ganglia
-Middle cervical ganglia
-Inferior cervical ganglia
-Postganglionic fibres from these ganglia innervate the head and neck
What is the pharynx?
-Muscular tube which lies in the neck
-Forms part of the respiratory and GI systems
-One continuous passageway composed of 3 parts
What are the 3 parts of the pharynx and where are they located?
-Nasopharynx - posterior to nasal cavity
-Oropharynx - posterior to oral cavity
-Laryngopharynx - posterior to larynx
Label this diagram:
Describe the muscles of the pharynx:
-Outer layer of circular muscle
-Inner layer of longitudinal muscle
Label this diagram:
What does it show?
-External circular muscle layer is composed of three constrictor muscles
-Superior, middle and inferior constrictors that overlap each other
What is the action of the external circular muscles of the pharynx?
-Contract superior to inferior
-Swallowed food moves down the pharynx towards the oesophagus
Describe what happens during swallowing:
-Food in oral cavity pushed into oropharynx by tongue
-Soft palate rises and closes off nasopharynx from oropharynx
-Food enters laryngopharynx and constriction of pharyngeal wall move food into oesophagus
-Epiglottis closes off laryngeal inlet and prevents food or liquids from entering larynx
What is the innervation to the pharynx?
-Sensory fibres from glossopharyngeal nerve
-Motor fibres from vagus nerve
What nerves lie close to the posterior pharyngeal wall?
-Cervical part of sympathetic trunk and superior ganglion
-Superior laryngeal nerve
-Hypoglossal nerve - close to vagus
-Glossopharyngeal nerve - deep to carotid artery
Where does the superior laryngeal nerve run in proximity to the posterior pharyngeal wall?
-Branch of vagus
-Descends over posterior aspect of internal carotid artery
-Between inferior and middle constrictors of pharynx and larynx
What composes the larynx and what is its function?
-Several cartilages
-Membranes
-Small muscles
-Protects airway and contributes to phonation/speech
What are the 3 unpaired cartilages of the larynx?
-Epiglottis
-Thyroid
-Cricoid
Label the 3 unpaired cartilages of the larynx:
What are the 3 paired cartilages of the larynx?
-Arytenoid
-Cuneiform (very small)
-Corniculate (very small)
Label the 3 paired cartilages of the larynx:
How many cartilages compose the laryngeal skeleton:
-Nine
-Three unpaired
-Three pairs
Describe the structure of the thyroid cartilage:
-Composed of 2 flat cartilages (laminae) that meet in anterior midline
-This forms laryngeal prominence (Adam’s apple)
-Posterior laminae form superior and inferior projections called horns
What do the superior and inferior horns of the thyroid cartilage articulate with?
-Superior horns - attach to hyoid bone
-Inferior horns - articulate with cricoid below
Label this diagram:
What does it show?
Thyroid cartilage
What is this?
-Cricothyroid membrane
-Connects inferior border of thyroid and superior border of cricoid
-Pierced in an emergency airway
Describe the structure in green:
where is it attached?
-Epiglottis
-Attached to superior aspect of thyroid cartilage where two laminae meet
-During swallowing, epiglottis covers entrance to larynx (laryngeal inlet) and protects airway from entry of liquid or food
Describe the structures in blue:
-Arytenoid cartilages
-Sit on superior surface of cricoid cartilage
-Articulate with cricoid cartilage at small joint
-Small but vital for phonation
-Vocal cords attach to them and movements move the vocal cords
Label this diagram:
Label this diagram:
What two groups of muscles enact on the larynx?
Extrinsic and intrinsic
What are the extrinsic muscles of the larynx?
-Suprahyoid and infrahyoid muscles
-Do not move individual cartilages
-Move larynx as one (elevate and depress)
What are the intrinsic muscles of the larynx?
-Small muscles that move the individual cartilages of larynx relative to each other
-By moving cartilages, they move vocal cords
-This alters quality of speech
What are tonsils?
Collection of lymphoid tissue in the upper parts of the pharynx
What tonsils are found in the nasopharynx?
-Pharyngeal (adenoid) - lies in roof of nasopharynx
-Tubal - surrounds opening of audital tube)
Label this diagram:
What does it show?
Tonsils
What are the two tonsils not found in the nasopharynx?
-Palatine tonsil - lies next to pharyngeal wall in oropharynx
-Lingual tonsil - collection of lymphoid tissue on posterior aspect of tongue
How is the internal larynx modified for its function?
-Function is phonation
-Intrinsic muscles of larynx move laryngeal cartilages
-Laryngeal cartilages move vocal cords that lie inside larynx
What can injury to nerves innervating intrinsic laryngeal muscles cause?
Affect speech
What folds are within the larynx and project into the cavity?
-Two pairs
-Vestibular folds (superiorly) - false vocal cords
-Vocal folds (inferiorly) - true vocal cords
Label this diagram:
What does it show?
Folds within the larynx
What are the vestibular and vocal folds?
-Vestibular - folds of mucous membrane that lie superior to vocal folds
-Narrow space separates vestibular and vocal folds
-Vocal - folds of mucous membrane that cover and protect vocal ligaments
What forms the true vocal cords?
The vocal folds and vocal ligaments
Where is the vocal ligaments attached?
-Anteriorly - internal aspect of laryngeal prominence
-Posteriorly - arytenoid cartilages
What is this?
-Rima glottidis
-Space between the true vocal cords
Describe the changes of the rima glottidis:
-Adduction of true vocal cords closes rima glottidis
-Abduction of folds opens it
-Phonation requires adduction of the cords and closure of the rima glottidis
Describe the different abductions of the rima glottidis:
-Opens rima glottidis
-Small degree = whispering
-Partially = normal breathing
-Fully = forced breathing
What opens and closes the rima glottidis?
Instrinsic muscles of larynx move laryngeal skeleton which moves vocal cords and opens and closes the rima glottidis
What are the 3 intrinsic muscles of the larynx required to know?
-Cricothyroid muscle
-Posterior cricoarytenoids
-Transverse arytenoids
What is this and its function?
-Cricothyroid muscle
-Anterior
-Muscle tips thyroid cartilage anteriorly and inferiorly
-Places tension on vocal cords
What is this and its function?
-Posterior cricoarytenoid muscles
-Posterior surface of cricoid
-Attach to arytenoids
-Abduct vocal cords and open rima glottidis
What is this and its function?
-Transverse arytenoid muscles
-Posterior aspect of larynx
-Connect two arytenoids
-Adduct vocal folds and close rima glottidis
Label:
What nerve innervates the cricothyroid muscle?
-Superior laryngeal nerve
-From vagus
-Sensory to the larynx above the vocal folds
What does the recurrent laryngeal nerve innervate?
-All intrinsic muscles except cricothyroid muscle
-Sensory to larynx below vocal folds
Label:
How many salivary glands are there and their names?
-3 pairs of salivary glands secrete saliva into the oral cavity
-Parotid
-Submandibular
-Sublingual
Label the pink:
What is glandular secretion stimulated by?
Parasympathetic fibres
Describe the parotid gland:
-Largest of 3 paired salivary glands
-Overlies posterior part of mandible
-Saliva empties into mouth via parotid duct - opens adjacent to upper second molar tooth
What is the structure in yellow?
Parotid gland
What is the parotid gland closely associated to?
-Facial nerve
-After exiting skull, nerve enters deep surface of parotid gland
-Within gland, facial nerve divides into 5 branches
-They emerge to innervate muscles of facial expression
-Also closely related to external carotid artery
What nerve stimulates secretion from the parotid gland?
Parasympathetic fibres from glossopharyngeal nerve
Describe the submandibular glands:
-Smaller than parotid
-Part lies within mouth, part lies outside
-Submandibular duct opens into floor of mouth under tongue
What nerve stimulates secretion from the submandibular gland?
Parasympathetic fibres from facial nerve
Describe sublingual glands:
-Small
-Lie on floor of mouth
-Open via several ducts into floor
What nerve stimulates secretion from sublingual glands?
Parasympathetic fibres in the facial nerve
Where doe the right and left coronary arteries arise from and what do they give rise to?
-Ascending aorta
-Several branches
-Each artery and their branches typically supply specific heart regions but variation exists
What does this show?
Coronary arteries arising from ascending aorta
What do cardiac veins return venous blood to?
Coronary sinus which enters right atrium
What is this?
What does the right coronary artery and its branches supply (5)?
-Parts of conducting system
-Right atrium
-Right ventricle
-Part of left ventricle
-Part of interventricular septum
What are the major branches of the right coronary artery?
-Branches to SAN and AVN - supply major components of conducting system
-Right marginal artery - inferior heart border
-Posterior Interventricular Artery - continuation of RCA on inferior heart surface, runs in posterior interventricular sulcus and supplies both ventricles
Where does the posterior interventricular artery run?
Posterior interventricular sulcus
Label this diagram:
What does it show?
RCA and its branches
What does the left coronary artery and its branches supply?
-Parts of conducting system
-Left atrium
-Most of left ventricle
-Part of right ventricle
-Part of interventricular septum
What happens to the LCA after running a short distance?
-Divides into two large terminal brannches
-Short segment is called the left main stem
What are the two terminal branches of the left main stem?
-Circumflex (Cx)
-Anterior interventricular artery
What are the main branches of the left coronary artery and what do they supply?
-Anterior interventricular artery (LAD) - runs in anterior interventricular sulcus towards apex and supplies both ventricles
-1 or 2 diagonal branches
-Circumflex artery - runs around heart to inferior/diaphragmatic surface - supplies left atrium, part of right ventricle and left ventricle
-Left marginal artery - arises from circumflex and supplies left ventricle
Label this diagram:
What does it show?
Left coronary artery and its branches
Where does the posterior interventricular artery arise from and what does it supply?
-May arise from right or left coronary artery
-Origin of posterior interventricular artery determines if someone is left or right dominant
Describe right-dominant circulation:
-Most people
-PIA arises from right coronary artery
-Both right and left coronary arteries supply left ventricle
Describe left-dominant circulation:
-PIV arises from circumflex artery
-Left coronary artery supplies entire left ventricle
Why is the dominance of circulation of the heart important in clinical practice?
-In right-dominant circulation, left stem occlusion would impair blood flow to part of left ventricle
-In left-dominant, blockage of left main stem would occlude blood flow to entire left ventricle
Are all the chambers of the heart anatomically the same?
Why?
-No
-Anatomical differences exist because of different function of different chambers
-Arise from different tissues/ structures during embryonic development
What inside the heart ensures uniderectional flow of blood through the chambers?
Valves
What does the right atrium receive blood from?
-Superior vena cava
-Inferior vena cava
-Coronary sinus
What are the 3 main features of the right atrium?
-Interatrial septum
-Fossa ovalis
-Crista terminalis
Label this diagram:
What is this?
Describe it:
-Fossa ovalis
-Depression in interatrial septum
-Remnant of foetal foramen ovale
-Shunted oxygenated blood from right to left atrium to bypass lungs
What does this show?
Describe it:
-Crista terminalis
-Muscular ridge
-Separates smooth-walled posterior part of atrium from anterior ridged, muscular wall
-Parts on either side of crista have different embryological origins
What are the ridges?
-Pectinate muscles
-Extend into right auricle
Where does the right ventricle pump blood into and what does this bifurcate into?
-Pumps deoxygenated blood into pulmonary trunk
-Bifurcates into right and left pulmonary artery
What prevents the back flow of blood into the right ventricle?
Pulmonary valve
What is the wall of the right ventricle thicker than?
Wall of right atrium
What are the 5 main features of the right ventricle?
-Interventricular septum
-Trabeculae carnae
-Papillary muscles
-Chordae tendinae
-Moderator band
What are these?
Describe them:
-Trabeculae carnae
-Muscular ridges on internal wall of right ventricle
What are these?
Describe them:
-Trabeculae carnae
-Muscular ridges on internal wall of right ventricle
What are these?
Describe them:
-Papillary muscles
-Modified regions of trabeculae carnae
-Project into lumen on ventricle
What are these?
Describe them:
-Chordae tendinae
-Fibrous cords
-Connect tips of papillary muscles to tricuspid valve
What does this show?
Describe it:
-Moderator band
-Modified region of trabeculae carnae
-Connects interventricular septum to one of the papillary muscles
What does the left atrium receive blood from?
-Pulmonary veins
-Two from each lung
Describe the interior wall of the left atrium:
-Smooth-walled posterior
-Anterior part bearing pectinate muscles
-Reflects development from two different embryological structures
What does blood flow through from left atrium to left ventricle?
-Left atrioventicular valve
-Called mitral valve
-Mostly passive but left atrium contracts to further force blood into the ventricle
What are the first branches of the aorta?
Coronary arteries
What prevents the backflow of blood from the aorta into the left ventricle?
Aortic valve
