Ankle & Foot Flashcards

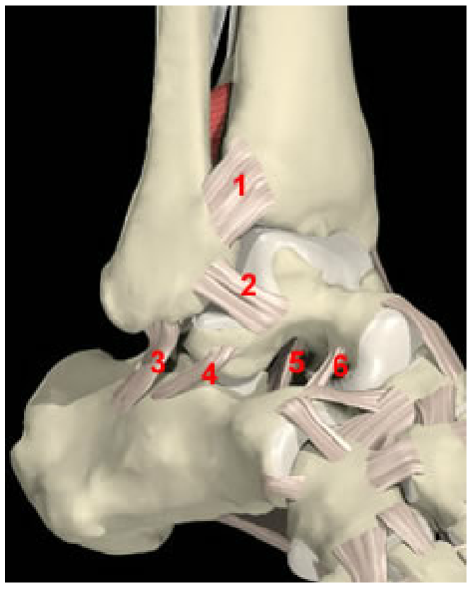

Diagram: Identify the Lateral Ligaments

1. Anterior tibiofibular
2. Anterior talofibular (Most commonly Injuried)
3. Calcaneofibular
- Lateral talocalcaneal
- Interosseous talcalcaneal
- Cervical talocalcaneal

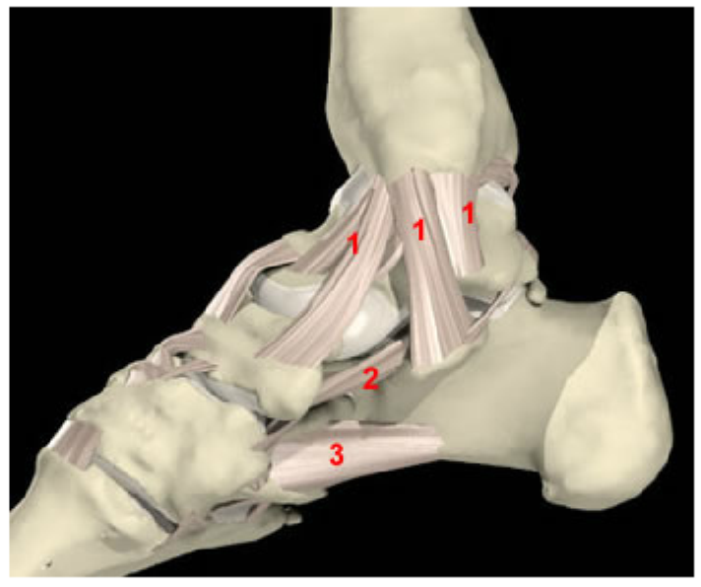

Diagram: Identify the Medial Ligaments

- Superficial Deltoid
- Plantar Calcaneonavicular
- Deep Plantar
Content: Main Functions of the Foot (3)
- Adapt to ground surfaces
- Shock absorption
- Rigid lever to propel body (during heel off/end of stance)
Q: What 3 bones are involved in the talocrural joint?
- Distal tibia
- Distal fibula
- Talus
Content: Normal Range at Talocrural Joint
- PF
- DF
- 0-50
- 0-20
Content: Talocrural Joint Arthrokinematics
- PF - roll and glide
- DF - roll and glide
- Roll posterior, glide anterior
- Roll anterior glide posterior
Q: What motion occurs at the subtalar joint?
Pronation(Eversion)/Supination(Inversion)
Content: Normal Range at Subtalar Joint
- Pronation/Eversion
- Supination/Inversion
- 0-10
- 0-30
Content: Surface of the subtalar joint
- Anteriorly
- Posteriorly
- CONVEX talus, CONCAVE calcaneous
- CONCAVE talus, CONVEX calcaneous
Q: At the anterior portion of the subtalar joint roll and glide are in the __________ direction, at the posterior portion of the subtalar joint roll and glide are in the ___________ direction.
same, opposite
Q: What portion of the subtalar joint dominants in our view of arthrokinematics?
Anterior (roll and glide the same)
Content: Anterior Subtalar Joint Arthrokinematics
- Pronation/Eversion
- Supination/Inversion
- Lateral roll and glide
- Medial roll and glide
Content: Posterior Subtalar Joint Arthrokinematics
- Pronation/Eversion
- Supination/Inversion
- Lateral roll and Medial glide
- Medial roll and Lateral glide
Content: Talonavicular Joint Arthrokinematics
- Supination
- Pronation
- Plantar/medial roll and glide
- Dorsal/lateral roll and glide
Content: MTP/IP Arthrokinematics
- Flexion
- Extension
- Plantar roll and glide
- Dorsal roll and glide
Content: Talocrural Joint
- Resting Position
- Close Packed Position
- 10 PF, midway b/t inversion/eversion
- Max DF
Content: Subtalar Joint
- Resting Position
- Close Packed Position
- Pronation
- Supination
Q: Squatting assesses the functionality of what at the ankle?
DF
Q: Heel raises assesses the functionality of what at the ankle?
PF
Content: Grade 1 Ankle Sprain (5)
- < 25% tearing
- Mild pain/swelling
- No instability
- Potential to WB
- 7-14 days of activity loss
Content: Grade 2 Ankle Sprain (5)
- 26-75% tear
- Moderate pain/swelling
- Loss of ROM, slight instability
- PWB
- 2-6 wks of activity loss
Content: Grade 3 Ankle Sprain
- Total disruption of ligament
- Severe pain/swelling
- Loss of ROM and instability
- NWB
- 4-26 wks of activity loss
Diagram: Ankle Sprain Grade Table

Q: What percent of pts. who suffer ankle sprains develop funtional ankle instability?
30-50%
Content: Rearfoot Leg Orientation - Normal (4)
- Lower leg vertical
- STJ neutral
- Calcaneus on surface
- MT heads on surface
T/F: The Calcaneus and MT heads are perpendicular in normal rearfoot alignment.
True
Q: How is rearfoot varus compensated for?
STJ Pronates and calcaneus vertical
Q: How is an forefoot varus compensated for?
STJ pronated, everted calcaneous, forefoot on surface
Content: Gait associated with Rearfoot varus (3)
- Heel strik and WB with excessive pronation
- Increased tibial IR
- Delayed tibial ER
Content: Gait associated with Forefoot varus (3)
- Excessive mobility in midstance and propulsion
- Decreased supination
- Makes foot lever arm less effective
Content: Possible orthopedic conditions in fore/rearfoot varus (6)
- Plantar fasciitis
- Metatarsalgia (nerve issue)
- Hallus valgus
- Callus formation (2nd/3rd MT head)
- Overuse
- Increase tibial IR
Q: How is forefoot valgus compensated for?
STJ supinated, inverted calcaneous, forefoot stabile
Content: Deficits of STJ supination
- Decreased shock absorbing function
- Increase risk of ankle sprain
Q: When does the subtalar joint evert/invert during the gait cycle?
Evert - loading response
Invert - Toe off
Defn: Forefoot equinus
Lower leg 10 degrees forward of vertical
Q: What are the compensations for forefoot equinus
Increase pronation and knee hyperextension
Content: Identify the bones in the
- Hind or rearfoot
- Midfoot
- Forefoot
- Fibula, Tibia, Taluz, Calcaneus
- Navicular, Cuboid, Cuneiforms
- MT, Phalanges
Q: What test is used to test the anterior talofibular ligament?
Anterior Drawer
Q: What test is used to test the calcaneofibular ligament?
Talar tilt
Q: What 3 motions is supination a combination of?
Add, IR, PF
Q: What 3 motions is pronation a combination of?
Abd, ER, DF
Content: Common Symptoms with Ankle/Foot Problems
- Pain - related to injury of ligament, tendon, pinching of nerve/soft tissue
- Instability - due to post ligament injury
- Hypomobility - can be due to fx, scar tissue build up
