11.21 Information Systems Q's Flashcards
Describe Air traffic and information management systems ATIMS
Simply adds another data channel similar to ACARS which is used by Air traffic control.
The aircraft communication addressing and reporting system ground network receives and dispatches data, what are the back ups?
VHF and HF communications.
Which 3 systems does Future air Navigation FANS combine?
- Communication
- Navigation
- Surveillance.
Which 3 systems are integrated into the MMR Multi mode receiver (Navigation)
- ILS
- GPS
- MLS or DGPS
The Flight managment system FMS uses data provided by?
MMR and other conventional navigational aids, improving dimensional navigation accuracy.
ADSB transmits its operation to ATC using?
The same transponder as the TCAS every half a second.
Which 3 systems form the communications platform for FANS? and which network receives and dispatches the data?
- VHF Data Radio
- HF Data Radio
- SATCOM
Network = ACARS Aircraft Communication Addressing Reporting System
Which system forms the surveillance platform of FANS and provides ADSB?
TCAS - Traffic collision avoidance system
What name is given to the FANS system fitted to aircraft?
Air Traffic Information Management System ATIMS
Which ATIMS component is in charge of receiving ground messages (AOC and ATC), routing them to the right peripheral and acquiring messages or reports from these peripherals and sending them to the ground?
Air Traffic Service Unit ATSU

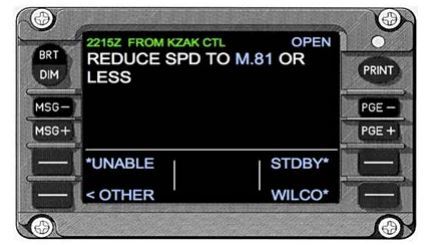

The DCDU is dedicated to which ATSU application?
Air Traffic Control ATC
What acronym is used to describe the data communications used by the DCDU?
Controller Pilot Data Link Communication CPDLC
Which ATSU application provides data used by the airline for maintenance, flight operations and administrative purposes?
AOC Airline operational Control
Which Passenger visual interface systems interface provides position, altitude of the aircraft, outside air temp, ground speed, distance and estimate of the time until arrival at the destination and total flight time?
Air data inertial reference System ADIRS

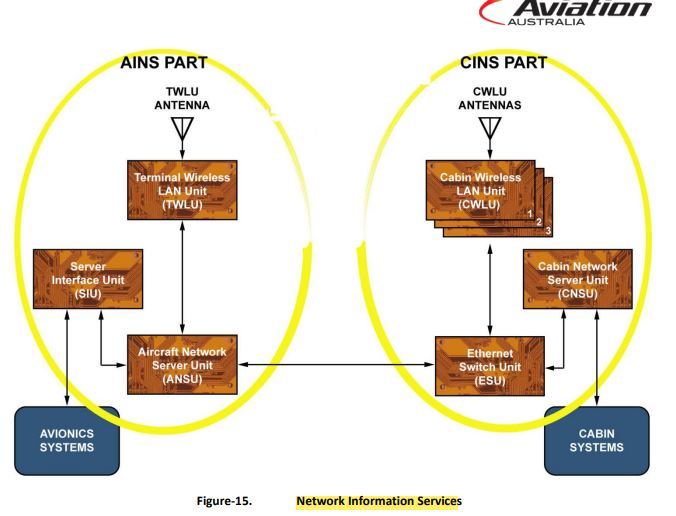

What 2 systems make up the network information system?
- Aircraft information network system AINS
- Cabin information network system CINS
Which of the network information systems is used for maintenance and operations?
Aircraft information’s network system AINS
On the AINS system which unit acts primarily as firewall to protect the avionics equipment?
Server interface unit
On the CINS system which unit allows a wireless network connection between devices within the aircraft and those connected to the wired LAN
Cabin wireless LAN unit
Which components make up the ATIMS?
- ATSU
- DCDU’s
- ATC MSG Switches
- ATSI Reset Switch
What are the 2 types of AOC airline operational control applications?
Hosted, Remote Applications
What is the purpose of the AFN application of AOC?
Contact ATC, provide ATC with aircraft rego, datalink applications available on aircraft with corresponding addresses
Which unit of the AINS allows wireless connection between the onboard LAN and the ground based LAN and operates while the aircraft is on the GROUND!
Terminal Wireless LAN unit
Which unit of the CINS administers system processing, data storarge ad network comms services to devices and systems, dedicated to passenger applications (email)
Cabin network server unit CNSU
What are the 2 systems that make up the Network information system?
- Aircraft information network system
- Cabin information network system
