Skull base Flashcards
When was the House-Brackmann grading described?
1985
What is the House-Brackmann grading?
1 - normal (score 8/8) 2 - mild dysfunction with slight weakness. Normal symmetry and tone (score 7/8). 3 - moderate dysfunction. Obvious but not disfiguring difference between the two sides. Noticeable synkineses. Complete eye closure with effort. (score 5-6/8) 4 - moderately severe dysfunction. Obvious weakness with disfiguring asymmetric. Incomplete eye closure. (score 3-4/8) 5 - severe dysfunction. Barely perceptible motion. Slight movement of the mouth. (score 1-2/8) 6 - total paralysis. (score 0/8)
How did the original House & Brackmann (1985) paper propose standardisation of the grading scale?
Measuring the movement of angle of mouth and the eyebrow and comparing to the unaffected side. The difference is based on 2.5 mm gradations. The maximum score is 8 (4 for the mouth and 4 for the eyebrow),
How does the vestibular nerve appear during surgery?
More gray than the cochlear and facial nerves due to less myelination
Where is the endolymphatic sac?
Midway between the posterior edge of the IAM and the sigmoid sinus
What are the differences between an UMN and LMN facial nerve palsy?
In UMN cases the forehead is preserved as this is bilaterally represented and emotional facial expression may be maintained e.g. smiling at a joke
What is Gubler-Millard syndrome?
Base of pons lesion causing CN7, CN6 and contralateral hemiplegia
What is benedikt syndrome?
CN3 palsy with red nucleus involvement (coarse intention tremor) and contralateral hemiparesis. Dorsal midbrain lesion.
What forms the facial colliculus?
Facial fibres passing around the abducens nucleus
What is crocodile tear syndrome?
Lesions of the facial nerve cause abberent connections in the pterygopalatine ganglion between mastication and lacrimation. Chewing therefore results in lacrimation when eating.
What are the segments of the facial nerve?
Brainstem
Cisternal
Meatal
Labyrinthine - geniculate ganglion gives off GSPN (dry eye)
Tympanic - nerve to stapedius (hyperacusis)
Mastoid - chorda tympani (loss of taste)
What pathway control lacrimation (tearing)?
Superior salivary nucleus
Nervus intermedius
GSPN > Vidian
Sphenopalatine ganglion
Zygomatic and lacrimal nerves
Lacrimal gland
Which nerve do fibres to the submandibular and sublingual glands run on?
Chorda Tympani
What is the most likely underlying cause for Bell’s palsy?
Viral / Inflammatory / Demyelinating polyneuritis
What features may be associated with Bell’s palsy?
Follows a distal to proximal pattern with motor loss first then
Facial and retroauricular pain (60%)
Dysgeusia (=altered taste) (60%) = chorda tympani
Hyperacusis (30%) = n to stapedius
Reduced tearing (17%) = GSPN
What is the evidence for treatments of Bell’s palsy?
In patients with Bell’s palsy, early treatment with prednisolone significantly improves the chances of complete recovery at 3 and 9 months. There is no evidence of a benefit of acyclovir given alone or an additional benefit of acyclovir in combination with prednisolone. NEJM RCT 2007 Sullivan et al.
What are the surgical treatment options for facial nerve injury?
- Approximation if there is a transection via direct anastomosis or cable graft with sural nerve
- Extracranial anastomosis (CN9/11/12
- Facial suspension
- Tarsorrhaphy
What are the two types of hearing loss?
Conductive and sensorineural - distinguished using Rinne and Weber’s test
What are the Rinne and Weber’s test findings in a normal patient?
Weber is central i.e. does not lateralize to one side
Rinne has AC>BC
What is a positive Rinne’s test?
When AC>BC which is normal. If BC>AC this is a negative finding and suggests conductive hearing loss in that ear.
How do you perform Rinne’s test?
512 Hz tuning fork on the mastoid bone.
When no longer heard it should be moved to the ear.
If it can then be heard again it is positive.
How do you interpret Weber’s tests?
A tuning fork in the center of the head does not lateralise if the hearing is normal. It lateralises to the side where there is a conductive hearing loss of the contralateral side if there is a sensorineural hearing loss.
Interpret the following:
Webers lateralises to the right
Right Rinne’s is negative (BC>AC)
Left Rinne’s is positive (AC>BC)
Right conductive hearing loss
Interpret the following:
Webers lateralises to the right
Right Rinne’s is positive (AC>BC)
Left Rinne’s is positive (AC>BC)
Left sensorineural hearing loss
What is Hitzelberger’s sign?
Compression of nervus intermedius by a vestibular schwannoma causing numbness over the posterior aspect of the EAC
Which nerves supply the external ear?
Pinna = Greater auricular C2/3
Back of ear = Lesser occipital C2
Anterior and superior ear = Auriculotemporal V3
Posterior inferior EAC and = Auricular branch of vagus (Arnold’s nerve)
Posterior inferior EAC = Facial nerve sensory branch via nervus intermedius
What causes sensorineural hearing loss?
Sensory - cochlear damage from noise exposure, drugs (gentamicin) and viral labyrinthitis.
Neural - Compression of CN8 in the CP angle
What is the mechanism behind caloric testing?
The cold water causes the endolymph to become dense and fall.
This pulls the ipsilateral cupula away from the utricle, reducing the firing and causes nystagmus with the fast component to the contralateral side.
Movement of the cupla towards to the utricle = ampulopetal; Away = ampulofugal.
Describe the vestibular pathway
Cupula in each of the semicircular canals > CN8 > Vestibular nucleus int he medulla > CN6 and 3 bilaterally via the MLF and control medial and lateral rectus coordination.

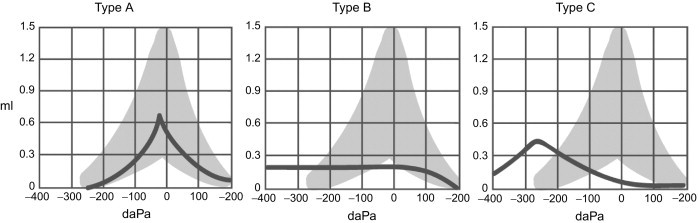

How do you interpret tympanometry?
X axis is the static pressure and Y axis is the volume.
A = Normal
B = flattened curve suggestive of an compressible fluid in the middle ear
C = Negative compliance suggesting a negative pressure in the middle ear which occurs with eustachian tube dysfunction
What tests help to distinguish conductive and sensorineural hearing loss?
PTA / tymps
Otoacoustic emissions
BSAER
Stapedial reflex out of proportion to PTA suggests neural lesion
What is the most reliable indicator of an acoustic neuroma from the BAER?
Increased intraaural latency in wave V. BAER sensitivity is 90%.
Names the structures
What is the different ionic composition of endolymph and perilymph?
Endolymph has high K+ like intracellular fluid, Perilymph has a higher Na+ like extracellular fluid and CSF
How do you use Rinne’s and Weber’s test to localise hearing loss?
What is the modiolus?
The conical central axis of the cochlea
What are the PTA findings with noise-injury hearing loss?
Sensorineural hearing loss at 4kHz
What genetic condition causes haematuria and high frequency hearing loss?
Alport syndrome
Which nerve do vestibular schwannomas arise from?
Superior division of the vestibular nerve (not the cochlear nerve!) from the Obersteiner-Redlich (where oligodendrocytes are replaced by schwann cells) zone ~1cm from where the nerve exits the brainstem.
What is the function of schwannomin / merlin?
A tumour suppressor gene involved with cytoskeleton:membrane binding
What proportion of VS are unilateral?
95%
Which patients should undergo genetic screening for NF2?
Unilateral VS and <40 years
What is the difference between VS from sporadic cases compared to NF2?
Sporadic cases displace the CN8 whilst in NF2 they form grape-like clusters that infiltrate the nerve.
What are the histological subtypes of vestibular schwannomas?
Antoni A (narrow elongated bipolar cells) and Antoni B (loose reticulated). Verocay bodies (eosinophilic areas surrounded by spindle shaped schwann cells) are also seen.
What is the presenting triad of VS?
Ipsilateral sensorineural hearing loss, Tinnitus and Vertigo.
Large tumours go on to cause brainstem compression (facial numbness > weakness > diplopia) / hydrocephalus.
What is the cause of hearing loss with VS?
Initially thought to be stretch on the CN8, but new evidence suggests secretion of toxic factors causing cochlear damage
What is the hearing loss pattern with VS?
Gradual and insidious. 70% have high-frequency loss causing high pitch tinnitus and word discrimination is affected more.
What are the causes sensorineural hearing loss
Tumour, infection, toxin, vascular and autoimmune
Why does CN5 palsy occur before CN7 with VS?
As sensory fibres are more vulnerable to compression than motor fibres
What is the earliest clinical finding with VS?
SNL hearing loss
What are the examination findings in patients with VS?
SNL hearing loss (66%) Loss of corneal reflex (33%) Nystagmus (26%) Facial numbness (26%) Facial weakness (12%) Diplopia (11%) Papilloedema (10%) Babinski sign (5%)
Explain the Rinne’s and Weber’s test with VS?
Weber - tuning fork at vertek > localises to the contralateral side Rinne’s - positive i.e. air>bone conduction on both sides
What is the House-Brackmann grading system (1985)?
1 = normal 2 = mild dysfunction with normal symmetry at rest but slight weakness 3 = moderated dysfunction with non-dyfiguring asymmetry. Complete eye closure with effort. 4 = Moderate to severe dysfunction = dysfiguring asymmetry with incomplete eye closure 5 = Barely perceptible motion 6 = No movement
What is the differential diagnosis of a CP angle lesion?
VS Meningioma Schwannoma of an adjacent cranial nerve e.g. CN5 or 7 Arachnoid cyst Epidermoid Metastasis Aneurysm Neurenteric cyst
How would you investigate a patient with a CP angle lesion?
MRI +/- contrast with CISS/FIESTA
CT skull base
Audiometry (PTA / Tymps / speech discrimination)
Further ancillary testing if small VS (<1.5 cm dia) include ENG / VEMP / ABR.
Why should you order a thin CT for pre-op VS planning?
Middle fossa - geniculate ganglion position and identify dehsicence
Translab - pneumatisation of the mastoid and position of the sigmoid sinus and jugular bulb (high riding)
Retrosigmoid - Bone coverage over the posterior semicircular canal and pneumatisation of the retro facial region (CSF leak risk). Position of the endolympathic sac.
What are the Electronystagmography (ENG)?
Electronystagmography - use to assess superior vestibular nerve function through cold and warm water (bi-thermic caloric testing in the ear causing nystagmus = (COWS) cold opposite warm same) . Note this only tests the horizontal semicircular canal.
Interpret this ENG result:
Reduced superior vestibular nerve function in the right ear on cold caloric testing.
What are VEMPs?
Vestibular evoked myogenic potentials. Most commonly recorded in SCM. These assess the inferior vestibular nerve through delivery of acoustic energy the saccule and is independent of hearing function so can be performed if completely deaf..
What are BAERs?
Brainstem auditory evoked responses. In VS results in prolonged I-III interpeak latencies. Useful for prognostication as poor wave morphology corresponds to lower chance of preserving hearing even with good pre-op hearing.
Which patients should be screened for a VS?
>10dB symmetric sensorineural hearing loss at >2 frequencies, asymmetric tinnitus (positive yield <1%!) or sudden sensorineural hearing loss in one ear.
What is the audible spectrum?
500-2k Hz
What do the X, O and triangles denote on a PTA?
X = Left
O = Right
and Triangle = bone conduction
How do you differentiate high freq hearing loss from a VS compared to hearing loss with age or loud noise?
VS hearing loss is asymmetric whilst other causes are symmetric.
Asymmetric sensorineural hearing loss >10 dB at two consecutive frequencies is indicative of a VS.
Which type of hearing loss has most effect on speech discrimination?
Retrocochlear hearing loss (note speech discrimination maintained with conductive hearing loss)
How is serviceable hearing defined?
Modified Gardener-Robertson - PTA loss <50 dB and speech discrimination >50% serviceable
Pragmatically: 1 = may use a phone on that side, 2 = can localise sound
Why are CISS/FIESTA useful for VS workup?
Visualise the course of the facial nerve and surrounding CNs if involved
What do hyperintense T2 regions of a VS suggest about the tumour?
That these tumours are softer and suckable so result in better CN VII function.
How do you grade the tumour extent of VS?
Using the Koos grading system:
1 = intracanalicular (<0.5 cc)
2 = Protrusion into CPA (<1 cc)
3 = Extends to brainstem but does not displace it (<2 cc)
4 = Displaces the brainstem and cranial nerves (4 cc)
What are the management options for VS?
- Conservative - watchful waiting
- Radiosurgery - single dose SRS with <13Gy is recommended for hearing preservation
- Surgery
- Biological therapies - Anti-VEGF (Avastin) for NF-2 related VS
Which VS have a faster growth rate with conservative management?
Those that expand outside of the IAC
Which tumours had a lower hearing preservation rate and high risk of CN7 injury?
>15 mm diameter
Which VS may demonstrate sudden and dramatic growth?
Cystic tumours
What are the CNS practice guidelines for the management of Koos 1 VS (intracanalicular) without tinnitus?
Observation - as these have a lower rate of growth and better hearing preservation.
What are the hearing preservation rates with SRS?
25-50% @ 10 years for serviceable hearing pre-SRS
Is there grade 1 evidence for the management of VS?
No!
What is your management algorithm for VS?
Koos 1/2 with intact hearing - conservative and treat only if >2 mm growth between 6 monthly MRI
Koos 3 - treatment with SRS or surgery
Koos 3/4 - Surgery to reduce the mass effect and decompress the brainstem
What is the difference in hearing preservation between SRS and surgery for VS?
At 5 years SRS is better but at 10 years it is the same. The hearing preservation with SRS is dependent on the amount of radiation given to the cochlear. With surgery experience and use of cochlear monitoring improves hearing.
What is the rate of facial nerve preservation?
98% overall with Koos 1-2.
With SRS it is also good if 13Gy is given (but not 20Gy)!
What is the risk of developing trigeminal neuralgia with SRS for VS?
7% with the higher dose of 20Gy, but no patients developed it if 13Gy was used.
What % of SRS treated VS increase in size?
20% show pseudo growth at 8 months, but the retreatment rate at 5 years was 4% (same as surgery)
How do you treat vertigo associated with VS?
Self limiting and improves with vestibular rehab exercises
Which surgical approaches are best for hearing preservation?
All should be treated by retrosigmoid except ff small and intracanalicular then middle fossa. Note middle fossa has a higher facial nerve palsy risk.
Which nerves should be monitored during VS surgery?
CN7 and 8. CN8 monitoring can be direct or via BAERs
What is the difference between serviceable and salvageable hearing?
Serviceable = 50/50 rule with PTA <50dB and >50% speech discrimination score
Salvageable hearing is whether serviceable hearing will be preserved post-op. This is unlikely if the pre-op speech discriminiation score <75%, PTA losses at >25%, tumour >2 cm or the pre-op BAER are abnormal.
Who performed the first VS resection?
First performed by Charles Ballance (NHNN) in 1894
Which direction is the facial nerve displaced with VS?
Forwards 75% >Inferior>Posterior
Where is the cochlear nerve found in VS surgery?
10% as a separate band on the tumour surface
90% within the tumour!
What is the goal of VS surgery if the tumour is tightly adherent to the CN7 or brainstem?
Subtotal / near-total resection leaving a small cuff on the nerve followed by SRS
How do you treat hydrocephalus associated with a VS?
VP shunt followed by surgery ~2 weeks later or EVD at start of surgery
Describe the translabyrinthine approach.
Supine head turn
Prep abdo for fat graft
C-shaped skin incision behind pinna to allow exposure of sigmoid
Mastoidectomy and preserve facial canal
Drill through vestibular apparatus behind and superior to CN7
The dura bounded by the sigmoid sinus, sup. petrosal sinus and deep to the labyrinthine is Trautman’s triangle.
Open the dura to get access to the posterior lateral brainstem.
Label the anatomy of the pre-sigmoid approach
A- Sinodural angle
B- Trautman’s triangle
C- Sigmoid sinus
D- Jugular bulb
E- Facial nerve (mastoid segment / tympanic segment)
F- Semicircular canal
How do you open the dura for a translabyrinithine approach?
Describe the retrosigmoid approach.
Lateral position - mayfield
Lumbar drain
C-shaped incision 3 cm behind the pinna
Identify asterion and then transverse-sigmoid junction with craniotomy
C- Durotomy with release to angle between transverse-sigmoid junction
Sacrifice the petrosal vein to allow cerebellum to fall away
Exposure to CPA and cisterna magna for CSF release
Identify tumour capsule and perform CN7 monitoring during resection
CT anatomy for approaches to VS
Important not to enter the Superior semicircular canal when entering the IAM during a retrosigmoid approach otherwise they will lose hearing. Drill anterior to the endolymphatic canal
Describe the middle fossa approach.
Lumbar drain
Head horizontal
6 cm incision starting ant to the tragus
4x3 cm craniotomy
Subtemporal extradural approach - section MMA and preserve the GSPN
Drill and expose the IAM from the meatus to Bill’s bar
Localise CN7 with stimulator
Open the dura over the IAM and dissect tumour from CN8
What are the routes for CSF leak following VS?
- Apical to the tympanic cavity (most common)
- Vestibule of the horizontal semicircular canal
- Posterior semicircular canal
- Perilabyrinithine cells > Mastoid air cells
- Mastoid air cells during craniotomy
Where is the vestibule of the semicircular canal?
Where all of the semicircular canals join. The oval window opens into the vestibule.
How do you manage facial nerve dysfunction following VS surgery?
Lacrilube, eye taping at night. If complete loss then tarsorrhaphy within a few days.
Facial reanimation with CN12-CN7 anastamosis 2 months after CN7 nerve was divided.
What is attached to the oval window?
The footplate of the stapes. Note: the round window is between the middle and inner ear and covered with a membrane.
What is the risk of malignant transformation with SRS for VS?
3 in 1000
What is a perineurinoma?
Tumour composed exclusively of neoplastic perineural cells. Causes pseudo-onion bulb formation with cylindrical enlargement of the nerve over 2-10 cm. Can be grade 1-3.
What % of MPNST are associated with NF1?
50%. In NF1 they tend to occur in plexiform or intraneural neurofibromas
What is the action of Bevacizumab?
VEGF inhibitor
What are the boundaries of Trautmann’s triangle?
Superior petrosal sinus above
Sigmoid sinus behind
Jugular bulb below
Semicircular canal anterior
What are the features of cystic VS?
More rapid growth
Frequent CN7 involvement
Unpredictable biological behaviour
Heamorrhage into the cyst esp after SRS may be associated with brainstem compression and obstructive hydrocephalus
Is there any difference in facial nerve palsy rates with approach to VS?
Middle fossa approaches are associate with a higher facial nerve palsy rate, but there is no difference between retrosigmoid and translabyrinthine approaches.
What HB grading has the best outcome from facial reanimation therapy?
HB3
Options include face-lift/eyelid tarsorrhaphy
facial anastomosis
What is the management of a parasellar meningioma causing visual impairment?
Decompression of the optic nerve
Resection of the extracavernous portion compressing the CN2
SRS to the remainder
What is the blood supply to anterior skull base meningiomas?
Ethmoidal arteries
Opthalmic A branches
ACA branches if very large
How do you differentiate chordomas and chondrosarcomas?
Indistinguishable on MRI. Classic soap bubble appearance. Chordomas arise from the midline whilst chondrosarcomas arise paramedian.
Chordomas sacral 50%, clival 35% and vertebral 15%
What jugular foramen syndromes affect CN9/10/11?
Vernet = 9/10/11
Collet-sicard = 9/10/11/12
Villaret = 9/10/11/12/Sympathetics
What are the contents of foramen lacerum?
Carotid
GSPN / Vidian nerve
Ascending pharyngeal artery
Emissary vein
What is a transcochlear approach?
Drilling of the superior and posterior EAM
The sacrifice of the semicircular canals and cochlear
Rerouting the facial nerve to access the CPA, petrous apex and ventral brainstem
What is the most common pituitary tumour?
Pituitary adenoma
How do pituitary tumours present?
Endocrinopathy, mass effect, headache, incidental finding and pituitary apoplexy
Which pituitary tumour is managed medically?
Prolactinoma with DA agonists (Cabergoline / bromocriptine / Quinagolide)
Pituitary carcinomas are invasive. Which hormones are they likely to secrete?
Prolactin or ACTH
What are the most common type of pituitary adenoma?
Non-functioning
Which familial syndrome is most commonly related to pituitary adenomas?
MEN1 - Autosomal dominant and also involves pancreatic islet cell tumours and parathyroid tumours. The pituitary adenomas are usually non-secretary.
Which hormones are secreted by adenomas?
PRL (48%), GH (10%), ACTH (6%) and TSH (1%)
