E Administer 250mL of Hartmann’s solution and decrease
the noradrenaline
The oesophageal Doppler is a minimally invasive cardiac output monitor. The
physical principle underlying the technology is the Doppler Effect, where the
changing frequency of ultrasound waves reflected from red blood cells as they pass
along the descending aorta is used to calculate the blood velocity. The Doppler
equation uses this frequency shift to estimate the velocity of red blood cells as they
pass the probe. By integrating this with time, and taking the area under the curve
(velocity vs time) the velocity time integral can be calculated (VTI). This is a measure
of stroke distance (Figure 5.2, distance=velocity x time). When multiplied by the
aortic cross sectional area the stroke distance gives the volume of blood passing the
probe in a given period of time. The aortic cross sectional area is usually estimated from a normogram based on the
patient’s age, weight and height (which are input by the operator at start up) but can
also be measured with transoesophageal echocardiography. It should be apparent
that not all of the blood ejected via the aortic valve travels in the descending aorta
so a correction factor is used to account for coronary, brachiocephalic, carotid
and subclavian flow to give a figure for stroke volume (SV). Cardiac output is then
calculated by multiplying SV by heart rate.

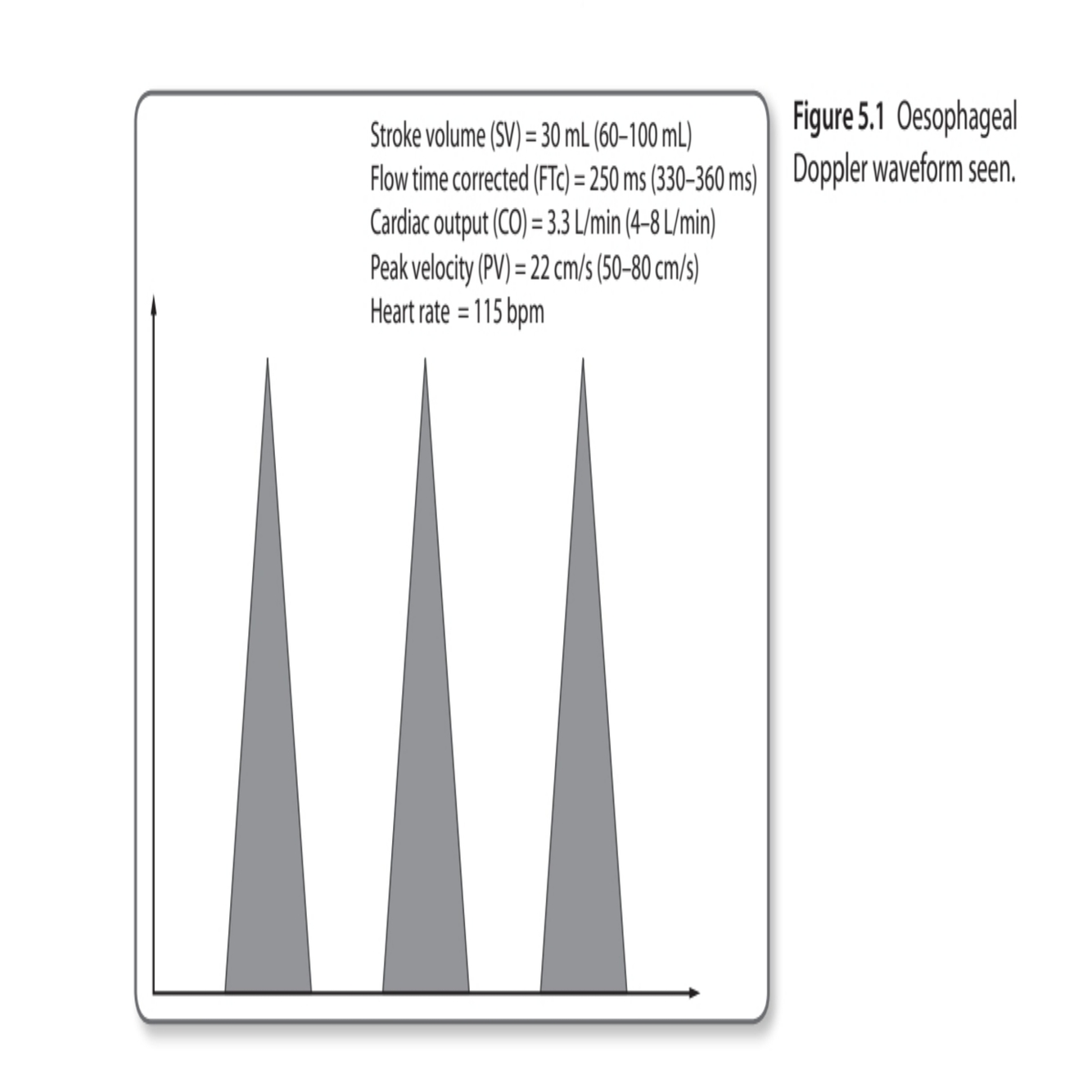

Correct positioning of the probe gives the characteristic waveform seen above.
Elements of the waveform can be used to indicate left ventricular contractility,stroke volume, preload and afterload. When interpreting data from the oesophageal
Doppler it is important to appreciate the interdependency of the variables.
Peak velocity
The speed at which blood is ejected from the left ventricle is proportional to
inotropy. It declines with age, with normal values for a 20-year-old being around
100 cm/s compared with around 30–60cm/s at the age of 90. The peak velocity
measurement in the patient in question is 22cm/s; almost certainly lower than
expected. As well as reflecting contractility, peak velocity (PV) is inversely related to
afterload for a given level of inotropy.
Stroke distance/stroke volume
Although stroke volume involves the use of an estimated aortic cross sectional area,
the values are almost certainly more familiar to most than those of stroke distance.
The patient in the question has a low stroke volume which should then prompt the
user to think about the causes of this - low preload, pump failure, dysrhythmia, high
afterload, and then to use the other information (both from the Doppler and clinical
sources) to guide treatment. The stroke volume calculated in this example is lower
than would be expected.
FTc = flow time corrected = systolic ejection time corrected for heart rate
This has been used as a measure of preload because the fuller the left ventricle is, the
longer it will contract. However, this assumes a given level of inotropy and afterload
and therefore is susceptible to changes in these variables, not just preload. Normal
FTc is 330-360 ms (based on the assumption that systole occupies around a third of
the cardiac cycle (corrected for a heart rate of 60, so a total cycle time of 1000ms = 1
s). In the patient described above, the FTc is 250 ms so is lower than expected.
Afterload
Changes in afterload will alter the width and peak of the waveform according to the
work undertaken by the left ventricle. An increase in afterload will result in shorter
FTc and lower PV whilst lowering afterload with reduce left ventricular work and
result in higher PV and longer FTc.
Any change in left ventricular dynamics will therefore lead to a change in the shape
of the waveform created (assuming other factors including aortic cross section and
regional blood flow are constant).
To summarise the data from the patient above, he has a good chance of
preoperative hypovolaemia, compounded by surgery and general anaesthesia and
has Doppler data suggestive of: low cardiac output, low stroke volume, low peak
velocity and low FTc.
The most likely clinical explanation for this is that the patient is being over-treated
with a vasoconstrictor (in this case noradrenaline) which is in turn masking
significant hypovolaemia; A is therefore not the correct option. The appropriate first step is therefore option E; to give a fluid bolus and assess response; an appropriate
Doppler response would be widening of the waveform and an increase in the area
under the curve (and so stroke volume). This may allow a reduction in the dose of
catecholamine which in turn will reduce afterload and improve myocardial oxygen
balance and contractility.
Although commencement of the epidural infusion is part of optimal perioperative
management, doing so before correction of hypovolaemia may lead to hypotension
and escalating noradrenaline requirements (a similar scenario may occur with GTN).
It should be noted that epidurals, and indeed anaesthetic agents, will alter the shape
of the Doppler waveform by lowering systemic vascular resistance and therefore
raising FTc, making the waveform appear wider.
Although cardiac index is low, in primary pump failure left ventricular end-diastolic
volume would be expected to increase leading to normal FTc. In addition, the
patient already has a tachycardia, which dobutamine may well exacerbate, and so
option B is not currently advisable.
E Turn off the pacemaker
Although the incidence of cardiac arrest post cardiac surgery is low (0.7–2.9%),
survival following an arrest is high, primarily due to a reversible cause often being
present. In up to 50% of cases ventricular fibrillation (VF) is the cause. A protocol
has been developed and published by the European Association for Cardiothoracic
Surgery. In the situation described above, the patient is being paced, so underlying
VF would not be immediately obvious.
Accordingly, the appropriate first step would be to cease pacing, check the
underlying rhythm and defibrillate as indicated. If 3 DC shocks are unsuccessful,
300mg amiodarone can be given whilst preparing for sternotomy.
If no dysrhythmia is present, attention should then turn to other reversible causes
such as tamponade, tension pneumothorax and haemorrhage. Asystole or severe
bradycardia would be treated with pacing (in this instance via the epicardial wires)
or atropine pending immediate sternotomy.
Concurrent management would include verification of endotracheal tube
placement, ventilation with 100% oxygen, CPR and further DC shocks every 2
minutes in the case of an ongoing shockable rhythm.
Immediate use of adrenaline, and especially doses of 1mg, followed by correction
of a reversible cause and restoration of cardiac output may lead to severe rebound
hypertension and consequent bleeding. Answer A would not be an appropriate first
step in this instance.
A Fibreoptic intubation with a single-lumen tube and a
right sided bronchial blocker
Anaesthetists are often asked to isolate and selectively ventilate a single lung to
improve the surgical field. Lung isolation is achieved by collapsing the lung in the
operative hemithorax and can be achieved by the use of double lumen tubes,
bronchial blockers and endobronchial tubes. Familiarity with the advantages
and disadvantages of these different techniques is important, particularly when
presented with patients who are likely to have a difficult intubation and need post-
operative ventilation.
In the case above, the safest way to establish an appropriate airway is by performing
an awake oral or nasal fibreoptic intubation with a single lumen tube followed
by insertion of a right sided bronchial blocker to collapse the operative lung. A
bronchial blocker is a balloon tipped device which can be inserted down a single
lumen endotracheal tube and be placed under fibrescopic guidance into main
bronchi or lobar segments to cause distal lung deflation. Bronchial blockers can
be useful in patients with difficult airways when there is a plan to ventilate post-
operatively, since a potentially hazardous tube exchange at the end of the operation
is avoided. Compared to double lumen tubes however, bronchial blockers achieve
less reliable and slower lung deflation with an increased likelihood of intra-operative
dislodgement. The inflated balloon also prevents access to the deflated lung for
suctioning or oxygen delivery.
Double lumen tubes consist of a tracheal and an endobronchial tube attached to
one another in parallel thereby allowing isolation of either lung when correctly sited.
They are divided into right and left-sided tubes according to the orientation of the
endobronchial tube within the tracheobronchial tree. Since the right upper lobe
bronchus arises in closer proximity to the carina when compared to the left, there
is a higher risk of inadvertent upper lobe collapse when right sided tubes are used.
Advantages of double lumen tubes over bronchial blockers include the ability to
deflate and re-expand both lungs easily intra-operatively (Table 5.3). There is also
unimpeded access to either lung for bronchoscopy, suctioning and oxygen delivery.
Since double lumen tubes are large diameter and pre-shaped, they may be difficult
to site in patients with a limited mouth opening (case above) or with distorted lower
airway anatomyAn uncut single lumen tracheal tube can be advanced into a bronchus to isolate the
lungs in emergency situations such as an acute contralateral tension pneumothorax or
airway haemorrhage. For elective operations however, the use of double lumen tubes
or bronchial blockers are better choices for controlled lung isolation (Figure 5.3Rarely, patients may require lung isolation via a tracheostomy and double lumen
endobronchial tracheostomy tubes are available for this purpose. In the above
scenario where there has been previous surgery and radiotherapy to the neck, the
formation of a tracheostomy may be technically challenging.
A Remifentanil infusion
The middle ear is a delicate air filled cavity containing three ossicles which transmit
sound vibrations from the eardrum to the cochlea. Due to its small size, location
and fragile content, the provision of anaesthesia for surgery to this unique site is
especially challenging.
Maintaining the surgical field is difficult since small amounts of bleeding or
movements can significantly degrade the view during microsurgery. Furthermore,
the use of neuromuscular blocking drugs to provide akinesia is frequently restricted
due to the need for intraoperative facial nerve monitoring. A smooth, cough-free
wake up is desirable to avoid compromising the surgical result, and patients are at
an increased risk of developing post-operative nausea and vomiting.
Remifentanil is the most appropriate drug to use in this scenario since it addresses a
number of problems associated with middle ear surgery anaesthesia in addition to
providing adequate intraoperative analgesia. To minimise blood loss, remifentanil
can be used to rapidly control the blood pressure to deliver safe hypotensive
anaesthesia and a stable pulse in suitable patients. Remifentanil also allows
mechanical ventilation without neuromuscular blocking agents which enables
uninterrupted facial nerve monitoring. Remifentanil also attenuates coughing on
emergence, and if used in conjunction with propofol as part of a total intravenous
anaesthetic, reduces the incidence of post-operative nausea and vomiting.
Ketamine produces intense analgesia and dissociative anaesthesia via NMDA
receptor antagonism at both spinal cord and central sites. It can however cause
hypertension due to an increased sympathetic outflow which can result in bleeding
into the surgical field. Another drawback is the risk of emergence delirium and
coughing due to hypersalivation after extubation. For these reasons, it is not the
most appropriate option.
Nitrous oxide produces analgesia by inducing endogenous opioid release centrally.
Unfortunately, since the relative solubility of nitrous oxide in blood is far greater than
that of nitrogen, it will diffuse into the middle ear cavity at a more rapid rate than
nitrogen can leave. Subsequent raised middle ear pressures can cause displacement
of tympanoplasty grafts and promote nausea and vomiting, making this option
inappropriate.
Clonidine is a central acting presynaptic α2 adrenoceptor agonist with numerous
effects which lend themselves favourably to anaesthesia for middle ear surgery.
Not only does clonidine provide intraoperative analgesia, but also a reduction in
sympathetic outflow and therefore hypotension to minimise blood loss. Its sedative
effects may also contribute to a smooth wake up. In contrast to remifentanil
however, clonidine does not obviate the need to administer neuromuscular blocking
drugs which will interfere with facial nerve monitoring.
Magnesium is a versatile drug also with many favourable pharmacodynamic
properties. As a result of its NMDA receptor antagonism, magnesium provides
analgesia. It also inhibits smooth muscle contraction and has a direct vasodilator
effect which causes hypotension. Magnesium does impede neuromuscular
transmission by inhibiting acetylcholine release at the pre-synaptic nerve terminal, but this is not enough on its own to cause paralysis and allow safe, controlled
ventilation.
B Propofol and rocuronium
The choice of anaesthetic agents for ECT depends on the ability to:
t provide rapid onset and recovery from unconsciousness
t provide adequate muscle relaxation to avoid injury from an uncontrolled tonic-
clonic seizure
t have minimal effect on the seizure duration or quality
The original gold standard was methohexital as it has minimal anticonvulsant
properties, rapid induction and recovery, and a wide therapeutic range. However, it
has now been replaced by newer hypnotic agents, and the widespread availability
of propofol, its good cardiovascular stability profile and quick emergence properties,
mean that it is the most commonly used agent. Low doses such as <1mg/kg are
used to avoid reducing duration of seizures. Etomidate may reduce seizure threshold
allowing lower currents to be used, but has a pronounced hyperdynamic response
and long emergence times. Thiopentone reduces the duration of seizures and
there is an increased arrhythmia risk. Inhalational induction with sevoflurane has
a reduced seizure duration compared to methohexital and is time consuming for
the anaesthetist. It is important that whichever agent is chosen, the same one is
used throughout the course of treatment to avoid influencing changes in seizure
threshold. Combining with opioids may reduce seizure duration but overall has an
induction agent sparing effect.
Muscle relaxants are essential in preventing uncontrolled convulsions and
musculoskeletal injury. Succinylcholine is still the most commonly used, typically a
dose of 0.5mg/kg.
Mivacurium is short acting and doses 0.15mg/kg should be used to control
muscle movements. Individuals with variations in the genes coding for the
pseudocholinesterase enzyme exhibit prolonged neuromuscular blockade. 4
alleles are described depending on the degree of enzyme inhibition; normal (Eu),
atypical or dibucaine resistance (Ea), fluoride resistant (Es) and silent (Es). 96% of
the population is homozygotes for the normal gene. Homozygotes for the atypical
or silent gene exhibit prolonged paralysis for up to 4 hours and homozygotes for
the fluoride resistant up to 2 hours. Heterozygotes exhibit mild prolonged paralysis
up to 10 minutes. Both suxamethonium and mivacurium are contraindicated in
cases of pseudocholinesterase deficiency, even in heterozygotes with intermediate
dibucaine numbers. Rocuronium or vecuronium are the most appropriate
alternatives, in view of the increasing availability of sugammadex.
A Mansour’s approach
○ The merger of the anterior rami of spinal nerves L4, L5, S1, S2, S3 and S4 forms the sacral
plexus.
○ This plexus provides sensory and motor innervation to the posterior thigh, most
of the lower leg and the foot.
○ The two most important branches for the lower limb
surgery are the sciatic nerve and the posterior femoral cutaneous nerve of the thigh.
○ The sciatic nerve is derived from the ventral rami of L4–S3 and is the longest and widest nerve in the body. It supplies the posterior thigh and almost the entire lower
limb below the knee. It exits the pelvis through the greater sciatic notch below the
piriformis muscle to enter the lower limb between the ischial tuberosity and the
greater trochanter. The sciatic nerve then descends in the posterior thigh toward the popliteal fossa where it runs posterolateral to the popliteal vessels in the upper part of the fossa.
○ The sciatic nerve is actually a mixture of two nerves from its origin (tibial and common peroneal nerves). In the pelvis, the two nerves are packed together by
connective tissues to form the sciatic nerve. At the proximal pole of the popliteal
fossa, the sciatic nerve divides into its component nerves. Sometimes, the two
components separate early at the upper thigh or even in the pelvis.
○ The posterior femoral cutaneous nerve (PFCN) is found in the pelvis from the anterior rami of S1, S2 and S3. This is purely a sensory nerve and it descends with
the sciatic nerve in the upper part of the thigh. It gives off the inferior cluneal nerve (sensation to the lower buttock), perineal branches (sensation to the external genitalia), and femoral and sural branches (sensation to the back of the thigh and calf). It ends in the popliteal fossa where it anastomoses with the sural nerve.
The most common indications for sciatic nerve block are anaesthesia and
postoperative analgesia for foot and ankle surgery. It is also useful for operations above the knee, and for management of chronic pain conditions in the lower limbs such as sciatic neuropathy.
Various approaches have been described to block the sciatic nerve because of its
deep location and the difficulties associated with positioning.
● Mansour’s parasacral block:
Mansour describes this block in 1993.
• It is the most proximal approach to sciatic nerve and mainly used to provide analgesia following major ankle and foot surgeries. It is more than an isolated sciatic nerve block
because it may block the entire sacral plexus, and this is advantageous for knee and above the knee operations when compared with distal sciatic nerve approaches. It
reliably blocks the two components of sciatic nerve and the PFCN.
The patient is positioned in the lateral decubitus position and a line is drawn connecting the posterior superior iliac spine (PSIS) and the ischial tuberosity. The
point of insertion is 6 cm caudal from PSIS along this line. A 100mm insulated block needle is used because the nerve is deep in this area. The motor response is
inversion and planter flexion (tibial) or dorsiflexion and eversion (peroneal) that can be elicited at a depth of 7–9 cm.
● Labat’s transgluteal approach:
This is a posterior approach to the sciatic nerve (Figure 5.4). The patient is positioned in Sims’ position (lateral decubitus with a slight
forward tilt) with the operative side up and hip flexed. Three lines are drawn. Line 1 is
connecting the PSIS and the greater trochanter (GT), line 2 is extended from the GT
to the sacral hiatus and line 3 is dropped perpendicularly from the midpoint of line 1
to intersect line 2. The needle entry point is where line 3 and line 2 meet. A 100mm
22G block needle is used and inserted perpendicular to all planes. The sciatic motor
response is usually observed at around 5–8 cm depth.
● Raj approach (lithotomy subgloteal): This has the advantages of supine approach to the sciatic nerve and easy landmarks. The patient is posited in a
supine position with both hip and knee flexed. A line is drawn extending from
the greater trochanter and the ischial tuberosity. The sciatic nerve twitches are
elicited by inserting a 100 mm 22G block needle perpendicularly at the line midpoint. (Figure 5.5)
● Beck’s anterior approach:
This approach to a sciatic nerve block has the advantage
of maintaining the patient in the supine position and the lower limb in the neutral
position. A longer needle (150 mm) is needed because the nerve is deep to the
adductors. Three lines are drawn: line 1 connects the anterior superior iliac spine and
the pubic tubercle, line 2 is parallel to line 1 but drawn from the greater trochanter, and line 3 is dropped perpendicularly from the junction of the medial and the
middle thirds of line 1 to intersect line 2. The needle insertion point is where line 3
intersects line 2. This block is technically challenging and requires a deep insertion of
the needle, hence can be a painful block to perform awake (Figure 5.5).
● Guardini’s subtrochanteric approach:
This block uses a lateral approach to the
sciatic nerve with a supine position and neutral lower limb. The point of entry is 4 cm
distal and 2 cm inferior to the greater trochanter. A 100mm 22G needle is used to
perform this block. It is not a common approach because it is technically difficult to
perform and may be painful (Figure 5.6).
● Popliteal approach: this is the most common approach to sciatic nerve because the
nerve is superficial and easy to find either by a peripheral nerve stimulator (PNS) or
ultrasound (US) technique (Figure 5.6).
There are two approaches to PNS guided popliteal block: posterior and lateral. Posterior approach: with the patient prone, a triangle is drawn in the popliteal fossa.
The popliteal crease forms the base, the biceps femoris tendon forms the lateral
border and semimembranosus tendon forms the medial border. A line is drawn
connecting the apex to the midpoint of the base. The needle entry point is 1cm
lateral to this midline and around 7–9cm above the skin crease (base). A 50mm 22G
block needle is used for this block and 25–40mL of local anaesthetic may be used.
In most people, the sciatic nerve divides into tibial and common peroneal nerves
near the apex of the popliteal fossa (8–10cm above the crease). However, in some
patients, as previously mentioned, the nerve separates more proximally. Therefore,
multi-stimulation or US-guided technique is advocated for a successful block.
Lateral approach: with the patient supine and the hip flexed to 30 degrees and the
groove between the vastus lateralis and biceps femoris is palpated. A 100mm 22G
block needle is inserted perpendicularly about 7–9cm above the popliteal fossa
crease. The common peroneal nerve is stimulated in this approach.
Ultrasound guided popliteal nerve block: a linear high frequency US probe is
placed parallel to the popliteal fossa crease. Then the probe is moved proximally
until the popliteal artery pulsation is seen. The sciatic nerve (or its two components)
is generally located lateral and superficial to the popliteal artery. The best place to
inject local anaesthetic is just before the division of the sciatic nerve. This can be
obtained by tracing the two components upwards until a single nerve is seen.
A Urine output volume measurement
This question is testing your knowledge and reasoning in an attempt to differentiate
between two common causes of hyponatraemia in a patient with a head injury. The
differential diagnosis is between syndrome of inappropriate anti-diuretic hormone
(SIADH) and cerebral salt wasting (CSW).
Hyponatraemia is serious: in-hospital mortality is increased by 2–4 times and a
difference in survival outcome is still present at 1-year follow-up. Correcting the serum
sodium concentration is also hazardous and if done too rapidly may precipitate severe
neurologic complications, such as central pontine myelinosis, which can produce
spastic quadriparesis, swallowing dysfunction and pseudobulbar palsy.
The classic way to differentiate between causes of hyponatraemia is to assess fluid
balance (see Table 5.4).
CSW is a condition that is poorly understood. Proposed mechanisms include
increased sympathetic activity causing a higher glomerular filtration rate and excess
atrial natriuretic peptide (ANP) and brain natriuretic peptide (BNP) release resulting
in reduced renal water re-absorption.
It occurs most commonly in traumatic brain injury and presents in the first week
after injury and is normally self-limiting. The key clinical feature is hypovolaemia
with a high urine output production. The serum osmolarity may be normal or high
and urinary sodium is usually raised. The management involves replacing sodium
and water with 0.9% sodium chloride and if symptoms develop (anorexia, confusion,
unconsciousness and seizures) hypertonic saline may be indicated.
SIADH occurs as a result of traumatic brain injury, sub-arachnoid haemorrhage, brain
tumors and meningitis. Excess ADH results in increased water absorption from the
collecting duct of the nephron. The key clinical feature is hypervolaemia and low
urinary volume. The plasma has a low serum osmolarity due to the dilutional effect
of excess water and the urine osmolarity is usually high. The management involves
restricting water intake.In the intensive care unit great care is paid to getting the ‘numbers’ right. The fluid
balance is often adjusted according to a planned daily target. Central venous
pressure is of dubious benefit and a discrete value as is offered here is unhelpful.
Peripheral oedema may be multi-factorial and may be apparent even in the presence
of intravascular volume depletion. Osmolarity measurements are important in
making the diagnosis but in both differential diagnoses it may be normal and a
urinary sodium concentration is the more discerning test.
Considering the available options in the question above, urine output is the most
important piece of information: a high urine volume being produced in CSW and a
low urine volume being produced in SIADH.
