3.2 Sequential Logic 2 Flashcards

1
Q

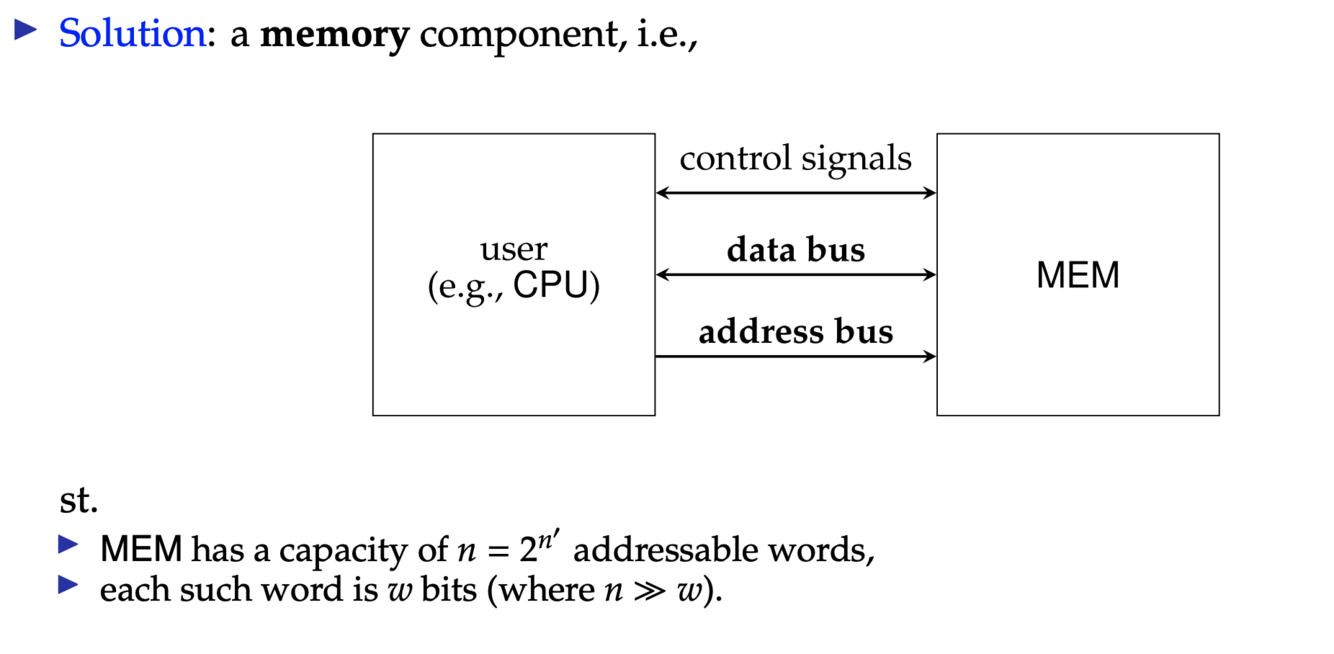

What are the 3 signals/busses used in a general memory interface

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

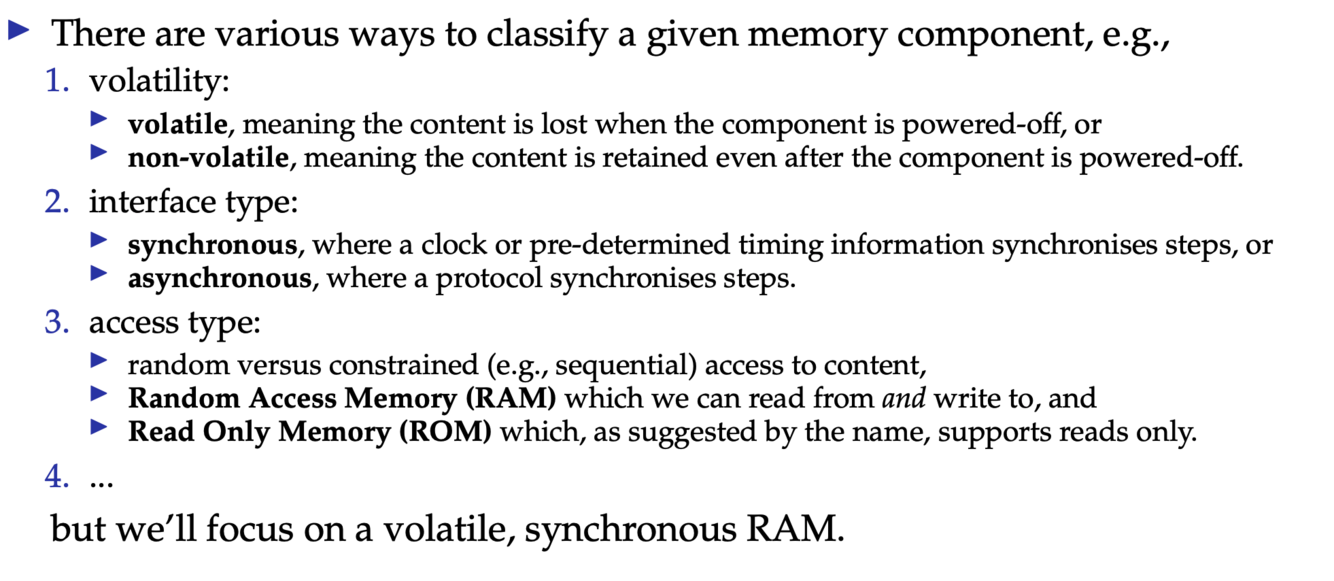

What are the 3 different ways of classifying memory

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

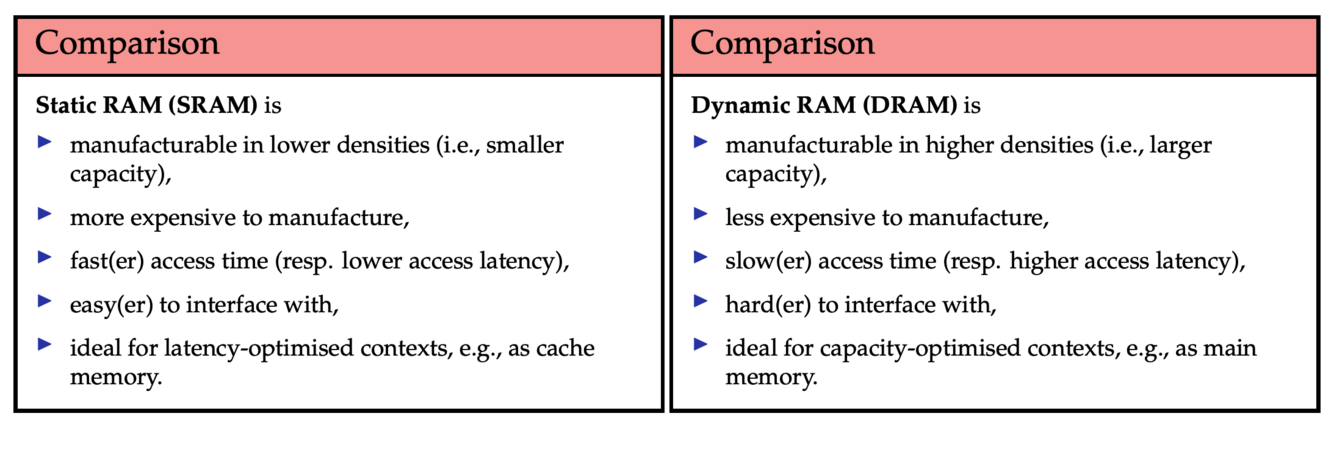

What is the difference between SRAM (static) and DRAM (dynamic)

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

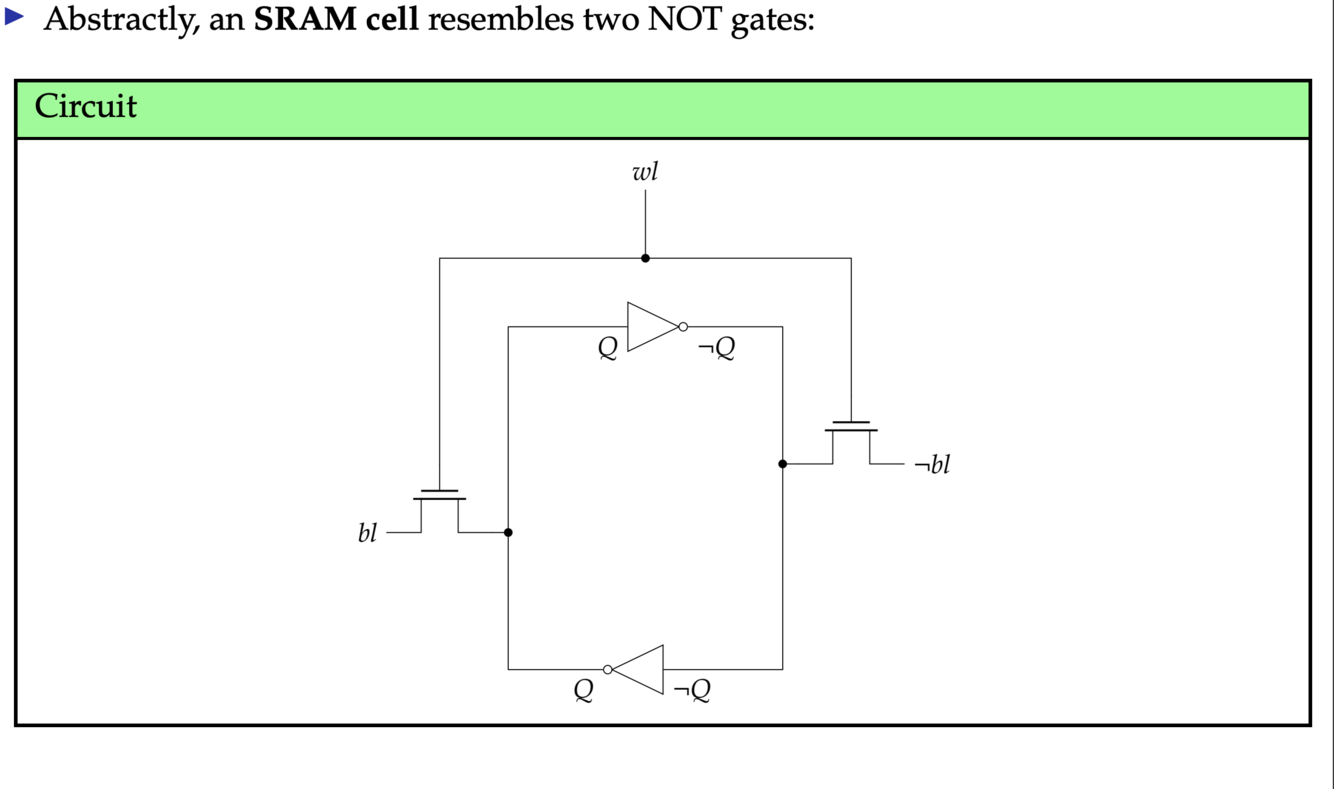

How is a SRAM cell constructed (circuit diagram)

A

Read: precharge to 1 1 (low strength - overriden)
Write: precharge to value (high strength)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

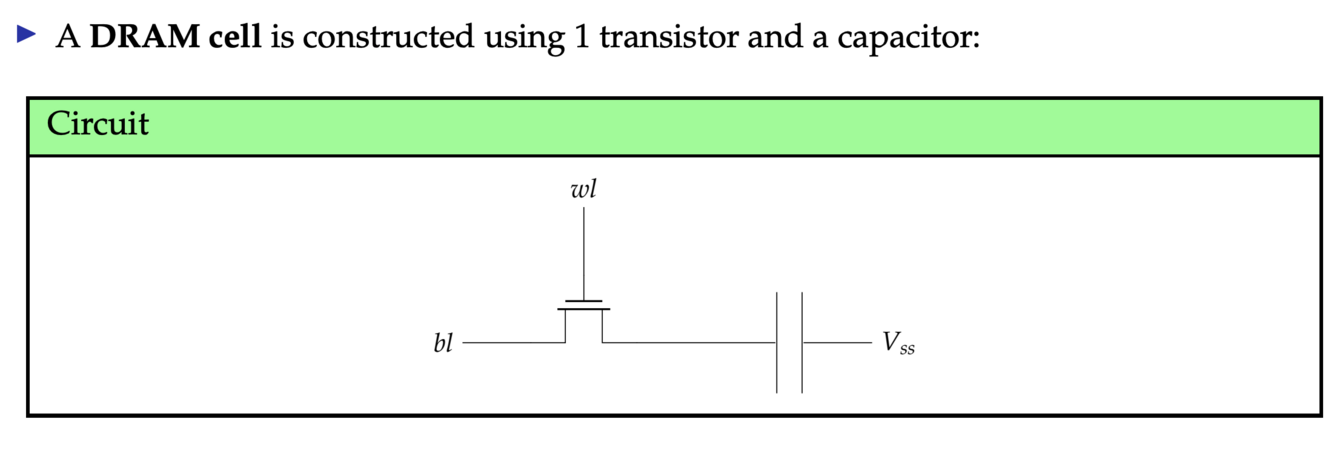

How is a DRAM cell constructed (circuit diagram)

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

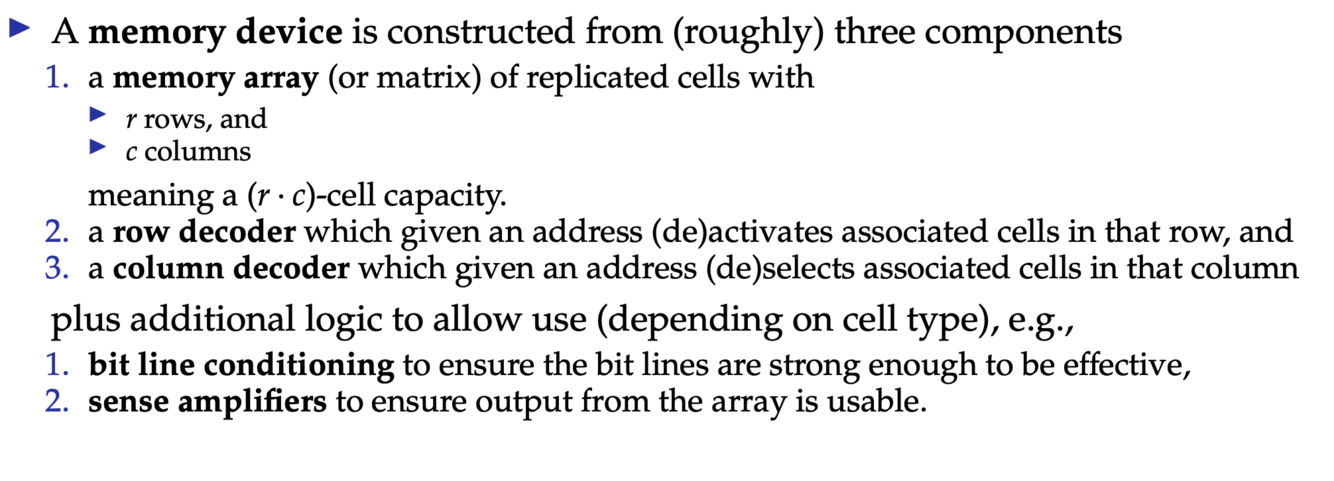

What 3 components are used to construct a memory device

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

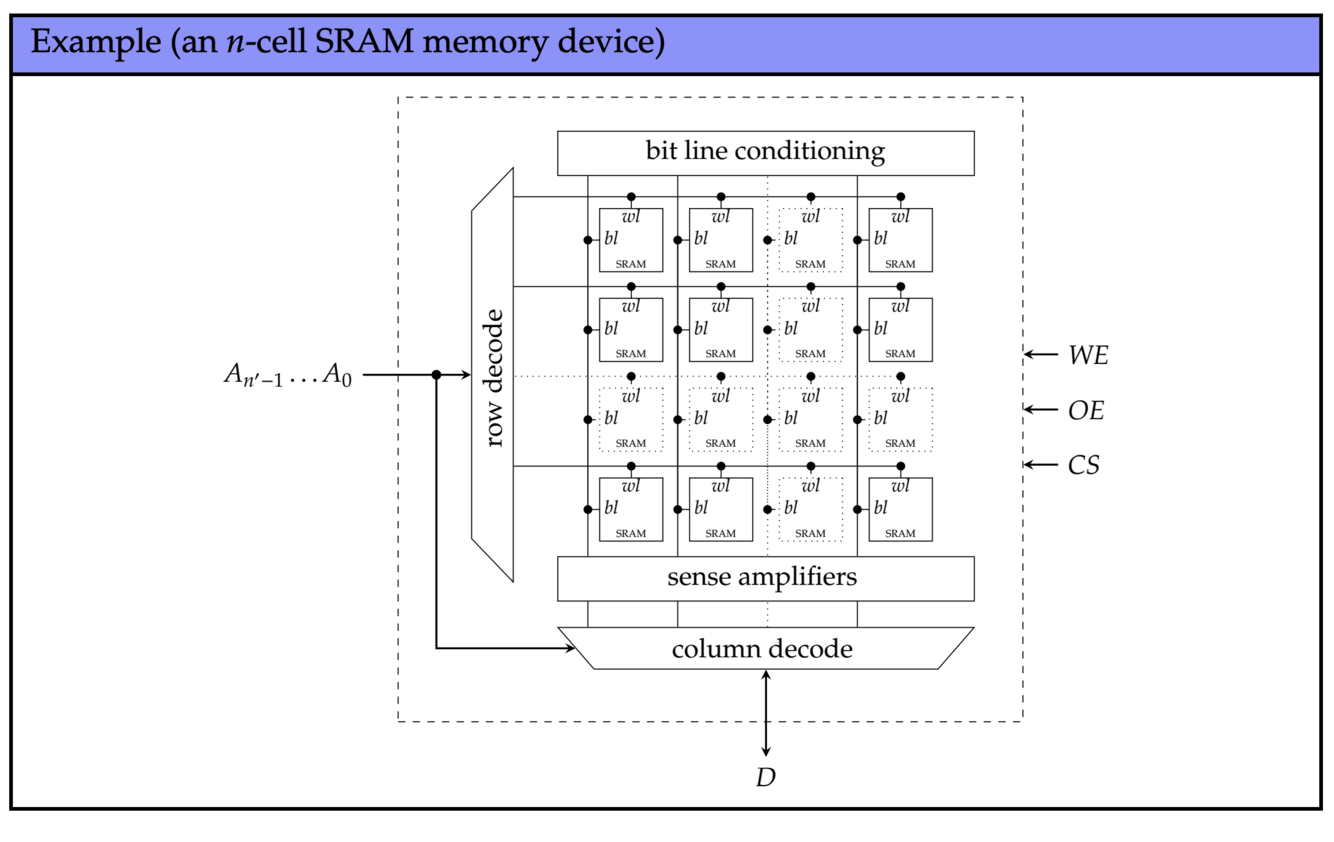

What is an example diagram of a SRAM memory device

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

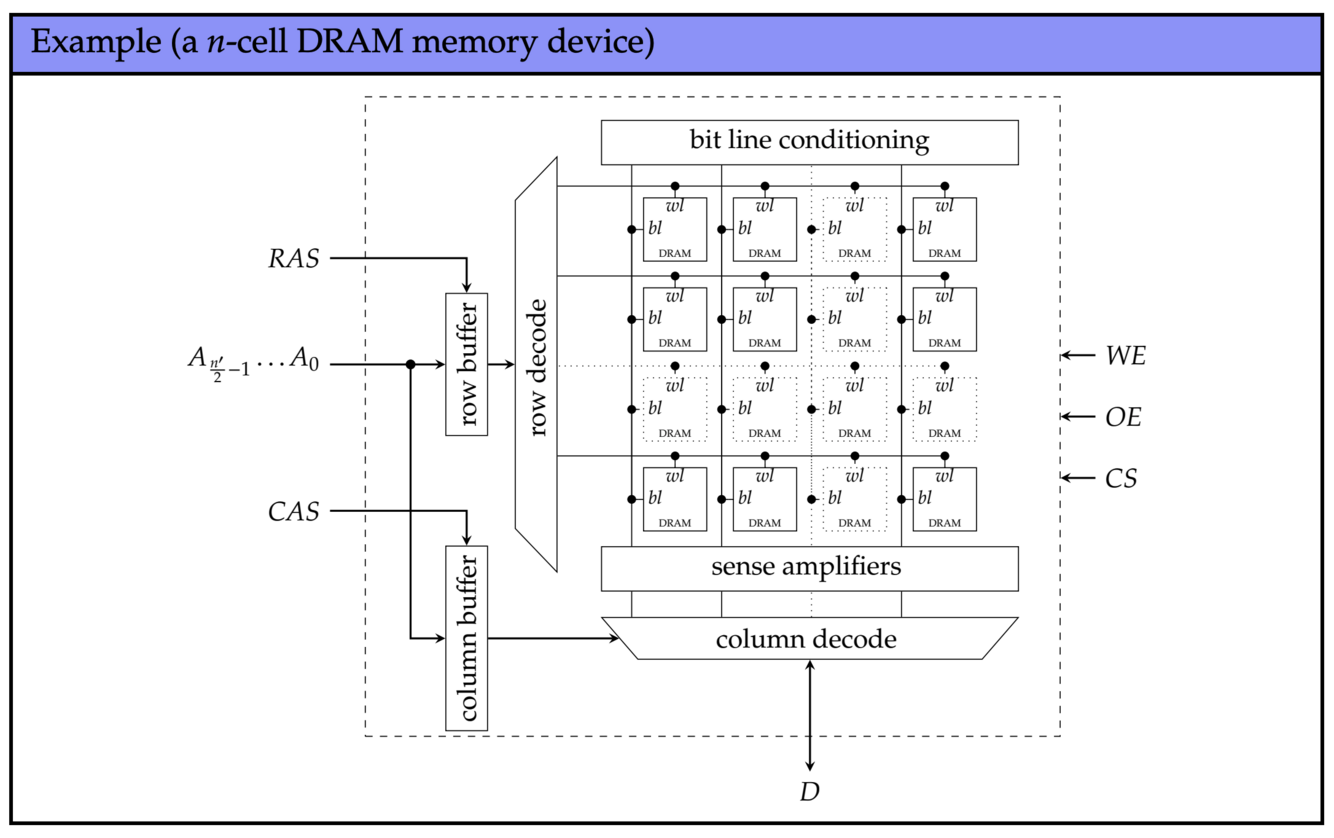

What is an example diagram of a DRAM memory device

A

Load row and column values separately

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

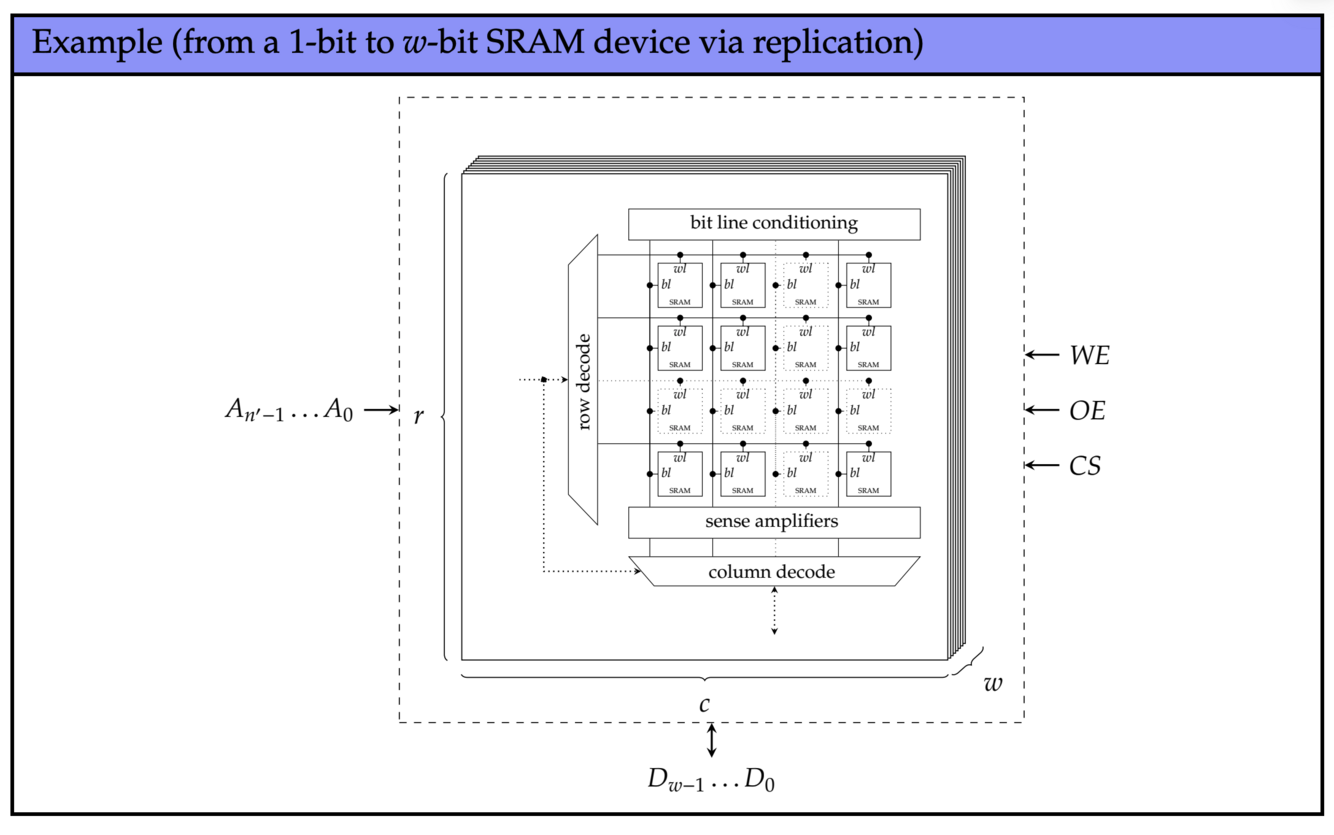

How can a memory device output a w-bit word via replication

A

Stack w-devices

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
