3.1 Sequential Logic Flashcards
1
Q

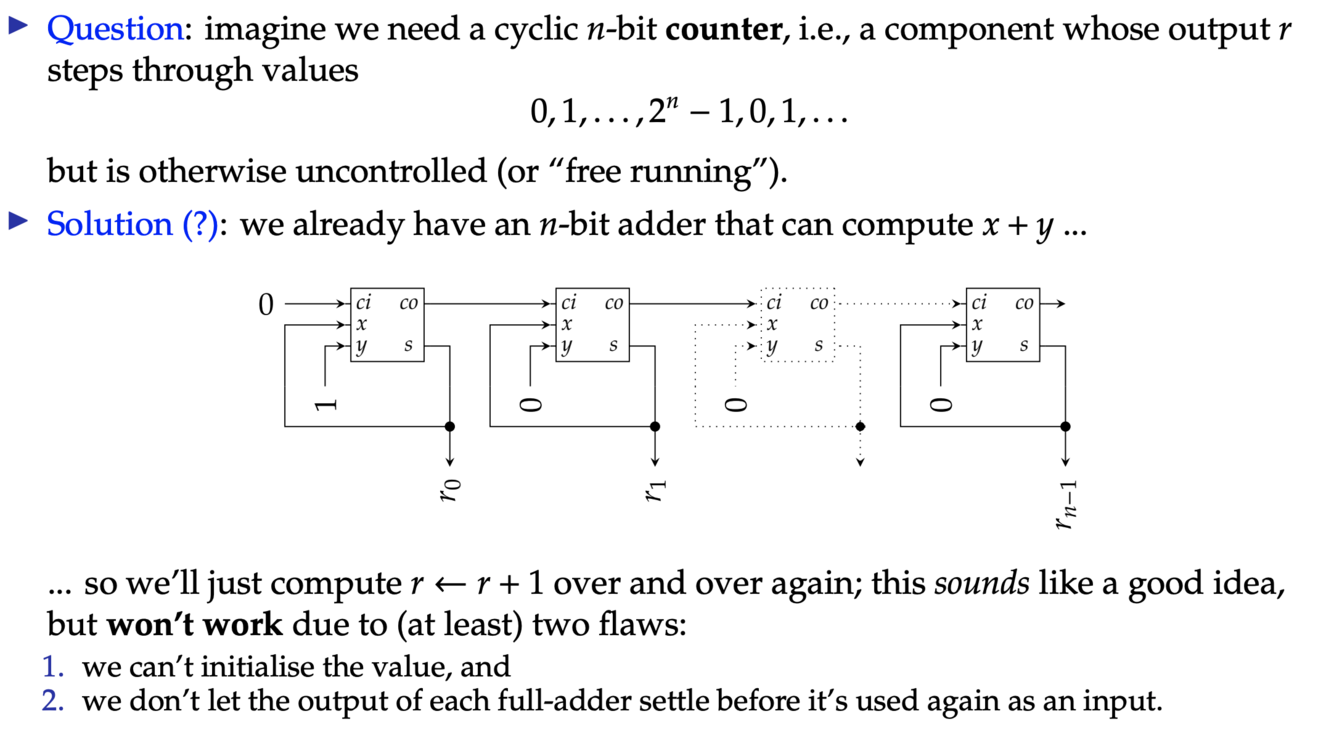

Why can’t you simply loop a value back into an adder to form a counter
A
2
Q

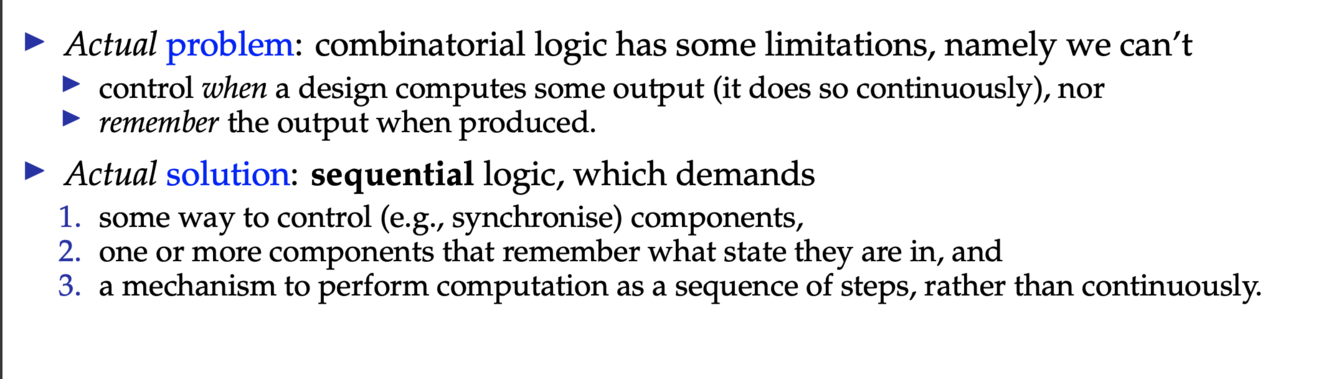

What is the need for sequential logic
A
3
Q

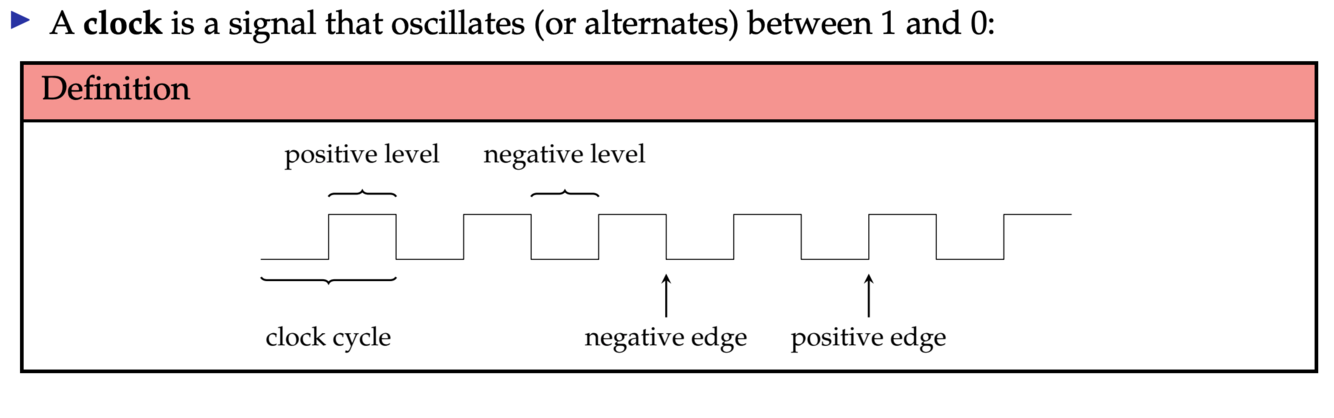

What is a clock
A
4
Q

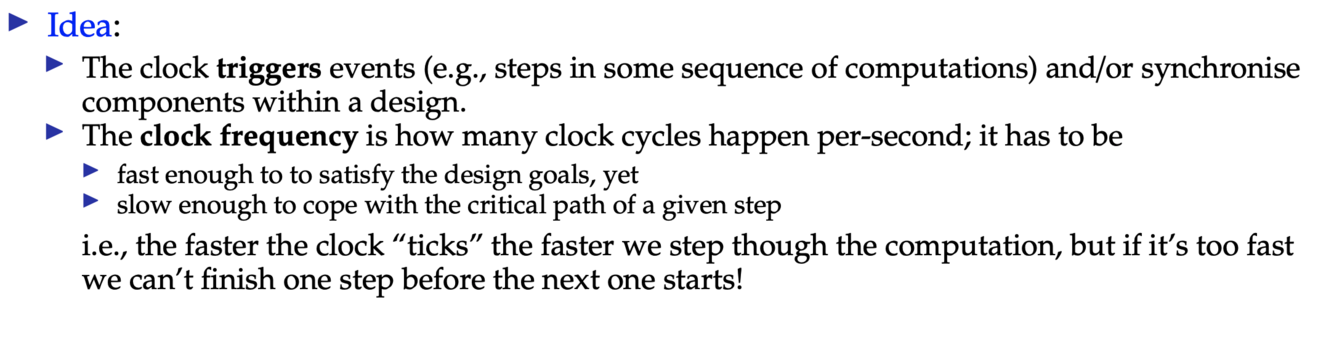

What is the purpose of a clock
A
5
Q

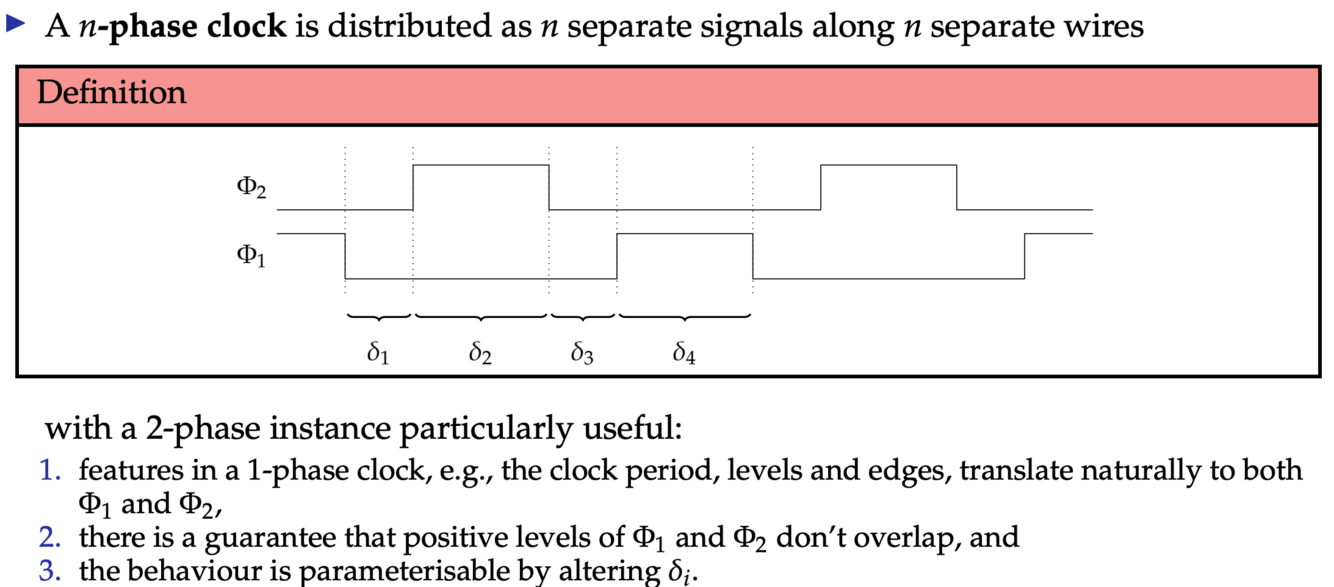

What is an n-phase clock
A
6
Q

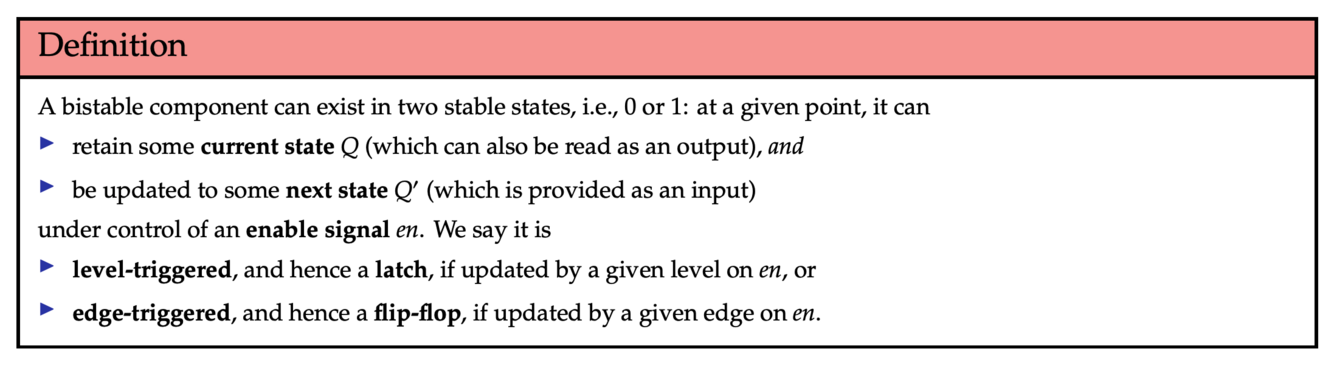

What is a bistable component
A
7
Q

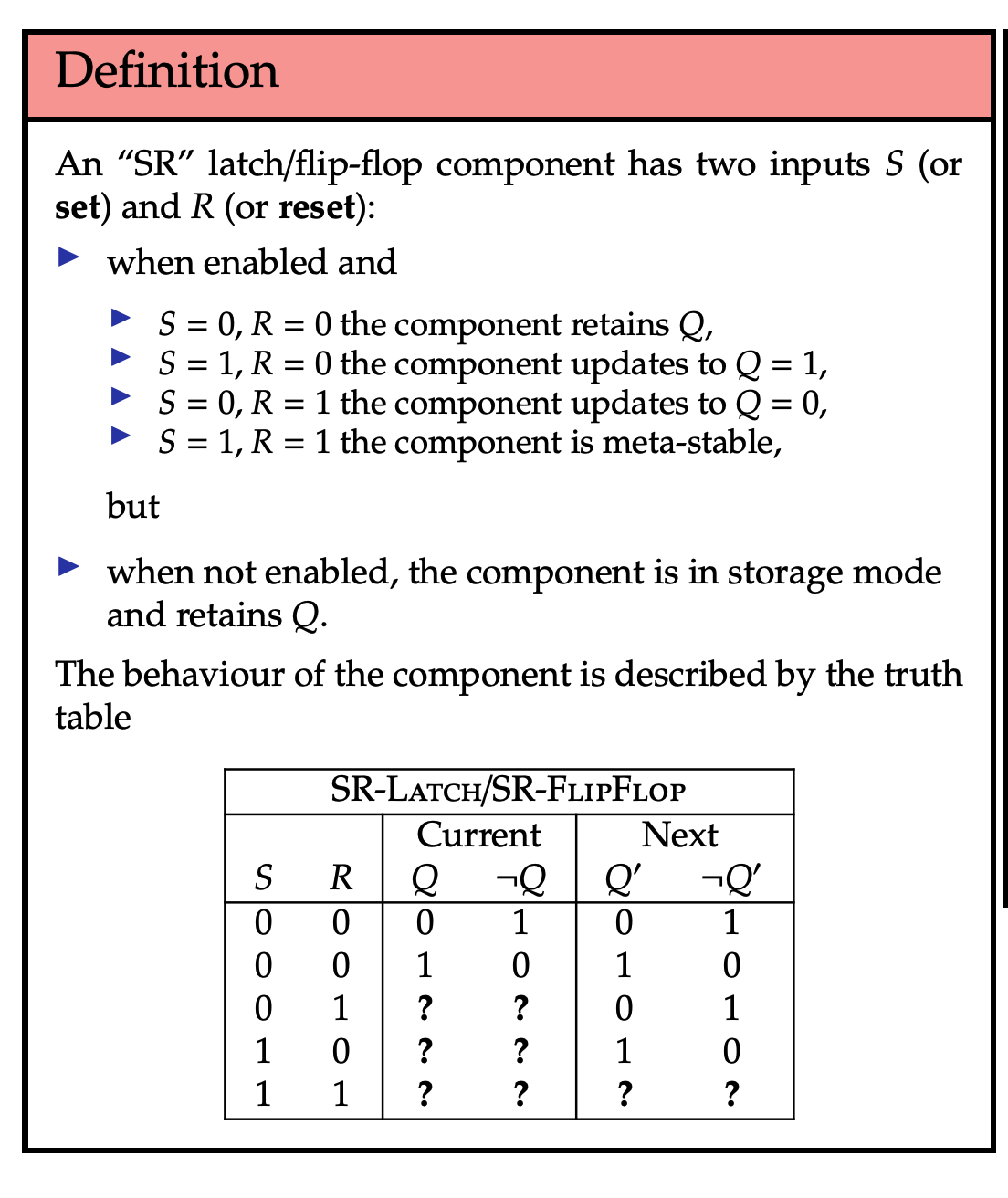

What is a SR latch/flip flop and its truth table
A
8
Q
What is a D latch / flip-flop and its truth table
A
9
Q

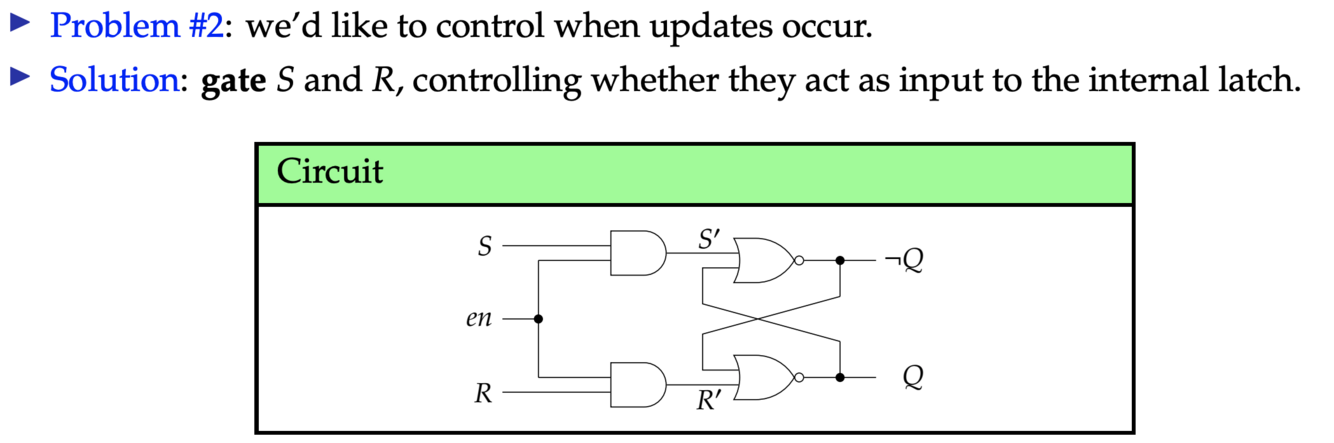

What is a circuit design for a simple SR latch
A
10
Q

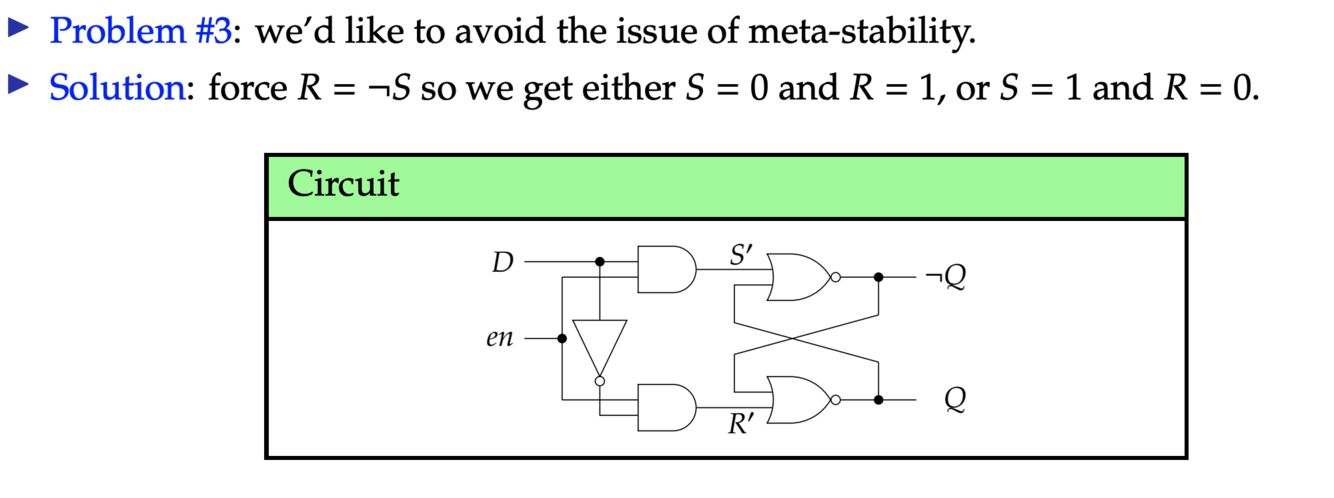

What is a circuit design for a simple D latch
A
SR latch but force R to be not S
11
Q

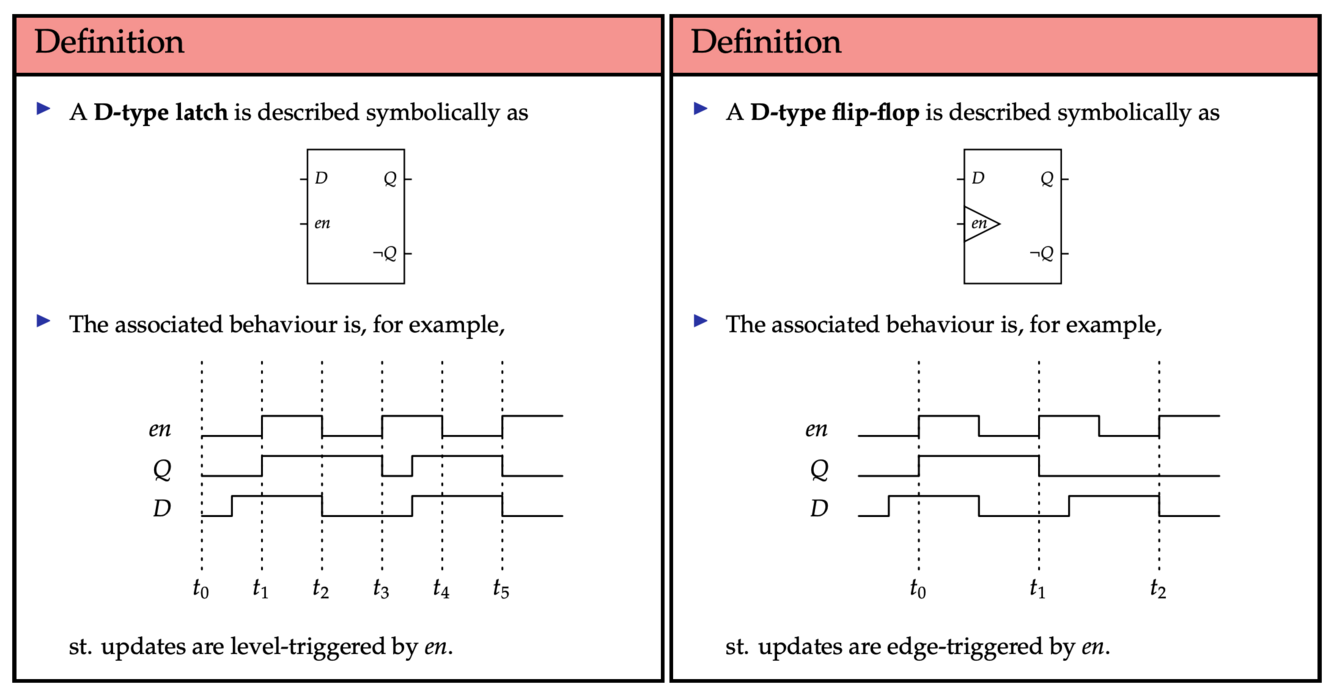

What is the difference between a D-type latch and a D-type flip-flop
A
12
Q

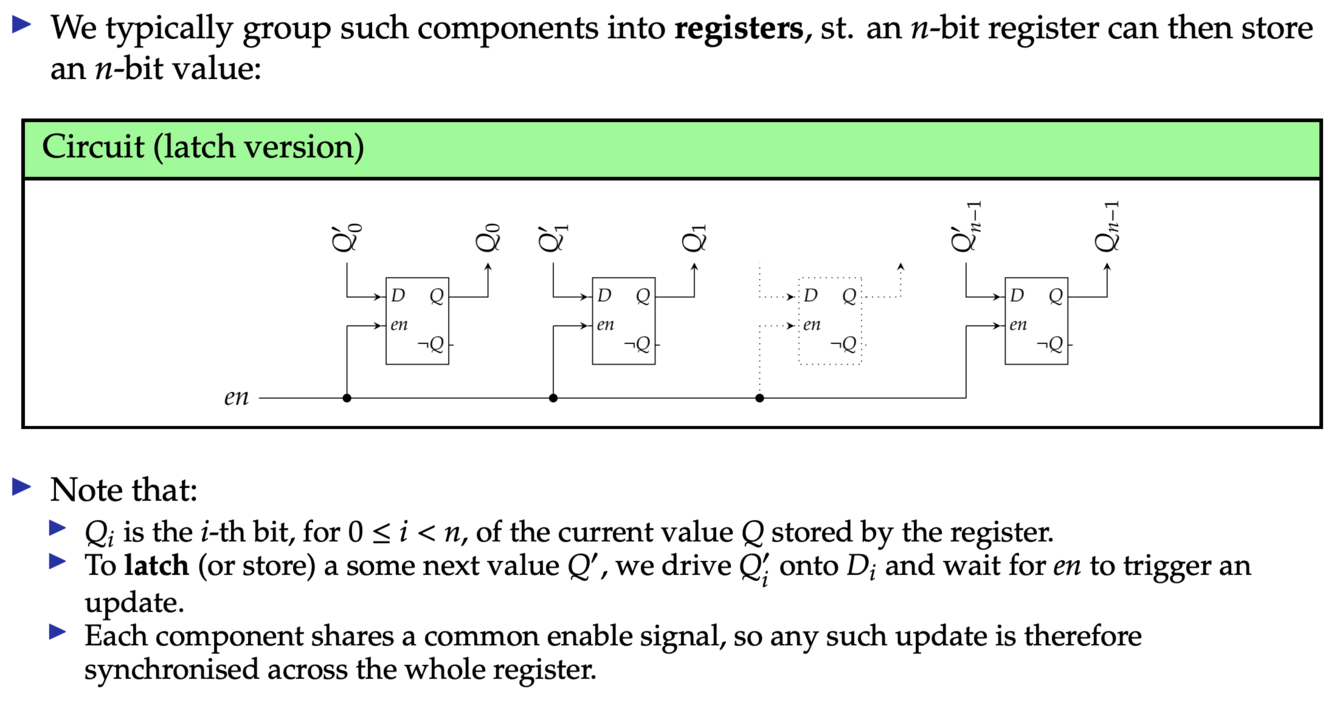

How are latches grouped into registers
A
13
Q

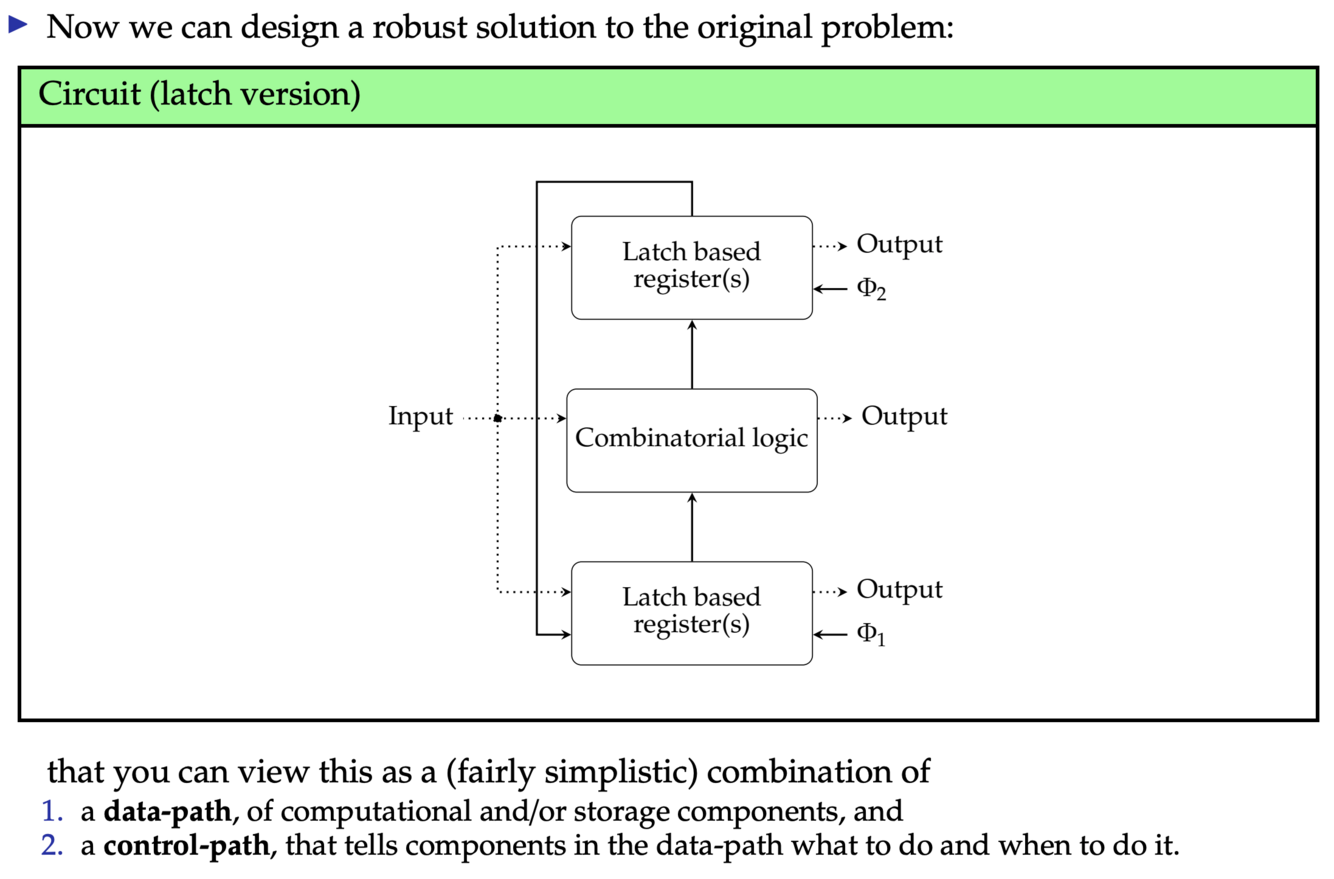

How to design a system to store and compute values (based on prev) using latches
A
14
Q

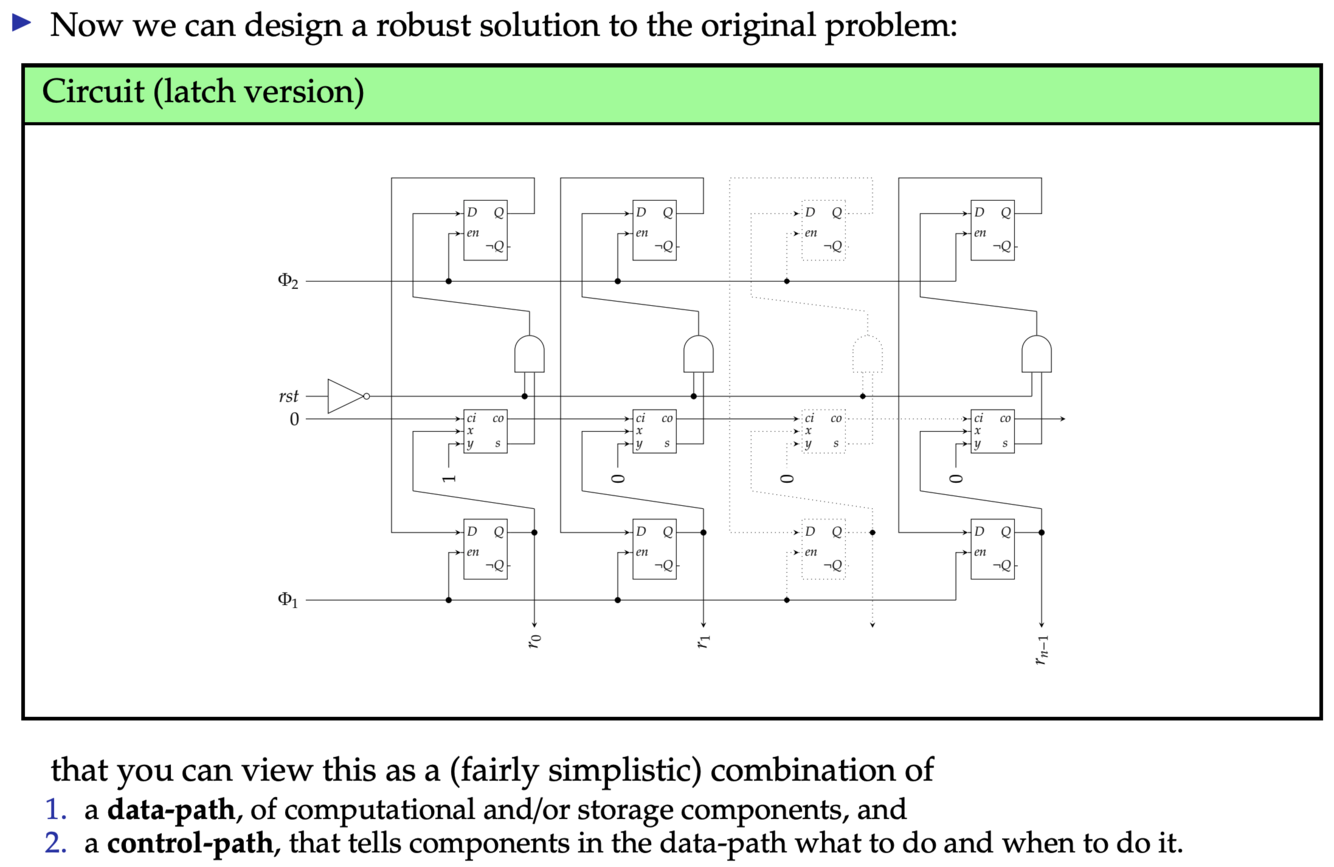

Circuit design for a n-bit counter
A
15
Q

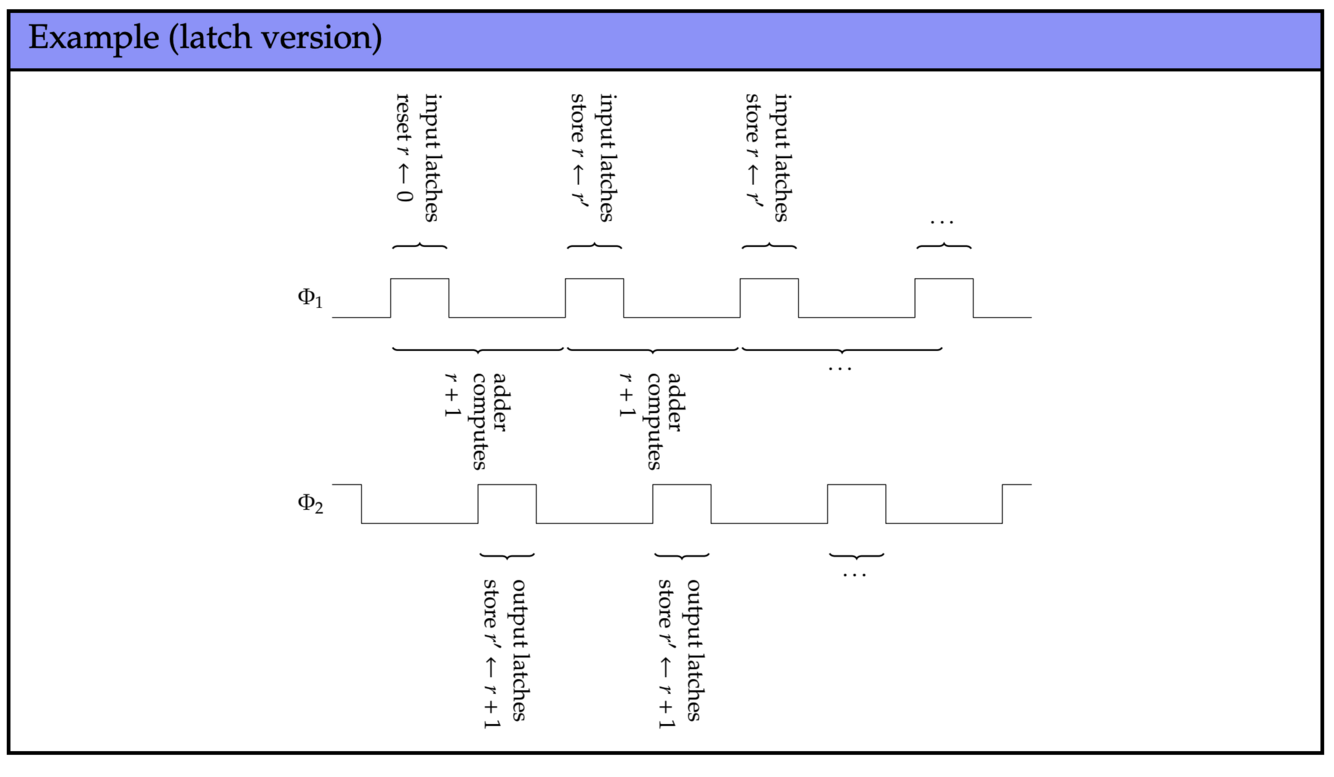

How does a 2-phase clock cycle work for an n-bit counter
A
