1. Cellular & Molecular Structure & Function Flashcards
What is the approximate size of the nucleus?
5-10μm
What is the approximate size of a cell?
20-30μm
What is the approximate size of a RBC?
7μm
What is the smallest separation between two points that the eye can see?
0.1mm
Define a cell.
- A single unit or compartment enclosed by a border or membrane.
- Smallest metabolically functional unit of life.
Will extra magnification always help see the object in better detail?
No, because resolution depends on the wavelength of magnifying rays, so magnifying beyond a certain point will just “magnify the blur”.
Give an example of a biological scale marker.
Red blood cells - They are usually exactly 7μm, so they give a good comparison for size in a magnified image.
What are the two types of sample section?
- Transverse section (TS)
- Longitudinal section (LS)
Describe the difference between the two types of tissue section.
- Transverse section - Cross section of a long structure
- Longitudinal section - Cut parallel to long axis of structures inthe sample
What things give need for section preparation before observing it under a microscope?
- Tissue decay
- Loss of structural detail
- Autolysis (break down by own chemicals)
What is fixation?
The process by which tissue decay and degradation is stopped. It often involves cross-linking proteins to give additional rigidity.
What are the main steps of section preparation for observation under a light microscope?
Fixation, Sectioning, Staining
What are the two ways in which tissues being prepared for observation are stopped from decaying, autolysis and loss of structural detail?
- Chemical cross-binding
- Cryo (low temperature)
Describe how a sample may be sectioned.
- Embed in wax block
- Cut wax block into sections
What are the three routine staining techniques you need to know about?
- Histochemistry
- Immunohistochemistry (a.k.a. Immunocytochemistry)
- In situ hybridisation
What is histochemistry?
Staining of cells with specific chemicals (such as with a H&E stain).
What is another name for immunohistochemistry?
Immunocytochemistry
What is immunohistochemistry?
Localisation of specific tissue antigens using labelled antibodies.
What is in situ hybridisation?
Localisation of a specific nucleic acid sequence by adding a complementary strand of RNA or DNA, then adding a labelled molecule similar enough to bind with it.
What are the main types of microscope?
- Light microscope (LM)
- Electron microscope (EM) -> Transmission and scanning
- Fluorescence microscope (FM)
- (EXTRA) Confocal scanning laser microscope (CF)
Describe how a light microscope works.
Light from source:
- focussed by condenser lenses
- light passes through section
- section detail magnified by objective lens
- further magnified by eyepieces
- eyes see the contrast in the magnified image

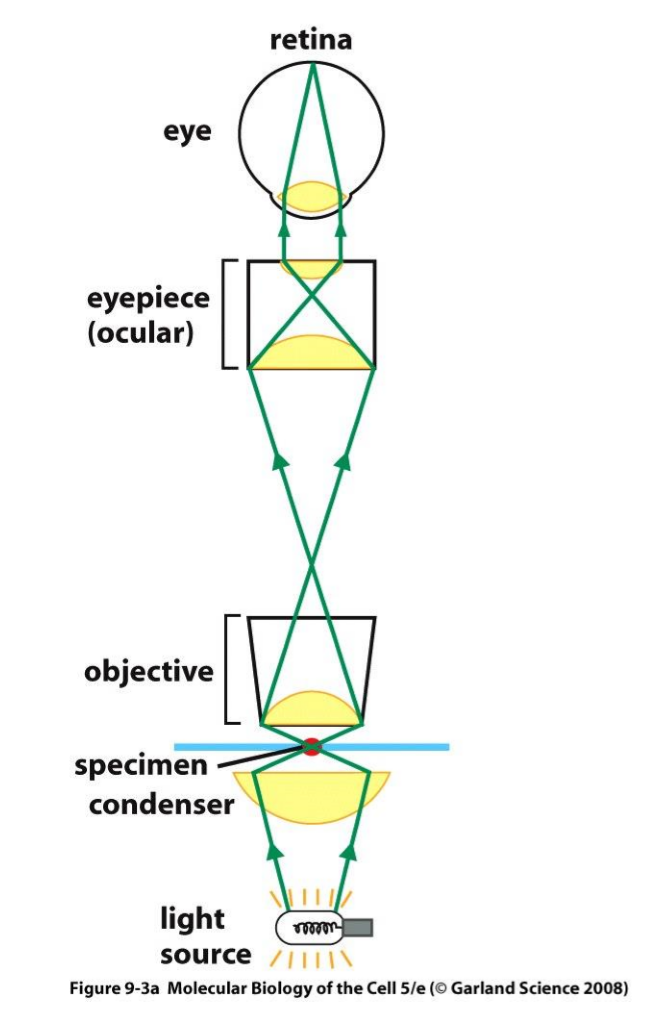

Draw a diagram of how a light microscope works.
What is the resolution of a light microscope?
0.2µm
What is the significance of the resolution of light microscopy?
Can see:
- Bacteria
- Details within nucleated cells such as nuclei, mitochondria, ribosomes and storage ‘granules’.
Give an example of an artefact that often arises in light microscopy sample preparation.
Lipids are often dissolved in processing (when the wax is dissolved), leaving behind empty space.
Describe the staining process for light microscopy.
- Cut section of wax
- Dewaxed using chemical
- Stained by H&E or trichrome stain
What does H&E stain stand for?
Haematoxylin and eosin
What are the colours seen in a H&E stain?
Purple and pink
Describe the general histological appearance of a H&E stain.
- Purple -> Nuclei and areas rich in nucleic acids
- Pink -> Other structures, specially proteins
EXTRA: Describe the principle on which H&E stains work.
- Basophilic structures, such as nucleic acids, bind to basic dyes, in this case haematoxylin -> This turns them purple
- Acidophilic structures, such as proteins, bind to acidic dyes, in this case eosin -> This turns them pink
What is the full name for the trichrome stain?
Masson’s trichrome
What is the advantage of trichrome staining over H&E staining?
It allows cells to be distinguished from surrounding connective tissue.
Describe the colours and their significance in trichrome staining.
- Blue/Green - Collagen
- Pink - Cytoplasm
- Dark red/Brown/Black - Cell nuclei
What is fluorescent microscopy a subset of?
Light microscopy
Describe how fluorescence microscopy works.
- Lamp produces light for excitation
- Microscope focusses light on to section and collects fluorescence emission light
- Sample is preserved, chemically or by freezing
- Sample is labelled to tag/label specific molecules
- Live fluorescent protein
- Antibodies target specific protein (immunofluorescence)
- Different dyes emit visible light of different colours
Can a fluorescence microscope sample be viewed through an eyepiece?
Yes, it is just like light microscopy.
What are the two things that can be seen in fluorescence microscopy?
- Live fluorescent proteins -> Proteins that are fluorescent, either naturally or by DNA modification to include a reporter protein
- Immunofluorescence -> Labelling proteins using fluorescent antibodies
What is immunofluorescence?
- Antibody specific to a protein is labelled with a fluorescent marker (either directly or with another labelled antibody) so it can be traced
- Therefore, the protein can be seen
(EXTRA) What does GFP stand for?
Green Fluorescent Protein
What does GFP allow for?
Live imaging of cells and the function of their proteins.
What is the resolution of TEM?
10nm to 0.5nm
What are the main differences of TEM compared to light microscopy?
- In a vacuum
- Electromagnets instead of lenses
- No colour contrasts, just heavy metal salts, which scatter electrons, producing contrast
- More careful fixation, because of need to preserve details that can be seen by electron beam
- Resin used instead of wax -> Gives more support
- Thinner sections
How does staining work in TEM?
Heavy metals salts (e.g. uranium), which are electron dense, act as “stains”. They scatter electrons.
What is the significance of the resolution of TEM?
Shows structure within organelles, lipid membranes, viruses and macromolecules e.g. DNA and proteins.
Draw the structure of a TEM.
Describe the sample sections in TEM.
Thin plastic resin sections approx 50-100 nm thick.
What is confocal microscopy and how does it work?
It is a technique used to produce 3D images of a sample thicker than in LM, with no need for taking several sections:
- Often uses fluorescence microscopy
- Scanned beam focussed at different levels of section
- Image produced by detector and photomultiplier system
- Cathode ray tube (CRT) screen used for imaging
What are 3 examples of methods used to study the surface of samples?
1) Light microscopy
2) Capsule endoscopy
3) SEM
What is the resolution of SEM?
2nm to 0.2nm
Describe how SEM works.
- Fixation as for LM or TEM
- Sample may be very large; glued on to rivet or unsupported
- Scanned with electrons, the scattering of which is detected
- Conducting coating to minimise build-up of electrons which would produce areas lacking detail
What are eukaryotic cells?
Cells that have a true nucleus containing the DNA as well as various other membrane-bound organelles.
What are the 4 tissue types?
- Epithelium
- Muscle
- Connective tissue
- Nerve
What details of the nucleus does light microscopy let you see?
Just the nuclei, when they are stained by H&E.
What details of the nucleus does TEM let you see?
- Nuclear membrane/envelope
- Nuclear matrix
- Chromatin
- Nucleolus
What are the two types of chromatin in an interphase nucleus?
- Euchromatin
- Heterochromatin
What is the size of the nucleus?
5 - 10μm
What are the parts of the nucleus?
- Nuclear membrane/envelope
- Nuclear matrix
- Chromatin
- Nucleolus
What are the functions of the nucleus?
- Gene replication and repair
- Genetic transcription
- Ribosome production
What are the two types of DNA in the interphase nucleus?
- Euchromatin
- Heterochromatin
What is euchromatin?
The finely dispersed, lightly stained form of DNA in the nucleus.
What is heterochromatin?
The clumped, coarse form of DNA in the nucleus.
What is the function of the nucleolus?
Synthesis of rRNA -> Ribosome production
What is the function of the nuclear envelope?
Transport of substances into and out of the cell.
Describe how the structure of nuclear pores was discovered.
- EM imaging showed 8-fold symmetry and petal-shaped structures
- Then studied with sophisticated imaging techniques -> Showed they were 80nm across and showed more details
- Later, protein analysis showed 30 other components
How do cell membranes appear in low and high power TEMs?
- Low power -> Single line
- High power -> Dark/Light/Light lines (called a unit membrane
What part of the nuclear envelope defines eukaryotes?
Nuclear envelope
What goes into and out of the nucleus through the nuclear pores?
- In: Proteins
- Out: RNA
Describe the structure of the endoplasmic reticulum.
Network of membrane-limited channels called cisternae.
What is the function of the RER?
Synthesis of proteins
What is the function of the SER?
Specialised functions, such as production of lipids and hormones (e.g. secretion of steroid hormones).
Describe the structure of the Golgi apparatus.
Multi-layered network of membrane-bound cisternae.
What are the names and functions of the two faces of the the Golgi apparatus?
- Cis face -> Receives vesicles from the ER
- Trans face -> Sends vesicles to cell membrane and endosomal pathway
What is the function of the Golgi apparatus?
Packaging of material for transport out of the cell.
Practise drawing out the protein secretory pathway.
What is the function of lysosomes?
Intracellular digestion by acid hydrolases.
What are the two stages of lysosome development?
- Primary -> Smaller, Produced by budding from the Golgi
- Secondary -> Larger, Produced when primary lysosomes fuse with endosomes
What happens to lysosomes after digestion is complete?
They become residual bodies.
What are the two types of lysosomes and what are their functions?
- Autophagosomes -> Recycling bits of cell no longer needed
- Heterophagosomes -> Dealing with material brought into the cell
What are proteosomes?
Cytoplasmic organelles that degrade unwanted misfolded cytoplasmic proteins.
How do proteosomes know which proteins to break down?
They are tagged by ubiquitin.
Are proteosomes visible by LM or TEM?
No
Describe the structure of proteosomes.
- 4 stacked rings around a core
- Proteases in central pore
What is the function of mitochondria?
Generation of ATP.
What is the shape of mitochondria?
Spherical or long.
Describe the structure of mitochondria.
- Outer membrane
- Inner membrane -> Folds in to form cristae
Are mitochondria acidophilic or basophilic (relevant in LM)?
Acidophilic
What is the length and width of mitochondria?
Length: 2 to 7μm
Width: 0.2 to 2μm
How can you easily tell apart a LM image from a EM image?
Although both have similar magnification, the EM has a much higher resolution so it appears sharper.
What is an easy way of working out the scale of a microscope image?
Use reference markers, such as the size of RBCs.
What is the significance of the nucleus in microscope images?
- Helps work out scale of image
- Helps work out type of microscope (EM usually shows far more detail)
- Shows type of cell
- Shows cell activity (lots of heterochromatin = very transcriptionally active cell)
Label the following:
- Mitochondrion
- Nucleus
- RER
- Vesicles
- Endocytic invaginations
- Basal lamina
Describe the structure of ribosomes.
Eukaryotic cells have 80S ribosomes which consist of:
- Small 40S subunit
- Large 60S subunits
