ATPL - Module 3 > Performance > Flashcards

Performance Flashcards

1
Q

Gross performance vs measured performance

A

“Performance” here means any data point regarding an aircraft’s performance.
Gross performance is the expected mean for the fleet, measured performance reflects the pre-production aircraft and is expected to be better.
Gross performance is estimated from measured performance by “factoring”.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

Acceptable performance criteria

A

One in a million chance of commercial air transport craft being in a situation as a result of failure to achieve required performance standard.
This is called “net performance”.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

Difference between net performance and gross performance

A

This is our safety margin. It includes the fact that performance of an individual aircraft is somewhere in a normal curve, whilst the gross performance reflects the mean.
Net performance is what we use in calculations to achieve required safety margins.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

Impact of event likelihood on safety margins

A

The 1 in a million standard is a combination of likelihood of being in a situation and failure to meet performance standard. So unlikely events (engine failure) result in lower safety margins than likely events (full engine climb).
Events with less than 1 in a million chance (e.g. 2 of 4 engines failing) have no safety margin.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

Commercial vs private performance figures

A

CS25 aircraft are all intended for public use so published figures are net performance.
CS23 will generally be gross performance (50:50 chance of being worse or better than this!). Must be adjusted to net performance for public use, whilst this is advisory for private flight.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

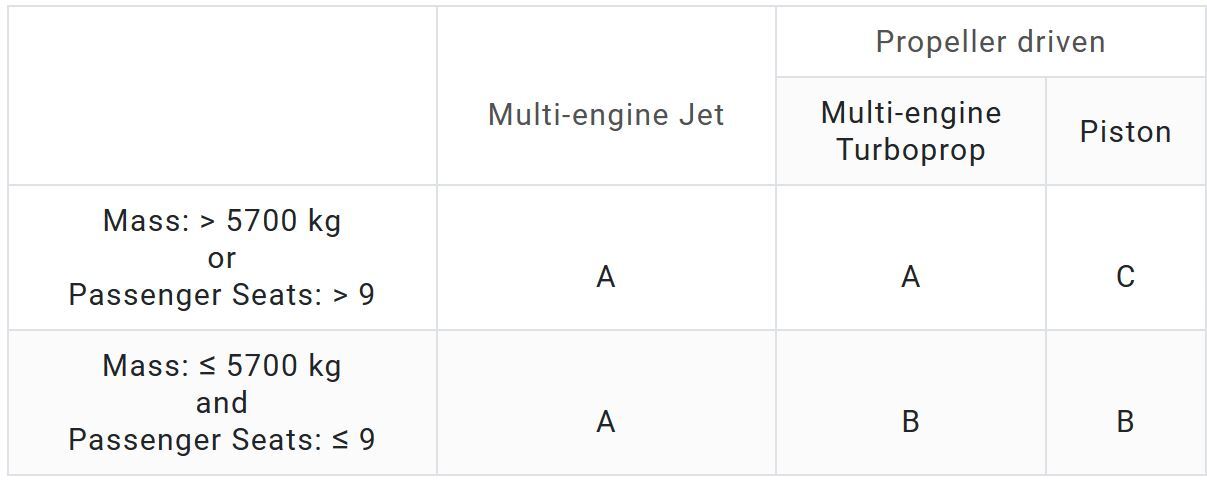

Performance Classes

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

Clearway requirements
- shape
- width
- max slope
- obstacles

A

Rectangular
>500ft wide
Upward slope <= 1.25%
No protruding object or terrain, except lights if 26in or less above the runway and to each side of it.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

TODA

A

TORA + Clearway

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

ASDA

A

TORA + Stopway

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

Balanced field

A

TODA = ASDA
(i.e. stopway = clearway)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

Balanced field take off
- description
- effect of added clearway/stopway

A

TODR = ASDR [note: required]

Maximises mass by using choosing a V1 that balances ASD and TOD requirements.
Extra clearway allows lower V1 (longer at OEI speed) to increase mass.
Extra stopway allows higher V1 (longer stopping distance) to increase mass.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

Amendments to TODA
- Class A

A

Max TODA = 1.5 x TORA

So clearway over 50% of runway length can’t be fully used.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

Amendments to TODA
- Class B

A

If no stopway or clearway, can only use TORA / 1.25.
With a stopway or clearway minimum of:
i) TORA
ii) TODA / 1.15
iii) ASDA / 1.3

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

Line-up distance adjustments

A

May be required for class A aircraft where there isn’t sufficient take off threshold or turning apron.
Accommodates a 90 degree or 180 degree turn (as required).
[ASDA adjusted to nosewheel, TODA to main gear]

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

Declared temperature

A

Average monthly temperature plus half the ISA deviation. Used for airlines in scheduling landings for performance calculations.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

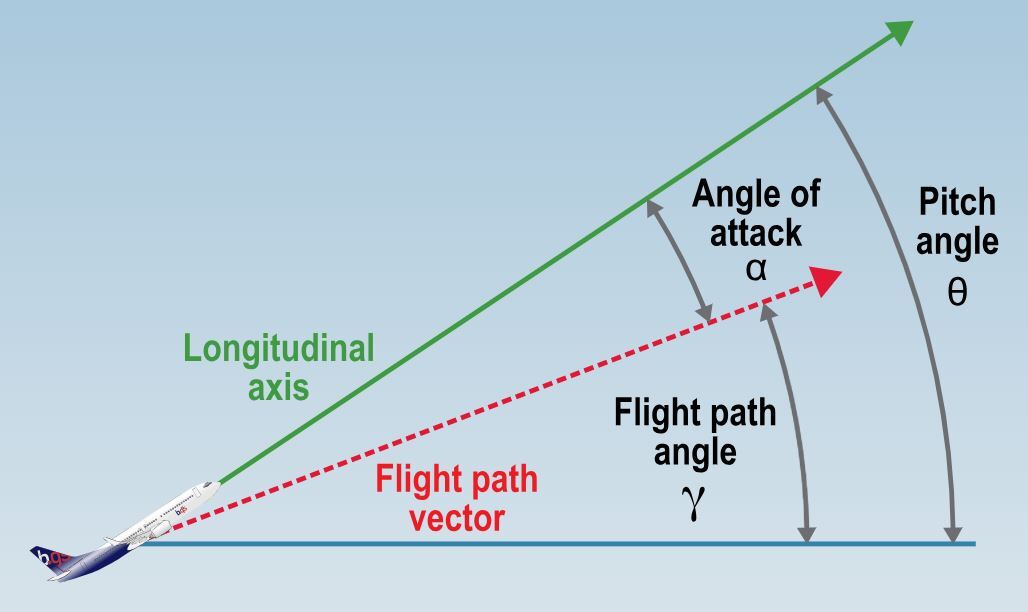

Flight path angle designations

A

We assume wing chord in line with longitudinal axis.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

Correction for density altitude from pressure altitude

A

120ft per degree C (difference to ISA)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

Rated Thrust levels

A

Maximum thrust levels:
i) Maximum T/O thrust
ii) Maximum continuous thrust
iii) Maximum go-around thrust

[Other limits such as climb thrust exist, but these are not rated thrusts]

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

Jet thrust vs speed

A

2 opposing factors - ram air effect at high speed increases mass of air and thus thrust, but increased drag reduces momentum of the air to offset this.

Traditional/standard low-bypass jets have a small thrust decrease to Mn 0.4 then recover. High bypass don’t benefit much from ram effect so thrust keeps decreasing with speed.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

T/O thrust vs TOGA thrust

A

Difference is due to speed, take-off thrust is set at 40 to 80kt, TOGA is set at maybe 150 to 170kt.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

Thrust limitations (jet)

A

Limited by Turbine Gas Temperature (TGT) and internal pressure in the engine.
Internal pressure limitation is constant, but TGT is dependent on OAT (the engine adds a certain amount of heat to the existing air temp).
Thus thrust is constant (pressure limited) up to a certain temperature, then decreases (TGT limited).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

Jet power

A

Jet power = thrust x TAS

Generally thrust is constant so get a straight line relationship with TAS.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

Fixed pitch propeller thrust with speed

A

Angle of attack of blade decreases as speed increases so thrust decreases with speed.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

Propeller power

A

Power = thrust x TAS (same as jet)

However as thrust decreases with speed, get an “n” shaped chart with speed, where initially it increases from zero, then at some point starts to decrease.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
Q

Critical Engine

A

The engine whose failure would have the biggest impact on the aircraft performance.
On 4 engine will be one of the outer ones.
On 2 jet engine probably don’t have one.
On 2 prop will have one due to asymmetric blade effect.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
26
Q

Asymmetric blade effect

A

At high AoA the prop is “leaning back” so blade travels further going down than when going up. This moves thrust (at high AoA) to the right (for clockwise props) of centre. This makes the left engine the critical engine (its failure gives biggest asymmetry).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
27
Q

Speed stability on approach
- Situation
- Impact of flaps

A

Especially for jets, speed is below V(MD) therefore speed unstable.
Flaps increase drag (higher parasite drag) whilst maintaining lift (constant induced drag). Resulting drag curve shifts up and to the left, meaning V(MD) is lower and flight more stable.
So flight is less efficient, but stability is better (plus flaps can quickly be put away for a go around).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
28
Q

Effect of decreasing mass on speed stability on approach

A

Parasite drag stays the same, but induced drag reduces as mass decreases.
Drag curve moves down and to the left, increasing stability on approach.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
29
Q

Which speed is used to express V(MD)?

A

EAS - At low speeds (i.e. around V(MD)) compressibility is negligible so this is effectively same as IAS or CAS

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
30
Q

Maximum speed
- How it is determined
- Effect of altitude (in EAS and TAS)

A

Determined by intersection of thrust available with the drag curve. As speed increases thrust increases a bit, but parasite drag increases a lot until speed is capped.
However thrust reduces with altitude so maximum EAS reduces. At the same time TAS is increasing (relative to EAS) so hard to say the impact of altitude on maximum TAS.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
31
Q

Speeds in 1/2 rho V^2

A

V is TAS
However the total dynamic pressure element of 1/2 rho V^2 relates to CAS/EAS.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
32
Q

Stall speeds
- V(S1g)
- V(SR)
- V(S)

A

V(S1g) is at the critical angle of attack, point of maximum lift. This is when the wing STARTS to stall.
V(SR) is the stall reference speed, which is taken to be equal to V(S1g).
V(S) is the minimum speed at which aircraft is controllable, so lower than V(SR). Used to be based on 0.94 x V(SR).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
33
Q

Which speed is used to asses power required, V(MP) etc?

A

TAS
This is because power is defined as thrust x TAS.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
34
Q

Power required curve
- description

A

This is the drag curve (parasite & induced) multiplied by TAS.
Gives Parasite power, induced power and V(MP).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
35
Q

Power required curve
- diagram

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
36
Q

V(MD) on the power required curve

A

As power required curve is drag curve x TAS, V(MD) is found by drawing a tangent through (0,0) to the curve. Will be at a higher speed than V(MP).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
37
Q

Effect of increasing altitude on drag/power required curves

A

Density altitude doesn’t directly affect drag (induced or parasite). If IAS is constant, drag will be the same.
So drag curve (plotted against V, TAS) just moves to the right with increasing altitude (same drag at higher TAS).
Power required is drag x TAS so that curve slides up and right along the same tangent.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
38
Q

Take off run (TOR)
Take off distance (TOD)

A

Take off run includes the ground run and PART (usually half) of the airborne segment to screen height.
Take off distance includes the whole airborne segment to full screen height.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
39
Q

V(R)
V(LOF)
V(2)

A

V(R) = Speed at which you rotate
V(LOF) = Lift off speed, slightly higher than V(R)
V(2) = Speed at the screen height (end of TOD) which will be higher still [aka Take off safety speed]

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
40
Q

Chart of thrust vs airspeed (including take off range) for prop, high bypass jet and low bypass jet

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
41
Q

Explanation of thrust vs airspeed for jets

A

All jets experience reduction in thrust during takeoff run due to intake momentum drag (air hitting front of engine).
At higher speeds increased ram effect acts to increase thrust. In low bypass this is enough to start to increase thrust. In high bypass thrust still reduces to zero (beyond mach 1.0).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
42
Q

Chart of drag and thrust against speed during take off run

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
43
Q

Elements of drag during take off run

A

Wheel drag: Decreases linearly as speed increases due to lift gradually reducing downforce on the wheels.

Aerodynamic drag: Usual drag components, parasite & induced. Parasite increases with square of speed, whilst induced is low until V(R) then suddenly increases. This leads to a rise in total drag at V(R).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
44
Q

Impact of increase in V(R) on takeoff run

A

Obviously higher V(R) means longer takeoff run.
Effect is exponential. This is because thrust decreases with speed, whilst aerodynamic drag is increasing. The difference is the net force acting to accelerate the aircraft, which is reducing. So acceleration reduces along the runway and if you need a bigger V(R), you need a lot more runway.
Even with constant acceleration, TOR increases with square of V(R).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
45
Q

V(R) requirements for:
- Single engine (class B)
- Multi engine (class B)
- Class A

A

Single engine (B): V(R) >= V(S1)
Multi engine (B): V(R) >= 1.1 x V(S1) & 1.05 x V(MCa)
Class A: V(R) >= V(MU) + small margin
[V(MU) = minimum unstick speed]

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
46
Q

Tyre speed limitations
- point of greatest tyre speed
- 2 key factors affecting speed limit

A

As V(R) is an airspeed, tyre speed limitation can become a separate issue.
Highest at V(LOF).
2 key factors are:
- temperature &
- rotation rate of tyre.
NOT pressure

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
47
Q

Using headwind and tailwind in take off distance calculations

A

Use 150% of tailwind and 50% of headwind for margin of safety.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
48
Q

Effect of flap setting on take off

A

Flap increases lift and drag.
Initial stages have limited drag impact, but extra lift allows earlier rotation and shorter TOR.
Later stages have more drag impact and thus increase TOR.
After take off flap is inefficient and best climb gradient is with clean config.
[Generally exam refers to flap reducing TOR]

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
49
Q

Chart showing impact of flap setting on climb gradient and field length

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
50
Q

V(stop) and V(go)

A

V(stop) is the speed above which the aircraft can’t be stopped within the ASDA.
V(go) is the speed below which (based on engine failure) rotation at V(R) and reaching V(2) at 35ft screen height is not possible.

Both vary with mass and are probabilistic lines (i.e. 50:50 chance of making it).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
51
Q

V(stop) and V(go) plotted against mass

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
52
Q

One Engine Inoperative
Field Length Limited
Take Off Mass
(OEI FLL TOM)

A

OEI FLL TOM is where V(go) = V(stop) = V(1) - called the decision speed
i.e. highest mass at which there is no “die” portion of the V(stop) & V(go) chart!

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
53
Q

Effect of increase in ASDA on V(1) and OEI FLL TOM

A

Increasing ASDA affects V(stop), the extra length means we can safely stop from a higher speed.
The red line shifts up and to the right so V(1) and OEI FLL TOM increase.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
54
Q

Effect of increase in clearway on V(1) and OEI FLL TOM

A

Increase in TODA reduces the speed required to achieve V(R) and screen height at V(2).
So green curve moves down and to the right, causing V(1) to decrease and OEI FLL TOM to increase.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
55
Q

Chart showing effect of clearway increase on V(1) and OEI FLL TOM

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
56
Q

V(EF)

A

Speed at which an engine failure is assumed to occur. CS25 allows a minimum 1 second delay between V(EF) and V(1) to account for startle effect.
Referred to as “recognise and REACT” in exam, although react doesn’t include starting braking.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
57
Q

Action on emergency stop at V(1)

A

Must call “Stop” at V(1) at the very latest, after which it is assumed braking commences within 2 seconds.
NOTE: In exams assume “action taken” at V(1), the 2 second delay is for deceleration to commence (i.e. aircraft to respond to inputs).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
58
Q

Changes for wet runway takeoff

A

V(EF) is reduced by 10kt, with correspondingly lower V(1) speed.
We are further from V(R) at this point so TOD will increase. Therefore screen height is reduced to 15ft (for OEI only!), with V(2) only required at the eventual 35ft point.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
59
Q

TO performance calculations for wet runways - process

A

Need to calculate for wet and dry and use worst case scenario.
TODA: Wet runway with 15ft screen (and slower V(1)) may or may not be more limiting than dry with 35ft.
ASDA: Calculate for wet and dry (with respective V(1wet) and V(1dry)) and also for all engines & engine out. Use the most limiting length.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
60
Q

Reverse thrust and ASD required (ASDR)

A

Reverse thrust can only be factored in for wet runway stopping, not dry runways

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
61
Q

Impact of runway slope on ASDR

A

Two effects.
Downwards slope increases stopping distance, but also assists acceleration towards V(R).
The benefit to acceleration is the greater effect so downslope reduces ASDR.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
62
Q

Safety factors in take off distances required

A

We use gross figures (i.e. 50:50 chance of success) rather than net, as the probability of engine failure at exactly V(EF) is far less than 1 in 1mn.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
63
Q

V(MCG)

A

Minimum control speed on the ground. Below this speed rudder effectiveness in the case of engine failure, is insufficient to maintain centreline (maximum 30ft deviation allowed).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
64
Q

Assumptions used to establish V(MCG)

A

Based on:
- Multiple (or worst) take off configuration
- Maximum thrust on operating engines
- Worst possible CoG
- Worst possible take off weight
- Take off trim

They do NOT take crosswind into account (due to remote probability).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
65
Q

Effect of V(MCG) on V(1)

A

Obviously V(1) must be above V(MCG) otherwise continuing take off at V(1) would risk going off runway.
If V(MCG) falls within the range of available V(1)s due to V(stop) and V(go), just choose a V(1) above V(MCG).
If it doesn’t, V(MCG) will be a limiting factor for TOM. Max TOM will be where V(MCG) intersects the V(stop) line.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
66
Q

V(MCA) or V(MC)
- description
- what it limits

A

Minimum speed for control in the air.
At V(MCA) up to 5 degrees of bank can be used along with rudder to keep aircraft straight (OEI), NOT maintain altitude.
However this relates to V(LOF) instead of V(R), and also we can’t get 5 degrees of bank just after takeoff.
So in practice we require:
V(R) > 1.05 V(MCA)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
67
Q

Effect of conditions on V(MCG) and V(MCA)

A

Primarily concerned with the level of thrust from the operating engine.
High air density will mean increased thrust, higher yawing forces to be offset by rudder and therefore higher airspeed needed to allow rudder to function.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
68
Q

V(MBE)

A

Maximum braking energy speed (i.e. maximum speed where brakes can cope with the energy to be dissipated).
V(1) must be lower than V(MBE).
Similarly to V(MCG), this could be a limiting factor to TOW if V(MBE) doesn’t fall in available V(1) range.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
69
Q

Effect of conditions on V(MBE)

A

Increase in V(MBE) caused by:
- High temperature
- High pressure altitude
- Tailwind
- Downward slope

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
70
Q

Class B takeoff speed requirements
- General
- Screen height

A

Don’t have a V(1), stop anytime before V(R), otherwise land ahead.
Screen height is 50ft, but there is no specific V(2) speed

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
71
Q

Class B takeoff: single engine
- V(R)

A

V(R) >= V(S1)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
72
Q

Class B takeoff: multi engine
- V(R)
- Climb gradient

A

V(R) >= 1.1 x V(S1)
V(R) >= 1.05 x V(MC)
Also safe in reasonably expected conditions

Climb gradient: 4%

73
Q

All engine TODR assessment
- Safety factor
- V(3)

A

As all engine takeoff is very likely a safety factor of 1.15 is applied to TODR.
V(3) is the speed at 35ft screen height with all engines, simply defined as being higher than V(2).
This TODR is unlikely to be limiting factor for 2 engine, but for 4 engine aircraft the 1.15 factor could have a bigger impact than the loss of one engine.

74
Q

All Engine Operating
Field Length Limited
Take Off Mass
(AEO FLL TOM)

A

This is the TOM restriction based on all engine calculations (with 1.15 safety factor).
In typical case this is a vertical line on the V(stop)/V(go) chart which will be higher than the OEI FLL TOM intersection with V1.
If lower (e.g. 4 engine) it will be to the left of the V1 intersection. V1 still valid but that TOM can’t be achieved.

75
Q

TORA vs TODA limitations

A

Need to get to half of the screen height by end of TORA.
With no clearway TODA will be the limitation, but as clearway increases TORR becomes a limiting factor.
In reality manufacturers charts use simplifying assumptions limiting assumed clearway size (NOT the same as the 50% legal limit) such that TODA remains the limiting factor. In the exam we have to consider both TODR and TORR.

76
Q

TORR

A

The longest of:
OEI dry: TOR + half distance to 35ft
OEI wet: TOR + distance to 15ft
AEO: 1.15 x (TOR + half distance to 35ft)

77
Q

Combination TOM limitation chart

A
78
Q

TOM limitation chart
- Distance vs V1

A

V(1) is the time engine failure is responded to, so lower V(1) results in longer distance with one engine and longer TOD/TOR

79
Q

Diagram of forces in a climb
[note lift & weight direction]

A
80
Q

Formula for climb gradient

A

Climb Gradient = (T - D) / Weight

[approximation from balance of forces:
T = D + W x sin(theta)]
[Can assume lift = weight at low angles of climb?]

81
Q

V(x)
- definition
- prop vs jet

A

V(x) is best angle of climb speed.
Found by best excess thrust.
On prop, thrust decreases with speed so V(x) is at a low speed close to the stall.
On jet thrust is more steady so V(x) closer to V(MD), a higher speed.

82
Q

Effect on V(x) of temperature and pressure (jet)

A

Thrust reduces with lower air density but drag (relative to EAS) stays the same. V(x) unchanged, but excess thrust lower so angle of climb achieved is lower.

83
Q

Effect of mass and flaps on V(x) - description

A

Mass and flaps affect drag rather than thrust.
Mass increases induced drag due to higher required lift (at given speed), so left side of drag curve shifts up.
Flaps increase parasite drag (lift maintained for given speed by adjusting attitude) so right side of drag curve shifts up.
So V(x) is higher for extra mass, lower for extra flaps (see chart).

84
Q

Effect of mass and flaps on V(x) - chart

A
85
Q

Summary of effect on V(x) for jet & prop
- altitude
- temperature
- mass
- flap

A
86
Q

Climb gradient vs flight path angle

A

Climb gradient (which we focus on) is an air gradient, so not affected by wind.
Flight path angle is in terms of ground distance, so need to adjust climb gradient for wind.

87
Q

V(2) minimums
- class B

A

Max of:
- V(MC) [ 1.1 x V(MC) for twin]
- 1.2 x V(S1)
- A safe speed under reasonable conditions

88
Q

V(2) minimums
- class A

A

Max of
- 1.1 x V(MC)
- 1.13 x V(SR)

89
Q

When are V(MC) or V(SR) expected to restrict V(2min)?

A

V(MC) is highest at high density (low altitude, low temp) due to higher thrust. So at low altitude V(MC) likely to limit, then V(SR) at higher altitude.

90
Q

Nature of V(2) minimum restrictions with altitude

A

V(MC) is basically fixed with altitude (and mass).
V(SR) increases with altitude (and mass) therefore 1.13xV(SR) is likely to be the limiting factor at higher altitudes, 1.1xV(MC) at lower altitudes.
With higher mass V(SR) takes over earlier.

91
Q

Actual initial climb speed for jets

A

Usually aim for V(2) + 10kt.
Whilst V(2) is close to V(x) for prop, for jets V(X) is higher, so V(2) + 10kt is more efficient.
Also, V(2) + 10kt is closer to V(EF) so if an engine fails the set up is safer.

92
Q

Take off climb limit
- relevant config
- required gradients

A

There is a minimum requirement for AIR climb gradient, based on gear up and OEI.
2 engines: 2.4%
3 engines: 2.7%
4 engines: 3.0%
Combined with altitude & temp data this produces a mass limitation, to be considered along with field length take off mass limits.

93
Q

Rate of climb formula

A

ROC = TAS x (T - D) / weight [gradient]
= (power available - power required) / weight

94
Q

Chart of V(Y) (power vs TAS)
- jet and prop

A

At sea level (TAS = IAS = EAS)

95
Q

Effect of mass and flaps on V(Y)

A

Similar to V(X), but impact on power required looks different to impact on drag.
Maximum rate of climb will decrease, V(Y) increases with higher mass (more induced drag), V(Y) reduces with flaps (more parasite drag).

96
Q

V(X) and V(Y) on power chart (jet)

A

As altitude increases (or temp +) power available falls and power required slides up. At aircraft ceiling the power available line will be a tangent to power required and V(x) = V(y) = V(MD).

97
Q

V(Y) with increasing altitude and temp
- TAS and IAS

A

Thrust reduces, so the power available line pivots downwards.
Drag not affected but increase in TAS causes power required to slide up and right.
So V(Y) increases in terms of TAS, however in terms of IAS it approaches V(X) [which is lower] due to the convergence of V(X), V(Y) and V(MD) as the two power lines converge and ceiling is approached.

98
Q

Summary of effect on V(y) for jet & prop
- altitude
- temperature
- mass
- flap

A
99
Q

V(XSE) and V(YSE)

A

V(X) and V(Y) with single engine (OEI).
Tend to be close to V(X) and V(Y), especially for jet.
If pushed in exam they are inbetween V(X) and V(Y) so:
V(X) < V(XSE) < V(YSE) < V(Y)

100
Q

Climb speed with engine out

A

Accelerate past V(EF) to V(2) and climb at V(2) until at least 400ft AAL, when flaps can be retracted.

101
Q

Climb speeds with all engines (in reality, to ToC)

A

Speed will be limited to 250kt EAS up to 10,000ft so maintain that speed up to FL100. TAS will be increasing with altitude.
Accelerate at FL100 to a set speed (perhaps 300kt) and hold that until crossover altitude, where mach limit is reached.
Follow mach limit from then.

102
Q

Effect of cost index on climb

A

High cost index implies low fuel cost.
This would mean adopting fast speeds in general (subject to limits, e.g. 250kt <FL100). Climb gradients shallower. Top of climb reached later, but at a further ground distance so trip time reduces.

103
Q

Optimal cruise speeds
- Endurance
- Range

A

Endurance - V(MD)
Range - 1.32 x V(MD) [tangent to drag curve that gives V(MD)

104
Q

Step climb (cruise)

A

We want optimal speed (1.32 x V(MD)) and also optimal thrust (c. 90%).
These coincide at a given altitude, based on mass.
Thus we choose altitude to get optimal speed and thrust, but this altitude increases as fuel burns off. So we use a step profile, changing FL as we burn off fuel.

105
Q

Long range cruise

A

4% faster than best range speed, but with 99% of the range.

106
Q

Buffet boundary limit

A

Restricted on slow side by stall speed and high side by mach limit.
As altitude increases these close in together, creating “coffin corner”.
Increased mass brings both in (mostly the stall speed), thus reducing maximum altitude.

107
Q

Buffet boundary limit
- Load factor

A

Increased load above 1g (e.g. due to turbulence) brings in the two limits. Thus buffet boundary charts usually based on 1.3g to give some margin for safety.
Need awareness that increased turbulence could take you outside safe operating conditions.

108
Q

Specific fuel consumption
- Jet
- Prop

A

Jet: Fuel flow / thrust
Prop: Fuel flow / power

109
Q

Optimal speeds for prop

A

As SFC is based on power, we have max endurance speed of V(MP) instead of V(MD).
Best range speed is then a gradient to the power curve, which gives V(MD) [rather than a multiple of V(MP) as with jets]

110
Q

Optimal cruising altitude in prop

A

As with jets, there is another target which in this case is 100% open throttle.
This would be faster than V(MP) at ground level so get more efficient flight at around 5000 to 7000ft where full throttle will coincide with V(MP).

111
Q

Optimal altitude relates to best range or endurance?

A

Relates to best range.

112
Q

Best glide angle
- How to calculate it
- Speed
- Effect of mass

A

Glide angle = C(D)/C(L)
Speed = V(MD)

C(D)/C(L) is independent of mass, thus so is descent angle.
However V(MD) increases with mass so heavier aircraft will travel faster for best angle and thus RoD is higher.

113
Q

Power on descent angle

A

sin(theta) = (D - T) / weight
Reversal of climb angle formula because now thrust is less than drag.

114
Q

Rate of descent formula

A

ROD = (power required - power available) / weight
Reversal of rate of climb formula

115
Q

Glide endurance speed - v(?)

A

This is the speed at which rate of descent is minimised. Weight is fixed so we need to minimise power required.
Thus V(MP).
This is less than the best glide range speed V(MD).

116
Q

Emergency descent

A

Need maximum speed and maximum drag.
Flaps (etc) increase drag but may limit speed.
Thrust likely to be idle as speed will be too high otherwise.

117
Q

Top of Descent rules of thumb
- Air distance per 1000ft
- Adjustment for wind

A

3nm per 1000ft in jet
Modify distance by (windspeed/10)%

e.g. 50kt headwind, reduce distance by 5%

118
Q

Effect of cost index on descent

A

Typical descent uses speedbrakes to get rid of energy. High fuel cost (low cost index) will mean an earlier descent, using potential energy to reach the destination and take longer to get there.

119
Q

Landing restriction configurations
- Missed Approach Climb (or approach climb)

A

Go-around from above DH with OEI.
- Go-around thrust on remaining engines
- Landing gear up
- Approach flap set

120
Q

Assumptions for missed approach climb
- Climb speed limit
- Climb gradients
- Bank towards operating engine

A

Climb speed <= 1.4 x V(SR)
Climb gradient:
- 2 engines: 2.1%
- 3 engines: 2.4%
- 4 engines: 2.7%

Bank up to 2 to 3 degrees towards operating engine

121
Q

Missed approach gradient AEO
- Class A
- Class B

A

Class A: 3.2%
Class B: 2.5%

122
Q

Landing restriction configurations
- Baulked Landing Climb (or landing climb)

A

Go-around from below DH with AEO.
- Go-around thrust all engines
- Landing gear down
- Landing flap set

123
Q

V(MCL)
- required manoeuvrability

A

Minimum control speed (landing)
Requires:
- ability to maintain straight & level flight with up to 5 degrees bank towards live engine.
- ability to roll away from failed engine by 20 degrees within 5 seconds from straight flight
[In effect means you have control in case of critical engine failure in go-around]

124
Q

Landing distance required
- description
- 2 components

A

From screen height (typically 50ft but could be 35ft for steep approaches) above threshold to the point when you stop.
Split into landing airborne distance and landing ground run.

125
Q

V(REF)
- description
- value (class B and A)

A

Landing reference speed.
This is your speed at screen height.
Will usually be V(REF) + 10kt on approach, V(REF) - 10kt at touchdown.

V(REF) = 1.3 x V(S0) class B
V(REF) = 1.23 x V(SRO) class A
Not less than V(MCL)

126
Q

Impact of failure on LDR
- anti skid brakes
- reverse thrust

A

Anti-skid: +50%
Reverse Thrust: +10%
[Much higher for prop aircraft]

127
Q

Impact of mass on landing distance (2)

A

2 effects
- Increases speed as it impacts stall speed and thus V(REF)
- Increased mass directly increases kinetic energy (1/2 M V^2)

128
Q

Runway landing distance factors
- wet (class A & B)
- grass on firm soil (B only)
- short wet grass (B only)

A

Wet: 1.15
Grass w firm soil: 1.15
Short wet grass: 1.6

[Calculated for WHOLE landing distance, even though it only affects the ground run]

129
Q

Landing distance safety margin

A

Jet: Land within 60% of LDA
Prop: Land within 70% of LDA

[NOT CLASS A or CLASS B!]

130
Q

Runway landing distance factor for downslope

A

5% extra for every 1% downslope.

Class A only need to calculate for 2% or higher downslope

131
Q

Obstacle clearance
- Take off obstacle domain
[with track changes above or below 15 degrees]

A

Half-width starting from end of TDA is:
Wingspan <=60m: 60m + 0.5 x WS
Wingspan >60m: 90m

Then increases by distance / 8 up to max 300m half width [600m if track changes above 15 degrees]

132
Q

Obstacle clearance
- Class A Net Take Off Flight Path (NTOFP)

A

For performance calculation purposes we consider engine failure at V(EF).
i) End of TODR (35ft) to gear up point, flown at V(2)
ii) From gear up to level off height, also V(2) with take off thrust
iii) Level segment for flap retraction, ends when in clean config. Accelerate to final segment climbing speed and reduce thrust on remaining engine to max continuous (MCT)
iv) Climb to at least 1500ft, at a climb speed (eg V(X)).

133
Q

V(FTO)
- description
- minimum value

A

Class A speed to be reached at end of acceleration phase of take off (3rd phase).
>= 1.18 V(SR) and “sufficient to provide the required climb gradient”

134
Q

Obstacle clearance
- Class A NTOFP acceleration height

A

i.e. height of 3rd phase
Minimum of 400ft
Can be limited by maximum full thrust time (around 10 minutes)
Typically major obstacles are cleared in phase 2 so don’t impact the acceleration height and a standard one can be chosen.

135
Q

Obstacle clearance
- Class A Limitations on turns during take off

A

NOT below 50ft clearance from obstacle
Bank angle normally limited to 15deg up to 400ft and 25deg after.
Can get approval for 20deg between 200 and 400ft and 30deg after.
[50ft clearance required when turning]

136
Q

Obstacle clearance (class A)
- Minimum climb gradients phase 2
- Clearance required to the net path

A

Twin: 2.4% gross (1.6% net)
Triple: 2.7% gross (1.8% net)
Quad: 3.0% gross (2.0% net)

35ft clearance required

137
Q

Obstacle clearance
- Minimum available climb gradients in phase 4 (class A)

A

Twin: 1.2% net
Triple: 1.5% net
Quad: 1.7% net

138
Q

Obstacle clearance
- En-route obstacle clearance (Class A)

A

1000ft above terrain within 5nm of route while maintaining height
2000ft during driftdown stage

This is about dealing with engine loss in flight. You would generally use MCT for as long as possible to maintain altitude and diagnose, before driftdown to a level where height can be maintained.
Can assume fuel dumping to help with driftdown.

139
Q

Obstacle clearance
- Class B SEP

A

Obviously no engine out performance calcs required, just select best glide speed

140
Q

Obstacle clearance
- Class B MEP NTOFP

A

Assumes engine failure at the point visual contact is lost
i) From end of TODR (50ft) up to point visual contact is lost, factor gross gradient by 1.3 (divide by 1.3, multiply by 0.77) for net gradient to which clearance required
ii) OEI, full thrust climb up to 1500ft, no factoring (as OEI unlikely)

141
Q

Obstacle clearance
- Class B MEP, assumed path on engine failure under visual conditions

A

Assume land ahead under 300ft.
From 300ft a circuit to land is expected, so visibility of 1500m should be available (specific number in operations manual).

142
Q

Obstacle clearance
- En-route phase definition for class A and class B

A

Class A: From 1500ft above departure to 1500ft above destination
Class B: From 1500ft above departure to 1000ft above destination

143
Q

Obstacle clearance
- Class B en-route requriements

A

No 1000ft or 2000ft requirements.
Need to be able to get to a safe place for landing based on:
i) engine failure at altitude where rate of climb is at least 300ft/min
ii) gross gradient of climb or descent decreased by 0.5%

144
Q

Obstacle clearance
- Net vs gross gradient (gliding)

A

Net gradient = gross gradient + 0.5%

0.5% is the safety factor so obstacle clearance requires us to clear obstacles even with a 0.5% steeper gradient

145
Q

Regulated Take Off Weight (RTOW) [or mass]

A

Table for a given runway that calculates the most restrictive of all take off masses:
- FLL TOM
- Climb Limited TOM
- Obstacle Limited TOM
- Tyre Speed Limited TOM
- Maximum Structural TOM

146
Q

Purpose of reduced thrust take off

A

Prolongs engine life
NOT to reduce fuel consumption or noise, does the opposite!

147
Q

Flex take off

A

If TOW is less than MTOW, can use an assumed OAT (greater than actual) in FMS. FMS will use a lower fuel rate based on the higher assumed ambient temperature, reducing thrust and OEI limitations will just be achieved.

148
Q

Regulatory thrust reduction limits

A

Limit on how much you can reduce thrust for flex takeoff - 25%.
DOES NOT affect derated thrust.

149
Q

Temperatures for flex take off

A

T(REF) is the temperature where thrust is TGT limited, relates to the MTOW.

T(FLEX MAX) is the temperature relating to thrust reduction limit [max temperature you can select]

T(FLEX) is the chosen flex temperature in between these two that you use to take off.

150
Q

V(MCG) and V(MCA) for flex take-off

A

Because full thrust is available even on flex take-off, V(MCG) and V(MCA) must be calculated based on full thrust.
Otherwise there is a risk of failure to control aircraft if full thrust is applied.

151
Q

Conditions when flex take off is not allowed

A
  • Icy (or very slippery) runways
  • Contaminated runways
  • Anti-skid unserviceable
  • Reverse thrust unserviceable
  • Increased V(2) procedure
  • Power Management Computer off (MRJT1)
152
Q

Conditions when flex take off MAY not be allowed

A

Wet runways require suitable performance accountability (which in practice is the case for most operators). So wet runways ARE allowed.

Not recommended if windshear expected after takeoff.

153
Q

Derated thrust take-off
- description
- possible on contaminated runways?

A

AFM must contain a complete set of performance calculations based on a limited thrust setting for the engines. This derated thrust setting can then be selected in FMS.
Unlike flex take-off this is considered to be a “normal” take-off, so no restrictions for contaminated runways (etc.)

154
Q

V(MCG) and V(MCA) for derated thrust take-offs

A

For derated take-offs they will be reduced based on the lower available thrust.
This does however mean that TOGA thrust CANNOT be selected during derated thrust take-off. Likely to be restricted until flaps fully retracted.

155
Q

Effect of derated thrust on V(MCG) limited take-off

A

If the take-off is V(MCG) limited, derating thrust will increase the MTOW.
Likely to see increasing MTOW with initial stages of derating, then eventually increasing again with higher derating levels.

156
Q

Increasing V(2) to overcome climb limit

A

Climb limit exists because of limited climb gradient at V(2min) which is less than V(X).
Increasing V(2) therefore helps against climb limit at the expense of extra runway. If the runway is available this can be used to increase a climb limited MTOM.
NOTE: Extra speed to V(R) will affect tyre limits (etc.) so these need to be checked.

157
Q

Increasing V(2) to improve climb gradient - which sectors are improved?

A

Using higher V(2) to help with obstacle limit involves trading some of the capacity gained for more weight and retaining some for better gradient (unlike climb limit which purely helps with weights).
Doesn’t help with VERY close obstacles (as TOR is longer) or those in final segment (where speed is V(X) anyway).
Helps with SECOND SEGMENT.

158
Q

Contaminated runway

A

Significant portion (used to be 25%, now undefined) of the length and width of runway BEING USED, covered with one of:
- Standing water (>3mm)
- Slush
- Wet snow (snowball)
- Dry snow (no snowball)
- Compacted snow
- Ice
- Specially prepared winter runway (sand, grid, mechanical or chemical treatment)

159
Q

Non-contaminated runway surfaces

A

Dry
Damp (not reflective)
Wet (water, slush or snow <3mm, or reflective but no standing water)

160
Q

Effect of contaminated runway on friction & drag

A

All types reduce friction.
Some increase drag (good for RTO, bad for TO):
Standing water & slush up to 15mm
Wet snow 5-30mm
Dry snow 10-130mm

Rest have no drag impact:
Wet snow <5mm
Dry snow <10mm
Compacted snow
Ice
Specially prepared winter runway

161
Q

Contaminated runway drag:
- displacement
- impingement

A

Displacement is drag due to having to push the contamination out of the way
Impingement drag is due to the contamination hitting the fuselage.

162
Q

Effect of contaminated runway on performance calcs (take-off)

A

MTOM reduces
Speeds (V(1), V(R), V(2) decrease)

163
Q

Effect of contaminated runway on:
- LDR
- TODR
- ASDR

A

All distances increase EXCEPT:

TODR is unchanged for ice & compacted snow as there is no drag effect and friction effect isn’t a problem as there is no braking on take off.

164
Q

Dynamic hydroplaning speed calc

A

9 x sqrt(psi)

7.7 for static wheel, but this is likely to be viscous not dynamic hydroplaning

165
Q

Viscous hydroplaning
- description
- speed calc

A

When a thin film of liquid prevents the tyre contacting the runway, LIKELY AT RUNWAY THRESHOLDS.
Speed = 7.7 x sqrt(psi)

166
Q

Reverted rubber hydroplaning

A

Can happen after a skid where high temperature in tyre boils and thin layer of water and vaporised rubber to steam.

167
Q

Braking action report format

A

Good: 5
Good to medium: 4
Medium: 3
Medium to poor: 2
Poor: 1
Less than poor: 0

168
Q

Which part of ops manual has performance info?

A

Part B

169
Q

Pavement Classification Number format

A

eg 50/R/B/X/U
50 - PCN number
R - (R)igid or (F)lexible [need right one]

Ignore the other items!

170
Q

Occasionally exceeding PCN

A

Up to 5% of annual aircraft movements can be:
Rigid: Up to 5% higher than PCN
Flexible: Up to 10% higher than PCN

171
Q

CAP 698 SEP/MEP data
- Take off field Length limitations

A

If no clearway or stopway:
TODR x 1.25 <= TORA

With clearway or stopway:
TODR <= TORA; and
TODR x 1.3 <= ASDA
TODR x 1.15 <= TODA

172
Q

CAP 698 SEP/MEP data
- Take-off safety factors
Grass up to 20cm - dry
Grass up to 20cm - wet
Paved - wet
1% upslope

A

Grass up to 20cm - dry: x1.2
Grass up to 20cm - wet: x1.3
Paved - wet: x 1.0
1% upslope: +5%

173
Q

CAP 698 SEP/MEP data
- Finding ceiling

A

In climb chart look for altitude of 300ft/min climb ability.
This is the altitude limit you can consider for calculations around ability to glide to safety in case of engine failure.

174
Q

CAP 698 SEP/MEP data
- Landing safety factors
LDA restriction
<20cm grass, firm soil
Wet
1% downslope

A

LDA restriction: Use 70% LDA
<20cm grass, firm soil: x1.15
Wet: x1.15
1% downslope: +5%

175
Q

CAP 698 SEP/MEP data
- Obstacle clearance height if nothing given

A

50ft
[Unless question asks for ground roll!]

176
Q

CAP 698
- Using MRJT1 brake cooling schedule for RTO

A

Ignore the brake configuration section, go straight through reference line (i.e. no reverse thrust credit etc.)

177
Q

Stall speed definition terminology

A

“1-G stall speed”
“Where aeroplane can develop lift equal to weight” or “Load factor of 1”
“Where CLmax is reached”

178
Q

Best endurance altitude for:
- Piston
- Turbo-prop
- Jet

A

Piston: Low (sea level)
Turbo-prop: Medium
Jet: High

ATPL - Module 3 (4 decks)

Brainscape helps you reach your goals faster, through stronger study habits.
© 2024 Bold Learning Solutions. Terms and Conditions
