Lecture 11 - Decision Tree Induction Part 1

Question 1

What is Induction?

Answer 1

Learning by generalizing from examples or experiences.

Question 2

Induction can be contrasted with

Answer 2

Deduction

Question 3

Repeatedly adding pairs of odd numbers and noticing the result is always even is an example of

Answer 3

induction

Question 4

Constructing a mathematical proof that two odd numbers added will always be even is

Answer 4

deduction

Question 5

What is a decision tree?

Answer 5

A tree in which each leaf is a decision

Each non-leaf is an attribute

Each branch is a value that the attribute parent can take

Question 6

What is decision tree induction?

Answer 6

A procedure that attempts to use a training set of data to build a decision tree that will correctly predict the results of any unclassified data

Question 7

What is a training set, in decision tree induction?

Answer 7

Set of classified examples/samples

Very small fraction of population (usually)

Question 8

What is a classified example/sample in decision tree induction?

Answer 8

Vector of attributes and values, and the class

e.g:

(Skin Covering = Feathers, Beak = Straight, Teeth = None, Class = Heron)

Question 9

What is the basic decision tree induction procedure?

Answer 9

Function buildDecTree(examples, atts)

Create node N if necessary

If examples are all in same class return N labelled with that class

If atts is empty return N labelled with modal example class

bestAtt = chooseBestAtt(examples, atts)

label N with bestAtt

for each value ai of bestAtt

si = subset of examples with bestAtt = ai

if si is not empty then

newAtts = atts - bestAtt

subtree = buildDecTree(si, newatts)

attach subtree as child of N

else

create leaf node l

label l with modal example class

attach l as child of N

return N

Question 10

What is the “best attribute” in decision tree induction?

Answer 10

The attribute that best discriminates the examples with respect to their classes

Question 11

What is the standard way of discriminating examples in decision tree induction?

Answer 11

Information gain

Question 12

What is Shannon’s Information Function?

Write the formula for information gain with equiprobable outcomes

Answer 12

A function that determines the number of bits of information gained after an outcome

Information = log₂(N)

where N is the number of possible outcomes

or Information = -log₂(p)

where p is the probability of any of the equiprobable outcomes

Question 13

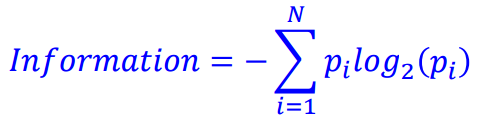

What is the formula of Shannon’s Information Function for non-equiprobable outcomes?

Answer 13

Question 14

Information is also sometimes known as ________ or ________

Answer 14

Uncertainty

Entropy

Question 15

With the training set

• | red | blue

class1 | 63 | 7

class2 | 6 | 24

Calculate the information gain from knowing the color

Answer 15

uncertainty_nocolor = -0.69*log(0.69)-0.31*log(0.31) = 0.893

uncertainty_red = -(63/69)*log(63/69) - (6/69)*log(6/69) = 0.426

uncertainty_blue = -(7/31)*log(7/31) - (24/31)*log(24/31) = 0.771

uncertainty_colour = 0.69*0.426 + 0.31*0.771 = 0.533

informationgain_color = 0.893-0.533 = 0.36
