Lab practicle Flashcards
Which of the following compounds used in the synthesis of thebromohydrin2-bromo-1,2-diphenylethanol is a permeator?
DMSO
What is the most common way turn an alkene into an epoxide?
By treating it with a proxy acid (m-CPBA) However, this proxy acids are explosive and hard to handle.

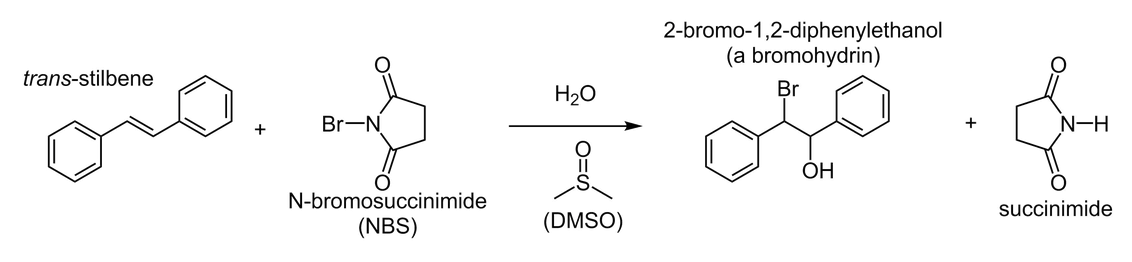

During the first portion of trans-stilbene experiment, what was the function of NBS?
NBS provided a bromide atom via bromohydration reaction, which created a bromonium ion on the trans-stilbene
What is a permeator? Provide an example of a chemical we used in class.
DMSO, a chemical that can pass through protective dermal layers and into the body.
Can expose us to toxic effects of a specific permeator or act as a carrier for other toxic/hazardous chemicals.
In the trans-stilbene experiment, a bromohydrin will be purified by which method?
Via recrystallization from hexanes
During the creation of bromohydrin, in the trans-stilbene experiment, most of the DMSO was removed from the product during which step?
the extraction
Finding the melting points in the trans-stilbene experiment were crucial because they told us what?
They told us the stereochemistry of our product.
trans vs. cis
When solid anhydrous MgSO4 is added to liquid, what is its function?
To remove any microscopic droplets of water.
It is a drying agent.
Why is DMSO difficult to remove from reaction mixtures? In the trans-stilbene experiment, how did we remove DMSO?
DMSO has a very high boiling point, which is why we removed it during our extraction process.
During recrystallization, what will happen if too much hot solvent is used to dissolve the crude compound?
Few or zero crystals will be isolated.
Crystals form may remain contaminated.
What are the three requirements to make a proper melting point sample?
1) Finely ground up solid
2) Compacted well into a capillary tube
3) sample should be about 2-3mm in height
What should you do if the baseline of your TLC plate dips below the level the solvent as you put the pate into the developing chamber?
Start over with a new TLC plate, dump out this solvent, and put less in the beaker next time.
Only need a small layer of solvent
How many layers of liquid should you have during the purification via extraction?
Two layers: aqueous (bottom layer) and organic (top layer)
What are the sample that come out the bottom of a chromatography column called?
Fractions
If you perform two chemical reactions in sequence, what is the overall percent yield for converting A to C?
A to B = 80% yield
B to C = 70%
0.8 0.7 100% = 56
Will the most polar or most non-polar compound come out of the chromatography column?
The most non-polar will elute first, as the polar compound will be stuck to the stationary phase due to hydrogen bonding.
When making a chromatography column with alumina or slice gel, why is hexane often used?
Because it will not dissolve the aluminum or silca gel and they will sink.
Why is sand used when a chromatography column is prepared?
The sand helps keep the bottom and top ends of the stationary phase flat and even
Trans-stilbene Experiment
If there is unreacted 2-bromo-1,2-diphenylehtanol left in your crude stilbene oxide, what will happen to this impurity during column chromatography?
The impurity will stay on the column longer than the epoxide product, thus the epoxide product will be purified.
When calculating the melting point of a final product how do you record it?
In a range. The first temperature will be when the sample starts to melt and the second value is when the sample is done melting
Define a reaction workup
a series of steps required to isolate the reaction product
Trans-Stilbene Experiment
If a carbocation intermediate is involved, what will the mp of the products be?
Lower than the mp provided by literature.
If a compound travels further up the TLC plate because its non-polar, will it have a higher or lower Rf value than the compound (polar) that didn’t make it very far?
The non-polar compound will have a higher Rf value.
When doing column chromatography, what is a slur?
A suspension of the stationary phase particles in the mobile phase
What will happen if a column chromatography separation is carried out but has one of these issues?
- The top of the column is uneven (slants from one side to the other)
- The column dries out for a few minutes during the separation
-A column with air bubbles or cracks on the inside
The fractions will contain mixtures of products
When visualizing a TLC plate with 2,4-DNP dip, what does the orange color indicate.
Indicates aldehydes and ketones are present
What is the purpose of the vacuum on the rotary evaporator?
To lower the boiling point of the solvent
When shutting down the rotary evaporator, which valve must you close first?
First, turn off the vacuum at the main valve (blue) and then open the vacuum line before removing flask.
Vanillin Experiment
Why is NaBH4 used as reducing agent instead of LiAlH4?
Because LiALH4 is not selective and we don’t want all of our carbonyl groups converted to alcohols. NaBH4 is more selective and less reactive
B-H bond can reduce one carbonyl group, so in theory one equivalent of NaBH4 can react with four equivalents of carbonyl groups. Excess of NaBH4 is still used.
Vanillin Experiment
Why is reduction of vanillin acetate done at 0°C?
To avoid the ester group on vanillin acetate converting into an alcohol via base-catalyzed ester hydrolysis
What can one see when visualizing a TLC plate with UV light?
Chemicals with conjugated double bonds
Grignard Reaction Experiment
Crystal Violent and Malachite Green can be synthesized from what?
Grignard Reagent and ester
What is a Grignard Reaction?
A chemical reaction in which alkyl, vinyl, or aryl-magnesium halides (Grignard reagents) add to a carbonyl group in an aldehyde or ketone. This reaction is an important tool for the formation of carbon-carbon bonds.
What is a Grignard reagent?
R-MgX (hydrocarbon attached to metal and halide)
R = metal
x = Halide
Strong nucleophile and can be treated as a source of the carbanion R-
Also, strong bases
Grignard Reaction Experiment
The Mg-C bond formed from grignard reagent is describe how?
A polar covalent bond, with a large partial negative charge on the carbon atom
Grignard Reaction Experiment
Why must Grignard reactions done in anhydrous conditions?
Because Grignard reagents are strong bases and readily react even with weak acids like water. Thus, we must use anhydrous conditions to avoid decomposition of Grignard reagent.
Grignard Reaction Experiment
Why was 1-bromobutane used in this experiment?
It was used as a catalyst to speed up reaction between Mg and 4-bromo-N,N-dimethylaniline. The reaction can occur without catalyst but would require more time or refluxing at very high temperatures.
Grignard Reaction Experiment
The surface area of reactive magnesium metal was increase by doing what?
Grinding with mortar and pastel to remove layer of less reactive magnesium oxide and adding iodine
