Inorganic NMR Flashcards
What is I?
(uppercase i)
Spin angular momentum number
Commonly just spin
What must I be for NMR activity?
Must be equal to or larger than 1/2
What occurs to a state at an I value when B is applied?
State splits into 2I+1 non-degen energy levels
What is the equation of energy including I?
(uppercase i)
E = - γℏmIB
What is required for an element to be quadrapolar?
I >= 1
(upppercase i)
How is % abundance seen when multiple peaks?
Shared between them
i.e. doublet is both 1/2 abundance
What is wanted for NMR in terms of a nucleus?
Abundant
High gyromagnetic ratio
Highest possible applied field strength
What is the ΔE in NMR and its size wrt kT?
ΔE is between ground and excited state caused during NMR
ΔE «_space;kT
What does energy difference between states mean for NMR sensitivity?
ΔE «_space;kT
Small population difference so weak net absorption and intensity in NMR
This means that the small splitting

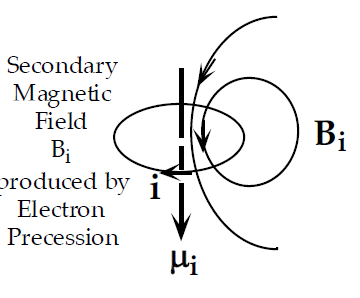

How does a secondary magnetic field develop?
Denoted Bi
Produced by e- precession
How does the overall B0 relate to an effective field?
B = B0(1-σ)
σ = shielding constant
What is the shielding (ramsey) formula?
σ = σd + σp
σd = diamagnetic shielding (opposing B0)
σp = paramagnetic shielding (augments B0)
What causes diamagnetic shielding?
Unperturbed spherical motion of e-
Induced by applied mag field
What causes paramagnetic shielding?
Hinder rotation of e- cloud about nucleus
Such as other nuclei or non-spherical charged distribution
How does paramagnetic shielding relate to difference in energy?
σp α -1/ΔE
Depends on extent of magnetic field mixing excited electronic states into ground state wavefunction
How does ppm relate to ΔE for octahedral complexes?
As ppm increases, 1/ΔE increases
How does ppm relate to ΔE for octahedral complexes?
As ppm increases, 1/ΔE
How does ppm relate to σ?
δ = 106(σref-σ)
What is the shift of transition metal hydrides?
Negative proton shift values
As excited states low in E so mixed with ground state wavefunction
Causes deshielding at M and shielding at H
How does the shift of TM hydrides change depending on de- counts?
The shift is more negative when there are more d-electrons
Define scalar coupling
Indirect nuclear-nuclear coupling mediated by e- in a bond
What is the j-coupling for an I=1/2 nuclei?
Coupling to n indentical spin 1/2 nuclei gives n+1 multiplet with binomial intensities
Coupling between mag equivalent nuclei doesnt give splitting

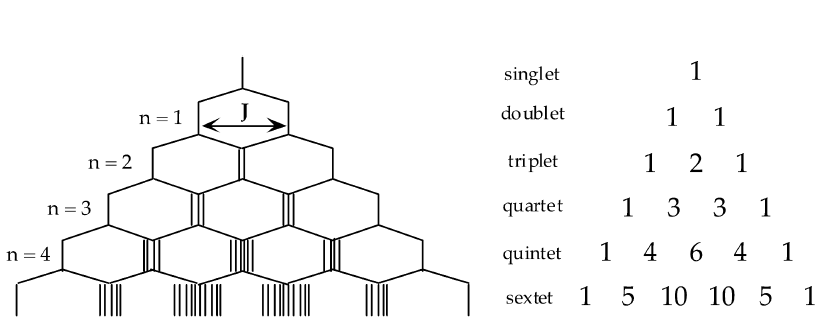

What is the binomial tree for spin 1/2 coupling?
What does the strength of 1-bond 1J(13C,1H) coupling constant depend on?
Depends on extent of s-orbital involvement in bonding
More s-character has larger J
What is 1-bond 1J(13C,1H) in a complex relative to not?
Decreased when in a complex relative to free
Due to partial rehydrbidization to sp3
How can geminal (2-bond) coupling give stereochem info?
e.g. square planar complexes
cis and trans coupling differ strongly in magnitude
2J trans»_space; 2J cis
What is vicinal (3-bond coupling) dependent on?
Depends on dihedral angle (φ) between planes contaning coupling nuclei
3J(X,Y) = Acos2φ + Bcosφ + C
How do you decouple a spin from other spins?
Rf irradiation @ Larmor frequency of a spin
Rapidly swaps between α & β spin states so average observed to other nuclei - no splitting
How does frequency and coupling relate in magnitude in weak coupling? (standard J coupling)
|Δv|»_space; |J|
This is standard J-coupling
What is the magnitude of frequency and coupling constant in strong coupling (2nd order patterns)?
|Δv|≈ |J|
Distortion in intensities
Midpoint no longer shows true δ
How does 2nd order strong coupling look compared to weak coupling?
Δδ similar to J in an AB system
This is seen as roofing
What is the requirement for magnetic equivalent nuclei?
Identical chemical shifts
Same coupling constants to other nuclei in moleucle
How are quadrapolar nuclei present on NMR spectrum?
Splits to 2I+1 mI states
Equal prob of all states so equal intensities
Actual ppm in the middle
What is the NMR of PF5?
One peak
F exchange by Berry mechanism so indistinguishable
What occurs to protons on methylene ligand (M=CH2) in NMR?
At high T:
geminal protons exchange faster than NMR timescale so couple as 1 environemnt
At low T:
protons don’t exchange as insufficient energy, separate environments and can see some geminal coupling
What is the coalescence temperature, Tc?
Temp at which spectrum changes from separate peaks to single, flat-topped peak
Related to when groups can exchange or rotate
How does an EWG change rate of exchange in =CH2?
EWG (e.g. Ph) takes e- density away from =CH2
Easier to break π-alkene bond and rotate protons
