Genetics Flashcards
Frameshift mutation
what is it? give example of condition
Insertion or deletion which alters the reading frame, which may lead to an entirely different protein or stop codon (ie. mutation is NOT in multiples of three)
= Most detrimental type of mutation eg. DMD
DNA structure
Sugar-phosphate backbone (5’ end and 3’ end) with nitrogenous bases
2 strands (1 end 5’ to 3’ and complementary end is 3’ and 5”)
- > C paired with G, 3 H bonds ie harder to break and harder to sequence
- > A paired with T, 2 H bonds ie easier to break
Coiled tightly into chromosomes
What is a codon
3 bases which codes for one amino acid via genetic code
how mRNA is read -> in blocks of 3 called codons
there are 64 different codon combinations (61 code for aa, 3 are stop codons)
The amino acids that result from reading of the code is dependent on the ‘reading frame’ (depends which base the reading frame starts from/where the polymerase starts from)
DNA polymerase
Adds new nucleotides ot growing DNA single strand chain
Point mutation
Substitution of one base pair by another
Alters the codon so that it changes from one aa to another (and thus causes different protein product) or may produce a stop codon where no protein product may be produced
Missence mutation
Type of point mutation where single aa mutation results in production of different protein product
Nonsense mutation
Type of point mutation
Change from one aa to another results in production of a stop codon and no protein product

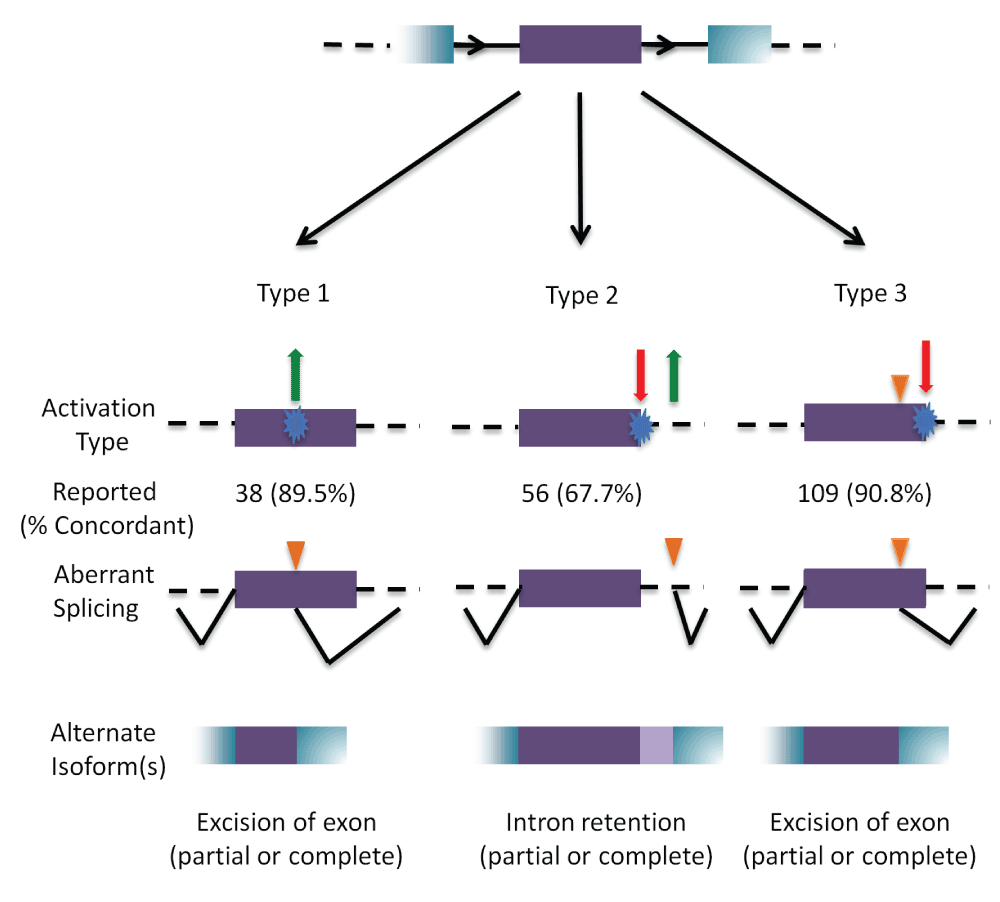

Splice site mutation
ABnormal splicing of introns and exons altering the mRNA
Mechanisms
- Excision of exon
- Inclusion of intron
Expanded repeats
give examples
An increase in the normal tandem repeat (some genes are coded by triplet repeats where the gene sequence is made of a repetitive pattern of the same 3 base-pairs)
ex
- fragile x syndrome
- myotonic dystrophy
- freidrichs ataxia
- spinal muscular atrophy
- spinocerebellar ataxia
- Huntingtons Disease
Whole gene mutation
-example
Charcot marie tooth disease
- 2 copies (duplication) of PMP22 gene which encodes myelin

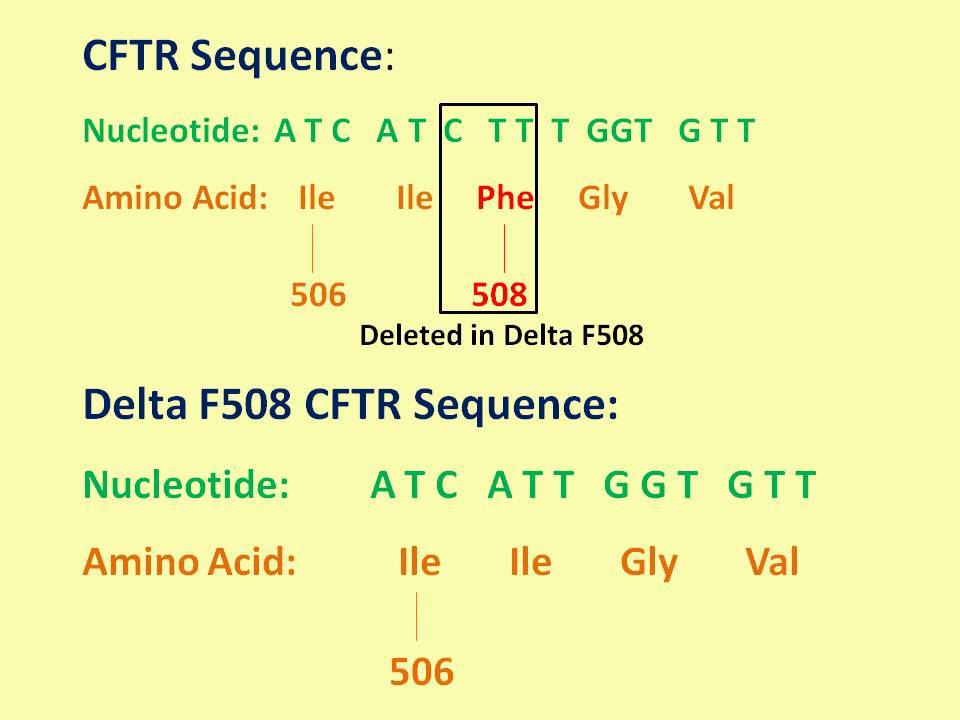

What is the genetic mutation in the most common form of CF
Delta 508 - 3 base pair deletion (CTT coding for aa ‘Phe’) at position 508 of cftr gene
What is transcription
Process of forming mRNA from DNA nucleic acid sequence -> resulting in EXONS only (removes introns)
- > mRNA is single stranded with ribose sugar instead of deoxyribose and Uracil bases replacing T bases
What is an intron vs exon
Intron- any nucleotide sequence between exons within a gene that is removed by RNA splicing during maturation of the final RNA product. In other words, introns are non-coding regions of an RNA transcript, or the DNA encoding it, that are eliminated by splicing before translation.
Exons - coding segments of DNA which will encode a part of the final mature RNA produced by that gene after introns have been removed by RNA splicing.
-> codes for protein
What is translation
mRNA is translated into amino acids (3xpairs = 1 aa) which will form protein
What is this condition?
Butterfly distribution of photosensitive telangectatic facial rash
Malar hypoplasia
Short stature
Syndactyly
Recurrent infections
Risk of malignancy
Bloom syndrome
- chromosome 15q defects: BLM protein, which is a helicase involved in DNA repair.
= fragile chromosome disorder
- increased number of chromosomal breaks with sensitivity to UV radiation
- > risk of malignancy (squamous cell skin cancer, leukemia, lymphoma, and gastrointestinal tract cancer)
- > BLM protein required for normal development of B and T cells -> low number of lymphocytes (B mostly), but the immunodeficiency seems relatively mild since they have no severe or opportunistic infections (more recurrent ear and resp infx)
FISH
Fluorescence in situ hybridization (FISH) is a laboratory technique for detecting and locating a specific DNA sequence on a chromosome. The technique relies on exposing chromosomes to a small DNA sequence called a probe that has a fluorescent molecule attached to it.
Used for detection of specific submicroscopic deletions (ie WIlliams syndrome) and duplications and translocations
Non-disjunction
Failure of chromosomes to separate (usually during meiosis)

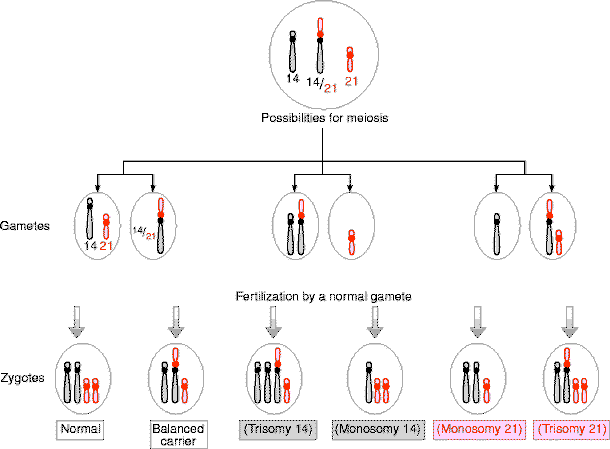

Mechanisms of trisomy 21
- Non-disjunction - 95% of cases
- 1 parental chromosome (usually maternal in setting of incr age) fails to separate at meiosis
- > resulting in 3x chromosome 21 (rather than 2; 2 from mo, 1 from fa) - Robertsonian translocation - 4% of cases
- a chromosome 21 is transloated onto another chromosome where they are joined to one another (14, 15, 21 or 22) = ie they have 2x normal ch 21 and 1x robertsonian translocation
- results in 45 chromosomes - Mosaicism (1%)
- these kids have some normal cells and some trisomy 21 cells resulting from non-disjoining occuring during mitosis AFTER fertilisation
- usually phenotypically affecte to lesser disease
Clinical feautres of t21
Hypotonic baby
Small stature
CNS: Dev delay, Early onset AD
Facial: upslanting palpebral fissures (eyes)
epicanthic folds
cataracts and brushfield spots (speckled irises)
small ears
dental hypoplasia, protruding tongue
short nekc
Hands and feet: shot fingers, 5th finger abnormally bent/curved
single palmar crease
sandal gap (wide gap) btwn 1st and 2nd toes
CVS: CHD - AVSD, VSD, PDA, ASD, valve prolapse
REsp: incr chest infx
Haem: incr incidence leukaemias (AML)
Endo: incr incidence hypothyroidism
Skin: loose neck folds in infancy
Genitalia: small penis/testes, infertility common
what do you see with alpha fetoprotein in T21?
LOW alpha fetoprotein

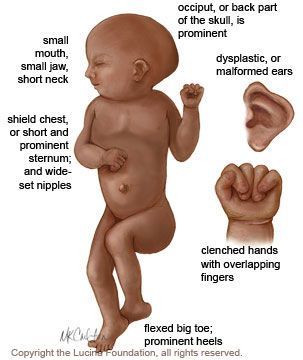

what are the features of trisomy 18/edwards syndrome?
General LBW, fetal inactivity, single umbi artery, skeletal muscle and adipose hypoplasia, ID
-key: overlapping inex finger and rockerbottom feet (see image)
***Serious cardiac defects*** ex: VSD, ASD, PDA, bicuspid aortic/pulm valves
Also assoc w R lung malsegemtnation or abscence and GI/renal abnormalitieis
Prognosis
- 50% die within 1st weak and only 5-10% survive the first year
spot diagnosis
Edwards syndrome/T18 (47xy+18)
- note overlapping index finger
- low set abnomrla eas
- small mouth
- micrognathia
- epicanthic folds
- prominent occiput
Spot diagnosis
What are the other features of this condition?

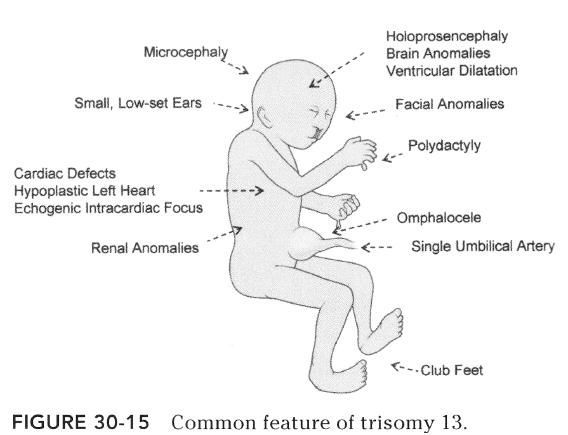

Trisomy 13 - Patau syndrome
Other ft:
- Single umbi artery adn LBW
- CNS: Scalp defect w varying degrees of incomplete forebrain development; seizures, severe ID
- Craniofacial: cleft lip +/- palate, abnormal low set ears, micropthalmia
- Fingers/toes: polydactyly; clenched fist w overlapping fingers
- Cardiac: 80% VSD, ASD, PDA, hypoplastic L heart
- GI: omphalocoele/umbi hernia w single umbi artery
- Genitals: cryporchidism, bicronuate uterus
80% die within first month
Turner syndrome karyotype
45xo
Spot diagnosis + what are the features of this condition
Turners syndrome
Management of turners syndrome
may be given growth hormone (to help them reach normal height) and HRT at around 12/on reaching adolescence (oedstrogen replacement for development of secondary sexual characteristics +/- small doses androgens for development of normal pubic hair and to help reach normal height)
Monitoring for cx
- Yearly: Thyroid, BP, weight, lipid profile and OGTT
- Every 5 years: echo, audiology, dexa, gynae US and thyroid Ab
What is imprinting?
Genetic mechanism by which the genes are selectively expressed (turned on or off) from the maternal or paternal chromosome
How does this occur
Genes are ‘imprinted’ by either methylation of genes -> turns genes off
or by histone modification -> this also affects activity of a particular gene
example of imprinting disorders: prader willi and angelman syndrome
Microcephaly
Spontaneous laughter
Seizures
FTT
Hypopigmentation
what is this condition?
What is the genetic inheritance?
AngelMAn syndrome (MA = Maternally Active gene)
- imprinting disorder of chromosome 15 q11-13 locus
- Normally, a fetus inherits an imprinted paternal copy of PW genes and a functional maternal copy of PW genes. Due to imprinting, the paternally inherited copies of these genes are virtually silent, and the fetus therefore relies on the expression of the maternal copies of the genes.
Methods:
- deletion of maternal copy (70%)
- mutation on maternal gene (10%) -> inactivation
- imprinting defect (2-3%)
- paternal uniparental disomy (2%) - both copies of chromosome 15 from the father -> only paternally-expressed genes (intactive) in this region
Polyhydramnios; Hypotonic baby, poor feeding and hypogonadism
Obesity and Hyperphagia later in life w behaviour difficulties
What is this condition?
What is the inheritence pattern?
Features
Management
Prader Willi syndrome
Imprinting disorder chromosome 15
Normally, a fetus inherits an imprinted maternal copy of PW genes and a functional paternal copy of PW genes. Due to imprinting, the maternally inherited copies of these genes are virtually silent, and the fetus therefore relies on the expression of the paternal copies of the genes. In PWS, however, there is mutation/deletion of the paternal copies of PW genes (70%), leaving the fetus with no functioning PW genes.
Alternally can occur becuase of maternal uniparental disomy (28%)
Features: hypotonia, feeding difficulties in infancy w gradual developemt of obesity, hyperphagia, dev delay, cognitive impairment, behavioral problems, short stature (GH responsive) and hypogonadism
Facial feautres: almost shaped eyes, thin upper lips, downturned corners of mouth
Diagnosis on DNA methylation studies (detects ALL cases); microarray only detects deletion
Treatment: GH increases lean body mass, reduces fat mass, incr mobility and improves neurodevelopment
Imprinting conditions of chromosome 15 (x2)
- Praderwilli and angelman syndrome
- Both affect 15q12 region
- Both conditions result from failure to inherit the active gene/loss of gene product
Prader Willi syndrome -
- Normal set up: paternally active genes (genes active on paternal copy of gene) and matenrally imprinted (inactive) gene.
Mechanisms:
- When you get deletion on paternal copy of gene, you get prader willi wyndrome (beacuse then you have no active gene, as maternal gene is turned off) - 75% of cases
- If you have maternal UPD - you also don’t have the actiev paternal copy of the gene, which also results in PWS - 25% of cases
Angelman syndrome
- Opposite of prader willi (maternally active genes, paternal genes imprinted/silenced)
- -> 70% of genes are deletion of gene on maternal copy. 5-10% mutation on maternal copy
- -> 5% paternal UPD
What is this condition and how is it diagnosed?
Supravalvular aortic stenosis, pulmonary stenosis
Hypercalcaemia, hypothyroidism, early puberty
Hypotonia, ligament laxity
Developmental delay
Variable level ID in 100%
Dysmorphic features - periorbital fullness, short nose, long philtrum, hick vermilion of the upper and lower lips, wide mouth, stellate iris
ID and ‘cocktail party’ personality - friendly ++ empathy
What is this condition and the inheritance
What test to diagnose it?
what is the risk of surgery?
Williams syndrome
-microdeletion 7q11.23 which should be picked up on microarray/FISH
assoc w high risk of MI w geneal anaesthetic!
Tall forehead
‘Receding’ hairline
Macrocephaly, tall with advanced bone age
Premature ertuption of teeth
Sotos syndrome
genomic sequencing
- Physical
- Distinctive facial appearance include a long, narrow face; a high forehead; flushed (reddened) cheeks; and a small, pointed chin
- Hypotonia
- Overgrowth in childhood (adv bone age)
- Stabismus (Cross eye)
- Premature eruption of teeth
- Scoliosis
- Cancer predisposition - no particular type
- Developmental
- Learning disabilities
- Autism
- Dev delay
- ADHD
What is this condition? Cause? How to diagnose it?
- Widely set eyes (ocular hypertelorism)
- a small jaw (micrognathia)
- a short nose with broad base; and low-set
- posteriorly rotated ears (pinnae)
Short stature
Low posterior hairline
Curly/Wooly hair in adolescents
Excess nuchal skin
Widely spaced nipples
CHD - Pulm valve stenosis
Cryptorchidism
Noonan syndrome
Mutations in the RAS/mitogen-activated protein kinase (MAPK) pathway, which is essential for cell cycle differentiation, growth, and senescence
Diagnosis on whole exome sequencing (usually won’t find it on microarray)
What is this condition? Who is it dignosed?
microcephaly
severe dev delay
severe feeding difficulty with reflux
monobrow
short, uprutrned nose
long curved philtrum
thin upper lip
downturned corners of lip
Cornella De Lange syndrome
requires exome sequencing
What is this condition?
COngenital heart defect
Hypoplastic thymus, thyroid and parathyroid
Distinct facial features: small lowset ears, enlarged nose tip, hooded eyes, thin upper lip and small mouth
cleft palate +/- lip
22q11 deletion syndrome
= di george syndrome or cardiovelofacial disorder
dignosed on microarray
Ft
- CHD (TOF 20%)
- Palatal abnormalities - 67%
- immune deficiency - 77%(mostly mild)
- HypoCa/hypoparathyroidism
- psychiatric disorders (schizofrenia in 20%)
- dev delay in 90%
- renal abnormalities 15%
- SNHL 15%
What is this condition?
IUGR -> short stature
Macrocephaly
Asymmetry between R and L sides of body
Triangular shaped face
Cafe au lait spots
Syndatctyly, clinodactyly 5th finger
Russel Silver syndrome
= NO IGF2 production
Imprinting disorder of chromosome 11 (normal is maternally imprinted/silenced genes with paternally active copy)
Disease state is due to errors in imprinting/methylation (50%) or maternal uniparental disomy (10%)
What is uniparental disomy?
uniparental disomy, an abnormality in which a person receives both copies of a chromosome from one parent instead of receiving one from each parent
important in imprinting conditions such as angelman, russel silver, Beckwith wiederman
Neonatal hypoglycaemia, abdominal wall defect -> hemihypertrophy, macroglossia, visceral organ hyperplasia. risk of embryonal tumours (Wilms, NB, HB)
ear pits and creases
what is this condition and mechonism of genetics?
Beckwith wiederMAn syndrome (Maternally Active)
Imprinting defects on chromosome 11 - normally paternally imprinted/silenced with maternal gene copy active.
- maternal copy methylation defect (50%)
- either paternal uniparental disomy (20%; no maternally active genes)
- maternal gene deletion
Risk of tumours lowest w mutaiton IC2 LOM - no routine screening req
For other mutations, requrie abdo USS Q3mo until 7yo
What is this condition?
FTT -> Trunkal Obesity by mid-childhood (no hyperphagia)
Microcephaly and short stature
Hypotonia (low muscle tone)
Intellectual disabilities
Myopia and retinal dystrophy
Friendly disposition, cheerfulness
Distinctive facial features with prominent upper central teeth, low anterior hairline, thick wooly hair and eyebrows, downslanting palpebral fissures, gum enlargement, long eyelashes, microcephaly and micrognathia
Abnormalities of the hands and feet (long slender fingers)
Cohen syndrome
Note - also assoc w neutropenia with r_ecurrent infections and aphthous ulcer_s in some; a cheerful disposition; joint hypermobility
G-CSF can be helpful for neutropaenmia
syndactyly
fusion of digits
clinodactyly
curved/bent digit
Noonan syndrome features
AD - mutations (often de novo) in more than 8 genes (RAS pathway) - diagnosis on WES
Variable presentation
Features
CNS: mild ID (10-20%)
Dysmorphisms: ptosis, epicanthic folds, hypertelorism, downslanting palpebral fissures, low nasal bridge, low set abnormal eaers, prominent upper lip
curly/wooly hair, low posterior hairline, short webbed neck, widely spaced nipples
MSK: short stature, shield chest, pectus excavatum, cubitus valgus
Cardiac: pulmonary valve stenosis, branch stenosis of pulm arteries; HOCM (20-30%); VSD/ASD/PDA
Genitals: small penis, cryptorchidism 60-80%
Risk of childhood malignancy: NB, JMML (juvenile myelomonocytic leukemia)
What is Leigh’s syndrome
Cause
Presenration
ix findings
A progressive neurometabolic degenerative condition - genetic condition -> defective oxidative phosphorylation
- AR mitochondrial form inherited from mo
- XLR form - defective pyruvate dehydrogenase complex
Age of onset: 3 mo to 2 years
Sx: Developmental regression (loss of motor skills particularly), dysarthria if older; dysphagia and FTT, irritability, seizures
OE: Geneal weakness, hypotonia, spasticity, loss of deep tenden reflexes ; can be assoc w HCM
Ix: Episodes of lactic acidosis (elevated lactate levels in blood, urine, CSF) resulting frmo excess pyruvate frmo dysfunctional oxidative phosphorylation +/- hypercapnoeic resp acidosis (hyperventilation/apnoea)
Features of angelman syndrome and inheritance
Imprinting/inactivation of paternal chromosome 15q12 region (condition is inherited via deletion in normal maternal copy or paternal uniparental disomy)
Features
- Dev delay/balance problems
- Microcephaly
- Severe ID
- Happy personality and characteristic broad smile (happy puppet syndrome) - laughing fits, excitability, hand flapping
- Epilepsy/seizures (80%, usually before age 3) - characteristic large amplitute slow spike waves on EEG
Diagnosis: need to do both DNA methylation studies and microarray
Chromosome structure
DNA wound around histones (nucleosome = DNA/histone complex) -> coiled very tightly into chromosomes
2 sister chromatids joints at centre by centromere
Aneuploidy
Abnormal number of chromosomes - losing or gaining an extra chromosome
ex - trisomy 18/13/21 or turners (XO)
Diagnosis of T21
Karyotype
FISH
Unbalanced vs balanced translocation
use T21 as example
Balanced translocation - parent is clinically phenotypically normal and has 1x chromosome 21 and other chromosome 21 stuck on end of Chromsome 14 (robertsonian translocation)
Unbalanced translocation - child has 2x normal chromosome 21s but has also inherited the robertsonian translocation (chromosome 14 w chr 21 on end of it) -> child has 3xchromosome 21 and therefore has Downs syndrome (may also be a nevo mutation; only 25% inherited from parent)
47XXY
What is this condition and what features does it have>
Kleinfelter syndrome (1:600)
- hypogonadism, small testes , delayed puberty
- low testosterone
- infertility (azoospermia), incomplete verilisim/reduced secodnary sexual characteristics, gynecomastia
- tall stature, generally slim with low upper: lower segment ratio (long legs)
- mild learning difficulties, emotionally immature, shy (usually normal IQ but reduced c/w siblings)
- incr risk osteoporosis, t2dm, cvd
- malignancy risk (NHL, breast ca)
Tx: testosterone tx if deficient
45xo
turners syndrome
short stature
web neck
cardiac defects - bicuspid AO valve, Coarctation of aorta
ovarian dysgeneiss, infertility
normal intellect
Microarray
examination of chromosome at higher level of resolution compared with karyotype - looks at all chromosomes ~15% diagnostic yield but more variants of uncertain significance
Can look at aneuploidy, large and small deletions and duplications (eg diGeorge, Williams syndrome), unbalanced rearrangements
Does NOT detect triplet repeats (ie fragile X) or balanced translocations
Does not require specific hypothesis (unlike FISH)
2 types:
- SNP array - looks at SNPs across whole genome
- Array CGH - comparison of patient and control DNA labelled different colours
Fish
locus-specific fluorescent tags
‘fishing’ for a certain condition
used for localisation of a gene and looking for balanced rearrangements
Karyotype
direct visualisation of chromosomes
can detect aneuploidy, large imbalances only, balanced and unbalanced rearrangements
3% diagnostic yeild (lower) but most detected anomalies are pathogenic
How do you make protein from genes?
DNA -> transcription -> RNA -> translation -> Protein
Promotor regions
upstream of 1st exon/5’ end of DNA
defined by ‘TATA’ box
5’ TATAA 3’
Enhancer/silencer regions of gene
bits of dna that can further modiify expression of a particular gene
tissue specific
fine tuning at any given time/tissue of a particular organism
Inheritance of Rett synrome
X linked dominant (males die in utero)
MECP2 gene mutation
frameshift mutation
change in DNA where you alter the reading frame -> results in totally different sequence of aa and completely alters the protein or results in a downstream premature STOP codon (truncated protein product)
PEnetrance
On/off binary 1:0
Either you have the phenotype of the disease or you don’t
Genotype positive but phenotype negative = incomplete penetrance (this can be age-dependent; ie 2 year old with breast cancer or HD gene will be incompletely penetrant, but can develop disease as an adult and thus be penetrant for the condition)
Expressivity
Variabiilty in clinical features in individuals with the same genotype (ie expressiviety is variable phenotype despite same mutation/genes)
ex: NF1, Hypertrophic cardiomyopathy vs dilated cardiomyopathy in individuals with same familial mutation
