CCNA EIGRP LAB Question

Question 1

Question

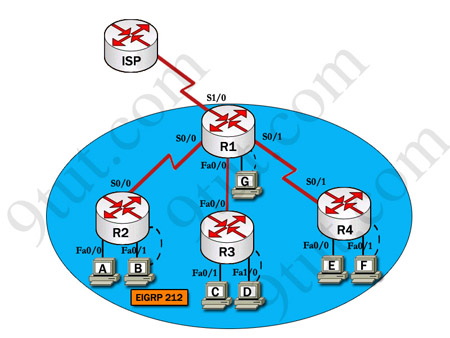

After adding R3 router, no routing updates are being exchanged between R3 and the new location. All other inter connectivity and Internet access for the existing locations of the company are working properly.

The task is to identify the fault(s) and correct the router configuration to provide full connectivity between the routers.

Access to the router CLI can be gained by clicking on the appropriate host. All passwords on all routers are cisco.

IP addresses are listed in the chart below.

R1

Fa0/0: 192.168.77.33

S1/0: 198.0.18.6

S0/1: 192.168.60.25

S0/0: 192.168.36.13

R2

Fa0/0: 192.168.60.97

Fa0/1: 192.168.60.113

S0/0: 192.168.36.14

R3

Fa0/0: 192.168.77.34

Fa0/1: 192.168.60.65

Fa1/0: 192.168.60.81

R4

Fa0/0: 192.168.60.129

Fa0/1: 192.168.60.145

S0/1: 192.168.60.26

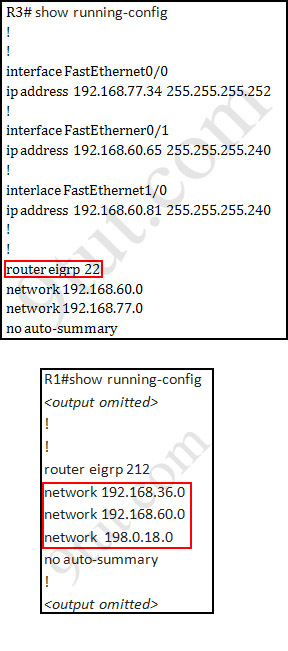

Answer 1
