Virtual Memory (10)

Question 1

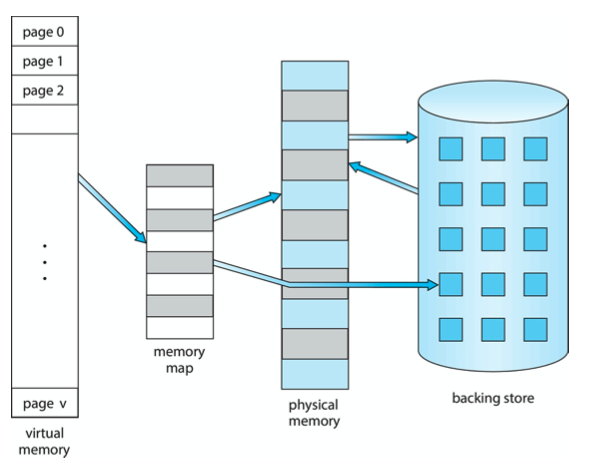

Virtual Memory

Answer 1

• Virtual Memory: separation of logical memory from physical mem.
• The whole program doesn’t need to be in memory to be executed
• Logical address space can be in much larger than physical
• Allows address spaces to be shared by several processes

  • Library code can be shared
• More concurrency
• More efficient process creation

  • Less stuff to load in memory
• Less I/O needed to load or swap process

  • Only parts of the process that are not yet in me

Virtual memory can be implemented with:

• Demand Paging
• Demand Segmentation

Question 2

Virtual-Address Space

Answer 2

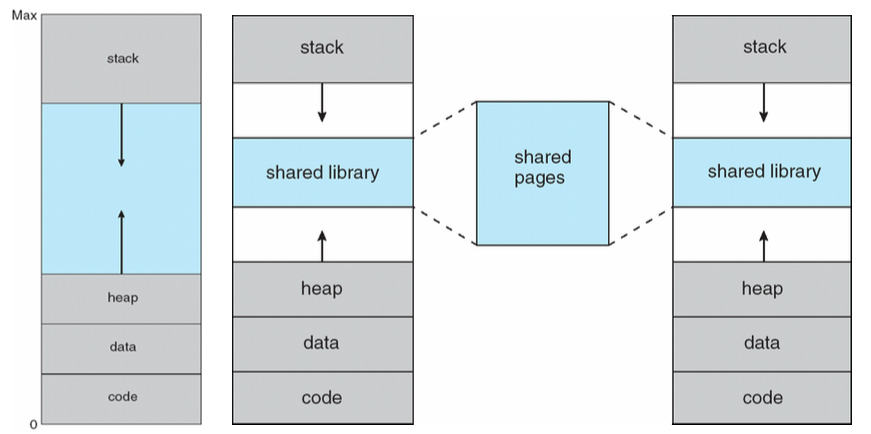

Logical view of how process is stored in main memory

• Usally starts at 0
• Physical memory is organized in page frames
• MMU must map logical to physical

Often designed this way:

• stack starts at the top of the logical address space
• heap grows up above data and code
• Unused address space between: hole

  • No more physical memory needed until there is a hole

Enable sparse addresses spaces with holes left for:

• growth
• dynamically linked libraries

System libraries and shared memory can be accessed by mapping them into virtual address space.

Pages can be shared to speed up fork()

Question 3

Demand Paging

Answer 3

• Doesn’t bring whole process into memory, only loads the needed page (Lazy swapper)

  • Less I/O, no unnecessary I/O
  • More free memory
  • faster response
  • Can serve more users
• Hardware support needed

  • Needs to change MMU and add a bit signalling validity

    • So that during address translation it can detect page faults

      • v = in-memory
      • i = not-in-memory -> page-fault
  • secondary memory (swap)
  • instruction restart

    • pay attention to limit cases: not all instruction can be restarted after one page fault, some may generate more than one.
• Extreme case: start process with no pages in mem. (this for every proc.)

  • pure demand paging
  • Instruction could access multiple pages -> more page faults

    • locality reduces the stress

Question 4

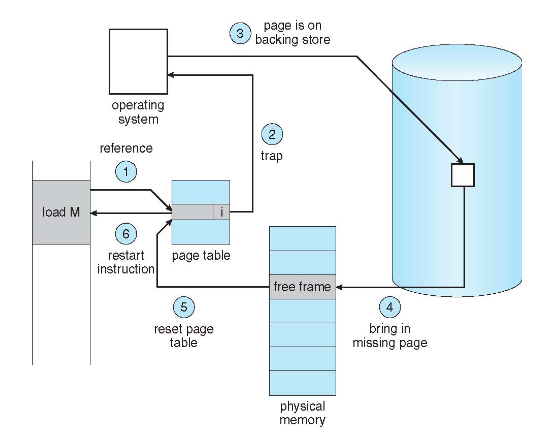

Handling a Page Fault (Demand Paging)

Answer 4

• Once in page fault, OS looks at another table to decide

  • Invalid ref. -> abort
  • not-in-memory
• find free frame
• swap page into frame by scheduling disk op.
• reset tables to reflect that the page is in-memory
• restart from instruction that caused page fault

Question 5

Free-frame list

Answer 5

• Most OSes maintain a list pool of free frams to satisfy requests
• Zero-fill-on-demand: the content of the frames are zeroed-out before being allocated
• When a system starts up: all the memory is in the free frame list
• It’s very important to always have free frames
  • if not we need to deal with freeing also a frame -> 2x slower

Question 6

Demand paging performance

Answer 6

Main factors:

• Handling the interrupt: several hundred instruction if we are being optimistic (not so long)
• Read the page: very very slow
• Restart the process: small amount of time

p = Page fault rate

Effective access time = (1-p) * memory access + p ( page_fault_overhead + swap_out_time + swap_in_time)

Question 7

Demand paging optimization

Answer 7

• Copy entire proccess image to swap space at process load time, then page in and out from there

  • swap space I/O is faster than fs I/O even if it is same device

    • swap is allocated in larger chunks -> less overhead
  • used in older BSD Unix v.
• Demand page in from program binary on disk

  • this is very good because:

    • most pages are read-only
    • it doesn’t require to write back to disk
  • We still need write to swap space

    • heap and stack
    • pages modified in memory but not written back to the fs

Question 8

Copy-on-write

Answer 8

• parent and child process share the same page initially

  • only if a process modifies the page it gets another copy
• process creation is more efficient
• vfork() is used to let the child use parent address space while parent suspended

  • designed for child calling exec
  • very efficient
    *

Question 9

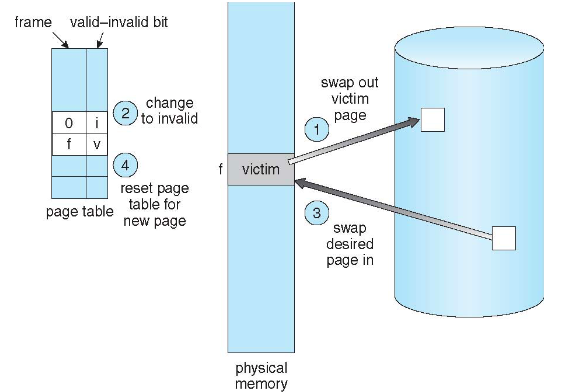

Page replacement

Answer 9

• What if no free frames?
• We need to prevent over-allocation of mem. by modifying page-fault service routine to include replacement
• Use dirty bit to transfer only pages that have been modified
• Page replacement makes possible separation between physical and logical memory

  • we can have logical > physical
• Process:

  • no free frame?
  • run page repalcement alog to select victim
  • write victim to disk
  • bring page into the new free frame
  • update page/frames tables
  • continue
• With page repl. we have 2 page transfer for page fault

Question 10

Page frame Replacement Algorithms

Answer 10

• Frame-allocation algo:

  • how many frames do I give to this process?
  • which frames to I replace
• Page-replacement algo:

  • want lowest possible page fault rate of access and re-access

Algos:

• FIFO:

  • Belady’s anomaly: adding more frames may result in more faults
• Optimal algo:

  • used as a benchmark
  • impossible to implement without discovering that P=NP
• LRU: least recently used

LRU and optimal are cases of stack algo without Belady’s anomaly.

Question 11

LRU Algorithm Implementation

Answer 11

• Counter

  • every page has a counter
  • on every reference of the page: copy the timestamp into it
  • look for the smaller counter when you want to replace page
• Stack

  • keep stack of page numbers in a double linked list
  • page referenced:

    • move to top
    • requires 6 pointers to be changes
  • each update more expensive

Question 12

LRU Approximation algorithms

Answer 12

We need an approximation because LRU needs special hardware and it is still slow.
Reference bit:

• Used to understand if a page was used recently enough.
• RB = 1 -> page is fresh
• RB = 0 -> you can replace it

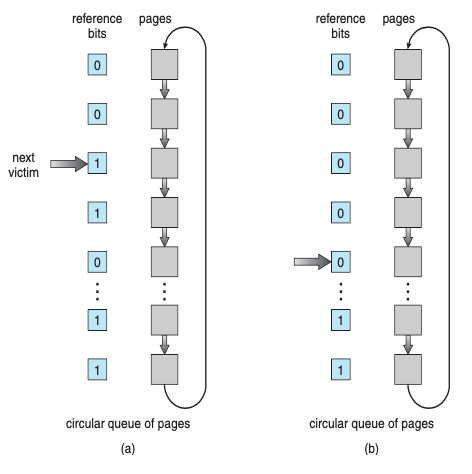

Second-chance algorithm:

• FIFO + hardware provided reference bit
• Circular list
• if page to be replaced has RB = 0 then replace
• otherwise set RB = 0, leave page in memory, move to next page
• repeat.

Basically we are setting to old fresh pages, but replacing only the ones that were already old.

Question 13

Enhanced second chance algorithm

Answer 13

• Use reference bit and modify bit
• consider pair (rb, mb)

  • (0, 0): not used recently neither modified

    • best candidate
  • (0, 1): modified but not used recently

    • okay, but must write to memory
  • (1, 0): used recently but not modified

    • probably will be used soon
  • (1, 1): recently used and modified

    • will be used soon and need to write it
• On page replacement:

  • use clock scheme
  • use the four classes to replace page
  • might need to search queue several times

Question 14

Counting algorithms

Answer 14

• Keep counter of the references amde to each page
• Least frequently used (LFU): replace page with smalles count
• Most frequntly used(MFU): replace page with largest count, hypotesis that the page with lowest count was just brought in
• Not so popular

Question 15

Page Buffering Algorithms

Answer 15

• We want to minimize the number of page faults
• We want always a pool of free frames in which to swap pages:

  • We’ll have the frame when needed, not looked after the page fault occurs
  • select victim to evict and add to free pool
  • use dirty bit
  • keep frame contents intact until eviction

    • if page referenced again we don’t need to transfer page from memory
    • reducec penalty if wrong victim was selected

Question 16

Applications and Page Replacement

Answer 16

• Some applications have better knowledge than OS about what page will be needed
• Memory intensive apps can cause double buffering

  • OS ees page in memory as I/O buffer
  • Application does its work on their page
• Raw disk is a way for application to access disk directly bypassing

  • buffering
  • locking
  • etc.

Question 17

Frame allocation

Answer 17

• Each process needs a minimum number of frames
• Two main schemes:

  • fixed allocation

    • Equal: divide the number of frames by the number of processes

      • keep some in free frames pool
    • Proportional:

      • allocate pages based on processes size
      • changes with time due to degree of multiprogramming and process size
  • priority allocation
  • many variations

    • Global vs. Local replacement:

      • Global: process can take a frame from another

        • greater throughput, more common
      • Local: select only from own set of frames

        • underutilized memory
        • more consistent per-process performance
          *

Question 18

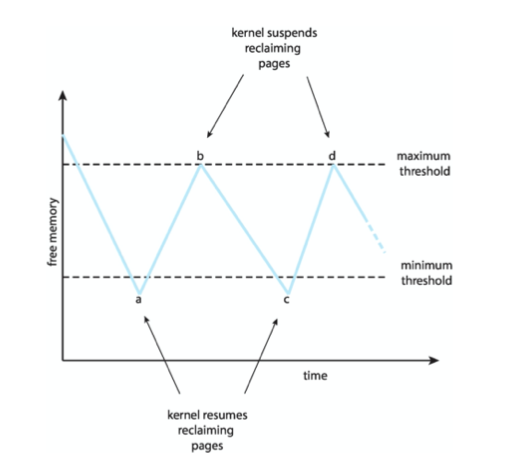

Frame allocation: Reclaiming Page

Answer 18

• Strategy for global page-replacement policy:

  • All memory requests are satisfied from free frame list
  • if free pages number is under a certain threshold
  • free up some frames so that we are above threshold

Question 19

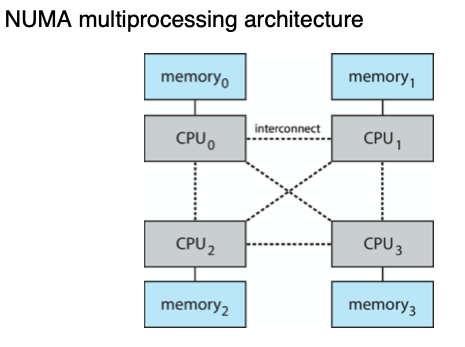

Non-uniform memory acccess

Answer 19

• frame allocation problem
• Many systems have a varying access speed to memory
• Optimal performance comes from:

  • allocating frames near the CPU that is executing the process
  • modifying scheduler to schedule thread on the same system board when possible

Question 20

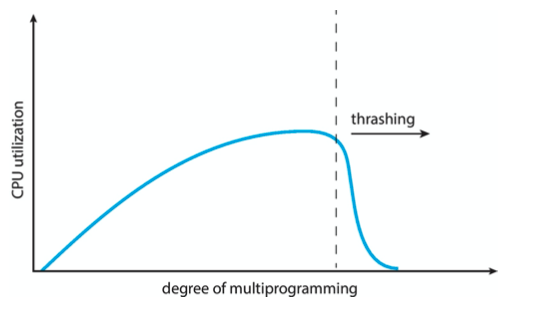

Thrashing

Answer 20

• If process doesn’t have enoguh pages, the page-fault rate gets high

  • page fault to get page
  • replace existing frame
  • slightly after replace frame back again
• Leads to:

  • Low CPU usage
  • OS thinks: I need process that doesn’t do much I/O, let’s bring some processes to memory

    • another process in the system -> more page faults -> less CPU utilization

Demand paging works because of locality model.

Thrashing occurs because: Σ size of locality > total memory size

We can limit thrashing by using local or priority page replacement.

Question 21

Working-Set Model

Answer 21

• Trying to solve thrashing

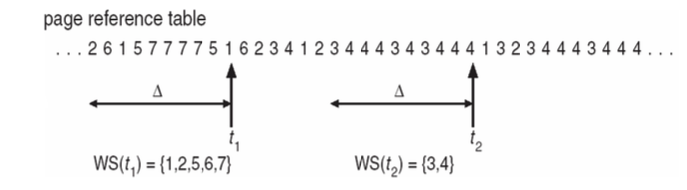

• Δ ≡ working-set window ≡ a fixed number of page references
• WSSi (Working set of Pi): total number of pages referenced in the last Δ

  • Δ too small: will not take full advantage of locality
  • Δ too large: will include several localities
  • Δ tends to infinity: will take the whole program
• D = Σ WSSi = total demand frames ≈ locality

  • D > m => Thrashing
• Policy:

  • if D > m: suspend or swap out one of the processes

Question 22

Keeping track of working set

Answer 22

• Keeping track of the WSS at each page fault is too expensive

  • we will have an interrupt and will need to compute the working set again
• Solution: approximate with timer interval, reference bit and previous reference bit state
• Example

  • Δ = 10000
  • Interrupt timer every Δ/2 time units
  • at every interrupt copy and sets the values of all reference bits to 0 and update previous reference bit
  • if one of the two bit is 1 => the page has been accessed in the last Δ time units
• We could improve using more bits and interrupting more frequently

Question 23

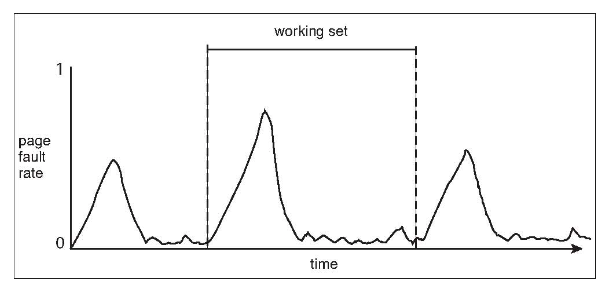

Page-fault frequency

Answer 23

• More direct approch to solve thrashing tan WSS

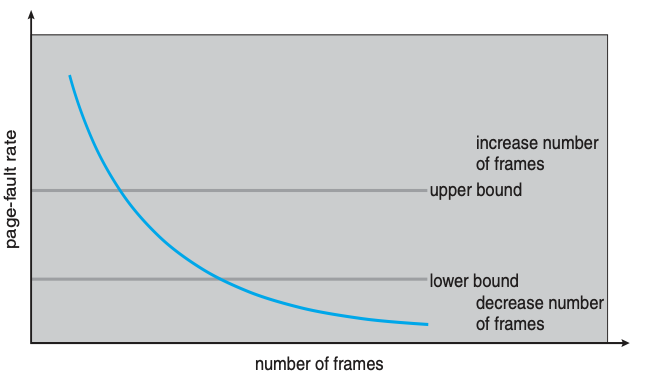

• Establishes an acceptable page-fault frequency (PFF)

  • if current rate high -> process gains frame
  • if too low -> process loses frame
• Algo:

  • at each page fault
  • τ: time interval from previous page fault
  • τ < c: page-fault freq. too high, add new frame to resident set of process
  • τ >= c: freq. is okay:

    • remove from resident set of process all pages with reference bit = 0
    • clear reference bit of all other pages in resident set

Question 24

Kernel memory allocation

Answer 24

• Treated differently (say what?!)
• Often allocated from free pages pool

  • Kernel requests memory for structures of varying sizes
  • Some kernel memory needs to be contiguos (for device I/O)

Question 25

Buddy system

Answer 25

• Way of allocating kernel memory
• Allocates from fixed-size segment of contiguos physical space using a power of 2 allocator
• A request is rounded to the next high power of two
• Pros:

  • Coalescing: adjacent buddies can be combined to form larger segments
• Cons:

  • fragmentation

Question 26

Slab allocator

Answer 26

• Kernel allocation strategy
• Slab: 1 or more physical pages that are contiguos
• Cache: set of 1 or more slabs
• Every kind of kernel data structure has a single cache assigned:

  • each cahe is filled with objects from the data structure
• On cache creation: filled with obejct marked as free
• On strctures stored: objects are marked as used
• If slab is full

  • if there is a free slab frome the same cache: allocate object
  • otherwise: allocate new slab, and allocate object in it
• Pros:

  • no memory fragmentation
  • fast memory request satisfaction

Question 27

Prepaging

Answer 27

• At startup there are a lot of page-faults
• Prepage all or some of the pages the process will need, preventing page-faults
• Beware that processes may not need all prepaged paged -> wasted I/O

Cost of prepaging: prepaging is too costly if the number of used pages is low respect to the number of prepaged ones

Question 28

Page size

Answer 28

• Important parameter that is difficult to choose
• Sometime OS designers can have choice (in particular if running on custom-built CPU)
• Factors to take into consideration:

  • Fragmentation
  • page table size
  • resolution
  • IO overhead
  • number of page faults
  • locality
  • TLB size and effectiveness
• On average, growing over time
• Increasing page size:

  • this increases TLB effectiveness but also frag. for smaller apps.
• Provide multiple page sizes:

  • allow applications that require larger page sized the opportunity to used them without increasing fragmentation.

Question 29

TLB Reach

Answer 29

• Amount of memory accessible from TLB
• TLB reach = (TLB size) * (Page size)
• Ideally, the working set of each process is stored in TLB:

  • otherwise -> too high page fault rate

Question 30

I/O interlock

Answer 30

• Pages that are used to copy/move files shouldn’t be selected for eviction.
• Pinning the page locks to avoid the probelm
