Reading Contruction Drawings Flashcards

1
Q

Total length of measurement in metric (SI) scaled drawing of 1:50 is 100 mm. What is the actual length?

A

5 meters

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

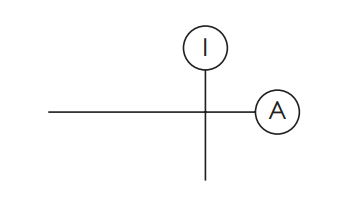

This illustrates a _____________

A

Column Line

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

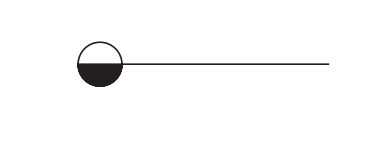

This is a:

A

Match Line

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

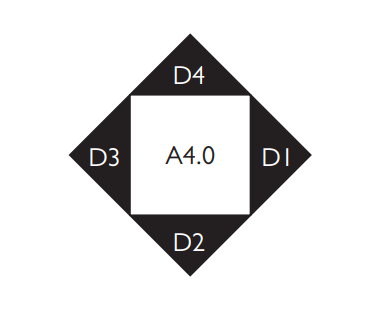

This is called a:

A

Elevation Flag

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

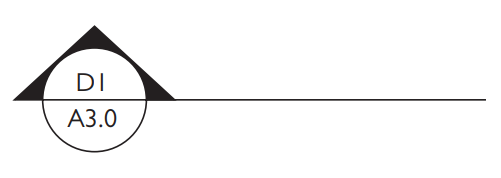

What kind of flag is this:

A

Section Cut Flag

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

This is a __________

A

Detail Flag

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

Illustrates elements in the ceiling with respect to the floor

A

Reflected Ceiling Plan (RCP)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

Drawings that look at the environment from the front, back, side view

A

Elevation Drawing

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

What is a
Section Drawing?

A

A view of the interior of a building in the vertical plane

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

Indicates small items that needs magnified views to show how they must be installed

A

Detail Drawings

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

What does the center number of a elevation flag indicates?

A

The page number

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

Indicates which section drawing depicts a section of a master drawing

A

Section Cut Flags

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

Which abbreviation on a drawing tells you that you don’t need to install a specific AV device?

A

OFOI (Owner Furnished, Owner Installed)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

In which type of drawing, you’d need to look to find out exactly how the projector should be installed?

A

Detail Drawing

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
