Pyro techniques Flashcards
Name and fuze/igniter?
SIGNAL KIT MINIFLARE RED NO 1 MK3 With FLARE PISTOL
Percussion cap, Firing pin to rimfire cartidge.
Flare Cartridge and Flare pistol
Name and Fuse
SIMULATOR PROJECTILE AIRBURST LIQUID (SPAL) ACTUATING CHARGE L1A1
Electric igniter.
Small ejection charge propels the liquid container into the air and a small bursting charge disperses the liquid (24g Black Powder)
Name and Fuze
Canister IRRT Pressurised hand held CS L1A2
remove cap, aim for eyes of children and vulnerable people
Name and fuse
ROCKET HANDFIRED PARA ILLUM MK3 L5A4
Stiker assembly and Percussion cap.
Remove end caps, Firmly push lever up causing striker to impact percussion cap
Name and Fuze
Flare Surface trip M49A1
Striker assembly and percussion cap.
Name and Fuze
SIGNAL SMOKE PARACHUTIST NO 1 MK 5 RED
Striker and percussion Cap.
striker cord which is pulled to release the striker claws. striker claws compresses the striker spring, when released striker impacts percussion cap.
Name and Fuze
SIGNAL ILLUMINATION RED STAR PARACHUTE M126A1
Firing cap (striker) and primer (percussion cap).
Shipping container (green plastic case), Launcher case, Signal carrier
Name and Fuze
Simulator projectile groundburst F3
Igniferous friction matchhead composition
Name and Fuze
FLARE AIRCRAFT PARACHUTE Mk45 Mod0
Mk 364 Mod 0 fuze
Lanyard operated Internal disconnect spring loaded striker
Set to feet to drop to eject para flare
Name and fuze/initiator?
Submarine Launched Flare MK2 Red
Electric initiator
Pressure valve allows water to energise battery close to water surface. Electrical initiator launches para flare into the air.
Name and fuze/ignitor?
MARKER LOCATION MARINE KC-25
MK 13 MOD 0 Electric Squib
Salt water activated battery functions an electric igniter
MLM MK25-3(MOD) SA2000 electric match/scuttling charge.
Name and Fuze

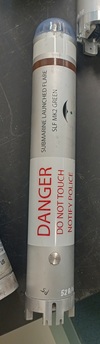

Submarine Launched Flare MK2 Green
Electric initiator
Pressure valve allows water to energise battery close to water surface. Launches para flare into the air.
