IP Routing

Question 1

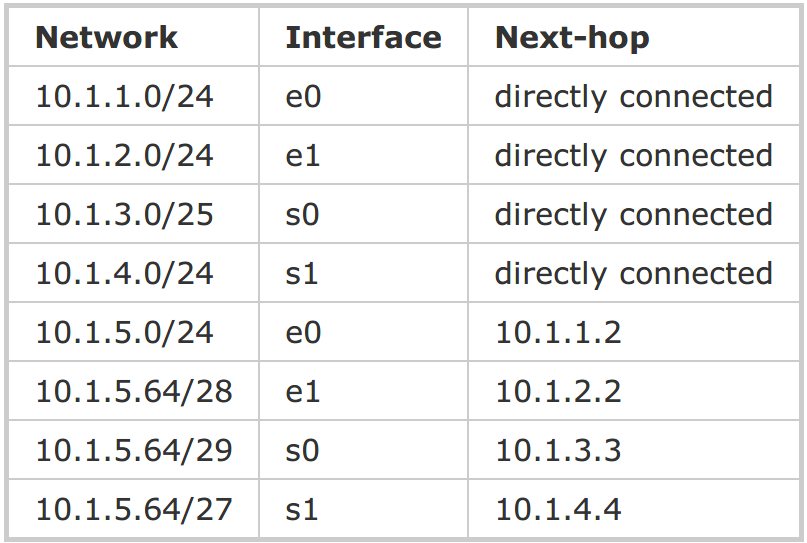

According to the routing table, where will the router send a packet destined for 10.1.5.65?

Answer 1

10.1.3.3

Question 2

A network administrator is troubleshooting an EIGRP problem on a router and needs to confirm the IP addresses of the devices with which the route has established adjacency. The retransmit interval and queue counts for the adjacent routers also need to be checked. What command will display the required information?

Answer 2

show ip eigrp neighbors

Question 3

What two peices of information does a router running a link-state protocol use to build and maintain its topological database?

Answer 3

1. Hello Packets
2. LSAs from other routes

Question 4

Which three statements decribe the routing protocol OSPF?

Answer 4

1. It supports VLSM
2. It confines network instability to one area of the network
3. It allows extensive control or routing updates

Question 5

The network administrator needs to address seven LANs. RIP version 1 is the only routing protocol in use on the network and subnet 0 is not being used. What is the maximum number of usable IP addresses that can be supported on each LAN if the organization is using one class C address block?

A. 6
B. 8
C. 14
D. 16
E. 30
F. 32

Answer 5

30

Question 6

What is the default administrative distance for RIP?

Answer 6

120

Question 7

What is the default administrative distance for OSPF?

Answer 7

110

Question 8

What is the default administrative distance for static routes?

Answer 8

1

Question 9

What is the default administrative distance for an internal EIGRP route?

Answer 9

90

Question 10

What is the default administrative distance for a directly connected network?

Answer 10

0

Question 11

What is the default maximum number of equal-cost paths that can be placed into the routing table of a Cisco OSPF router?

Answer 11

4
