Intro to Urinary Evaluation Flashcards
What are the functions of the kidney?
- Clear metabolic wastes from blood
-
Conserve nutrients
- Glucose
- Protein
- Maintain water, electrolyte, and A-B balance
- Hormone production
- Erythropoietin
- Vitamin D
- Renin
- Hormone degradation and/or excretion
- PTH, Growth Hormone, Secretin, Cholecystokinin, glucagon, gastrin, prolactin, insulin, thyrotropin and ADH
- Enzyme degradation and/or excretion
- amylase, lipase
What determines what through the glomerular filtration barrier when healthy?
- size (mol wt > 68,000 not filtered)
- Charge
- Basement membrane - negative charge
- Negatively charged molecules may be repelled
During health what stays in the blood and what passes through the barrier?
- Stays:
- Cells (WBC, RBC, Platelets)
- Most plasma proteins ( Albumin & larger proteins)
- Passes:
- Water
- Solutes
- Electrolytes
- Glucose
- Urea
- Small proteins (other)

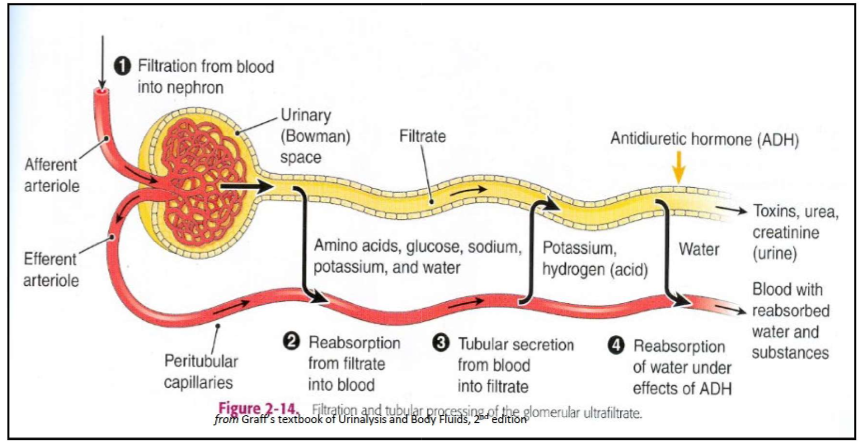

What are the major physiologic processes of the nephron?
- Glomerular filtration (passive)
- Substances move from plasma to tubules
- Tubular resorption (passive & active)
- Substances move from tubules to plasma
- Tubular secretion (passive & active)
- Substances move from plasma to tubules
- Water Regulation
What is the Glomerular Filtration Rate (GFR)?
- Volume of plasma filtered from glomerular capillaries into Bowman’s space per unit of time
- Measured by determining rate of clearance of a substance from plasma
- GFR: rate substances are cleared from plasma via glomeruli
- ⇣ GFR: substances cleared slower; stay in plasma longer
What does GFR depend on?
- Renal blood flow
- # of functional nephrons
- Hydrostatic pressure in Bowman’s capsule
How can renal function be evaluated?
- Glomerular filtration - look for protein in urine
- Glomerular filtration rate - Look for accumulation of waste products in blood (UN, creatinine)
- Ability to concentrate urine - urine specific gravity
What is osmolality?
- Total solute concentration
- Concentration of solutes per kg Water (mmol/kg H2O)
- Urine Osmolality varies greatly -
- H2O conservation
- Solutes excreted
How can osmolality and USG be measured?
- Osmometer (measures osmolality)
- Freezing point assay, not convenient, more accurate
- Measure depends on the number of particles in the volume of water

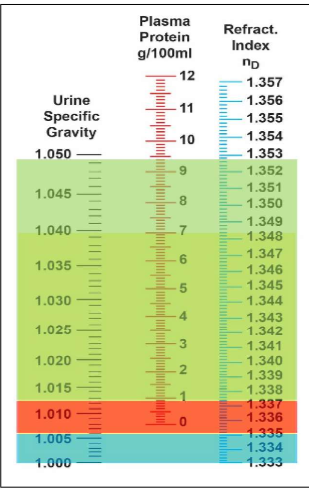

- Refractometer (measures USG)
- Convenient, less accurate
- Depends on particle weight and how each particle bends light
- Prone to interference - difference between how glucose, electrolytes, urea, proteins, lipids, and other substances refract light
How are Urine Osmolality and USG related?
- Typically excellent correlation between osmolality & USG
- As osmolality increases, USG increases by an approximate factor of 30
- Both change with # of particles/volume
- USG also changes with types of particle
How does the kidney handle water?
- Kidneys receive ~25% of cardiac output
- ~99% of water entering the tubules is resorbed
- Healthy person (70 kg)
- ~180L of water enters the kidney
- ~1-2 L of urine excreted daily
What is Antidiuretic hormone (ADH)?
- Synonym = vasopressin
- Synthesized in the hypothalamus
- Secreted from the posterior pituitary gland (neurohypophysis)
- Interacts with receptors on the cells of the distal tubules and collecting ducts
- Opens water channels via aquaporin proteins (minutes)
What re the stimuli for ADH secretion?
- Plasma hyperosmolality
- Osmoreceptors (hypothalamus)
- ⇣ cardiovascular pressure (hypovolemia)
- Baroreceptors
- ⇡ angiotensin
What is the result of ADH?
- Conserve body water to ⇣plasma osmolality & ⇡blood volume

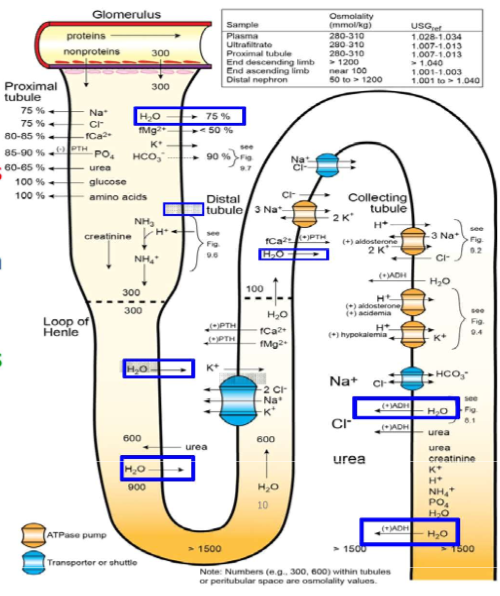

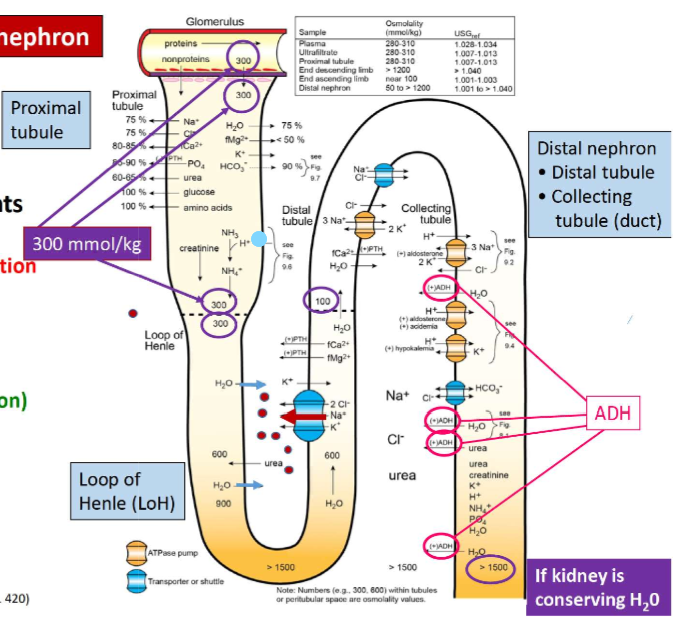

What are the major events of the nephron segments that influence osmolality?
- Proximal CT - removes volume
- no change in concentration
- Descending LoH - removes H2O
- ⇡ concentration
- Ascending LoH - removes solute
- dilutes (⇣⇣ concentration)
- Distal nephron - removes H2O
- ⇡ concentration
What is needed to produce concentrated urine?
- Adequate number of functional nephrons
- Adequate production o ADH from pituitary
- Distal nephron epithelial cells must be responsive to ADH
- Hypertonic interstitium in the renal medulla
- Must be a concentration gradient between tubular fluid and interstitium (osmolality of the interstitium > osmolality of the tubular fluid
- Urea, Na+, Cl- = major contributors
What are the expected USG for dehydrated animals?
- Dog: > 1.030
- Cat: >1.080
- Horses/Cattle: >1.50
What are the possible clinical interpretation of USG?
- Urine osmolality > plasma osmolality
- USG > 1.013
- interpret with hydration status
- Urine osmolality = plasma osmolality
- Isosthenuria
- USG = 1.007 - 1.013
- in a dehydrated animal, indicates kidneys have not concentrated nor diluted the tubular fluid
- Urine osmolality < plasma osmolality
- Hyposthenuria
- USG ≤ 1.006
- Implies that the kidneys have actively diluted the tubular fluid
- NOT renal failure
What is anuria?
lack of urine production
What is Dysuria
painful or difficult urination
what is oliguria
production of an abnormally small amount of urine
What is pollakiuria
indicating increased frequency of urination
Doesn’t indicate urine volume
what is polydipsia
increased water consumption
what is polyuria
production of excessive amounts of urine
What are the routine laboratory tests to assess renal function?
- Glomerular filtration adequate (GFR)
- Urea Nitrogen
- Serum creatinine
- SDMA
- Integrity of glomerular structure
- Urine protein
- Urine protein : urine creatine ratio
- Ability to concentrate and dilute urine
- USG
- comparison of urine & plasma osmolality
- Provocative tests of urine concentrating ability
- water deprivation test
- USG
- Urinalysis
- USG, Chemistry, and sediment examination
- assesses more than the urinary tract
- USG, Chemistry, and sediment examination
What is Azotemia?
Increased concentration of Urea Nitrogen (UN or BUN) and/or Creatinine
How is urea synthesized and excreted?
- Ammonium (NH4+) goes through the urea cycle in the liver to become urea
- Goes through the renal system
- ~50% is resorbed in the proximal tubule
- depends on flow rate and H2O resorption
- ⇣ GFR = ⇡UN
- ~10% resorbed in collecting tubule
- ~50% is resorbed in the proximal tubule
What causes increased urea formation?
- High protein diet (mild, transient effect)
- GI hemorrhage
- Disorders that increase endogenous protein catabolism
What causes decreased urea formation?
- Hepatic failure/shunt
- Malnutrition
- Diuresis
What are alternate routes of excretion for Urea Nitrogen?
- Saliva, sweat, GI tract
- Minimal to no effect on UN concentration in dogs & cats
- GI tract excretion of urea is significant in horses and ruminants
- UN is not a sensitive indicator of GFR in those species
- Bacteria in the rumen (cattle/sheep/goats) or cecum (horses) degrade urea to NH4+ to make amino acids
How does Urea Nitrogen drive recovery of water/concentration of urine in the collecting ducts
- Urea diffuses readily across most cell membranes along a concentration gradient
- Rapid equilibration among intracellular and extracellular fluid compartments (~90min)
- Equilibrium between erythrocytes, plasma/serum
- Whole blood UN = Serum UN
- Urea contributes to the renal medullary concentration gradient along with electrolytes
What tubes need to be used when testing for UN?
- Serum (red top tube)
- Plasma (green top tube)
- Stable for 1 day at room temp, several days at 4-6C, and 2-3 months frozen
How is creatinine Metabolized
- Creatinine is a waste product from the normal breakdown of muscle tissue
- the amount formed daily is constant for any animal
- Production proportional to muscle mass
- Removed almost exclusively via renal excretion
- Freely filtered through glomerular barrier into ultrafiltrate
- Not resorbed by tubules
- Excreted in urine
How is creatinine Metabolized
- Creatinine is a waste product from the normal breakdown of muscle tissue
- the amount formed daily is constant for any animal
- Production proportional to muscle mass
- Removed almost exclusively via renal excretion
- Freely filtered through glomerular barrier into ultrafiltrate
- Not resorbed by tubules
- Excreted in urine
Where is creatinine measured?
in serum or plasma (Green or red tube) NOT whole blood
What causes increased Creatinine (Ct) levels?
- Decreased GFR
- it does NOT increase with increased muscle catabolism
What causes decreased Creatinine?
- May not be clinically significant
- Consider:
- decreased muscle mass
- hypoproteinemia
What is the relationship between UN and Ct in dogs/cats?
- UN & Ct increase in parallel when GFR is decreased as a result of renal failure
-
Prerenal azotemia can cause a disproportionately greater increase in UN than creatinine
- increased tubular resorption of urea (urea absorbed with water)
- GI hemorrhage ⇢ increased UN
- many animals with renal disease are anorectic or eat a low protein diet ⇢ decreased UN relative to creatinine
- Extremely cachectic (physical wasting) animals have decreased muscle mass and may have decreased creatinine compared with UN
What do the levels of UN/Ct indicate in horses/ruminants
Creatinine more specific for renal compromise than UN because urea is metabolized by bacteria in the rumen or cecum
What are the different types of Azotemia?
- ⇡ UN and/or ⇡Crt concentration in serum or plasma (or blood)
- Prerenal: primary cause is pre-glomerulus
- Renal: primary cause is nephron
- Postrenal: primary cause is after the nephron
What are possible causes of Pre-renal azotemia?
- Azotemia results from processes outside of the kidneys
- UN & Creatinine are increased
- Urine is concentrated
- Possible causes:
-
Decreased renal blood flow = decreased GFR
- Dehydration
- hypovolemia / fluid maldistribution
- Severely decreased cardiac output
-
increased production of urea and/or creatinine
- Urea
- high protein diet
- GI hemorrhage
- Creatinine
- Heavily muscled animal
- Urea
-
Decreased renal blood flow = decreased GFR
What is Renal azotemia?
- Primary cause is within the nephron
- Azotemia results from any form of renal disease that causes enough damage to the kidney to decrease the GFR
- Loss of functional nephrons ⇢ GFR is decreased even if renal blood flow is normal
- UN and creatinine are increased
- urine is NOT concentrated in the face of dehydration
- decreased concentrating ability
- Isosthenuric urine (1.007 - 1.013) indicates an inability to concentrate and dilute
What is Post-renal azotemia?
- Primary problem is after the nephron
- Results from a problem that interferes with excretion of urine somewhere distal to the nephron
- UN and Crt are increased
- Urine concentration varies
- Ex:
- Ureteral / urethral obstruction - hydrostatic pressure within the Bowman’s capsule is increased and GFR is decreased
- Rupture / leakage along the urinary outflow tract (kidney, ureter, bladder, urethra) causing leakage of urine into abdominal cavity
How is Azotemia different from Uremia?
- Azotemia - increased concentration of non-protein nitrogen compounds in blood (UN and Crt)
-
Uremia:
- Clinical syndrome associated with renal failure
-
Azotemia + severe physical consequences of renal failure
- Polyuria / polydipsia
- Vomiting / diarrhea
- Ammonia odor of breath
- GI ulcers
- Nonregenerative anemia
- Weigh loss
- Convulsions
- Death
What abnormal laboratory results are expected in azotemic animals?
-
Sodium and Chloride
- ⇡ with Prerenal azotemia
- Low / WRI with renal failure due to decreased resorption
-
Potassium (excreted by kidney)
- ⇡ in oliguric / anuric renal failure (ARF)
- ⇣ in cats/cows with polyuric renal failure (CRF)
- Most common electrolyte abnormality in cats with CRF - may cause marked muscle weakness
-
Phosphate
- Excretion is ⇣ when GFR ⇣ for any reason
- Usually ⇡ in animals with moderate to marked azotemia
-
Magnesium
- ⇡ with ⇣GFR
-
Calcium
-
Dogs/cats/cattle:
- WRI / slightly decreased with renal failure
- hypercalcemia with azotemia is more likely to be the cause for renal disease than the result (but can develop secondary to renal failure)
-
Horses rely on renal excretion of calcium
- High in most horses with renal failure
-
Dogs/cats/cattle:
-
Hematocrit
- WRI / ⇡ in pre-renal azotemia and ARF
- Non-regenerative anemia in CRF (decreased RBC life-span & Epo production)
-
Total Protein, Albumin
- WRI / ⇡ in pre-renal azotemia +/- ARF
- only reason for increased albumin concentration is dehydration
- WRI / ⇣ in CRF (especially with glomerular proteinuria)
- WRI / ⇡ in pre-renal azotemia +/- ARF
- Acid/base
What is SDMA?
- Symmetric Dimethylarginine (SDMA)
- Kidney excretory function biomarker
Why would SDMA be elevated?
- In dogs/cats with renal disease
- ⇡ [SDMA] before ⇡ [Creatinine]
- ⇡ [SDMA] before ⇡ [Urea]
- Prerenal azotemia:
- ⇡ proteolysis ⇢ ⇡⇡ production ⇢ ⇣ renal blood flow ⇢ ⇣ GFR
- Renal azotemia:
- ⇣ number of nephrons ⇢ ⇣ GFR
- Postrenal azotemia:
- Obstruction ⇣ ⇣ GFR
- Urine leakage
What is an indicator of Stage 1 CKD?
Persistent elevation in SDMA in a hydrated and urinating dog/cat without azotemia indicates reduced renal function
What are the mechanisms of Polyuria?
-
Lack of ADH production
- Central diabetes insipidus (pathologic)
- Psychogenic polydipsia (behavioral)
-
Distal tubule / collecting duct cells cannot respond to ADH
- Nephrogenic diabetes insipidus
-
Must be a concentration gradient between tubular fluid and interstitium (Must have osmolality of the interstitium > osmolality of the tubular fluid)
- Solute diuresis
- Reduced medullary interstitium osmolality
What is Solute diuresis?
- When water is not resorbed
- Can occur when the kidneys are functioning normally but are presented with increased solute (eg Diabetes Miletus)
- Can occur when there are decreased # of functional nephrons
- ⇡ solute load on the available nephrons
What is Chronic Renal disease?
- No universally accepted definition or criteria for staging
- Major Criteria -
- Evidence of GFR
- Evidence of ⇣ concentrating ability
- Major Criteria -
What are the Stages of Chronic Renal Disease? (for this course)
-
Decreased Renal Reserve:
- GFR ~50% normal
- Clinically healthy - NOT azotemic or polyuric
-
Chronic renal insufficiency:
- 25-50% function
- Azotemia, anemia, ⇣concentrating ability, polyuria
-
Chronic renal failure:
- <20-25% function
- Azotemia, anemia, ⇣ concentrating ability, polyuria
- Electrolyte imbalance, clinical signs of uremia
-
End-stage renal disease:
- <5% function
- Terminal uremia signs and oliguria or anuria
Percentages Not true for cats*
What is the cause of Polyuria in Chronic Renal Disease?
- Loss of functional Nephrons
- More solute presented to remaining functional nephrons
- ⇡ load through nephrons
- Solute diuresis
- More solute presented to remaining functional nephrons
- Medullary hypertonicity is not maintained
- Medullary tissue damage or abnormal blood flow
- ⇣Na+, Cl- and urea reabsorption
- Damaged cells less responsive to ADH
What is the evidence for Renal insufficiency/Failure?
- Azotemia
- Inappropriaely low USG (1.007 - 1.013)
- Inability to concentrate or dilute
What is the evidence that renal insufficiency/failure is chronic?
- Anemia
- Hypocalcemia or WRI (dogs, cats, ruminants)
- Hypercalcemia (equids)
- clinical findings including duration of signs
What is Acute Renal failure?
- Abrupt insult or disease
- Marked decrease in GFR ⇢ Azotemia ⇢ uremia
- degree of azotemia does not differentiate chronic vs acute
- rate of increase of UN & Crt more rapid in acute disease
- Reversible or Irreversible
What happens to urine volume and USG during acute renal failure?
-
Volume:
- Kidneys may filter little blood ⇢ oliguria or anuria
- No time for compensatory hypertrophy of healthy nephrons
-
USG:
- Variable
- Concentrated - if formed prior to insult
- Isosthenuric - no ability to concentrate or dilute
- Not expected to be hyposthenuric
- Variable
What is Hemorrhagic/Inflammatory proteinuria?
- Most common mechanism for additional protein in urine
- Hemorrhage anywhere in the Urinary tract
- Inflammation causing exudation of plasma proteins into the urinary tract
- Magnitude varies but it does NOT lead to hypoalbuminemia
What is Functional proteinuria?
- Transient mild increase in urine protein content
- exercise, fever, seizures, stress
- mechanism unclear
What is Overload proteinuria?
- increased plasma concentration of small proteins that pass through glomerular filtration barrier and exceed capacity for tubular resorption
- Hemoglobin, myoglobin, immunoglobulin light chains (Bence Jones proteins)
- Does NOT lead to hypoproteinemia
What is Tubular proteinuria?
- Proximal tubular injury causing failure to resorb small proteins
- Usually associated with acute renal tubule damage
- nephrotoxic agent or ischemia
- Usually associated with acute renal tubule damage
- Does NOT result in hypoproteinemia
What is Glomerular proteinuria?
-
Damage/disruption of the glomerular filtration barrier
- immune complex deposition
- Amyloid deposition
- Inflammatory cells contribute - release cytokines and other mediators that can damage the glomerulus
-
Increased permeability to large and/or negatively charged proteins
- Albumin first, globulins later with progressive damage
- Damage often leads to selective hypoproteinemia
- Progressive disease can lead to:
- tubular damage and tubular proteinuria, loss of nephrons ⇢ azotemia, renal failure
- Leads to Selective Hypoproteinemia
What happens with severe glomerular damage?
- With sever glomerular damage - entire nephron may become non-functional
- if many nephrons are lost - signs of renal failure
- azotemia, uremia, isosthenuria, acidemia, etc
- if many nephrons are lost - signs of renal failure
What is Nephrotic syndrome?
- Severe, persistent proteinuria
- Hypoproteinemia (loss of many proteins)
- Hypercholesterolemia
- Ascites or edema (decreased plasma oncotic pressure)
What are the Pre and Post renal sources of Proteinuria?
- Hemorrhage - red/red-brown, turbid urine with RBCs in sediment
- Hemoglobinuria - red/red-brown urine, no RBCs in sediment, red/red-brown plasma, anemia
- Myoglobinuria - red/red-brown urine, no RBCs, plasma normal color, not anemic, signs of severe muscle damage, increased CK
- Inflammation -WBCs in sediment
When should Glomerular disease be suspected when interpreting Urine Protein Assays (Dipstick)?
- When there is no evidence of non-glomerular sources of proteinuria AND:
- 1+ protein in dilute urine (USG < 1.012)
- ≥2+ protein in concentrated urine
- And/or hypoalbuminemia with no other cause present
What is the Urine Protein : Urine Creatinine Ratio (UPC)?
- An index of the amount of protein regardless of urine concentration
- Measured in a single urine sample
- most useful when pre- and postrenal sources of protein have been ruled out
- Will be Increased with any increase in protein
What are the different UPC ratios and their interpretations?
- UPC < 0.2: healthy dogs/cats
- UPC 0.1 - 0.4 (cats) 0.1 - 0.5 (dogs): borderline
- not conclusive evidence of proteinuric renal disease
- UPC 0.4 - 3.0 (C) 0.5 - 3.0 (D): proteinuria present
- could result from glomerular or tubular disease
- UPC > 3.0 - glomerular disease
- tubular disease may also be present, but it is not the only one
- UPC ~15+ : most indicative of amyloidosis
