Grid Codes

Question 1

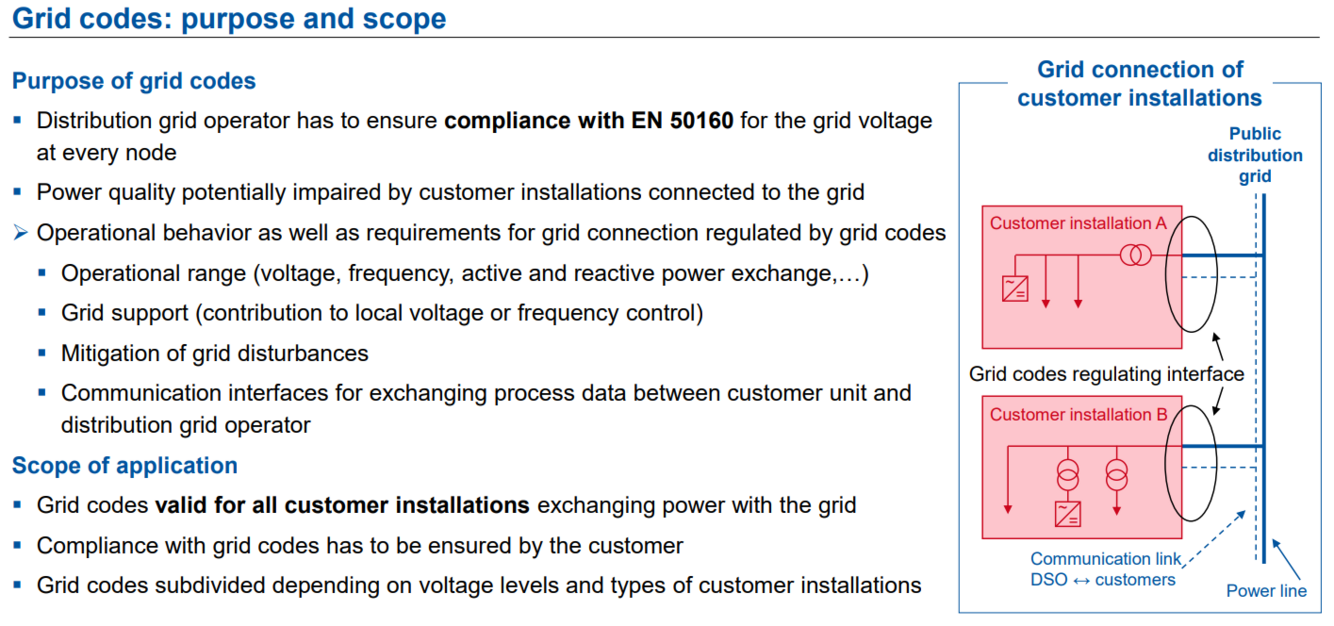

Grid Codes - Purpose and Scope

Answer 1

Question 2

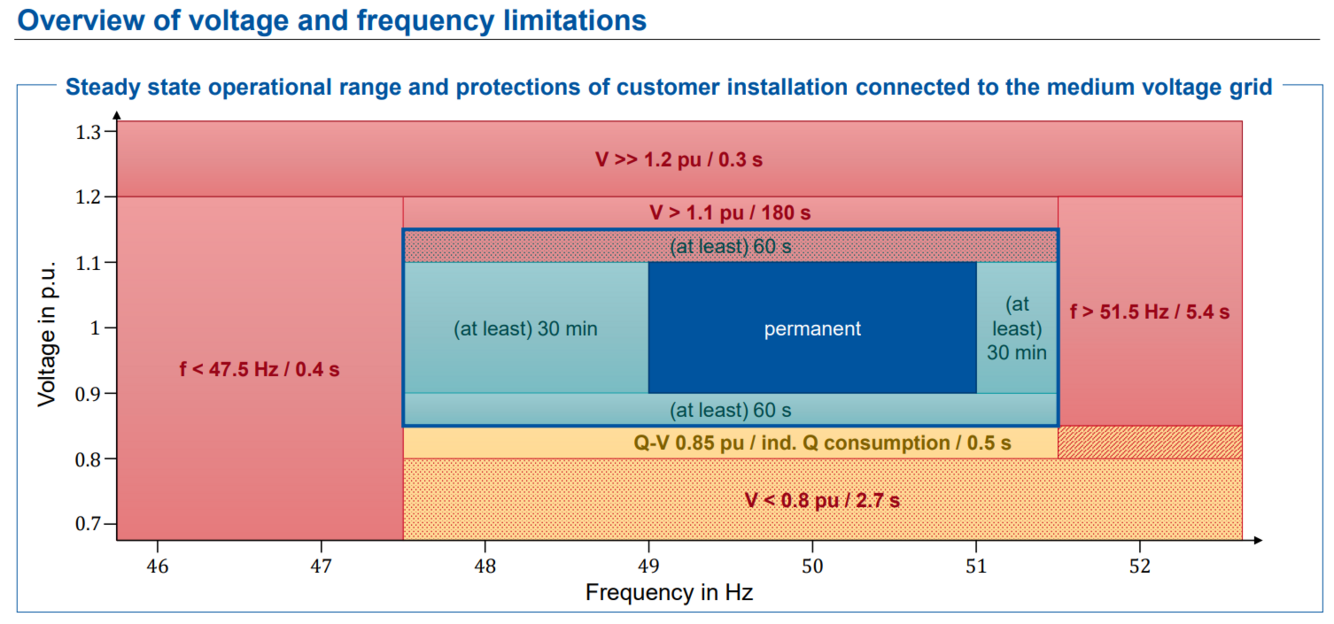

Overview of voltage and frequency limitations

Answer 2

Question 3

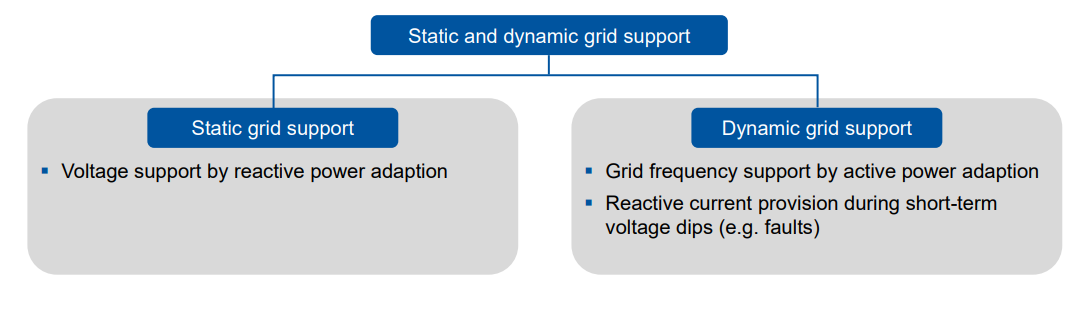

Static and dynamic grid support

Overview of the concepts

Answer 3

Question 4

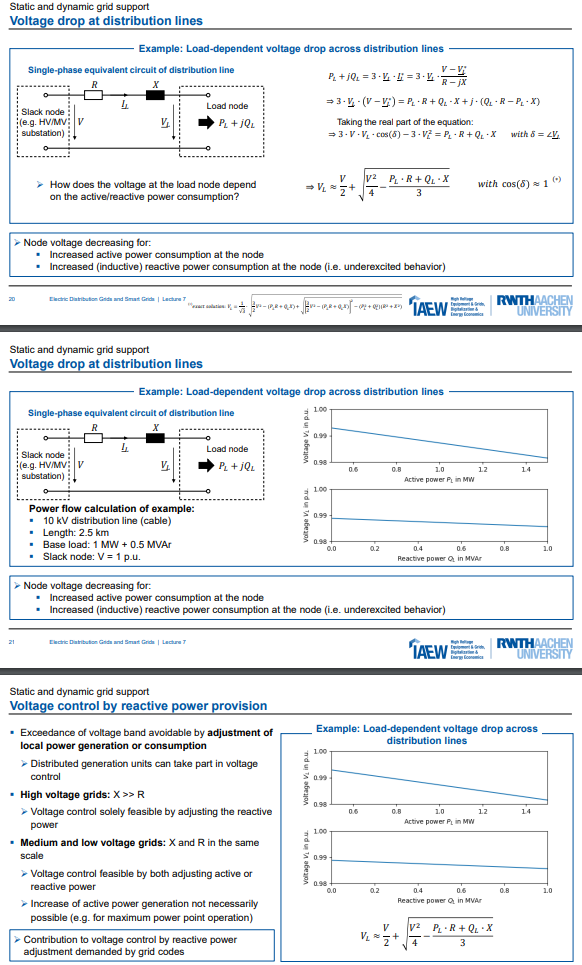

Voltage control via power

Answer 4

Question 5

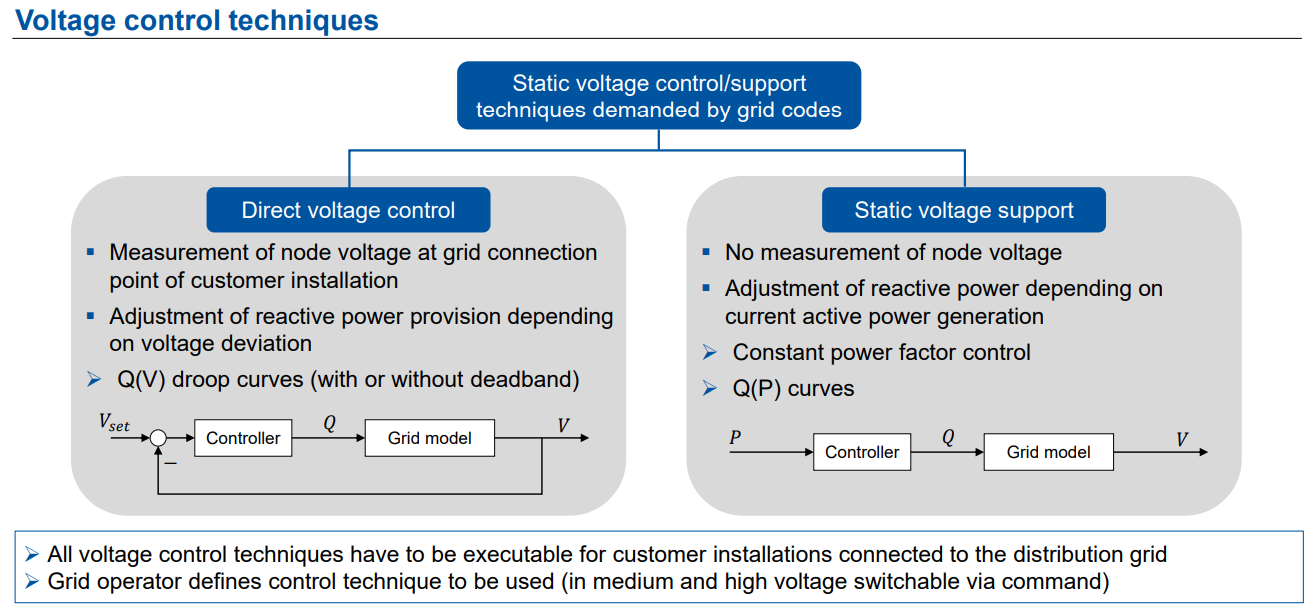

Voltage control techniques

Answer 5

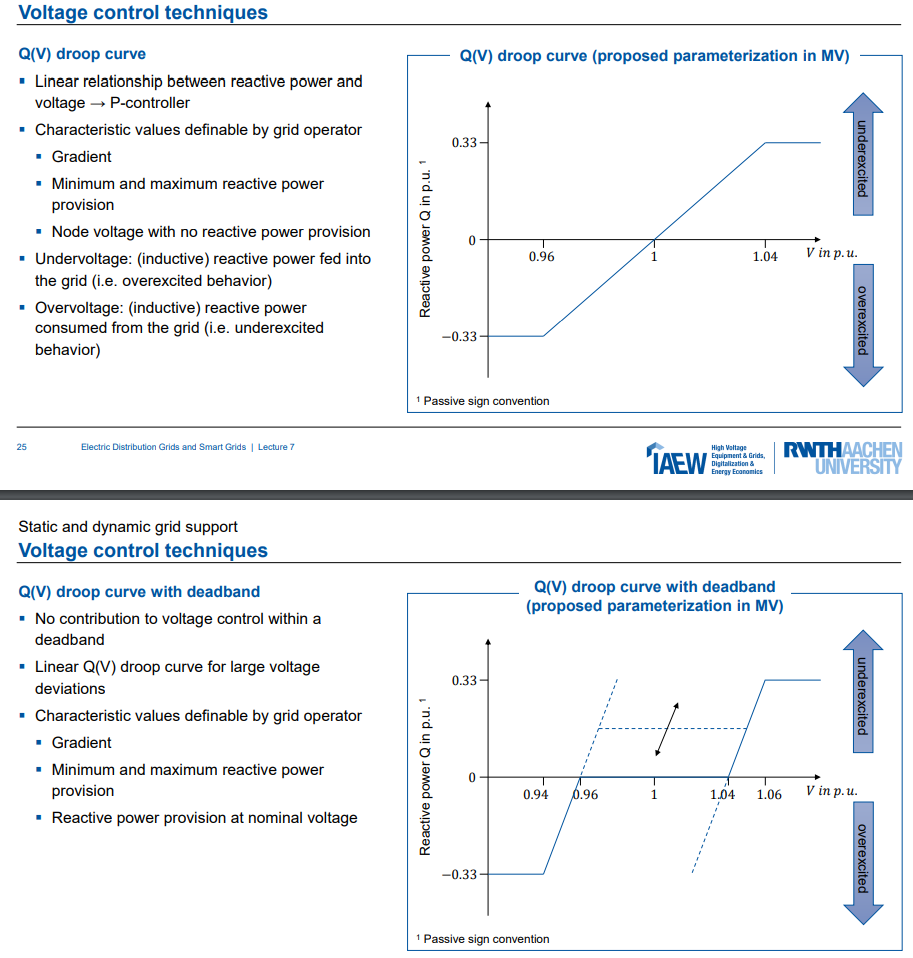

Question 6

Voltage control techniques

Q(V)

Answer 6

Question 7

Voltage control techniques

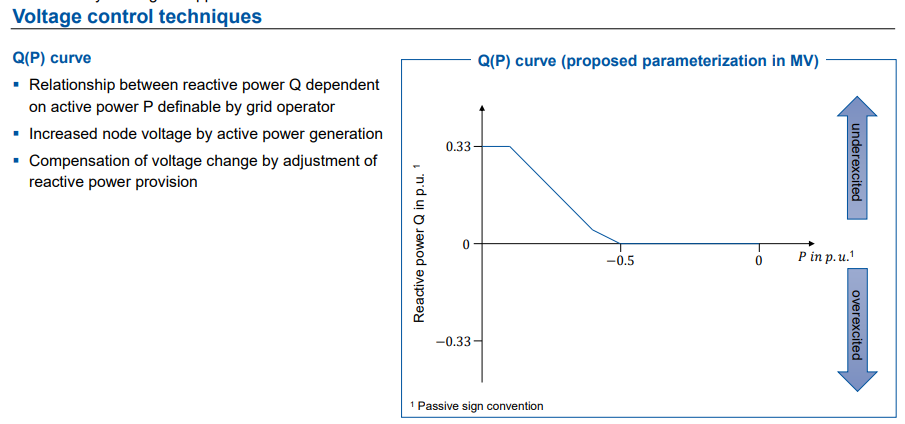

Q(P)

Answer 7

Question 8

Voltage control techniques

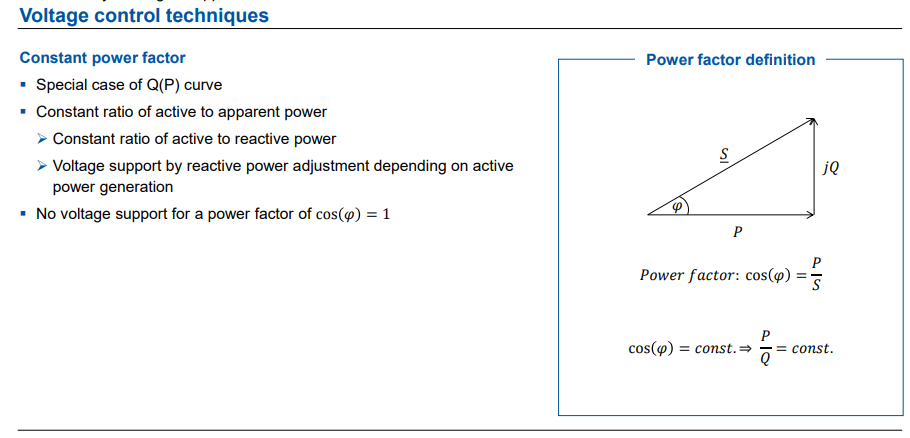

Constant power factor

Answer 8

Question 9

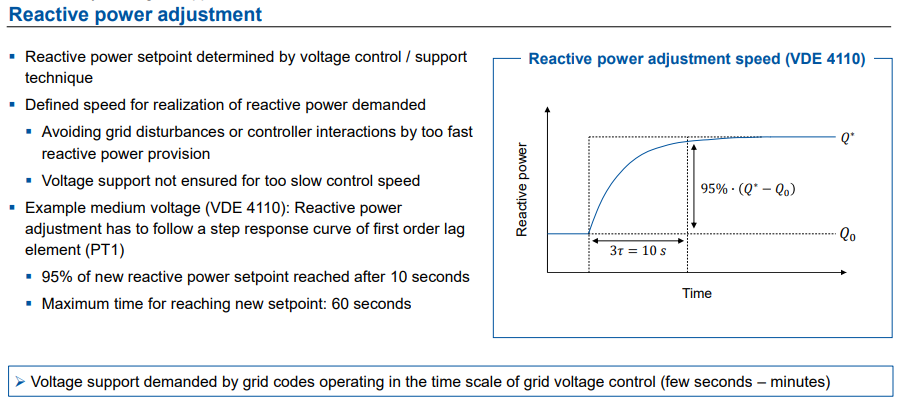

Reactive power adjustment

Answer 9

Question 10

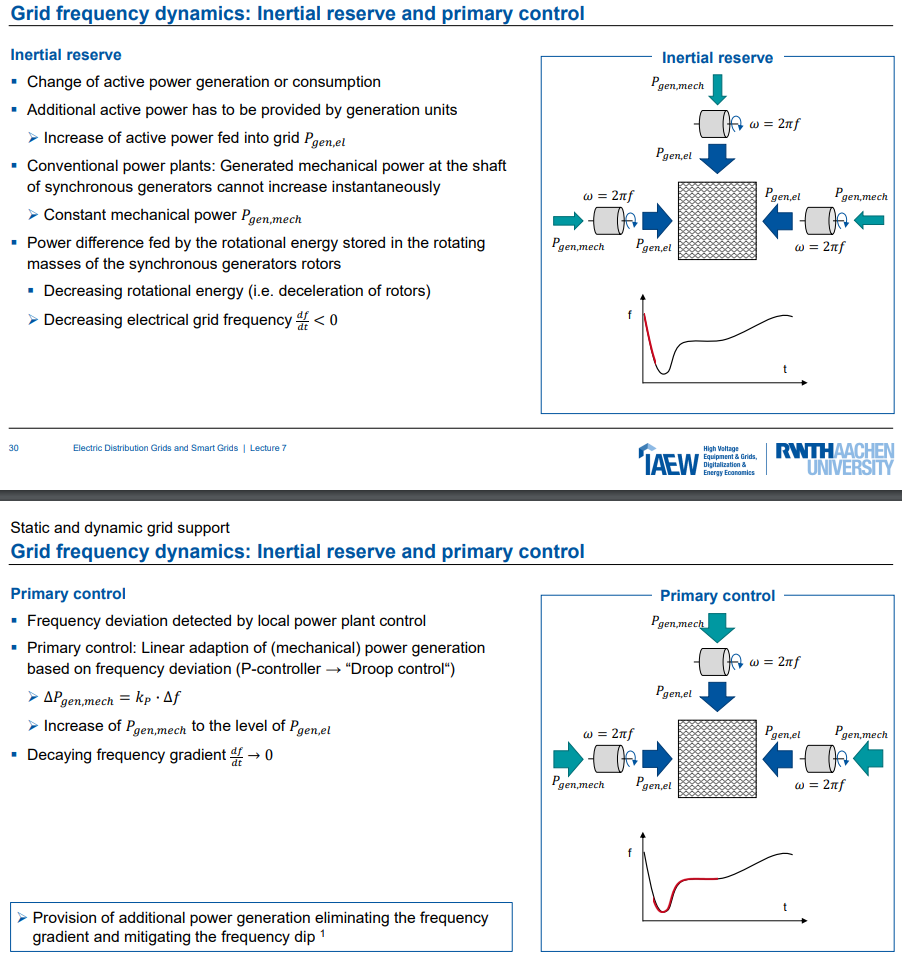

Grid frequency dynamics: Inertial reserve and primary control

Answer 10

Question 11

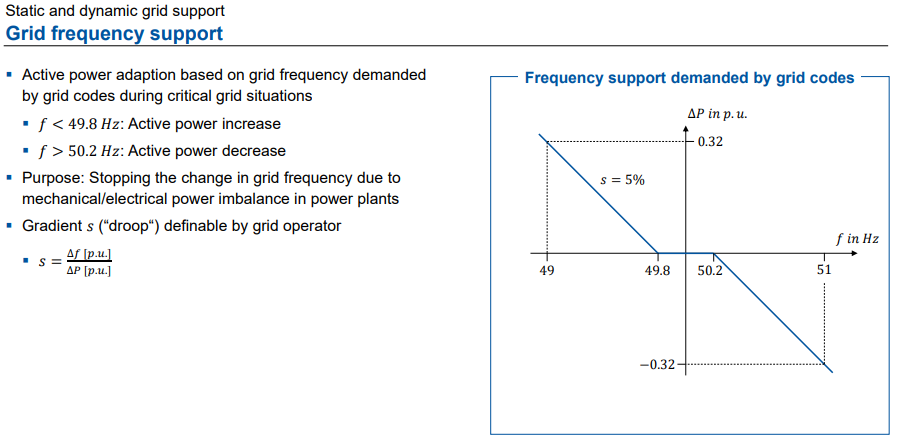

Grid frequency support

Answer 11

Question 12

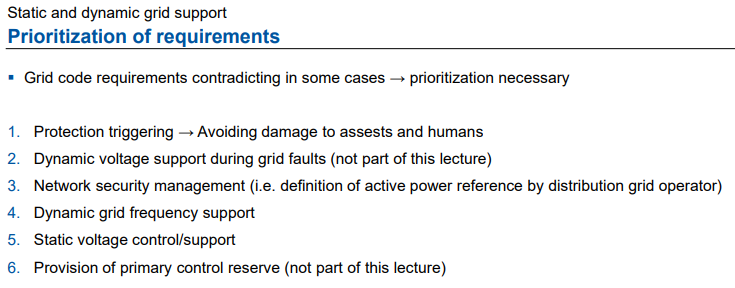

Prioritization of requirements

Answer 12

Question 13

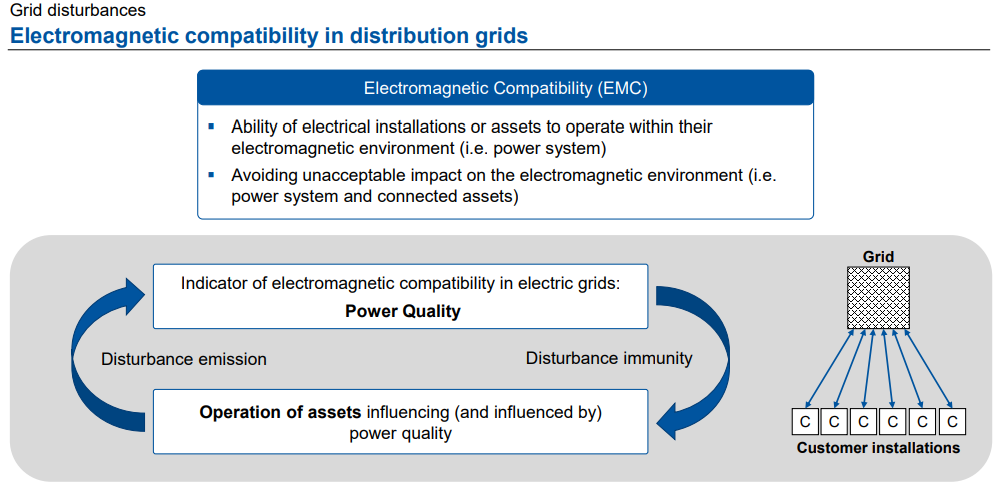

Electromagnetic compatibility in distribution grids

Grid disturbances

Answer 13

Question 14

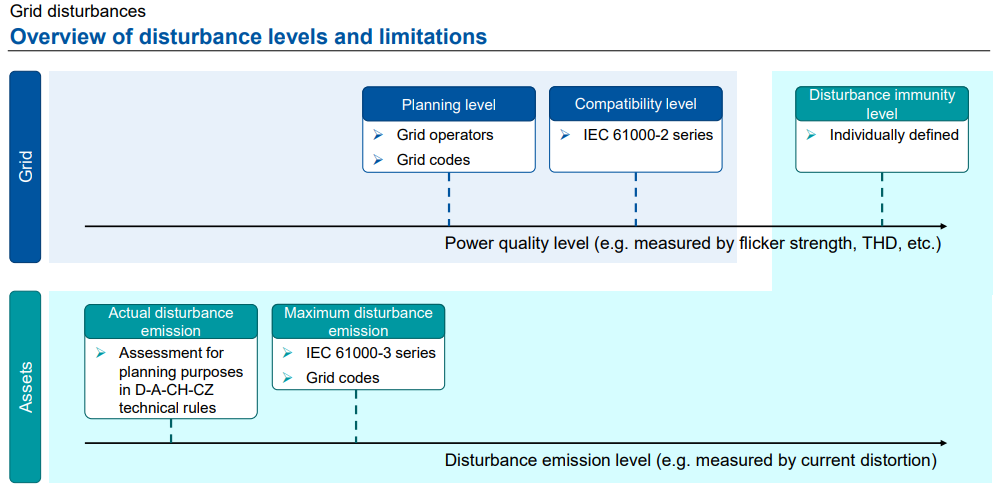

Overview of disturbance levels and limitations

Grid disturbances

Answer 14

Question 15

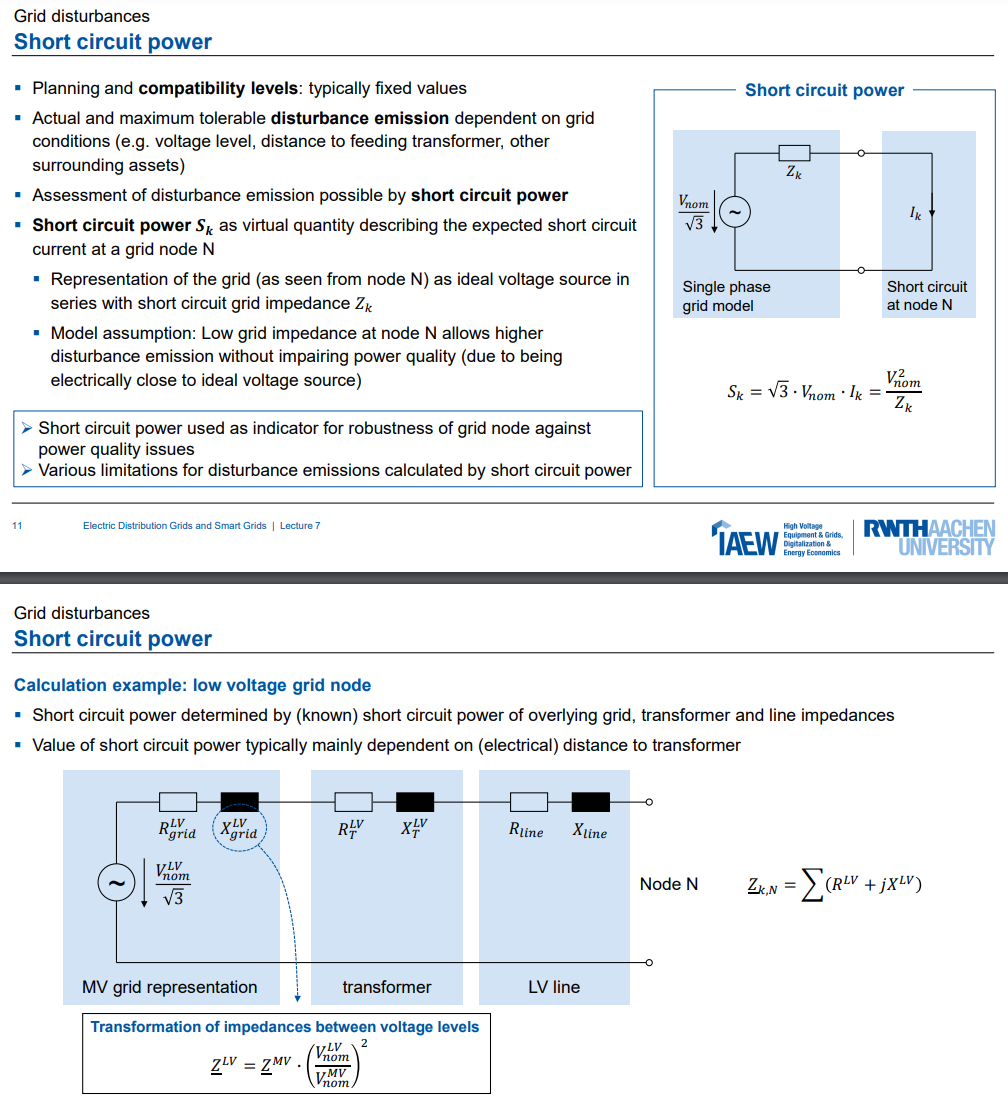

Short circuit power

Grid disturbances

Answer 15

Question 16

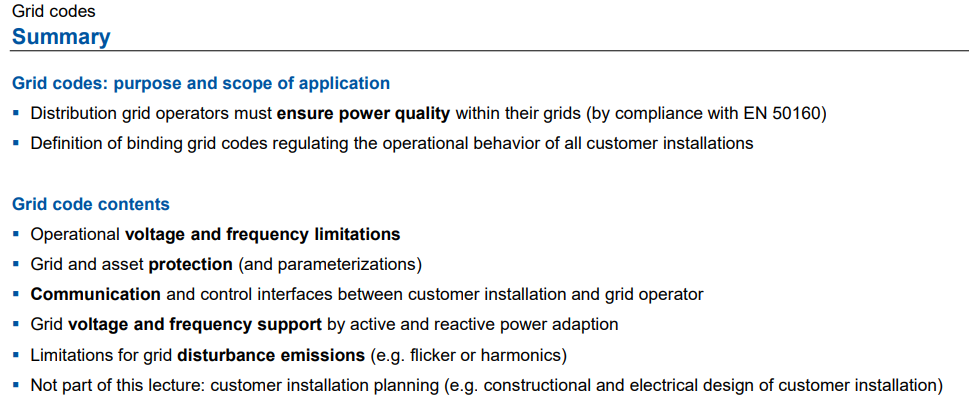

Grid Codes: Summary

Answer 16

Question 17

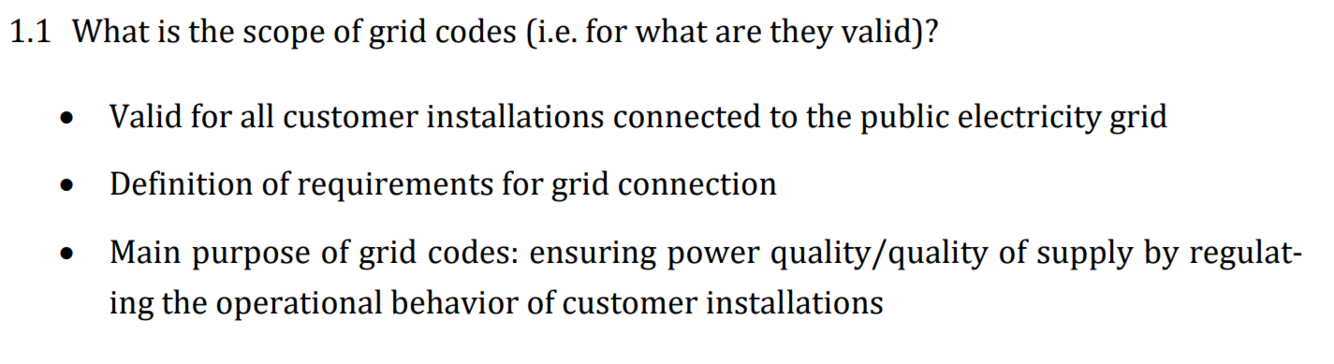

What is the scope of grid codes (i.e. for what are they valid)?

Exercise 5: Task 1.1

Answer 17

Question 18

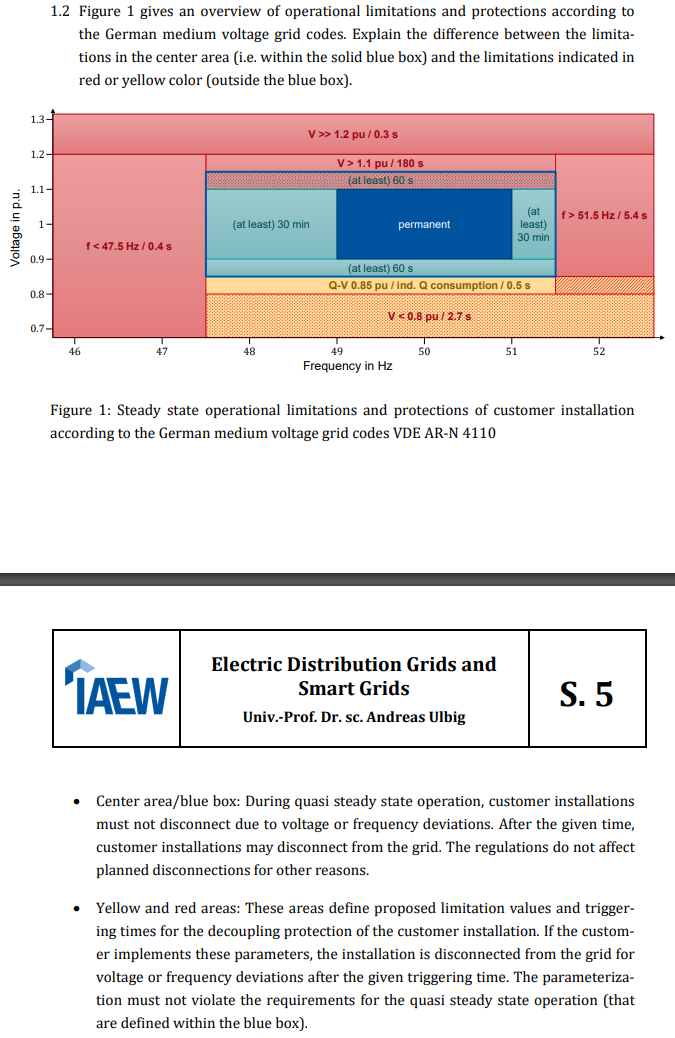

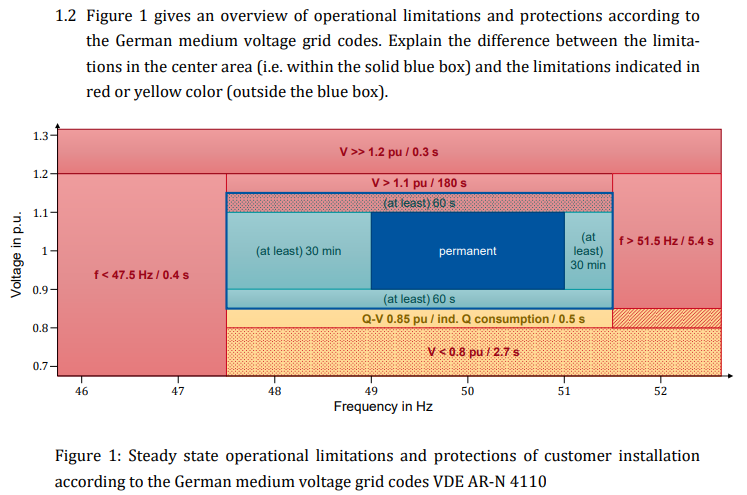

Exercise 5: Task 1.2

Answer 18

Question 19

Exercise 5: Task 1.3

Answer 19

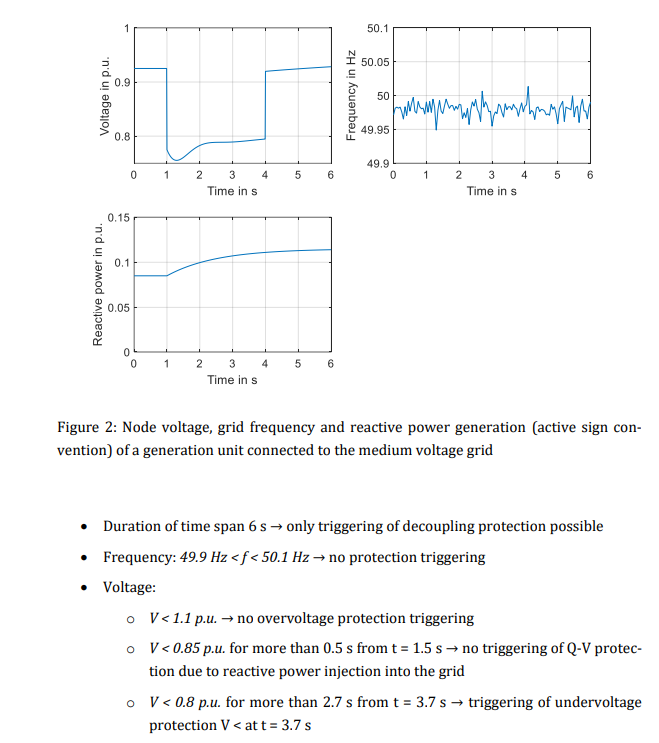

The node voltage, the grid frequency and the reactive power generation of a generation unit connected to medium voltage grid are plotted in Figure 2. According to the
values given in Figure 1, at which time the generation unit would have disconnected
from the distribution grid? Which limitation is violated?

Question 20

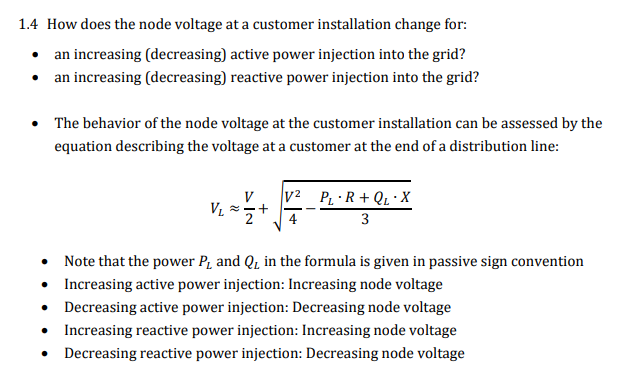

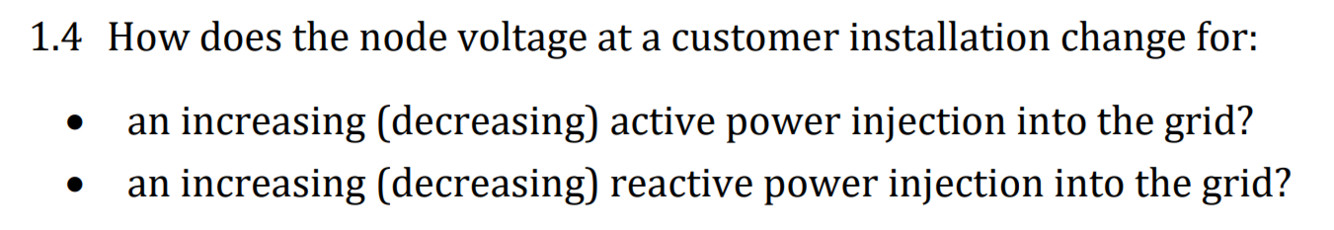

Exercise 5: Task 1.4

Answer 20

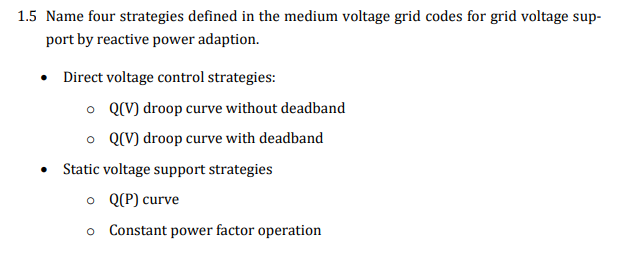

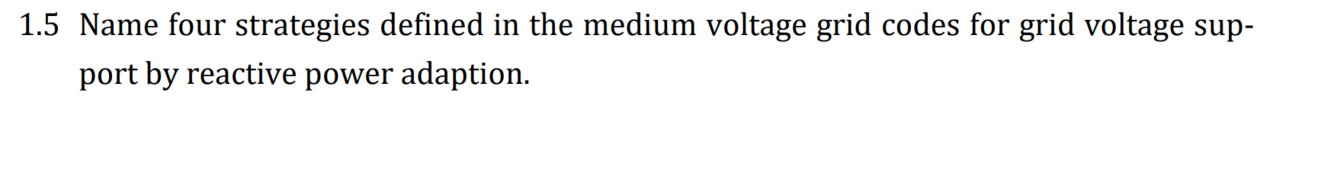

Question 21

Exercise 5: Task 1.5

Answer 21

Question 22

Solve Exercise 5: Task 2

Question 23

Solve Exercise 5: Task 3

Question 24

Solve Exercise 5: Task 4
