Medical Imaging > Final CT > Flashcards

Final CT Flashcards

You may prefer our related Brainscape-certified flashcards:
USMLE® Step 1 flashcards
1
Q

ray

A

A single transmission measurement through the patient made by a single detector at a given moment in time

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

projection (or view)

A

A series of rays that pass through the patient at the same orientation

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

1G CT Scanner

A
  • “translate/rotate” geometry
  • could use narrow beam geometry
  • All rays in a view are parallel to each other “parallel ray geometry”
  • Able to take two slices at once by using a slightly fan-shaped beam that covered two detectors
  • Tube was usually stationary anode tube with 12 degree target angle
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

2G CT scanner

A
  • “Translate/rotate” geometry
  • Typically 30 detectors and only one slice
  • Each translation obtains data for 30 different angles. This allows fewer rotations
  • Parallel ray geometry
  • more scatter effects
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

3G CT Scanner

A
  • “rotate/rotate” geometry
  • Typically 700 to 1000 detectors
  • Fan-beam geometry
  • broad beam measurements-more scatter
  • Rotating anode tube
  • Tube and detectors co-rotate
  • Detector collimation can reduce scatter effects
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

4G CT scanner

A
  • “rotate/stationary”
  • Typically 700-2400 stationary detectors
  • fan-beam geometry
  • broad beam measurements-more scatter
  • large air gap to reduce scatter
  • rotating anode tube around patient
  • Each detector forms a view as the tube moves across and behind the patient
  • Detector collimation is minimal to allow large angular acceptance
  • Tube moves about 0.05 deg between rays
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

5G CT Scanner

A
  • Electron beam (stationary detectors and tube)
  • basically 4G geometry
  • focal spot is swept on anode to move the x-ray fan beam
  • can sweep in 50 ms
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

Picker Slip Rings

A
  • Early scanners limited by rotation
  • needed to “rewind” due to cables
  • This limited scan speed, time between scans
  • Development of slip rings allowed the development of continuous rotation
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

Modern scanners

A
  • Nearly all modern scanners are 3G geometry due to lowest cost
  • 1-2 revolutions per second
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

6G CT scanners

A
  • Helical
  • First with single detector geometry, then with multi-detector
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

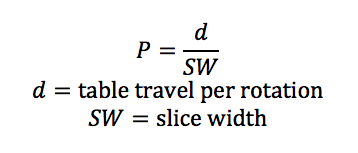

Slice Pitch

A

Single detector scanner

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

7G CT scanner

A
  • Multi-slice
  • Up to 256 slices
  • CT is becoming “cone beam”
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

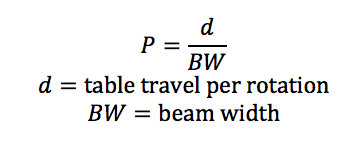

Beam Pitch

A

Multi-detector scanner

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

X-ray tubes in CT

A
  • 80-140 kVp, continuous excitation
  • fan beam or thin cone collimation
  • More filtering than projection radiography
    • copper followed by aluminum
    • better approximation to monoenergetic
  • Best contrast at about 125 kVp, thicker patients use higher kVp
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

CT detectors

A
  • Most are solid state
    • scintillation crystal
    • solid state photo-diode
  • Original EMI head scanner had a water bag to reduce detector “afterglow” due to the NaI(th) crystals
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

Detectors Scatter and Efficiency

A
  • Scatter
    • Increasing scatter sensitivity: 1,2,3,4
    • gas detectors have low scatter sensitivity
  • Efficiency
    • Direct detection, scint-photomultiplier, scint-photodiode, gas detector
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

Detector Resolution

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

CT Detector Specifications

A
  • Single-slice scanners
    • Area: 1.0mm X 15.0 mm
    • Thick in 3G, thin in 4G and EBCT
  • Multi-slice scanners
    • Area: 1.0mm X 1.25 mm
    • Grouped in multiples of 1.25 mm
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

X-ray Source Effects

A
  • Use of a shaped x-ray filter (“bowtie”): head and body versions helps to reduce dose and the needed dynamic range of the detectors
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

Monoenergetic Model

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

CT Measurement

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

CT Basics

A

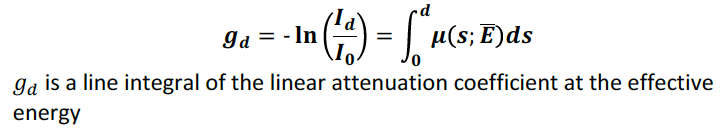

  • We want each voxel in the image to represent the linear attenuation coefficient of the tissue in that voxel
  • Attenuation in diagnostic range due to photoelectric effect and compton scattering
  • Attenuation coefficient mainly reflects tissue density
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

CT Number

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

CT Reconstruction Basice

A
  • It is easy to measure the attenuation coefficient is there is only one absorber
  • To measure an array of absorbers we have to make many measurements
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
Q

Picture of a Line

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
26
Q

Line parameters

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
27
Q

Line Integral Parametric Form

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
28
Q

Line Integral Set Form

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
29
Q

Physical Meaning of f(x,y) and g(l,\theta)

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
30
Q

What is g(l,\theta)?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
31
Q

Sinogram

A
  • A way to display the Radon Transform
  • CT data acquired for collection of l and \theta
  • CT scanners aquires a sinogram
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
32
Q

Backprojection

A
33
Q

Backprojection Summation

A
34
Q

Projection Slice Theorem

A
35
Q

Projection Slice Theorem Derivation

A
36
Q

Projection Slice Theorem Equations

A
37
Q

Exact Reconstruction Formulas

A
38
Q

Fourier Reconstruction

A
39
Q

Filtered Backprojection Equation

A
40
Q

Convolution Backprojection

A
41
Q

Three steps to convolution backprojection

A
42
Q

Ramp Filter Design

A
43
Q

Noise in CT Measurements

A
44
Q

CT Filter Algorithms

A
  • Ramp filter is called a high resolution filter because it does not limit the MTF at high spatial frequencies
  • Bone windows are even higher resolution filters. They artificially “boost” the high frequencies to produce edge enhancement
  • Shepp-Logan filter is called “standard” because it is a good compromise between noise filtering and resolution
  • Soft tissue filters smooth more heavilty
45
Q

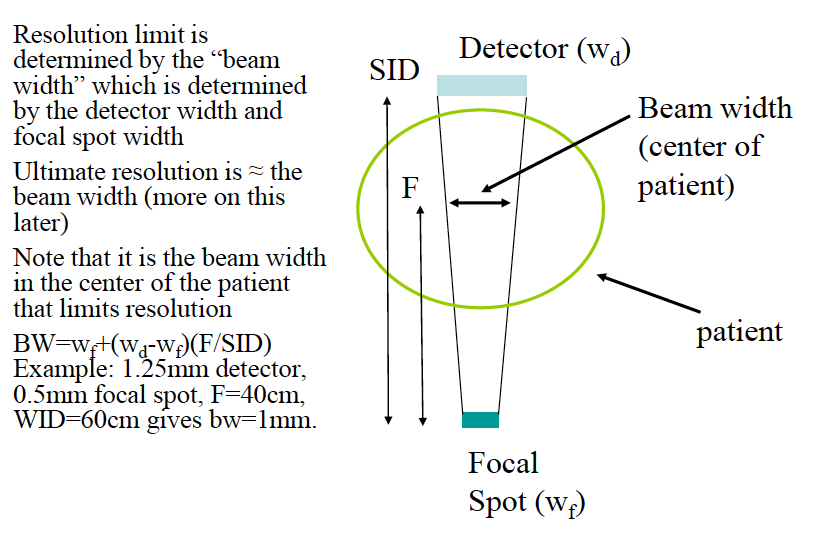

Factors Affecting CT Resolution

A
46
Q

Ramp FIlter Design

A
47
Q

Band Limiting and Aliasing

A
48
Q

CBP Approximations

A
49
Q

Definitions and Approximations

A
50
Q

If we increase the bandwidth

A

The noise increases as the square-root of the cube of the BW

51
Q

If we decrease T

A

it looks like the variance decreases, but if the detectors are reduced in size the <n>/T ratio will not change so be careful of joint effects</n>

52
Q

Increasing <n></n>

A

reduces noise but increases dose

53
Q

Increasing M

A

Reduces noise variance as long as the scan time increases. If M is increased and the scan time is the same, then <n> goes down per angle</n>

54
Q

Variance Equation

A
55
Q

Image Signal to Noise general equation

A
56
Q

SNR Equation

A
57
Q

SNR Equation 3G scanner

A
58
Q

Rule of Thumb

A
59
Q

Fan Beam Geometry Angle Relations

A
60
Q

Fan Beam Reconstruction Formula

A
61
Q

Fan Beam Projection and weighted backprojection

A
62
Q

Helical Pitch

A
  • Pitch < 1 implies overlapping and higher patient dose
  • Pitch > 1 implies extended imaging and reduced patient dose
63
Q

Helical CT Slice Profile Effects

A

The FWHM values increase with increasing pitch. The steep edges of the conventional scan indicate that the boundaries of the slice are sharply defined. A small structure is either within the slice, contributing fully to the image, or outside the slic, not contributing at all to the image. For spiral acquisition, the edges become less steep. This means that structures outsid eth enorminal slick thickness contribute to some extent to the image

64
Q

Radiation Dose

A
  • Dose - radiation energy transferred to an anatomic structure during x-ray scanning
  • Unit of dose is Gray (Gy), sometimes rad (0.01 Gy)
  • Typical values for a CT transaxial scan are in the range of 30 to 50 mGy.
65
Q

Multiple Scan Average Dose

A

By superimposition of all of these single dose profiles, the dose in the central protion of the total dose profile increases to a level that is 1.5 times the peak value for a single slice

The increased value is the MSAD

66
Q

Dose Measurement

A
  • Cylindrical Phantoms of 16 cm and 32 cm
  • Pencil ionization chamber-typically 100 mm long
  • Dosimeter
67
Q

CT Dose Index FDA

A
  • Average dose to central slice from doing 14 slices
  • Assumes that the slices are contiguous.
  • When slick thickness equals table movement, CTDI and MSAD are the same
68
Q

CTDI 100

A
  • The dose corresponds to the contribution from a fixed 100 mm interval from -50 mm to 50 mm irrespective of the slice thickness
  • provides a better relative dose index for modern protocols that use thinner slices
69
Q

Dose Length Produce (DLP)

A
  • Product of the CTDI_w value and the length of the body scanned
  • Useful quantity for comparing the total radiation to patients from various CT procudures
  • Useful in computing effective dose equivalent (EDE)
70
Q

Effective Dose Equivalent (EDE)

A
  • EDE is defined as the radiation dose, that if recieved by the entire body, provides the same radiation risk as does the higher dose received by the limited part of the body actually exposed
  • Formally, calculation is complicated
  • estimate the doses deposited in each type of organ and tissue which are then weighted according to radiosensitivity and summed
71
Q

Factors influencing radiation dose

A
  • Dose profile
  • Focal spot to center of rotation distance
  • pitch effect
  • focal spot wobble and tracking
  • choice of kVp on dose
  • tube current modulation
72
Q

Image Quality: High-Contrast Resolution

A
  • Depends of
    • x-ray spot size
    • detector collimation
    • angular and spatial sampling rates
    • table motion speed
    • reconstruction filter
73
Q

ACR CT accrediation phantom examines

A
  • positioning accuracy
  • CT # accuracy
  • Image thickness
  • Low contrast resolution
  • High contrast (spatial) resolution
  • CT number uniformity
  • Image noise
74
Q

CTDI FDA equation

A
75
Q

CTDI 100 equation

A
76
Q

CTI FDA vs 100 Dose Quoted to

A
  • FDA
    • perspex
  • 100
    • air
77
Q

CTDI W equation

A
78
Q

Volume CTDI equation

A

Medical Imaging (6 decks)

Brainscape helps you reach your goals faster, through stronger study habits.
© 2024 Bold Learning Solutions. Terms and Conditions
