70-345 Prep Flashcards
Q1
You need to recommend changes to the existing environment to meet the high-availability requirements for the mailbox databases.
What should you recommend?
A. Run the Set-MailBoxDatabase cmdlet.
B. Run the Set-DatabaseAvailabilityGroup cmdlet.
C. Run the Set-MailBoxServer cmdlet.
D. Run the Set-MailBoxDatabaseCopy cmdlet.
Correct Answer: C.Run the Set-MailBoxServer cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Scenario:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the servers in the London office manually.
We can use the Set-MailBoxServer cmdlet with the DatabaseCopyAutoActivationPolicy parameter or the Suspend-MailboxDatabaseCopy cmdlet with the -ActivationOnly parameter.
References:
https://docs.microsoft.com/en-us/powershell/module/exchange/mailbox-databases-and-servers/set- mailboxserver?view=exchange-ps
Q2
You begin to implement the Exchange Server 2016 servers and plan to decommission the Exchange
Server 2013 servers during the next six months.
You need to recommend which actions must be performed to support the planned changes for document collaboration.
You install Microsoft Office Online Server on a new server.
Which two cmdlets should you recommend running next? Each correct answer presents part of the
solution.
A. New-OfficeWebAppsFarm
B. Set-PartnerApplication
C. Set-MailboxServer
D. New-OfficeWebAppsHost
E. Set-OrganizationConfig
Correct Answer: AC
A. New-OfficeWebAppsFarm
C. Set-MailboxServer
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/mt170644(v=exchg.160).aspx
Q3
You need to recommend a solution for the users involved in the legal disputes.
What should you include in the recommendation?
A. a journal rule
B. an Outlook protection rule
C. an In-Place Hold
D. a Litigation Hold
Correct Answer: C. an In-Place Hold
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/ff637980(v=exchg.160).aspx
Q4
You deploy Layer 7 load balancers to the New York and London offices.
You are planning the namespace configuration that will be used once you complete the planned upgrade to Exchange Server 2016.
You need to recommend a solution to meet the connectivity requirements for the namespaces.
What should you recommend?
A. On the New York office servers, change the internal URLs to mail.fabrikam.com.
B. On all of the branch office servers, change the external URLs to $null.
C. On all of the branch office servers, change the external URLs to mail.fabrikam.com.
D. On the New York office servers, change the internal URLs to $null.
Correct Answer: C. On all of the branch office servers, change the external URLs to mail.fabrikam.com.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Scenario:
Fabrikam connectivity requirements include: The number of namespaces used for client access must be
minimized.
Each office is configured to use a separate namespace for client access. The New York office is
configured to use a namespace of mail.fabrikam.com.
Q5
You need to recommend changes to the messaging infrastructure. The changes must meet the connectivity requirements after the planned upgrade.
Which two actions should you recommend? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
- *A.** From the Mailbox servers, import the Edge Subscription file.
- *B.** On the Edge Transport Servers, start Edge Synchronization.
- *C.** On the Edge Transport servers, import the Edge Subscription file.
- *D.** On the Edge Transport servers, create an Edge Subscription file.
- *E.** On the Mailbox servers, restart the Microsoft Exchange Transport service.
Correct Answer: AE
A. From the Mailbox servers, import the Edge Subscription file.
E. On the Mailbox servers, restart the Microsoft Exchange Transport service.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Edge Subscriptions are used to populate the Active Directory Lightweight Directory Services (AD LDS)
instance on the Edge Transport server with Active Directory data. Although creating an Edge Subscription is
optional, subscribing an Edge Transport server to the Exchange organization provides a simpler
management experience and enhances antispam features.
To deploy an Edge Transport server and subscribe it to an Active Directory site, follow these steps:
Install the Edge Transport server role.
Prepare for the Edge Subscription:
On the Edge Transport server, create and export an Edge Subscription file by running the New-
EdgeSubscription cmdlet.
Copy the Edge Subscription file to a Mailbox server or a file share that’s accessible from the Active
Directory site containing your Mailbox servers.
Import the Edge Subscription file to the Active Directory site by running the New-EdgeSubscription
cmdlet on the Mailbox server.
Scenario: Fabrikam connectivity requirements include:
Connections for inbound and outbound email must be initiated and terminated from an Edge Transport
server in the perimeter network.
References: https://technet.microsoft.com/en-us/library/aa997438(v=exchg.160).aspx
QUESTION 6
You need to recommend changes to the existing environment to meet the high-availability requirements for the mailbox databases.
What should you recommend?
A. Run the Suspend-MailboxDatabaseCopy cmdlet.
B. Run the Update-MailboxDatabaseCopy cmdlet.
C. Deploy a file share witness to a branch office.
D. Modify the cluster resource properties.
E. Deploy a file share witness in Azure.
Correct Answer: A. Run the Suspend-MailboxDatabaseCopy cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:Scenario:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the
servers in the London office manually.
We can use the Suspend-MailboxDatabaseCopy cmdlet with the -ActivationOnly parameter.
Q7
HOTSPOT
You need to configure a data loss prevention (DLP) policy to meet the compliance and security
requirements.
How should you configure the policy rule? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Scenario: If a user enters a Social Security number in an email message addressed to an external
recipient, the user must receive a notification before sending the message. If the user sends the message,
the message must not be delivered. A compliance officer must be notified of the violation.
Q8
HOTSPOT

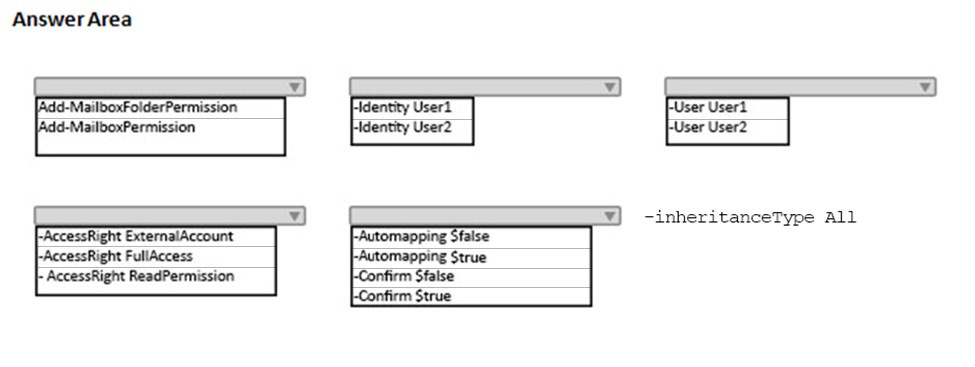

You need to recommend a solution to resolve the security alert issue encountered by the Paris office users after the planned upgraded.
Which command should you recommend? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Q9
HOTSPOT
You need to recommend how many database availability groups (DAGs) and how many namespaces must be added to the site resilience solution to meet the availability requirements.
How many namespaces and DAGs should you recommend adding? To answer, select the appropriate
options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Box 1: Number of namespaces: Four
Box 2: Number of Dags: Two
Depending on your architecture and infrastructure you have two choices:
These choices are tied to the DAG architecture.
Deploy a unified namespace for the site resilient datacenter pair (unbound model).
In an unbound model, you have a single DAG deployed across the datacenter pair.
Deploy a dedicated namespace for each datacenter in the site resilient pair (bound model).
In a bound model, multiple namespaces are preferred, two per datacenter (primary and failback
namespaces), to prevent clients trying to connect to the datacenter where they may have no connectivity.
As its name implies, in a bound model, users are associated (or bound) to a specific datacenter. In other words, there is preference to have the users operate out of one datacenter during normal operations and only have the users operate out of the second datacenter during failure events. There is also a possibility that users do not have equal connectivity to both datacenters. Typically, in a bound model, there are two DAGs deployed in the datacenter pair. Each DAG contains a set of mailbox databases for a particular datacenter; by controlling where the databases are mounted, you control connectivity.
From scenario:
The servers in the New York and London offices are members of a database availability group (DAG).
Fabrikam identifies the following high-availability requirements for the planned deployment:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the servers in the London office manually.
All client access connections to the London and New York offices must use load-balanced namespaces.
The load balancing mechanism must perform health checks.
References: https://blogs.technet.microsoft.com/exchange/2015/10/06/namespace-planning-in-exchange-
2016/
Q10
You remove the namespaces for the branch offices.
The branch office users report that they fail to connect to their mailbox by using Exchange ActiveSync from
their mobile device.
You need to ensure that all of the users can access their mailbox by using Exchange ActiveSync.
What should you do?
- *A.** Instruct the users to recreate the Exchange ActiveSync partnership on their device.
- *B.** Create a new device access rule.
- *C.** Run the Set-MobileDeviceMailboxPolicy cmdlet.
- *D.** Run the Set-ActiveSyncOrganizationSettings cmdlet.
Correct Answer: C. Run the Set-MobileDeviceMailboxPolicy cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
In Exchange 2016, you can create mobile device mailbox policies to apply a common set of policies or
security settings to a collection of users. After you deploy Exchange ActiveSync in your Exchange 2016
organization, you can create new mobile device mailbox policies or modify existing policies.
Use the Set-MobileDeviceMailboxPolicy cmdlet to modify mobile device mailbox policies.
Incorrect Answers:
D: Use the Set-ActiveSyncOrganizationSettings cmdlet to set the MicrosoftExchange ActiveSync settings
for the organization.
References:
https://technet.microsoft.com/en-us/library/bb123783(v=exchg.160).aspx
Q11
You need to recommend changes to the existing environment to meet the high-availability requirements for the mailbox databases.
What should you recommend?
A. Modify the cluster resource properties.
B. Run the Set-MailboxDatabase cmdlet.
C. Run the Set-MailboxServer cmdlet.
D. Deploy a file share witness to a branch office.
Correct Answer: C. Run the Set-MailboxServer cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Scenario:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the
servers in the London office manually.
We can use the Set-MailBoxServer cmdlet with the DatabaseCopyAutoActivationPolicy parameter.
References:
https://docs.microsoft.com/en-us/powershell/module/exchange/mailbox-databases-and-servers/setmailboxserver?
view=exchange-ps
Q12
You need to recommend changes to the existing environment to meet the high-availability requirements for
the mailbox databases.
What should you recommend?
A. Run the Set-MailBoxDatabase cmdlet.
B. Run the Set-DatabaseAvailabilityGroup cmdlet.
C. Run the Suspend-MailboxDatabaseCopy cmdlet.
D. Deploy a file share witness to a branch office.
Correct Answer: C. Run the Suspend-MailboxDatabaseCopy cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the
servers in the London office manually.
We can use the Set-MailBoxServer cmdlet with the DatabaseCopyAutoActivationPolicy parameter or the
Suspend-MailboxDatabaseCopy cmdlet with the -ActivationOnly parameter.
Q13
You need to recommend changes to the existing environment to meet the high-availability requirements for
the mailbox databases.
What should you recommend?
A. Run the Set-MailBoxDatabase cmdlet.
B. Run the Update-MailboxDatabaseCopy cmdlet.
C. Run the Suspend-MailboxDatabaseCopy cmdlet.
D. Deploy a file share witness in Azure.
Correct Answer: C. Run the Suspend-MailboxDatabaseCopy cmdlet.
Section: none
Explanation
Explanation/Reference:
Explanation:
Mailbox databases that contain mailboxes for the New York office users must only be activated on the
servers in the London office manually.
We can use the Set-MailBoxServer cmdlet with the DatabaseCopyAutoActivationPolicy parameter or the
Suspend-MailboxDatabaseCopy cmdlet with the -ActivationOnly parameter.
Q1
After deploying new servers, you configure the development applications to send email notifications by using a new server that runs Exchange Server 2016.
You need to reduce the likelihood that the email messages will be identified incorrectly as spam.
What should you do?
- *A.** On the new server run, the Set-TransportConfig cmdlet and specify the -InternalSMTPServers parameter.
- *B.** Create a new internal relay accepted domain.
- *C.** Upgrade EdgeEX to Exchange Server 2016.
- *D.** On the new server run, run the Set-TransportServer cmdlet and specify the -
- *AntiSpamAgentsEnabled** parameter.
Correct Answer: A. On the new server run, the Set-TransportConfig cmdlet and specify the -InternalSMTPServers
parameter.
Section: (none)
Explanation
Explanation/Reference:
References:
http://www.techieshelp.com/exchange-2013-enable-anti-spam/
Q2
You are planning the deployment of the Exchange servers.
You need to recommend which configurations must be performed after the installation of Exchange Server
2016 to ensure that the users can access the mailboxes without receiving error messages.
Which two actions should you recommend? Each correct answer presents part of the solution.
A. Add the new server to the Exchange Servers group.
B. Create a Send сonnector.
C. Import the certificate from EX3 and assign the certificate.
D. Configure the virtual directory URLs.
E. Create a Receive сonnector.
Correct Answer: CD
C. Import the certificate from EX3 and assign the certificate.
D. Configure the virtual directory URLs.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/EN-US/library/mt634322(v=exchg.160).aspx
Q3
You need to meet the connectivity requirement for the Exchange ActiveSync clients after the planned upgrade.
What should you do?
A. Modify the EdgeTransport.exe.config file.
B. Run the Set-TransportConfig cmdlet.
C. Run the Set-ActiveSyncMailboxPolicy cmdlet.
D. Modify the Web.config file.
Correct Answer: D. Modify the Web.config file.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/hh529949(v=exchg.150).aspx
Q4
DRAG DROP
You need to recommend which actions must be performed to upgrade the organization to Exchange Server 2016. The solution must meet the availability requirements.
Which five actions should you recommend be performed in sequence? To answer, move the appropriate
actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:
Section: (none)
Explanation
Explanation/Reference:
Q5
HOTSPOT
You need to meet the compliance requirements for the creation of new mailboxes after the planned upgrade.
What command should you run? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
https://technet.microsoft.com/en-us/library/bb123981(v=exchg.160).aspx
Q6
You need to ensure that members of a group named Relecloudadmins can create user accounts and mailboxes for new employees by using Exchange Admin Center (EAC) after the planned upgrade.
What should you do first?
A. Run the New-ManagementRole cmdlet.
B. Run the New-ManagementRoleAssignment cmdlet.
C. Run setup.exe and specify the /PrepareDomain parameter.
D. Run setup.exe and specify the /PrepareAD parameter.
Correct Answer: B. Run the New-ManagementRoleAssignment cmdlet.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd335193(v=exchg.160).aspx
Q7
DRAG DROP
You need to prevent all of the users from deleting certain email messages after the planned upgrade. The solution must meet the compliance requirements.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:
Section: (none)
Explanation
Explanation/Reference:
Q1
You need to recommend a solution that meets the security requirements for the mailbox databases.
What should you include in the recommendation?
A. Resilient File System (ReFS)
B. Transparent Data Encryption (TDE)
C. BitLocker Drive Encryption (BitLocker)
D. Encrypting Files System (EFS)
Correct Answer: C. BitLocker Drive Encryption (BitLocker)
Section: (none)
Explanation
Explanation/Reference:
References:
http://blogs.technet.com/b/exchange/archive/2015/10/20/enabling-bitlocker-on-exchange-servers.aspx

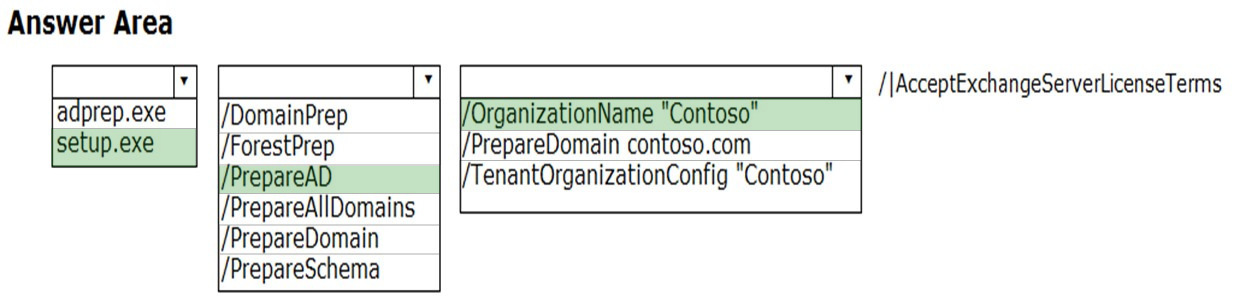

Q2
HOTSPOT
You need to instruct the Active Directory administrators how to prepare the Active Directory environment to support the planned Exchange Server 2016 deployment.
What command should you instruct administrators to run? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/bb125224(v=exchg.160).aspx
Q3
DRAG DROP
You need to configure the Exchange Server organization to support the security requirements for Calendar sharing.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd335047(v=exchg.150).aspx
Q4
You need to recommend a solution that meets the security requirements for the tablets.
Which two objects should you include in the recommendation? Each correct answer presents part of the solution.
A. a mobile device mailbox policy
B. an Outlook Web App policy
C. a data loss prevention (DLP) policy
D. a device access rule
Correct Answer: BD
B. an Outlook Web App policy
D. a device access rule
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Scenario: Users must be able to access Outlook on the web internally and externally from their tablet.
Users must be able to configure their tablet to synchronize email by using Autodiscover.
Users must be able to access their mailbox by using Exchange ActiveSync on the company-approved
tablets only
Q5
HOTSPOT
You need to configure DAG01 to meet the availability requirements.
What command should you run? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd297934(v=exchg.160).aspx
https://technet.microsoft.com/en-us/library/dd979790(v=exchg.150).aspx
Q6
You plan to configure the Exchange organization for site failovers.
You need to recommend how many certificates must be deployed to meet the availability requirements and
the security requirements.
What is the minimum number of certificates you should recommend deploying?
A. one
B. two
C. three
D. four
Correct Answer: C. three
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Some services, such as Outlook Anywhere and Exchange ActiveSync, require certificates to be configured
on your Exchange 2016 server.
From scenario: Security Requirements
Contoso identifies the following security requirements for the planned deployment:
Users must be able to access their mailbox by using Exchange ActiveSync on the company-approved
tablets only.
Email messages sent from the users in the human resources department of Contoso must be protected
by using AD RMS, regardless of the mail client.
Email messages sent to the users in the fabrikam.com SMTP domain must be encrypted automatically.
And others
Exchange Server mailbox databases must be encrypted while at rest.
Users must be prevented from using Outlook on the web while they are offline.
Contoso users must be able to share Calendar details with approved external domains only.
Whenever possible, client computers must be directed to the same Exchange server for log collection.
References:
https://technet.microsoft.com/en-us/library/mt441782(v=exchg.150).aspx
Q7
You need to recommend a load balancing solution that meets the availability requirements.
Which load balancing solution should you recommend?
- *A.** a Layer-7 load balancer with a single namespace and without session affinity
- *B.** a Network Load Balancing (NLB) cluster
- *C.** DNS round robin
- *D.** a Layer-4 load balancer with multiple namespaces and without session affinity
Correct Answer: A. a Layer-7 load balancer with a single namespace and without session affinity
Section: (none)
Explanation
Explanation/Reference:
Explanation:
From Scenario:
Contoso identifies the following high-availability requirements for the planned deployment:
The network load balancer must be able to probe the health of each workload.
Load balancers that work on the Layer 7 of OSI model are intelligent. Layer 7 load balancer is aware of the
type of traffic passing through it. This type of load balancer can inspect the content of the traffic between
the clients and the Exchange server. From this inspection, it gets that results and uses this information to
make its forwarding decisions. For example, it can route traffic based on the virtual directory to which a
client is trying to connect, such as /owa, /ecp or /mapi and it can use a different routing logic, depending on
the URL the client is connecting to. When using a Layer 7 load balancer, you can also leverage the
capabilities of Exchange Server 2016 Managed Availability feature. This built-in feature of Exchange
monitors the critical components and services of Exchange server and based on results it can take actions.
Note: Layer 7 load balancer can use this to detect functionality of critical services, and based on that
information decide if it will forward client connections to that node. If the load balancer health check
receives a 200 status response from health check web page, then the service or protocol is up and running.
If the load balancer receives a 403 status code, then it means that Managed Availability has marked that
protocol instance down on the Mailbox server.
Although it might look that load balancer actually performs a simple health check against the server nodes
in the pool, health check web page provides an information about workload’s health by taking into account
multiple internal health check probes performed by Managed Availability.
Incorrect Answers:
D: Load balancers that work on Layer 4 are not aware of the actual traffic content being load balanced.
References: http://dizdarevic.ba/ddamirblog/?p=187
Q8
You need to recommend a solution that meets the security requirements for the human resources users.
What should you include in the recommendation?
A. an Outlook protection rule
B. an Inbox rule
C. a transport rule
D. a TLS sender-domain filter list
Correct Answer: A. an Outlook protection rule
Section: (none)
Explanation
Explanation/Reference:
References:
https://docs.microsoft.com/en-us/exchange/outlook-protection-rules-exchange-2013-help
Q9
You need to recommend an NLB configuration that meets the availability requirements and the security requirements.
Which load balancing solution should you recommend?
A. Layer 7 load balancing with session affinity
B. Layer 4 load balancing without session affinity
C. Layer 4 load balancing with session affinity
D. Layer 7 load balancing without session affinity
Correct Answer: D. Layer 7 load balancing without session affinity
Section: (none)
Explanation
Explanation/Reference:
References:
https://blogs.technet.microsoft.com/exchange/2015/10/08/load-balancing-in-exchange-2016/
Q10
You need to recommend a solution that meets the security requirements for mobile devices.
Which two objects should you include in the recommendation?
Each correct answer presents part of the solution.
A. a device access rule
B. a mobile device mailbox policy
C. a data loss prevention (DLP) policy
D. an Outlook Web App policy
Correct Answer: AD
A. a device access rule
D. an Outlook Web App policy
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dn792010.aspx
https://technet.microsoft.com/en-us/library/dd297989(v=exchg.160).aspx
Q11
You run the Get-SendConnector cmdlet and you receive the following output.
You need to recommend which actions are required to secure email connectivity between the contoso.com
SMTP domain and the fabrikam.com SMTP domain.
Which two actions should you recommend? Each correct answer presents part of the solution.
A. Import a server certificate that has a subject name of ex01.contoso.com and a subject alternate name
of ex02.contoso.com.
B. Create an Outlook protection rule.
C. Import a server certificate that has a subject name of smtp.contoso.com.
D. Configure the TLSSendDomainSecureList parameter for the organization.
E. Modify the ConnectorType parameter for the Send connector.
Correct Answer: CD
C. Import a server certificate that has a subject name of smtp.contoso.com.
D. Configure the TLSSendDomainSecureList parameter for the organization.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-gb/library/bb123543(v=exchg.141).aspx
Q12
You need to configure the virtual directories for the Exchange Server organization.
Which three commands should you use? Each correct answer presents part of the solution.
A. Set-MapiVirtualDirectory -ExternalUrl
“https://office-online.contoso.com/hosting/discovery”
B. Set-ActiveSyncVirtualDirectory -ExternalUrl
“https://mail.contoso.com/Microsoft-Server-ActiveSync”
C. Set-WebServicesVirtualDirectory -ExternalUrl “https://mail.contoso.com/ews/exchange.asmx”
D. Set-AutodiscoverVirtualDirectory -ExternalUrl “https://autodiscover.contoso.com/autodiscover/
autodiscover.xml”
E. Set-OwaVirtualDirectory -ExternalUrl “https://mail.contoso.com/owa”
Correct Answer: BCD
B. Set-ActiveSyncVirtualDirectory -ExternalUrl
“https://mail.contoso.com/Microsoft-Server-ActiveSync”
C. Set-WebServicesVirtualDirectory -ExternalUrl “https://mail.contoso.com/ews/exchange.asmx”
D. Set-AutodiscoverVirtualDirectory -ExternalUrl “https://autodiscover.contoso.com/autodiscover/
autodiscover.xml”
Section: (none)
Explanation
Explanation/Reference:
Explanation:
B: Use the Set-ActiveSyncVirtualDirectory cmdlet to modify existing Microsoft Exchange ActiveSync virtual
directories that are used in Internet Information Services (IIS) on Exchange servers.
C: Use the Set-WebServicesVirtualDirectory cmdlet to modify existing Exchange Web Services virtual
directories that are used in Internet Information Services (IIS) on Microsoft Exchange servers.
D: Use the Set-AutodiscoverVirtualDirectory cmdlet to configure Autodiscover virtual directories that are
used in Internet Information Services (IIS) on Exchange servers.
Incorrect Answers:
A: Use the Set-MapiVirtualDirectory cmdlet to modify Messaging Application Programming Interface (MAPI)
virtual directories that are used in Internet Information Services (IIS) on Microsoft Exchange servers.
servers. A MAPI virtual directory is used by supported versions of Microsoft Outlook to connect to
mailboxes by using the MAPIHTTP protocol.
E: Use the Set-OwaVirtualDirectory cmdlet to modify existingOutlook on the web virtual directories that are
used in Internet Information Services (IIS) on Exchange servers.
https://technet.microsoft.com/en-us/library/bb123679(v=exchg.160).aspx
https://technet.microsoft.com/en-us/library/aa998601(v=exchg.160).aspx
Q1
HOTSPOT
You need to build a command to meet the compliance requirements for the regulation auditors.
How should you complete the command? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference
Q2
You need to recommend how many database availability groups (DAGs) and how many namespaces must be added to the site resilience solution to meet the availability requirements.
How many namespaces and DAGs should you recommend adding? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
From scenario:
The site resilience solution must follow the bound namespace model.
The forest contains a site in Houston and a site in London.
Litware plans to implement a site resilience solution ensuring that outbound email messages can be
delivered if one of the sites fails. The site resilience solution must allow all users to access their mailbox
if a server fails in each site.
Box 1: Four
Deploy a dedicated namespace for each datacenter in the site resilient pair (bound model).
In a bound model, multiple namespaces are preferred, two per datacenter (primary and failback
namespaces), to prevent clients trying to connect to the datacenter where they may have no connectivity
Box 2: Two
As its name implies, in a bound model, users are associated (or bound) to a specific datacenter. In other
words, there is preference to have the users operate out of one datacenter during normal operations and
only have the users operate out of the second datacenter during failure events. There is also a possibility
that users do not have equal connectivity to both datacenters. Typically, in a bound model, there are two
DAGs deployed in the datacenter pair. Each DAG contains a set of mailbox databases for a particular
datacenter; by controlling where the databases are mounted, you control connectivity.
Incorrect Answers:
Deploy a unified namespace for the site resilient datacenter pair (unbound model).
In an unbound model, you have a single DAG deployed across the datacenter pair.
Q3
You need to recommend a load balancing solution that meets the availability requirements.
Which load balancing solution should you recommend?
- *A.** a Layer-7 load balancer with a single namespace and without session affinity
- *B**. a Network Load Balancing (NLB) cluster
- *C.** DNS round robin
- *D.** a Layer-4 load balancer with multiple namespaces and without session affinity
Correct Answer: A
A. a Layer-7 load balancer with a single namespace and without session affinity
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Layer 7 load balancing benefits include:
Needs only a single IP address.
Inspects content and can direct traffic.
Provides notification of failed service that can be taken offline.
Handles load balancer SSL termination.
Distributes traffic at the application layer and understands the destination URL.
From scenario:
Load balancing must support the following functionalities:
Provide SSL termination
Remove failed Mailbox servers from the server pool.
Data collected by Managed Availability from Outlook on the web must be used.
Target server health must be configured as per-protocol so that only the affected client protocol is
directed to another server if a server fails.
References: https://docs.microsoft.com/en-us/exchange/architecture/client-access/load-balancing
Q4
All the research and development department users are members of a distribution group named rdev. Rdev receives an average of 2,000 email messages daily.
You need to ensure that email sent to the rdev distribution group meets the security requirements for confidential email. The solution must minimize administrative effort.
What should you do?
- *A.** Create linked mailboxes for users without security clearance.
- *B.** Create a transport rule that filters based on keyword predicates.
- *C.** Create mail contacts for users without security clearance.
- *D.** Edit the distribution group properties and enable moderation of the group.
Correct Answer: B. Create a transport rule that filters based on keyword predicates.
Section: (none)
Explanation
Explanation/Reference:
Actions in mail flow rules (also known as transport rules) specify what you want to do to messages that
match conditions of the rule.
References: https://technet.microsoft.com/en-us/library/aa998315(v=exchg.160).aspx
Q5
HOTSPOT
You need to assign user roles to two administrative users to meet the following requirements:
A user named AdminUser1 must be able to reset user account passwords.
A user named AdminUser2 must be able to create retention policies and message classifications.
The solution must meet the security requirements.
To which role should you assign each user? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference
Q6
You plan to create a new mailbox for the auditing department.
You need to recommend which task must be performed immediately after the mailbox is created. The solution must meet the compliance requirements.
What should you recommend?
A. Enable an archive for the new mailbox.
B. Place the new mailbox on Litigation Hold.
C. Run the Set-Mailbox cmdlet.
D. Run the Start-ManagedFolderAssistant cmdlet.
Correct Answer: C. Run the Set-Mailbox cmdlet.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
“Any new mailbox created for the auditing department must have a retention policy named Audit
immediately applied manually after the mailbox is created.”
We need to run the Set-Mailbox cmdlet to apply the retention policy.
Q7
You implement the load balancing solution.
You need to configure the health probes to meet the availability requirements.
Which URL should you configure for the probe?
A. https://mail.litware.com/owa/probe.htm
B. https://mail.litware.com/owa/healthcheck.htm
C. http://litware.com/owa/healthcheck.htm
D. http://litware.com/owa/probe.htm
Correct Answer: B. B.https://mail.litware.com/owa/healthcheck.htm
Section: (none)
Explanation
Explanation/Reference:
Q8
You need to recommend a solution that meets the security requirements for outbound email delivery.
What should you recommend?
A. Microsoft Azure Information Protection
B. data loss prevention (DLP) policies
C. Outlook protection rules
D. Active Directory Rights Management Services (AD RMS)
Correct Answer: D. Active Directory Rights Management Services (AD RMS)
Section: (none)
Explanation
Explanation/Reference:
Q9
You plan to configure the Exchange organization for site failovers.
You need to recommend how many certificates must be deployed to meet the availability requirements and the security requirements.
What is the minimum number of certificates you should recommend deploying?
A. one
B. two
C. three
D. four
Correct Answer: A. one
Section: (none)
Explanation
Explanation/Reference:
Q1
You have an Exchange Server 2016 organization.
The organization contains five Mailbox servers. The
servers are members of a database availability group (DAG). All of the databases in the DAG are replicated to all of the members.
You plan to perform scheduled maintenance on a Mailbox server named MBX3 that will place the server offline for up to an hour.
You need to ensure that any active databases on MBX3 are activated on other DAG members before
performing the maintenance.
Which cmdlet should you use?
A. Set-MailboxDatabaseCopy
B. Stop-DatabaseAvailabilityGroup
C. Resume-MailboxDatabaseCopy
D. Set-MailboxServer
Correct Answer: D. Set-MailboxServer
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Use the DatabaseCopyActivationDisabledAndMoveNow parameter.
References:
https://technet.microsoft.com/en-us/library/aa998651(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Q2
You have an Exchange Server 2016 organization.
The organization contains a database availability group (DAG).
You need to identify the number of transaction logs that are in replay queue.
Which cmdlet should you use?
A. Test-ServiceHealth
B. Test-ReplicationHealth
C. Get-DatabaseAvailabilityGroup
D. Get-MailboxDatabaseCopyStatus
Correct Answer: D. Get-MailboxDatabaseCopyStatus
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/bb691314(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Q3
Your company has a data center. The data center contains a server that has Exchange Server 2016 and the Mailbox server role installed. Outlook Anywhere clients connect to the Mailbox server by using the name outlook.contoso.com.
The company plans to open a second data center and to provision a database availability group (DAG) that spans both data centers.
You need to ensure that Outlook Anywhere clients can connect if one of the data centers becomes
unavailable.
What should you add to DNS?
A. one A record
B. two TXT records
C. two SRV records
D. one MX record
Correct Answer: A. one A record
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-gb/library/dd638104(v=exchg.150).aspx?f=255&MSPPError=-2147217396
Q4
HOTSPOT
You deploy a server named ex01.contoso.com that has Exchange Server 2016 installed.
You need to ensure that when users connect to the URL of http://ex01.contoso.com, they access
Outlook on the web over a secure connection.
How should you configure the Default Web Site? To answer, select appropriate options in the selected
area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Q5
Your company has two offices. The offices are located in San Francisco and Los Angeles. Each office contains a data center. Each data center has a local connection to the Internet.
You deploy an Exchange Server 2016 organization named Contoso and install three servers in each data center. All of the servers are members of a single database availability group (DAG). Each data center hosts 2,000 mailboxes that replicate to the other data center.
You create four records in DNS. The records are configured as shown in the following table.
You need to recommend a client access solution for the organization to meet the following requirements: When connecting from the Internet, all users must connect to the same namespace for Outlook on the Web.
If a connection to the Internet fails at one data center, all users must be able to access their mailbox from the Internet.
When connecting from the Internet, all user connections to Exchange ActiveSync must be balanced equally across both data centers.
What is the best recommendation to achieve the goal? More than one answer choice may achieve the goal.
Select the BEST answer.
A. In the San Francisco office, configure the internal URLs of the servers to use the internal URL of sfmail.contoso.com. In the Los Angeles office, configure the internal URLs of the servers to use the internal URL of lamail.contoso.com.
- *B.** In the San Francisco office, configure the external URLs of the servers to use the internal URL of sfmail.contoso.com. In the Los Angeles office, configure the internal URLs of the servers to use the external URL of lamail.contoso.com.
- *C.** Deploy a hardware-based load balancer to each office and configure all of the internal URLs to use
mail. contoso.com. - *D.** Deploy a hardware-based load balancer to each office and configure all of the external URLs to use
mail. contoso.com.
Correct Answer: D. Deploy a hardware-based load balancer to each office and configure all of the external URLs to use
mail.contoso.com.
Section: (none)
Explanation
Explanation/Reference:
References: http://www.msexchange.org/articles-tutorials/exchange-2016-articles/high-availability-recovery/
load-balancing-exchange-server-2016-part2.html
Q6
Your company has a data center in Miami and a data center in Orlando. Each data center is configured as an Active Directory site.
The network contains an Active Directory forest named fabrikam.com.
The company plans to deploy an Exchange Server 2016 organization that will contain the servers
configured as shown in the following table.
The servers will be configured in a single database availability group (DAG). Datacenter Activation
Coordination (DAC) mode will be enabled for the DAG.
All inbound email from the Internet will be routed through EX5.
You need to recommend a solution to ensure that users will continue to receive email messages if the
Miami data center fails.
Which two actions should you include in the recommendation? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
A. Create one mail exchanger (MX) record that has a priority of 10 and configure the record to point to
mx.fabrikam.com. Create a second MX record that has a priority of 100 and configure the record to
point to mx-backup.fabrikam.com.
B. Create one mail exchanger (MX) record that has a priority of 10 and a second MX record that has apriority of 100. Configure both MX records to point to mx.fabrikam.com.
C. Configure a host (A) record named mx.fabrikam.com and point mx.fabrikam.com to the IP address of EX5. Configure a host (A) record named mx-backup.fabrikam.com and point mx-backup.fabrikam.com to the IP address of EX6.
D. Configure a host (A) record named mx.fabrikam.com. Add the IP addresses of EX5 and EX6 to the record.
E. Modify the weight of the mx.fabrikam.com mail exchanger (MX) record.
Correct Answer: AC
A. Create one mail exchanger (MX) record that has a priority of 10 and configure the record to point to
mx.fabrikam.com. Create a second MX record that has a priority of 100 and configure the record to
point to mx-backup.fabrikam.com.
C. Configure a host (A) record named mx.fabrikam.com and point mx.fabrikam.com to the IP address of EX5. Configure a host (A) record named mx-backup.fabrikam.com and point mx-backup.fabrikam.com to the IP address of EX6.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Mail is delivered to the mail exchange server with the lowest preference number (highest priority), so the
MX record you use for mail routing should have the lowest preference number, typically 0 or High priority.
You can have multiple MX records each pointing to a different SMTP host.
References: https://www.microsoftpressstore.com/articles/article.aspx?p=2302522&seqNum=3
Q7
You have an Exchange Server 2016 organization.
You need to ensure that users in each department download an Offline Address Book (OAB) that only
contains the users in their department. The solution must ensure that all of the users can continue to see all the other users in the organization.
Which three actions should you perform? Each correct answer presents part of the solution.
A. Create an OAB for each department
B. Modify the properties for each user mailbox.
C. Create an address book policy (ABP) for each department.
D. Create an address list for each department.
E. Modify the properties of the default OAB.
F. Create an email address policy for each department.
Correct Answer: ABC
- *A.** Create an OAB for each department
- *B.** Modify the properties for each user mailbox.
- *C.** Create an address book policy (ABP) for each department.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/hh529942(v=exchg.150).aspx
https://technet.microsoft.com/en-us/library/hh529948(v=exchg.150).aspx
Q8
HOTSPOT
You are designing an Exchange Server 2016 organization. The organization will use a single namespace of mail.contoso.com for all client access protocols.
You plan to use load balancers.
You identify the following requirements for the load balancing solution:
The Edge Transport server log files must contain the original IP address of the SMTP hosts.
Clients must be able to connect only when they use the approved hostnames and the approved virtual directories.
You need to identify which type of load balancer meets each requirement.What should you identify?
To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
References:
http://pdfs.loadbalancer.org/Microsoft_Exchange_2016_Deployment_Guide.pdf Page 9-13
Q9
HOTSPOT
You have a hybrid Exchange Server 2016 organization.
Users use Outlook on the web. All mailboxes currently reside on-premises.
You have an internal public key infrastructure (PKI) that uses a certification authority (CA) named CA1.
Certificates are issued to users to sign and encrypted email messages.
You move a mailbox to Exchange Online and you discover that the mailbox fails to exchange signed or encrypted email messages from the on-premises mailbox users.
You need to ensure that all of the mailboxes that were moved to Exchange Online can send encrypted email messages to the on-premises mailboxes. The mailboxes must also be able to receive encrypted email messages from the on-premises mailboxes.
You export the required certificates to a file named Export.sst.
What command should you run next?
To answer, select appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
References:
http://blogs.technet.com/b/exchange/archive/2014/12/15/how-to-configure-s-mime-in-office-365.aspx
Q10
Your company has an Exchange Server 2016 organization named contoso.com.
You need to recommend a solution that meets following requirements:
A user named User1 must be able to send email messages by using an alias of sales@contoso.com in the From field.
Recipients of the messages must be prevented from the identifying the actual sender of the message.
User1 and a user named User2 must each receive a copy of replies to sales@contoso.com
What should you recommend?
- *A.** Create a distribution group named Sales that has an alias of Sales. Add User1 and User2 to the group. Assign the Send As permissions to User1.
- *B.** Create a shared mailbox named Sales that has an alias of Sales. Assign the Receive As permission to User1 and User2. Assign the Send As permissions to User1.
- *C.** Create a shared mailbox named Sales that has an alias of Sales. Assign the Receive As permission to User1 and User2. Assign the Send on Behalf permission to User1.
- *D.** Create a distribution group named Sales that has an alias of Sales. Add User1 and User2 to the group. Assign the send on Behalf permission to User1.
Correct Answer: A. Create a distribution group named Sales that has an alias of Sales. Add User1 and User2 to the group. Assign the Send As permissions to User1.
Section: (none)
Explanation
Explanation/Reference:
References:
http://exchangeserverpro.com/exchange-2010-send-as-permissions-distribution-group/
Q11
You have an Exchange Server 2016 organization. The organization contains several servers.
Users in the marketing department often send Information Rights Management (IRM)-protected email messages. The IRM-protected messages are excluded from eDiscovery searches.
You need to configure the Exchange Server organization to ensure that the contents of the mailboxes of the marketing department users are searched for all messages that contain the word ProjectX. The solution must prevent the email messages from being deleted permanently.
Your user account is a member of the required role group.
Which three actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
A. Run the New-Mailbox cmdlet
B. Run the New-MailboxSearch cmdlet
C. Run the Set-IRMConfiguration cmdlet
D. Run the Search-Mailbox cmdlet
E. Export the results from the discovery mailbox to a personal folders (PST) file, and then use Microsoft
Outlook to open the PST file.
F. Use Outlook on the web to open the discovery mailbox.
Correct Answer: BCE
B. Run the New-MailboxSearch cmdlet
C. Run the Set-IRMConfiguration cmdlet
E. Export the results from the discovery mailbox to
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dn440164(v=exchg.160).aspx?f=255&MSPPError=-2147217396
https://technet.microsoft.com/en-us/library/dd353189(v=exchg.160).aspx
Q12
HOTSPOT
Your company has an Exchange Server 2016 organization.
You plan to allow several users to access the mailboxes of the other users.
You need to ensure that a user named User1 can read and delete the email messages in the mailbox of a user named User2. User1 must add the mailbox of User2 manually to the Microsoft Outlook profile.
What command should you run? To answer, select the appropriate options in the answer area.
Hot Area
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/bb124097(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Q13
You are planning an Exchange Server 2016 organization. The organization will contain a Mailbox server named EX01.
Users will have primary SMTP email addresses in the following domains:
Contoso.com
Fabrikam.com
Cohowinery.com
Wingtiptoys.com
You need to add a DNS record to provide Autodiscover for each domain.
Which type of record should you create in each zone?
A. CERT
B. A
C. MINFO
D. PTR
E. LOC
F. MX
G. TXT
Correct Answer: B. A
Section: (none)
Explanation
Explanation/Reference:
Explanation:
To configure Autodiscover DNS records, you use either an A record, a CNAME record or an SRV record.
Preference being A as its most commonly used, if that’s not there choose SRV as this works where A is not
possible (certificate only has 1 SAN) and if that’s not there choose CNAME (can be used but can cause
compatibility issues and cert issues).
Q14
DRAG DROP
You need to configure a distribution group named CustomerService that has the following configurations:
A user named CSManager must be the only user allowed to add members to CustomerService.
All email messages sent to CustomerService must be approved by CSManager.
External users must be allowed to send email messages to CustomerService.
You configure CSManager as the group owner.
What should you configure in the Exchange admin center for each requirement? To answer, drag the
appropriate configurations to the correct requirements. Each configuration may be used once, more than
once, or not at all. You may need to drag the split bar, between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:
Explanation
Explanation/Reference:
References:
http://msexchangeguru.com/2015/10/19/groups/
Q15
You have an Exchange Server 2016 organization. The organization contains accepted domains for
contoso.com and litwareinc.com. The antimalware engine is enabled on Mailbox servers and uses the
default policy. Currently, you do not have any custom malware rules.
You need to notify internal senders when a malware attachment is detected. The rule must apply only when the recipient domain is contoso.com.
Which two cmdlets should you use? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
A. Set-MalwareFilterPolicy
B. New-MalwareFilterRule
C. New-MalwareFilterPolicy
D. Set-MalwareFilterRule
Correct Answer: BC
B. New-MalwareFilterRule
C. New-MalwareFilterPolicy
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dn306062(v=exchg.160).aspx?f=255&MSPPError=-2147217396
https://technet.microsoft.com/en-us/library/jj215680(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Q16
You have an Exchange Server 2016 organization. The organization contains three Mailbox servers. The servers are configured as shown in the following table.
You have a distribution group named Group1. Group1 contains three members. The members are
configured as shown in the following table.
You discover that when User1 sends email messages to Group1, all of the messages are delivered to EX02 first.
You need to identify why the email messages sent to Group1 are sent to EX02 instead.
What should you identify?
A. EX02 is configured as an expansion server.
B. The arbitration mailbox is hosted on EX02.
C. Site2 has universal group membership caching enabled.
D. Site2 is configured as a hub site.
Correct Answer: A. EX02 is configured as an expansion server
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/aa998825(v=exchg.150).aspx
Q17
Your network contains an Active Directory forest that has the site topology shown in the diagram.
You have an Exchange Server 2016 organization. The organization contains three servers. The servers are
configured as shown in the following table.
You have the users described as shown in the following table.
You need to ensure that any email messages sent from User1 to User3 are sent to EX02 first, and then
delivered to EX03.
What should you configure?
A. Site 2 as a hub site
B. EX02 as an expansion server
C. the Exchange cost for the site link from Site 2 to Site 3
D. the Exchange cost for the site link from Site 1 to Site 2
Correct Answer: A. Site 2 as a hub site
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/aa998825(v=exchg.150).aspx
Q18
HOTSPOT
You have an Exchange Server 2016 organization. The Active Directory sites are configured as shown in the following graphic.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
Section: (none)
Explanation
Explanation/Reference:
References: https://technet.microsoft.com/en-us/library/jj916681(v=exchg.150).aspx
https://technet.microsoft.com/en-us/library/aa996299(v=exchg.150).aspx?f=255&MSPPError=-2147217396
Q19
Your company has three offices. The offices are located in New York, London and Sydney. The offices connect to each other by using a WAN link. Each office connects directly to the Internet.
The company has an Exchange Server 2016 organization. The organization contains six Mailbox servers.
The servers are configured as shown in the following table.
Each office is configured to use a different Send connector to send email messages to the Internet.
You need to ensure that the servers route email messages that have Internet recipients through their respective site only.
What should you modify?
A. the permissions of each Send connector
B. the settings of the site links
C. the cost of each Send connector
D. the scope of each Send connector
Correct Answer: D. the scope of each Send connector
Section: (none)
Explanation
Explanation/Reference:
References:
https://msdn.microsoft.com/en-us/library/aa998662(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Q20
HOTSPOT
You have an Exchange Server 2016 organization.
The Active Directory sites are configured as shown in the following graphic.
Use the drop-down menus to select the answer choice that completes each statement based on the
information presented in the graphic.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Explanation: By default, all site links are transitive. This means that if Site A has a link to Site B, and Site B has a link to Site C, Site A is transitively linked to Site C. The transitive link between Site A and Site C is also known as a site-link bridge. A message sent from Site A to Site C would be sent directly to Site C.
In your Exchange organization, you may want to force all message delivery through a specific Active
Directory site. You can use the Shell to designate an Active Directory site as a hub site. When you do this, you cause additional overall overhead because more servers are involved in message delivery. For example, consider a message that’s sent from Site A to Site E. If the least-cost routing path is Site A-Site BSite C-Site D-Site E, and you designate Site C as a hub site, the message is relayed from Site A to Site C and then relayed from Site C to Site E.
Whenever a hub site exists along the least-cost routing path for message delivery, the messages are queued and are processed by the Transport service on Mailbox servers in the hub site before they’re relayed to their ultimate destination.
After the least-cost routing path is chosen, routing determines whether there’s a hub site along that routing path. If a hub site is configured, messages stop at a Mailbox server in the hub site before they’re relayed to the target destination.
References:
https://technet.microsoft.com/en-us/library/jj916681(v=exchg.160).aspx
Q21
HOTSPOT
You have an Exchange Server 2016 organization.
All users use Microsoft Outlook 2016.
You need to configure the Exchange Server organization to meet following requirements:
Users must be prevented from receiving a notification when they attempt to send an email message to distribution groups that contain less than 100 members.
Users must be notified before they send email messages to an unmonitored mailbox named Service1.
Which cmdlet should you run to meet each requirement? To answer, drag appropriate cmdlets to the correct requirements. Each cmdlet must be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/bb123981(v=exchg.160).aspx
https://technet.microsoft.com/en-gb/library/jj619307(v=exchg.150).aspx
Q22
DRAG DROP
Your company has an Exchange Server 2016 organization. The organization contains three servers and 2,000 mailboxes.
The organization audits all access to user mailboxes.
The company’s security policy has the following requirements:
Audit the name of each administrator who modifies the Exchange Server organization settings.
Reduce the amount of audit log information generated by a service account named Service1.
Create an audit entry when an administrator modifies the permissions of another administrative mailbox.
You need to identify which PowerShell cmdlets must be used to meet the requirements.
Which PowerShell cmdlet should you identify for each requirement? To answer, drag the appropriate
cmdlets to the correct requirements. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Note: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/ff696758(v=exchg.160).aspx
https://technet.microsoft.com/en-us/library/dd298169(v=exchg.160).aspx
https://technet.microsoft.com/en-us/library/dd335144(v=exchg.160).aspx
Q23
HOTSPOT
You run the Get-DlpPolicy cmdlet and you receive the following output.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the output.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Q24
HOTSPOT
You have an Exchange Server organization. The organization contains four servers. The servers configured as shown in the following table.
You plan to upgrade the organization to Exchange Server 2016.
You need to identify which servers have functionalities that can be fully achieved by using Exchange Server 2016.
What should you identify? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/jj619283(v=exchg.160).aspx
https://technet.microsoft.com/en-us/library/jj552408(v=exchg.160).aspx
Q25
HOTSPOT
You have an Exchange Server 2016 organization and a Microsoft Office 365 subscription configured in a hybrid deployment. The deployment contains 500 user mailboxes.
Users who have mailboxes in Office 365 report that they cannot view the availability information of users who have mailboxes in Exchange Server 2016.
You need to ensure that the users hosted in Office 365 can view the availability information of the
mailboxes hosted in on-premises Exchange Server.
Which command should you run on an Exchange Server? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
Q27
DRAG DROP
You have an Exchange Server 2016 organization.
You run the Microsoft Office 365 Hybrid Configuration Wizard and you move all the mailboxes to Exchange Online.
You need to ensure that all of the email services remain available after you remove the Exchange Server 2016 servers from the organization.
Which DNS records should you modify? To answer, drag the appropriate record types to the correct DNS zones. Each record type may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference
Q29
DRAG DROP
You have an Exchange Server 2010 organization. The organization has 500 mailboxes and three servers.
The servers are configured as shown in the following table.
EX10EDGE is located in the perimeter network. EX10CH has an Edge Subscription. All Internet mail flows through EX10EDGE.
You deploy an Exchange Server 2016 Mailbox server named EX16MBX to the organization. You deploy an Exchange Server 2016 Edge Transport server named EX16EDGE to the perimeter network.
You need to transition all Internet mail to flow through EX16EDGE. The solution must minimize disruptions to the mail flow.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Section: (none)
Explanation
Explanation/Reference:
Q30
You have three Hyper-V hosts that each have 20 processor cores and 64 GB of RAM. Nine virtual
machines are deployed to the hosts as shown in the following table.
Host1 is located in New York, Host2 is located in Los Angeles, and Host3 is located in Denver. None of the virtual machines use dynamic memory.
You plan to deploy a two-node Exchange Server 2016 database availability group (DAG) by using the virtual machines. Each node will have 12 processor cores and 24 GB of memory.
You are evaluating whether you can use the existing servers for the deployment or whether you must purchase additional servers.
You need to recommend where to place the Exchange servers. The solution must minimize costs.
What is the best recommendation to achieve the goal? More than one answer choice may achieve the goal.
Select the BEST answer.
- *A.** One Exchange server on Host1 and one Exchange server on a new Hyper-V host.
- *B.** One Exchange server on Host1 and one Exchange server on Host3.
- *C.** Both Exchange servers on Host1.
- *D.** One Exchange server on Host1 and one Exchange server on Host2.
- *E.** One Exchange server on Host2 and one Exchange server on Host3.
Correct Answer: A. One Exchange server on Host1 and one Exchange server on a new Hyper-V host.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
First, look at the CPU requirements for Exchange 2016.
“Exchange supports a virtual processor-to-logical processor ratio no greater than 2:1, although we
recommend a ratio of 1:1. For example, a dual processor system using quad core processors contains a total of 8 logical processors in the host system. On a system with this configuration, don’t allocate more than a total of 16 virtual processors to all guest virtual machines combined.”
Furthermore, the host operating system also needs 2 processors. source: https://technet.microsoft.com/en-us/library/jj619301(v=exchg.160).aspx
Host 1 uses 12 out of 20 cores
Host 2 uses 20 out of 20 cores
Host 3 uses 32 out of 20 cores
You need 12 cores, so Host 3 lacks the resources.
This leaves hosts 1 and 2.
Now, let’s look to the memory requirements:
“…using dynamic memory or memory overcommit features for Exchange isn’t supported.”
source: https://technet.microsoft.com/en-us/library/jj619301(v=exchg.160).aspx
Host 1 uses 20 out of 64 GB
Host 2 uses 48 out of 64 GB
Host 3 uses 44 out of 64 GB
You need 24 GB for each VM.
Only host 1 has the resources for it.
It is not recommended to put both VM’s on one host.
So, the answer should be: A.
Q32
HOTSPOT
You deploy an Exchange Server 2016 organization. The organization contains two servers. The servers are configured as shown in the following table.
The default self-signed certificates are installed on both servers.
All of the users in the organization work from home and from customer locations.
You purchase a Layer 7 hardware-based load balancer. You configure SSL bridging without session affinity for Outlook on the web connections. The load balancer has an internal fully qualified domain name (FQDN) of lb1.contoso.local.
DNS servers are configured to resolve mail.contoso.com names to the external IP address of the load balancer.
You need to recommend which names must be included in the certificates installed on the load balancers and the Exchange servers.
What should you recommend for each certificate? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
Q33
HOTSPOT
You are planning an Exchange Server 2016 organization. The organization will contain two servers. The servers will be configured as shown in the following table.
You plan to purchase an SSL certificate that contains the following names:
Mail.contoso.com
Mail.london.contoso.com
Mail.newyork.contoso.com
You plan to configure a solution for the sites in New York and London. DNS will resolve the names as shown in the following table.
You need to configure the client protocols to meet the following requirements:
Users who connect to their mailbox by using Outlook on the web must connect directly to a server in the site that hosts their mailbox.
All Exchange ActiveSync users must connect to the same namespace.
How should you configure the virtual directories? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
Q36
DRAG DROP
You have an Exchange Server 2016 organization. The organization contains 2,000 mailboxes.
You need to provide administrators with the ability to perform the following tasks:
An administrator named Admin1 must be able to create custom message classifications.
An administrator named Admin2 must be able to create retention tags.
Which management role group should you assign to each administrator? To answer, drag the appropriate role groups to the correct administrators. Each role group may be used once, more than once, or not at all.
You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Users who are members of the Records Management role group can configure compliance features, such
as retention policy tags, message classifications, transport rules, and more.
Q39
HOTSPOT
You have an Exchange Server 2016 organization. The organization contains 20 resource mailboxes.
You need to ensure that an administrator named Admin1 approves all of the meeting requests sent to the mailboxes.
What command should you run? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Box 1: Set-CalendarProcessing:
Use the Set-CalendarProcessing cmdlet to modify calendar processing options for resource mailboxes, which include the Calendar Attendant, resource booking assistant, and calendar configuration. Note that this cmdlet is effective only on resource mailboxes.
Box 2: - ResourceDelegates
The ResourceDelegates parameter specifies a comma-separated list of users who are resource mailbox delegates. Resource mailbox delegates can approve or reject requests sent to the resource mailbox.
Q41
DRAG DROP
You need to configure the Sender Policy Framework (SPF) for a domain named contoso.com to ensure that only the following senders are authorized to send email for contoso.com:
Hosts listed in the contoso.com MX records
IP addresses in the 131.107.1.0/24 subnet
How should you configure the DNS record for the SPF? To answer, drag the appropriate values to the
correct targets. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
A typical SPF TXT record for Office 365 has the following syntax: v=spf1 [|:] [include:]
Enforcement rule is usually one of the following:
-all Indicates hard fail. If you know all of the authorized IP addresses for your domain, list them in the SPF TXT record and use the -all (hard fail) qualifier. Also, if you are only using SPF, that is, you are not using DMARC or DKIM, you should use the -all qualifier. We recommend that you use always this qualifier.
The meet the requirement, “Hosts listed in the contoso.com MX records”, we need to use the MX option in the SPF record.
References: https://technet.microsoft.com/en-us/library/mt712724(v=exchg.150).aspx
Q42
HOTSPOT
Your company has an Exchange Server 2016 organization. The organization contains two Mailbox servers and one Edge Transport server.
You need to modify the anti-spam strategy of the organization to resolve the following issues:
Users in the marketing department report that most email messages identified as spam are legitimate.
Users in the human resources department report that they receive hundreds of email messages daily, which contain the phrase “Free Vacation”.
Which cmdlet should you use to resolve each issue? To answer, select the appropriate options in the answer area.
Note: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Box 1: Set-DistrutionGroup
Use the Set-ContentFilterConfig cmdlet to modify the content filter configuration on a Mailbox server or an Edge Transport server.
Box 2: Set-ContentFilterConfig
Content filtering evaluates inbound email messages by assessing the probability that the messages are legitimate or spam.
References: https://technet.microsoft.com/en-us/library/bb124739(v=exchg.160).aspx
Q43
HOTSPOT
You have an Exchange Server 2016 organization. The organization contains 5,000 mailboxes.
All of the users in the organization share their Calendar with the users in two domains named contoso.com and fabrikam.com.
You need to prevent the organization users from sharing their Calendar with the users in the contoso.com domain.
What command should you run? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Use the Set-SharingPolicy cmdlet to modify existing sharing policies that control how users inside your organization can share free/busy and contact information with users outside your organization.
This example modifies the sharing policy Fabrikam for Fabrikam.com, which is a domain outside your
organization. This policy allows users in the Fabrikam domain to see simple free/busy information. Set-SharingPolicy -Identity Fabrikam -Domains “mail.Fabrikam.com: CalendarSharingFreeBusySimple”
References: https://technet.microsoft.com/en-us/library/dd297931(v=exchg.160).aspx
Q44
HOTSPOT
You have an Exchange Server organization. The organization contains four servers. The servers configured as shown in the following table.
You plan to upgrade the organization to Exchange Server 2016.
You need to identify which functionalities from the current environment can be implemented in Exchange Server 2016.
What should you identify? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Box 1: No
Discontinued features from Exchange 2013 to Exchange 2016 include: The MAPI/CDO library has been replaced by Exchange Web Services (EWS), Exchange ActiveSync (EAS), and Representational State Transfer (REST)* APIs. If an application uses the MAPI/CDO library, it needs to move to EWS, EAS, or the REST APIs to communicate with Exchange 2016.
Box 2: Yes
Public folders are available in the following Outlook clients: Outlook on the web for Exchange 2016, Outlook 2007 or later, and Outlook for Mac.
Box 3: Yes
Content filtering evaluates inbound email messages by assessing the probability that the messages are legitimate or spam. Unlike other filtering technologies, the content filtering uses characteristics from a statistically significant sample of legitimate messages and spam to make its determination. Content filtering in Exchange Server 2016 is provided by the Content Filter agent, and is basically unchanged from Exchange Server 2010.
Box 4: No
In Exchange 2010, you use managed folders for messaging retention management (MRM). In Exchange 2016, managed folders aren’t supported. You must use retention policies for MRM.
References:
https: //technet.microsoft.com/en-us/library/jj619283(v=exchg.160).aspx
https: //technet.microsoft.com/en-us/library/mt577271(v=exchg.160).aspx
https: //technet.microsoft.com/en-us/library/bb124739(v=exchg.160).aspx
Q46
HOTSPOT
You have an Exchange Server 2016 organization named Contoso.
You create an organization relationship with a partner’s Exchange Server organization named Fabrikam. The users in Fabrikam can view the free/busy information of all the users in Contoso.
You need to ensure that the users in Fabrikam can view the custom Mail Tips configured in Contoso.
What command should you run in Contoso? To answer, select the appropriate options in the answer area.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
Explanation:
Box 1: Set-OrganizationRelationship
Use the Set-OrganizationRelationship cmdlet to modify existing organization relationships. Organization relationships define the settings that are used with external Exchange organizations to access calendar free/busy information or to move mailboxes between on-premises Exchange servers and Exchange Online as part of hybrid deployments.
Box 2, box 3:
The MailTipsAccessEnabled parameter specifies whether MailTips data for users in this organization are returned over this organization relationship. The accepted values are $true or $false. The default value is $false.
References:https://technet.microsoft.com/en-us/library/ee332326(v=exchg.160).aspx
Q47
DRAG DROP
You have an Exchange Server 2016 organization. The organization contains six servers. The servers are
configured as shown in the following table:
EX0l, EX02, ЕХ03, and EX04 are members of a database availability group (DAG) named DAG01.
The data center in New York fails.
You need to activate DAG01 in the London site.
Which three commands should you run in sequence? To answer, move the appropriate commands from the list of commands to the answer area and arrange them in the correct order.
Section: (none)
Explanation
Explanation/Reference:
References:
https://docs.microsoft.com/en-us/exchange/high-availability/manage-ha/datacenter-switchovers
Q48
DRAG DROP
You have an Exchange Server 2016 organization. The organization contains two Mailbox servers.
You have a database that is replicated to both servers. The database contains 500 mailboxes.
You add new volumes to the Mailbox servers.
You need to move all of the mailbox data to the new volumes. The solution must meet the following
requirements:
• Ensure that multiple copies of the mailbox data are available at all times.
• Minimize downtime for the mailbox users.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:
Section: (none)
Explanation
Explanation/Reference:
Explanation:
To meet the requirement, “Ensure that multiple copies of the mailbox data are available at all times”, we need to create a new database. This will leave the existing database and its replicas online. We can then create replicas of the new database so we have multiple copies of the new empty database. Mailboxes can then be moved to the new database. When all mailboxes have been moved to the new database, the old database and its replicas can be removed.
Q50
HOTSPOT
You have an Exchange Server 2010 organization.
You plan to upgrade to Exchange Server 2016.
You have two Active Directory sites configured as shown in the following table.
You have five servers configured as shown in the following table.
You have three users who have mailboxes configured as shown in the following table.
You have the following configurations:
The OWA virtual directory ExternalUrl on CAS01 and CAS02 is $null.
The OWA virtual directory ExternalUrl on EX03 is https://mail.contoso.com/owa.
For each of the following statements, select Yes if statements is true. Otherwise, select No.
Hot Area:
Section: (none)
Explanation
Explanation/Reference:
References:
https://blogs.technet.microsoft.com/exchange/2015/10/26/client-connectivity-in-an-exchange-2016-
coexistence-environment-with-exchange-2010/
Q51
HOTSPOT
A company named Contoso, Ltd. deploys Exchange Server 2016.
Contoso plans to establish a hybrid deployment between Exchange Server and a new Microsoft Office 365 tenant.
You need to identify which relative URL paths in the on-premises environment will be accessed by the Office 365 tenant.
What should you identify? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
References:
http://msexchangeguru.com/2015/05/21/e2013-hybrid-part-1/
Q52
HOTSPOT
You have an Active Directory forest named contoso.com that contains an Exchange Server 2016 organization named Contoso.
Contoso.com has a two-way forest trust with an Active Directory forest named fabrikam.com. The
fabrikam.com forest contains an Exchange Server 2016 organization named Fabrikam.
You need to ensure that the users in Contoso can access the free/busy information of all the users in
Fabrikam.
An administrator from Fabrikam runs the following command in the organization.
Get-MailboxServer | Add-ADPermission –Accessrights Extendedright –Extendedrights “ms-Exch- EPI-Token-Serialization” –User “CONTOSO\Exchange Servers”
What command should you run in Contoso? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/bb124122(v=exchg.160).aspx
Q55
DRAG DROP
Your company recently deployed Exchange Server 2016.
Users use a variety of mobile devices to access their mailbox, including iPhones and iPads.
You need to configure security for the users who connect to the corporate network by using their mobile device. The solution must meet the following requirements:
Users must be required to enter a complex password to unlock their device.
Only devices that run iOS 8 or later must be allowed to connect to the Exchange Server organization.
Users who fail to download the security settings defined by the organization must be prevented from accessing their mailbox.
Which cmdlet should you use for each requirement? To answer, drag the appropriate cmdlets to the correct requirements. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd876923(v=exchg.160).aspx
Q56
Your network contains the servers configured as shown in the following table.
You need to ensure that you can create the database availability group (DAG) successfully by using the New-DatabaseAvailabilityGroup cmdlet.
What should you do?
- *A.** Add the Exchange Trusted Subsystem group to the local Administrators group on FS01.
- *B.** Add the Delegated Setup role group to the local Administrators group on FS01.
- *C.** Install the Failover Clustering feature on FS01.
- *D.** Install the Remote Server Administration Tools feature on FS01.
Correct Answer: A. Add the Exchange Trusted Subsystem group to the local Administrators group on FS01.
Section: (none)
Explanation
Explanation/Reference:
References:
https://practical365.com/exchange-server/using-a-non-exchange-server-as-an-exchange-2013-dag-fileshare-
witness/
Q57
HOTSPOT
You have an Exchange Server 2016 organization. The organization contains three Mailbox servers named EX01, EX02, and EX03. The servers are members of a database availability group (DAG).
You have a mailbox database named DB01. DB01 is replicated to EX01 and EX02.
You need to add a replica of DB01 to EX03. The replica must meet the following requirements:
Transaction log files must not be applied to the replica for seven days after they are generated.
Transaction log files must be preserved for one day after they are applied to the database copy.
What command should you run? To answer, select the appropriate options in the answer area.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd298105(v=exchg.160).aspx
You have two Mailbox servers named EX1 and EX2 that have Exchange Server 2016 installed. The disks
on the servers are configured as shown in the following table.
Drive D on EX1 fails.
You plan to restore the mailbox databases on EX2 by using drive F.
You copy the contents of drive E on EX1 to drive F on EX2.
You need to restore the mailbox databases as soon as possible.
In which order should you perform the actions? To answer, move all actions from the list of actions to the answer area and arrange them in the correct order.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd876926(v=exchg.160).aspx
Q60
DRAG DROP
You have an Exchange Server 2016 organization. The organization has two Mailbox servers named EX01 and EX02. Both servers are members of a database availability group (DAG) named DAG01.
A mailbox database named DB01 is replicated to EX01 and EX02.
You plan to move the database file and the transaction logs of DB01 to a new location.
You create a new folder structure on EX01 and EX02 to store the DB01 database file and transaction logs.
You need to complete the move. The solution must minimize the amount of network traffic between EX01 and EX02.
You dismount DB01.
Which five actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
NOTE: More than one order of answer choices is correct. You will receive credit for any of the correct
orders you select.
Section: (none)
Explanation
Explanation/Reference:
References:
https://technet.microsoft.com/en-us/library/dd979782(v=exchg.160).aspx
